Model # DKO757 Official Modern Maid wall oven

Here are the diagrams and repair parts for Official Modern Maid DKO757 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

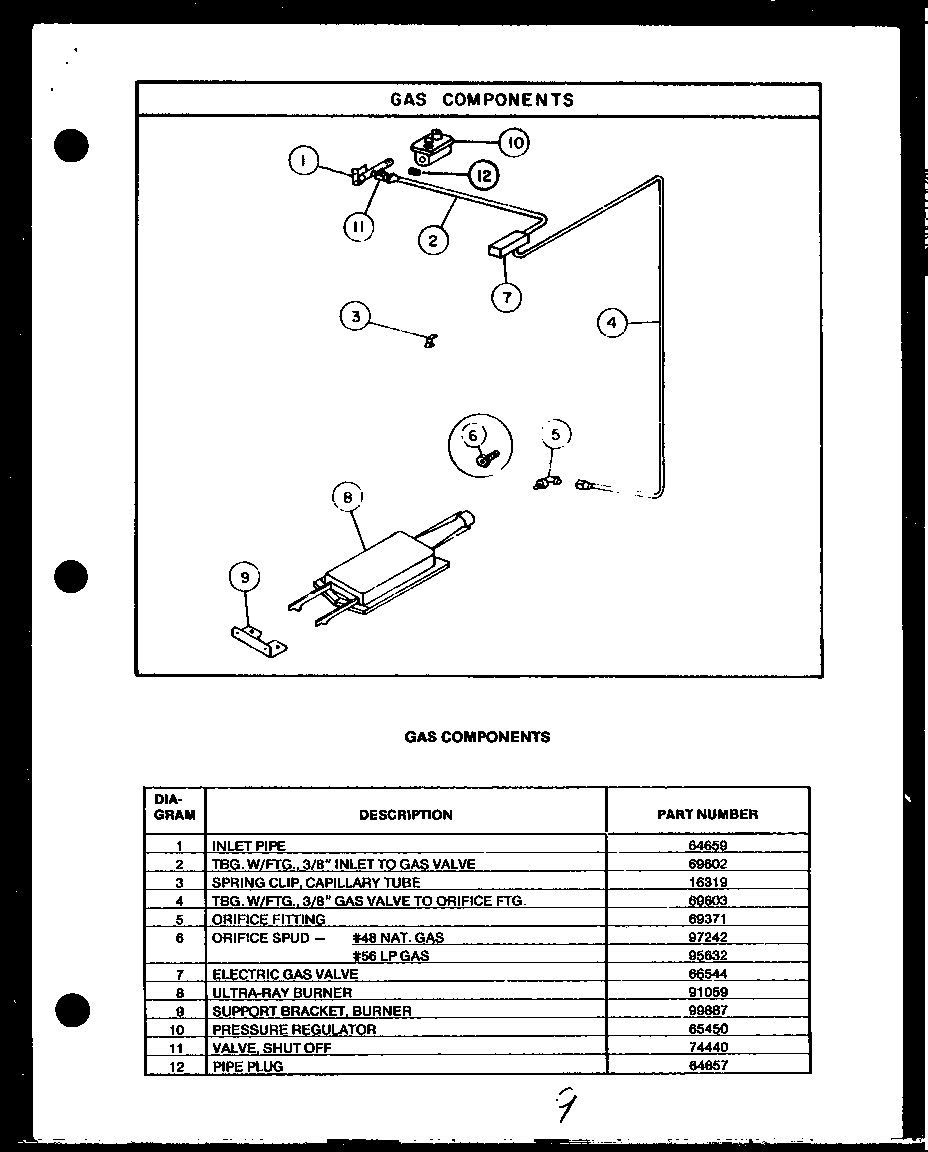

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |

Main Body 69725
#5

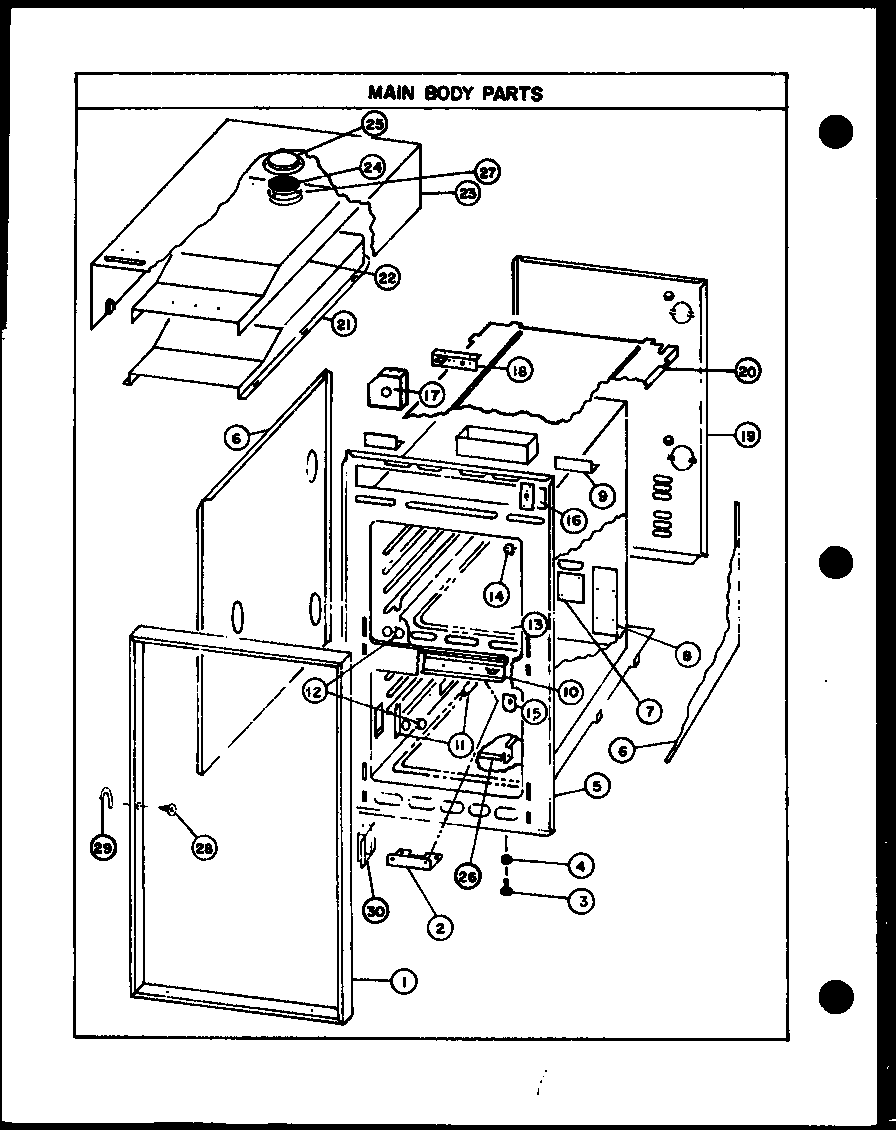

Main body parts diagram

Main body

Part #69725

The manufacturer no longer makes this part, and there's no substitute part

Cord Set 69733
#5

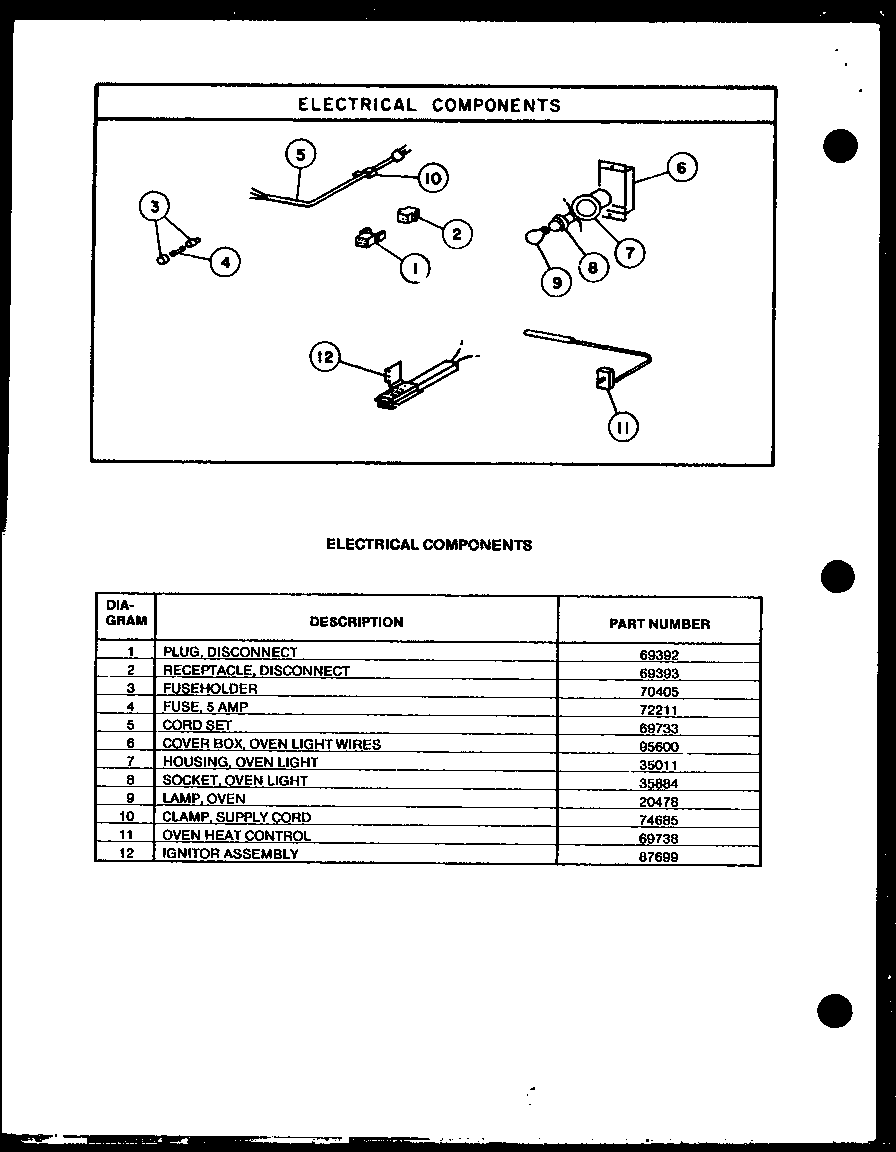

Electrical components diagram

Cord set

Part #69733

The manufacturer no longer makes this part, and there's no substitute part

Broil Pan Insert 98682
#8

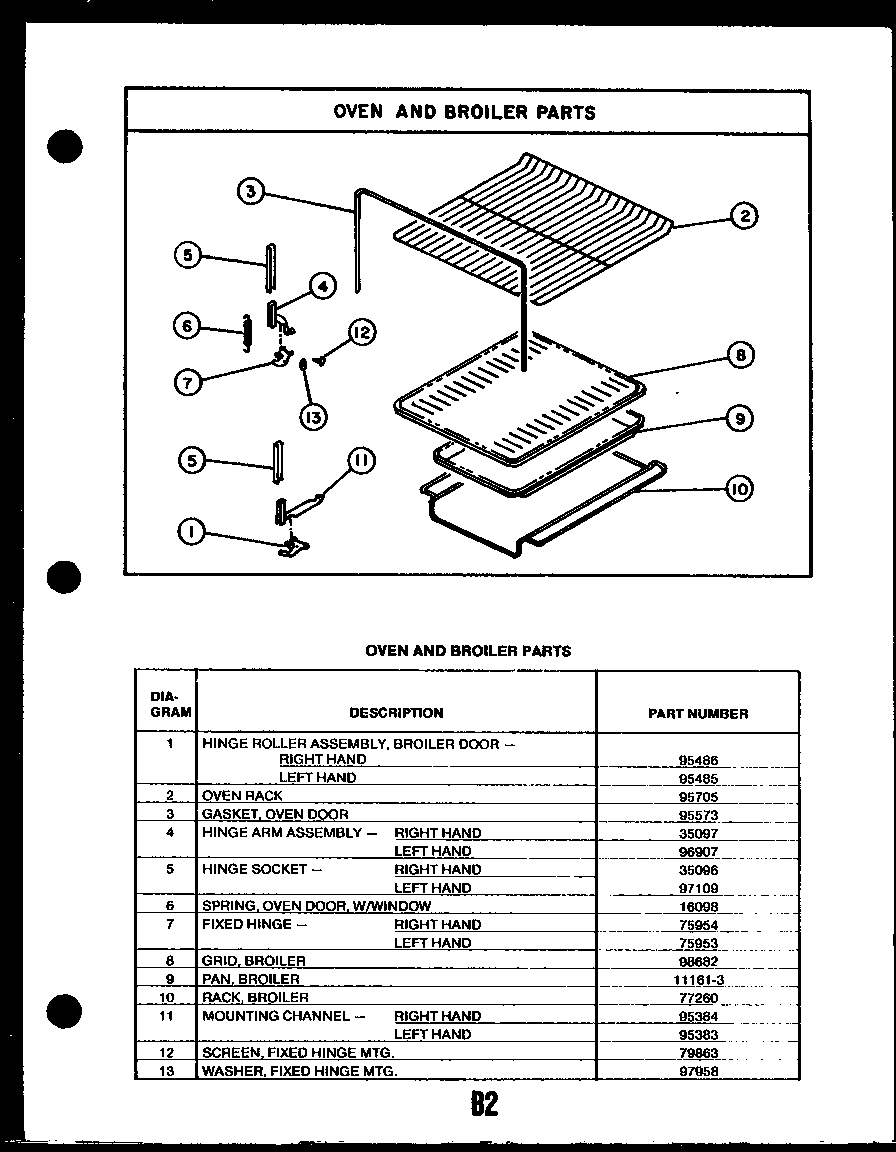

Oven and broiler parts diagram

Broil pan insert

Part #98682

The manufacturer no longer makes this part, and there's no substitute part

Box, Orifice 73889
#30

Main body parts diagram

Box, orifice

Part #73889

The manufacturer no longer makes this part, and there's no substitute part

Glass Panel, Outer 72971
#4

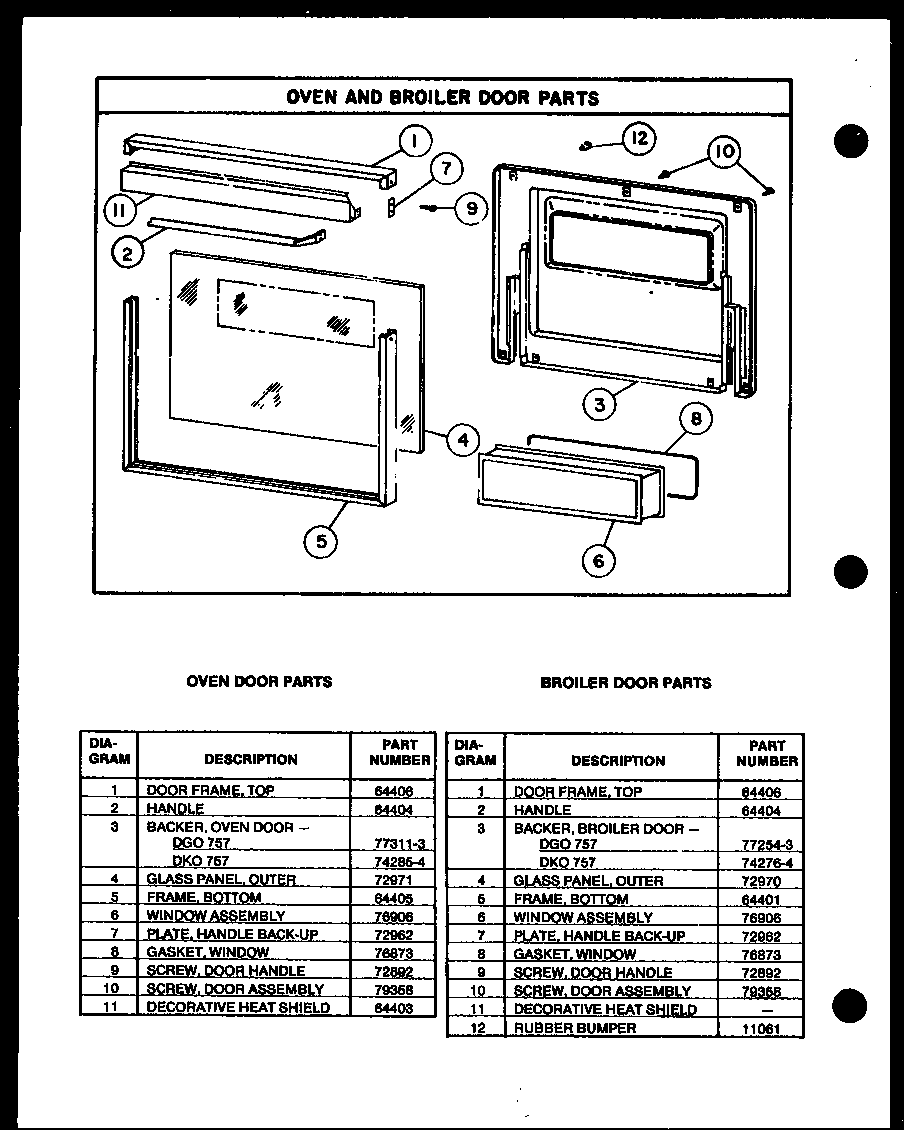

Oven and broiler door parts diagram

Glass panel, outer

Part #72971

The manufacturer no longer makes this part, and there's no substitute part

Decorative Heat Shield 64403
#11

Oven and broiler door parts diagram

Decorative heat shield

Part #64403

The manufacturer no longer makes this part, and there's no substitute part

Decorative Plate 69712
#3

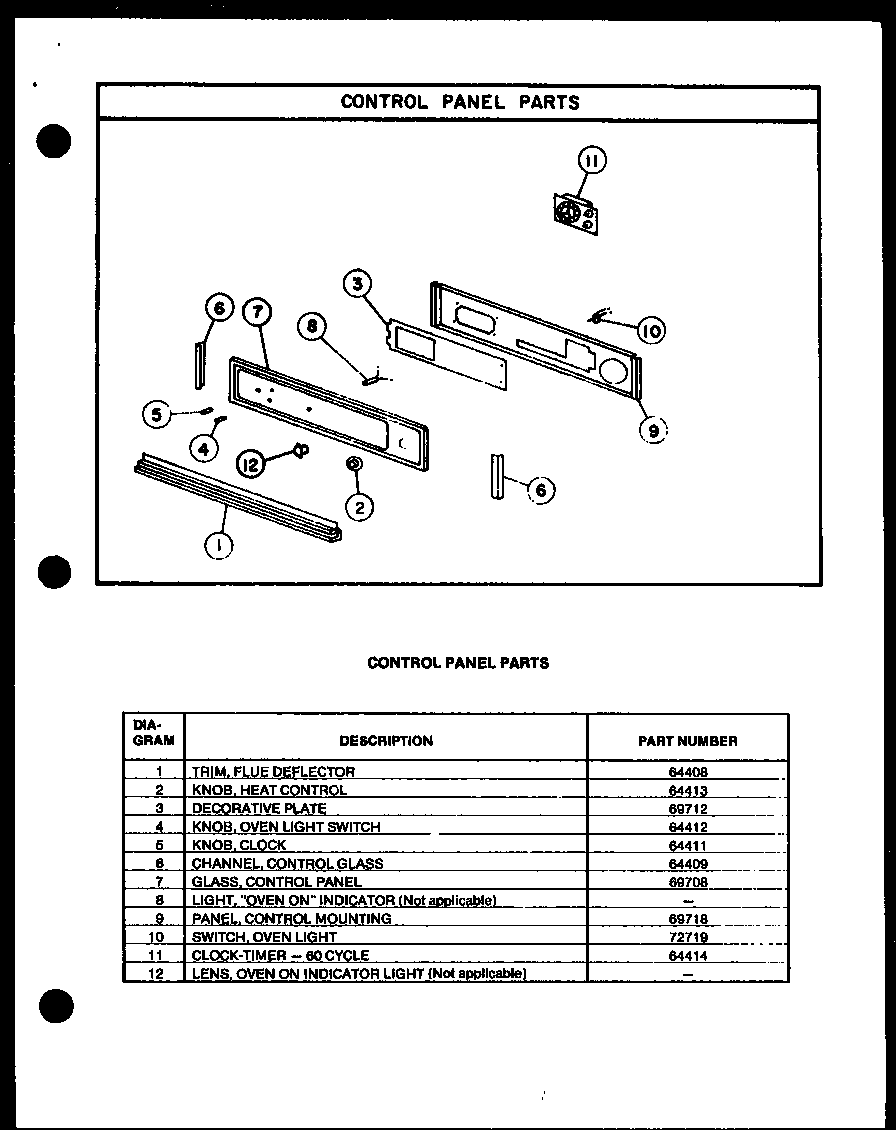

Control panel parts diagram

Decorative plate

Part #69712

The manufacturer no longer makes this part, and there's no substitute part

Knob, Heat Control 64413
#2

Control panel parts diagram

Knob, heat control

Part #64413

The manufacturer no longer makes this part, and there's no substitute part

Panel, Control Mounting 69718
#9

Control panel parts diagram

Panel, control mounting

Part #69718

The manufacturer no longer makes this part, and there's no substitute part

Bezel 64410
#1

Main body parts diagram

Bezel

Part #64410

The manufacturer no longer makes this part, and there's no substitute part
