Model # GHDA485N10CS Official GE dishwasher

Here are the diagrams and repair parts for Official GE GHDA485N10CS dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forGHDA485N10CS Dishwasher

  • Recess Sprng WR02X10585
    #801

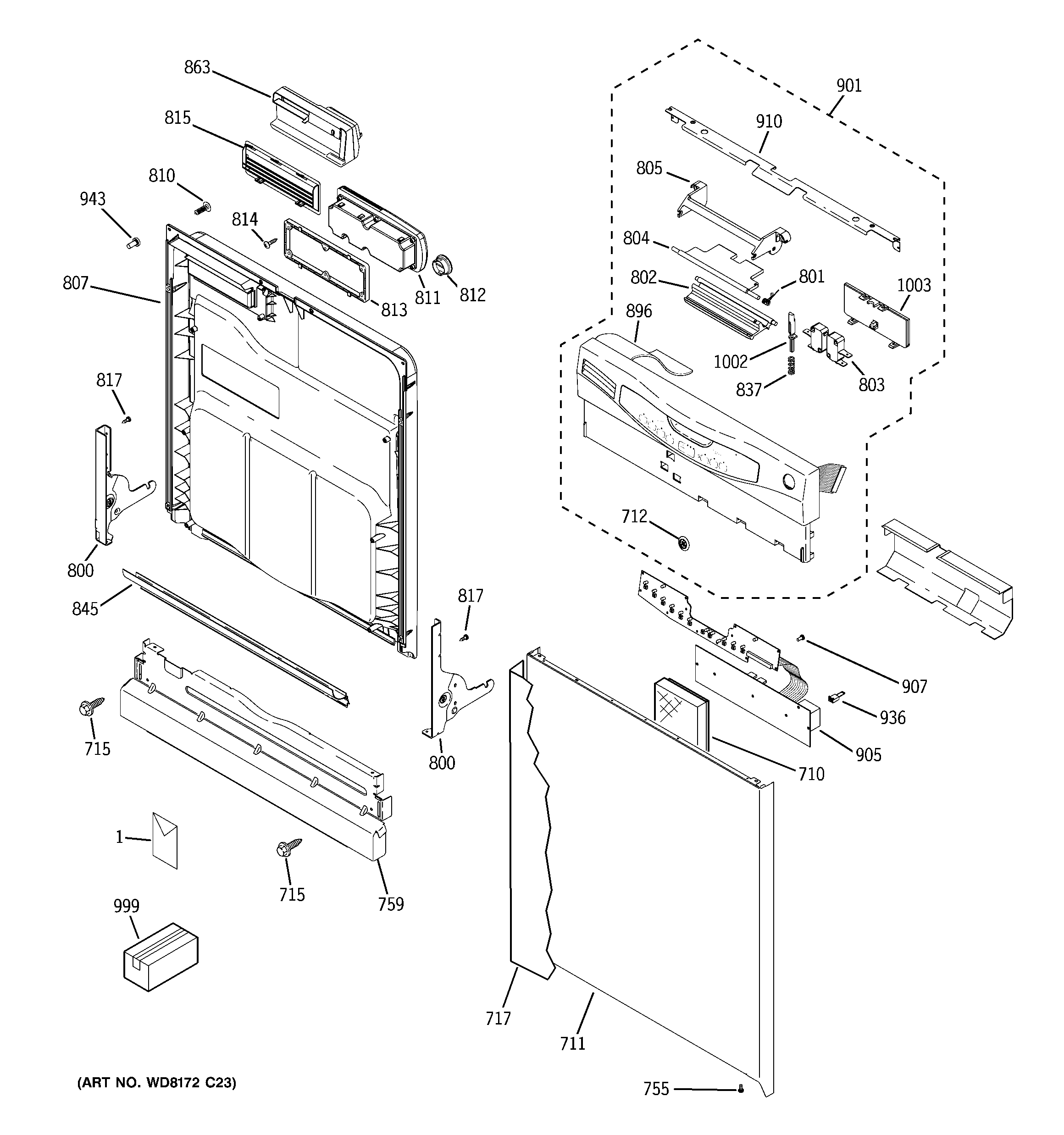

    Escutcheon & door assembly diagram

    Recess sprng

    Part #WR02X10585

    Replaced by #WR02X10585

    ?
    Manufacturer substitution
    This part replaces WR02X10585. Substitute parts can look different from the original.
    BEST SELLER
    $8.97
    10% OFF Phone Price : $9.97
    In Stock
  • Mechanism Assembly WD26X10033
    #310

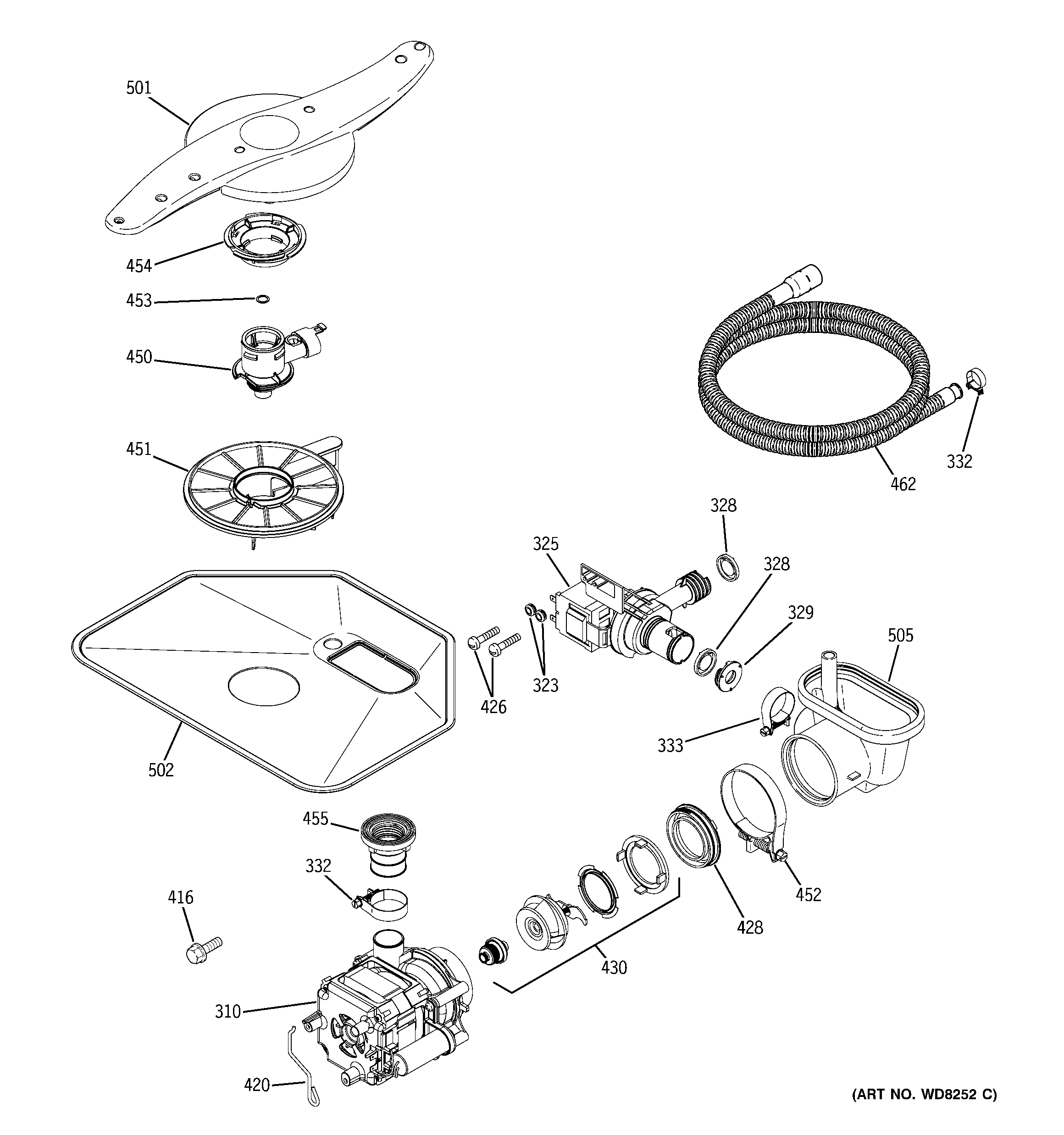

    Motor-pump mechanism diagram

    Mechanism assembly

    Part #WD26X10033

    Replaced by #WD26X10053

    ?
    Manufacturer substitution
    This part replaces WD26X10033. Substitute parts can look different from the original.
    BEST SELLER
    $258.44
    $12.00 OFF Phone Price : $270.44
    In Stock
  • Dishwasher User Interface WD21X10247
    #905

    Escutcheon & door assembly diagram

    Dishwasher user interface

    Part #WD21X10247

    BEST SELLER
    $92.16
    26% OFF Was : $123.76
    In Stock
  • Dishwasher Water Inlet Valve WD15X10003
    #744

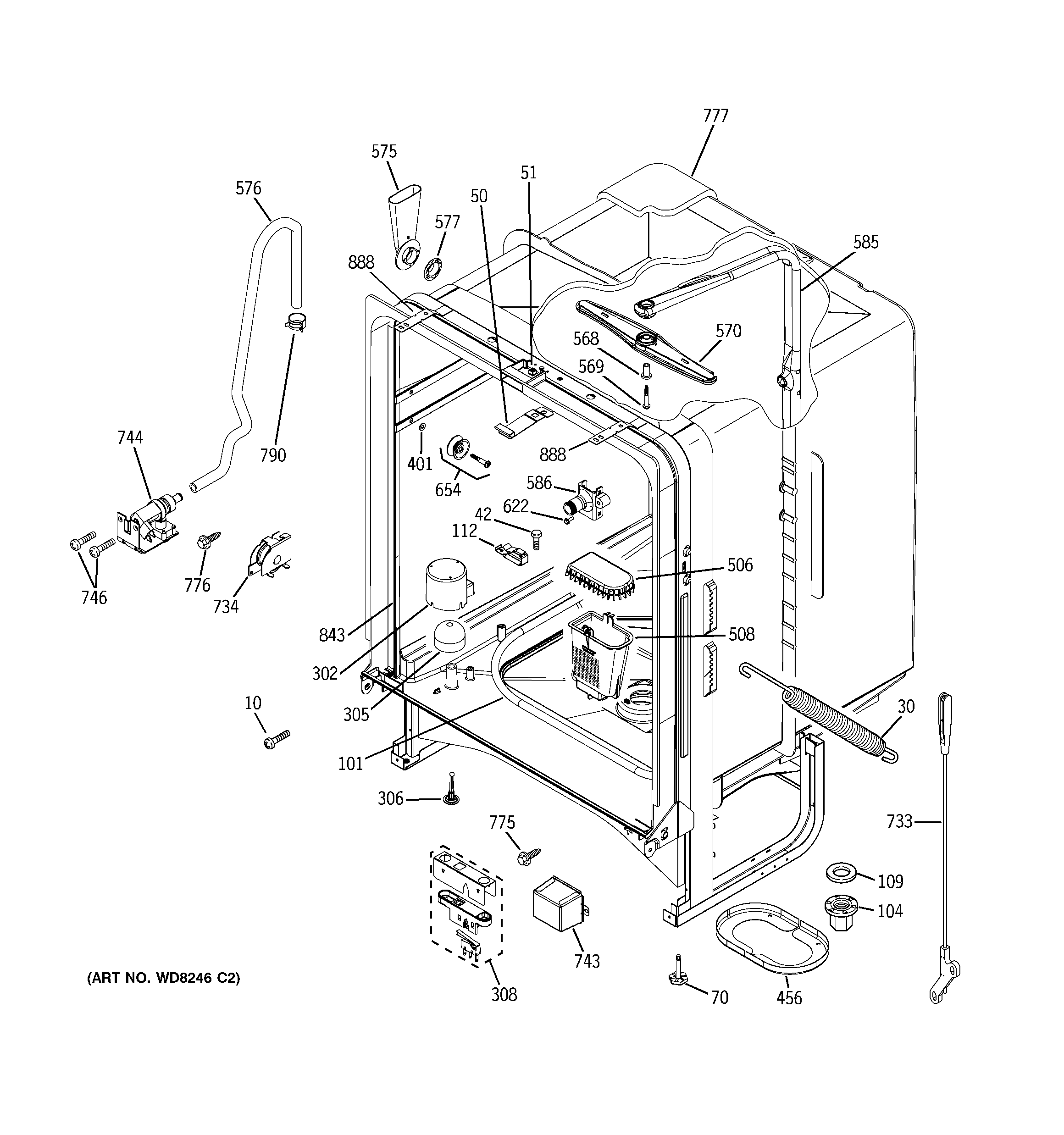

    Body parts diagram

    Dishwasher water inlet valve

    Part #WD15X10003

    BEST SELLER
    $46.65
    11% OFF Phone Price : $52.65
    In Stock
  • Dishwasher Pump Impeller Kit WD19X10038
    #430

    Motor-pump mechanism diagram

    Dishwasher pump impeller kit

    Part #WD19X10038

    BEST SELLER
    $52.52
    10% OFF Phone Price : $58.52
    In Stock
  • Dishwasher Door Handle Plunger Spring WD03X10026
    #837

    Escutcheon & door assembly diagram

    Dishwasher door handle plunger spring

    Part #WD03X10026

    This item is not returnable
    $9.64
    9% OFF Phone Price : $10.64
    In Stock
  • Sump Clamp WD01X1392
    #452

    Motor-pump mechanism diagram

    Sump clamp

    Part #WD01X1392

    Replaced by #WD1X1392

    ?
    Manufacturer substitution
    This part replaces WD01X1392. Substitute parts can look different from the original.
    $24.43
    20% OFF Phone Price : $30.43
    In Stock
  • Cap WD12X0344
    #652

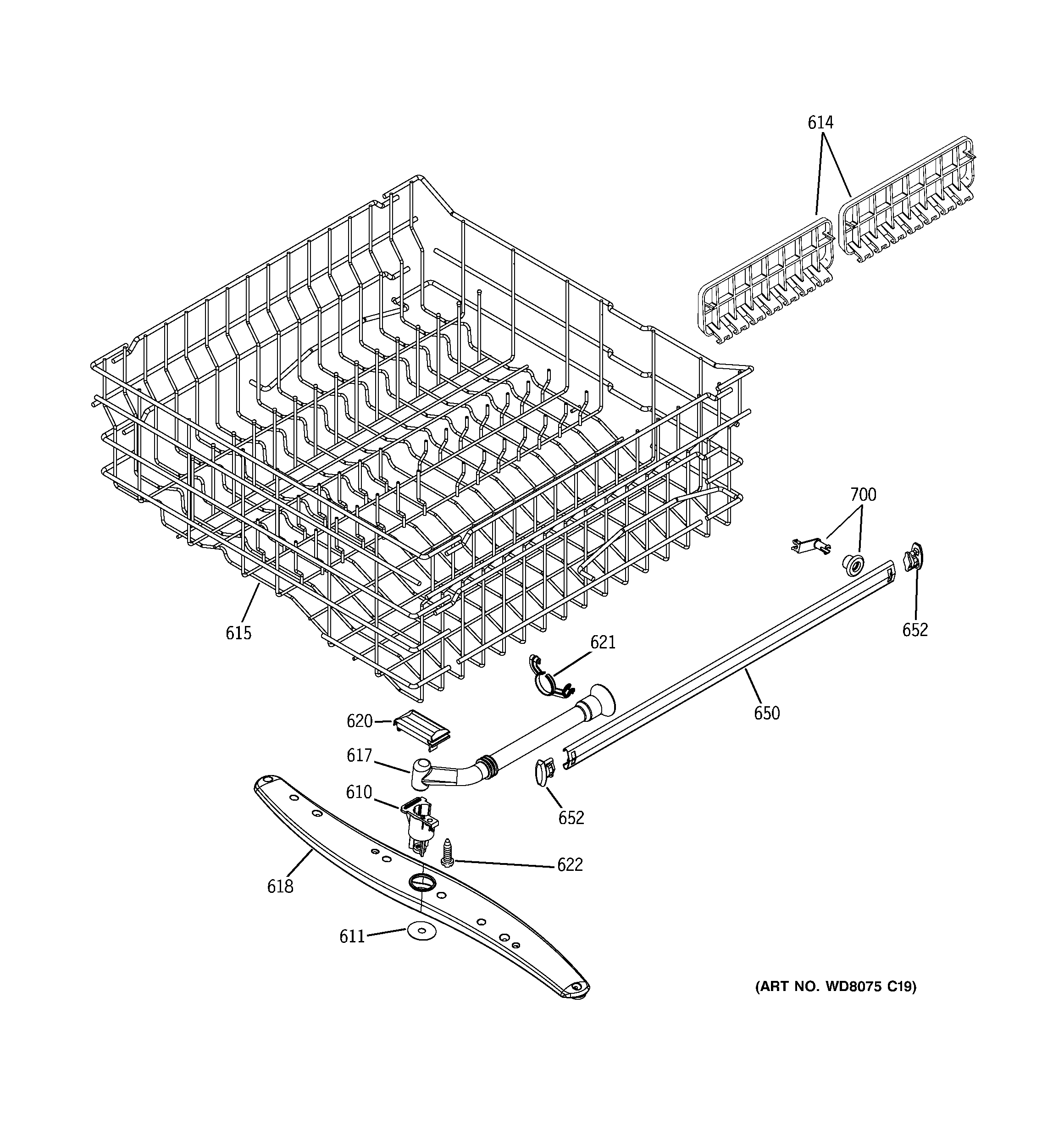

    Upper rack assembly diagram

    Cap

    Part #WD12X0344

    Replaced by #WD12X10304

    ?
    Manufacturer substitution
    This part replaces WD12X0344. Substitute parts can look different from the original.
    $15.60
    11% OFF Phone Price : $17.60
    In Stock
  • Actuator Handle WD13X10008
    #804

    Escutcheon & door assembly diagram

    Actuator handle

    Part #WD13X10008

    Replaced by #WD13X10045

    ?
    Manufacturer substitution
    This part replaces WD13X10008. Substitute parts can look different from the original.
    This item is not returnable
    $36.63
    14% OFF Phone Price : $42.63
    In Stock
  • Dishwasher Spray Arm WD22X10046
    #618

    Upper rack assembly diagram

    Dishwasher spray arm

    Part #WD22X10046

    This item is not returnable
    $22.18
    21% OFF Phone Price : $28.18
    In Stock
