GE
Wall Oven/Microwave Combo

Model # JT965BF5BB Official GE wall oven/microwave combo

Here are the diagrams and repair parts for Official GE JT965BF5BB wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

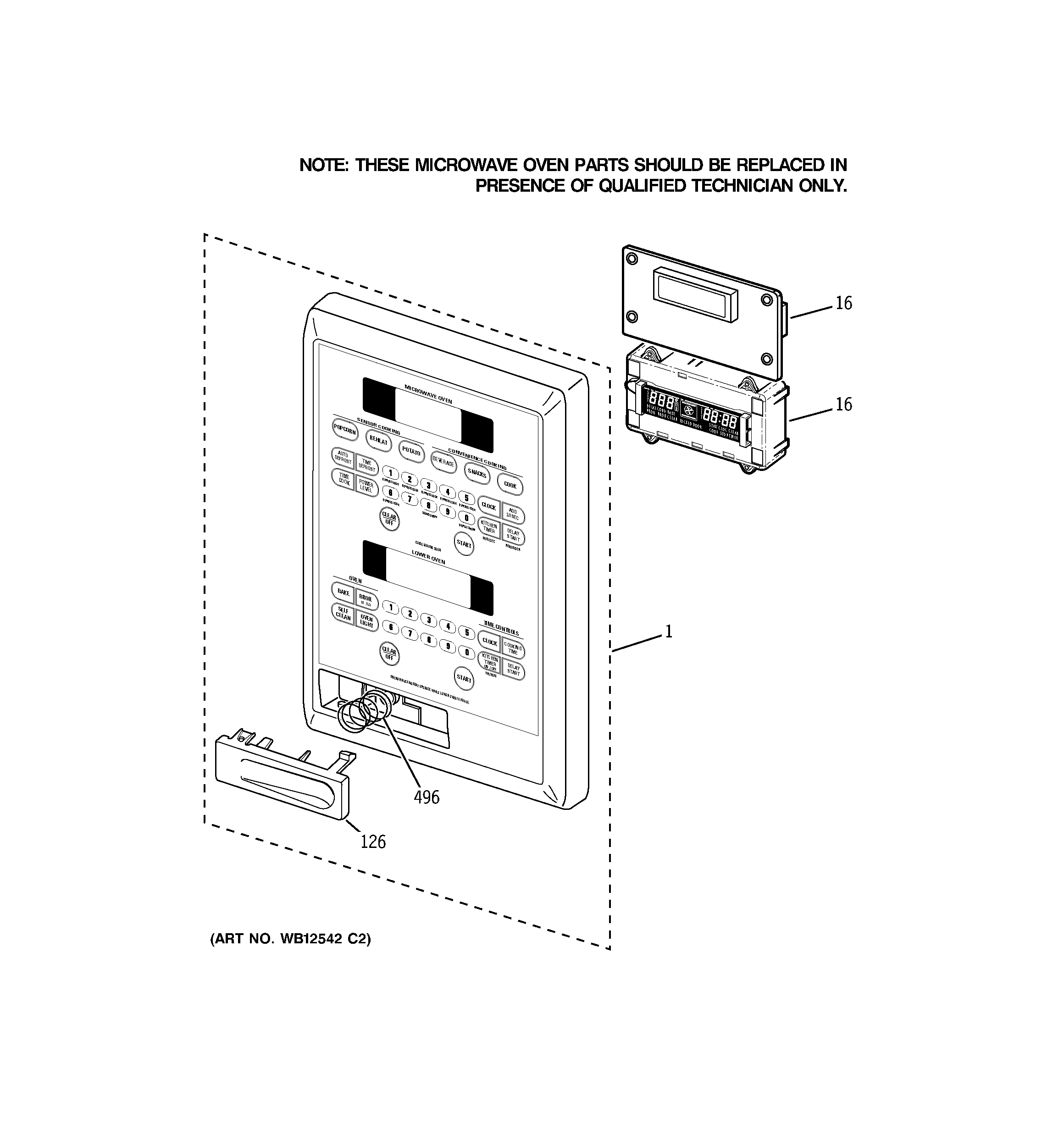

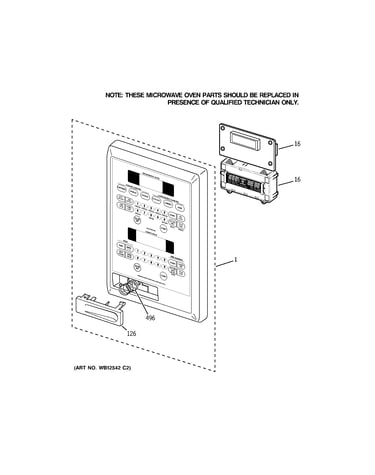

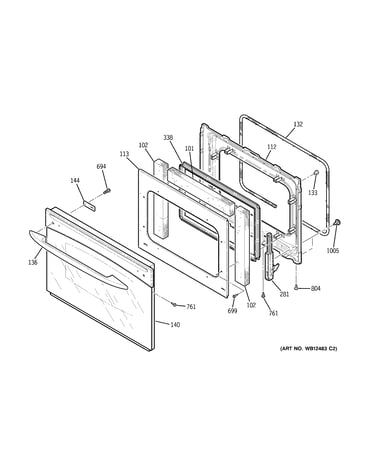

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Switch-micro WB24X0829
#576

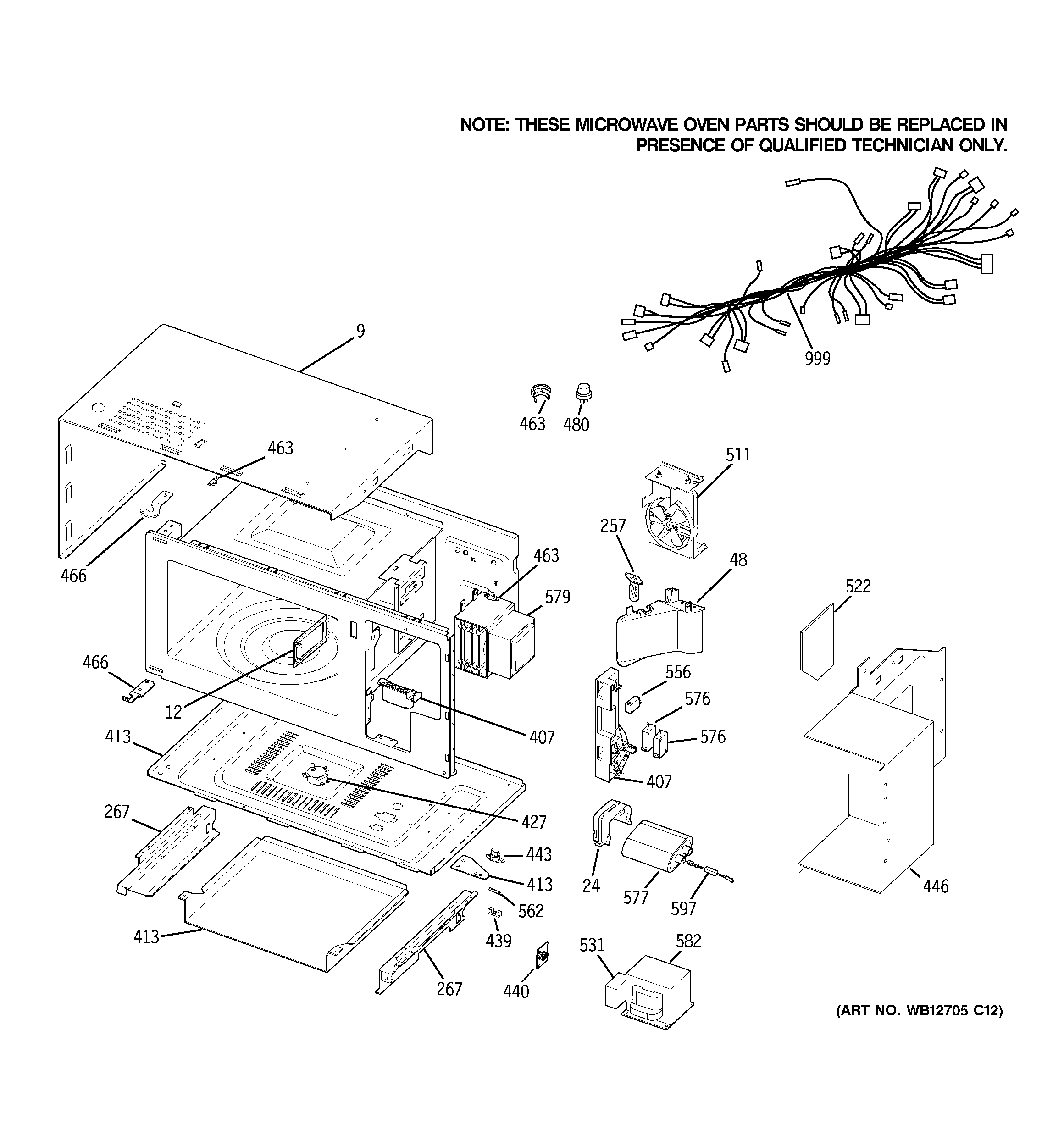

Microwave body parts diagram

Switch-micro

Part #WB24X0829

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0829. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Fuse Cartridge WB27X10474
#562

Microwave body parts diagram

Fuse cartridge

Part #WB27X10474

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10474. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Monitor Switch WB24X0830
#556

Microwave body parts diagram

Monitor switch

Part #WB24X0830

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0830. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
High-voltage Diode WB27X10169
#597

Microwave body parts diagram

High-voltage diode

Part #WB27X10169

Replaced by #WB27X10597

?
Manufacturer substitution
This part replaces WB27X10169. Substitute parts can look different from the original.
BEST SELLER
$40.60 |
13% OFF Phone Price : $46.60
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

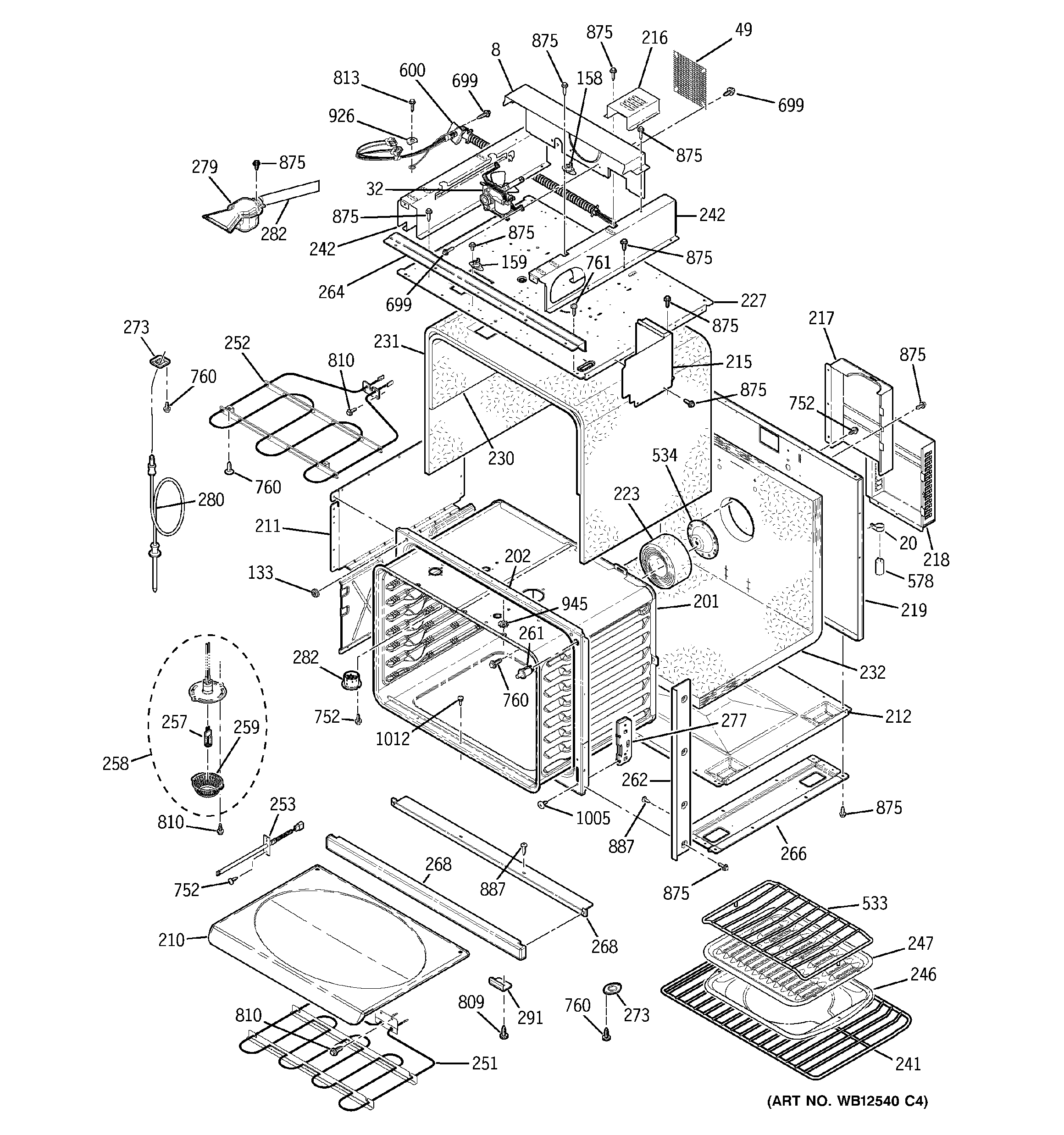

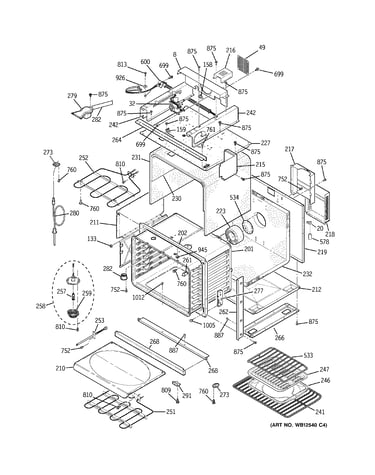

Body with microwave support diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Broil Element (replaces Wb44k10007) WB44T10043
#252

Body with microwave support diagram

Range broil element (replaces wb44k10007)

Part #WB44T10043

$70.47 |
8% OFF Phone Price : $76.47
In Stock
Range Convection Fan Blade WB02T10289
#43

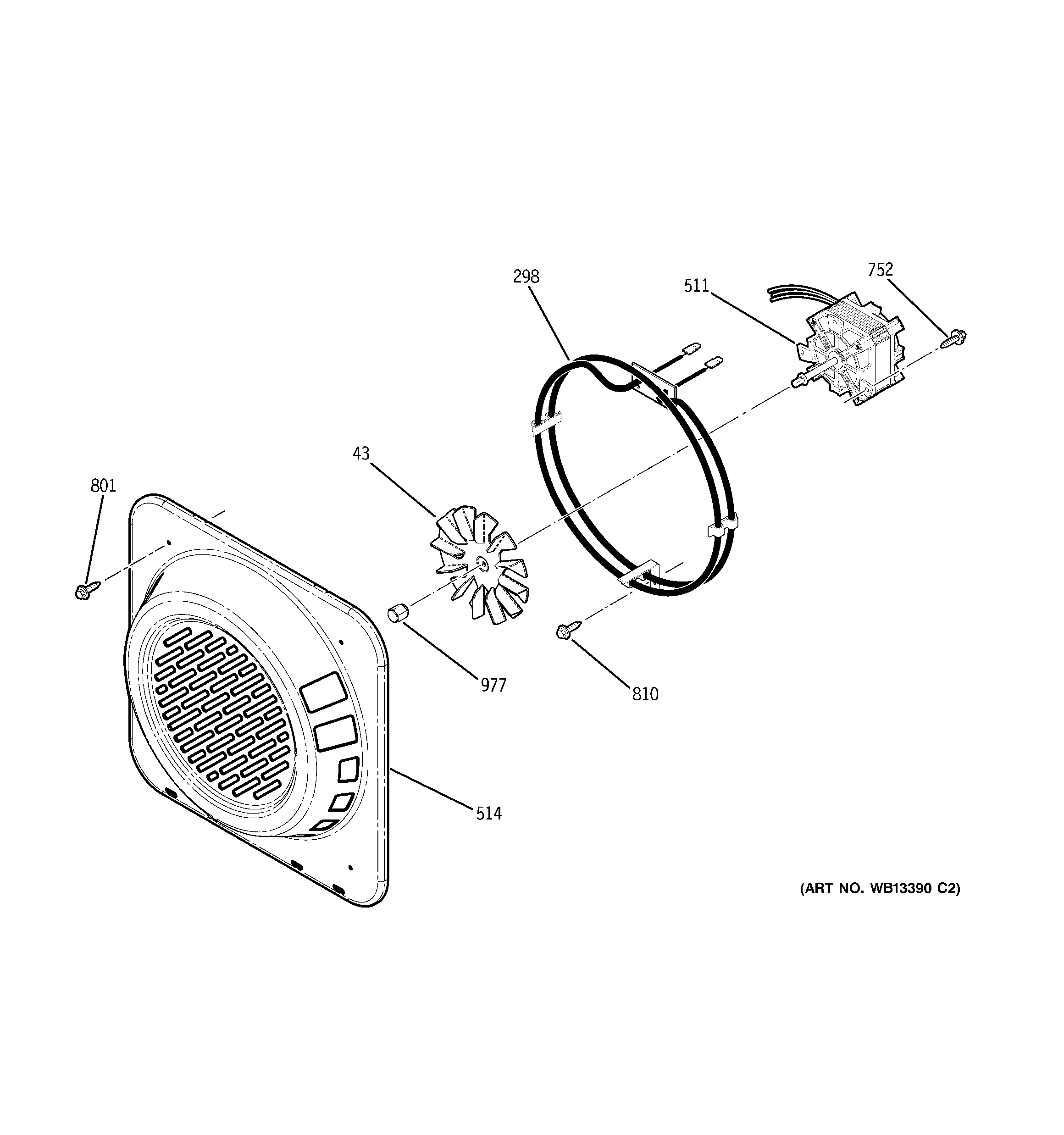

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw, #10-32 X 17/32-in WB01X1253
Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Holder Sensor WB06X0549
#463

Microwave body parts diagram

Holder sensor

Part #WB06X0549

Replaced by #WB6X549

?
Manufacturer substitution
This part replaces WB06X0549. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
