Model # SF5100SKW0 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool SF5100SKW0 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Bulb 878122
#20

Oven diagram

Bulb

Part #878122

Replaced by #40A15

?
Manufacturer substitution
This part replaces 878122. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Insulation 878531
#4

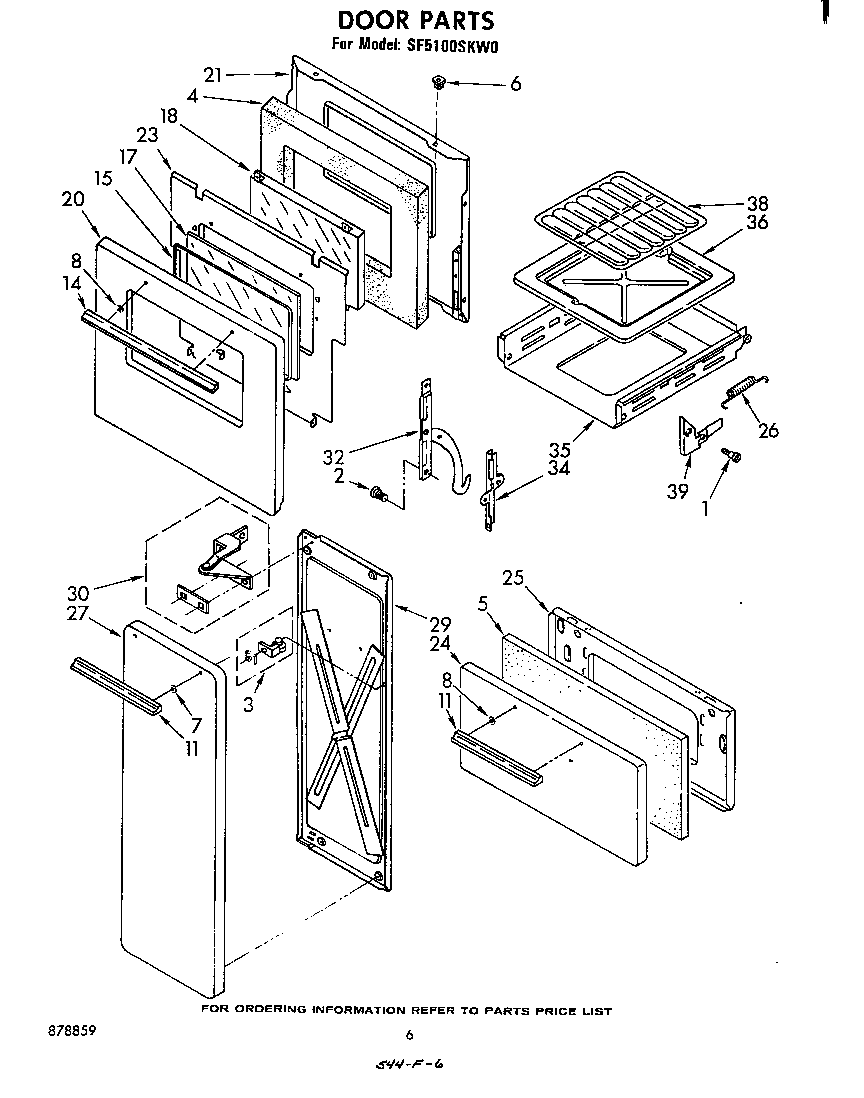

Door diagram

Insulation

Part #878531

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 878531. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Nut 878095
#6

Door diagram

Nut

Part #878095

Replaced by #98460

?
Manufacturer substitution
This part replaces 878095. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Insulation 878533
#7

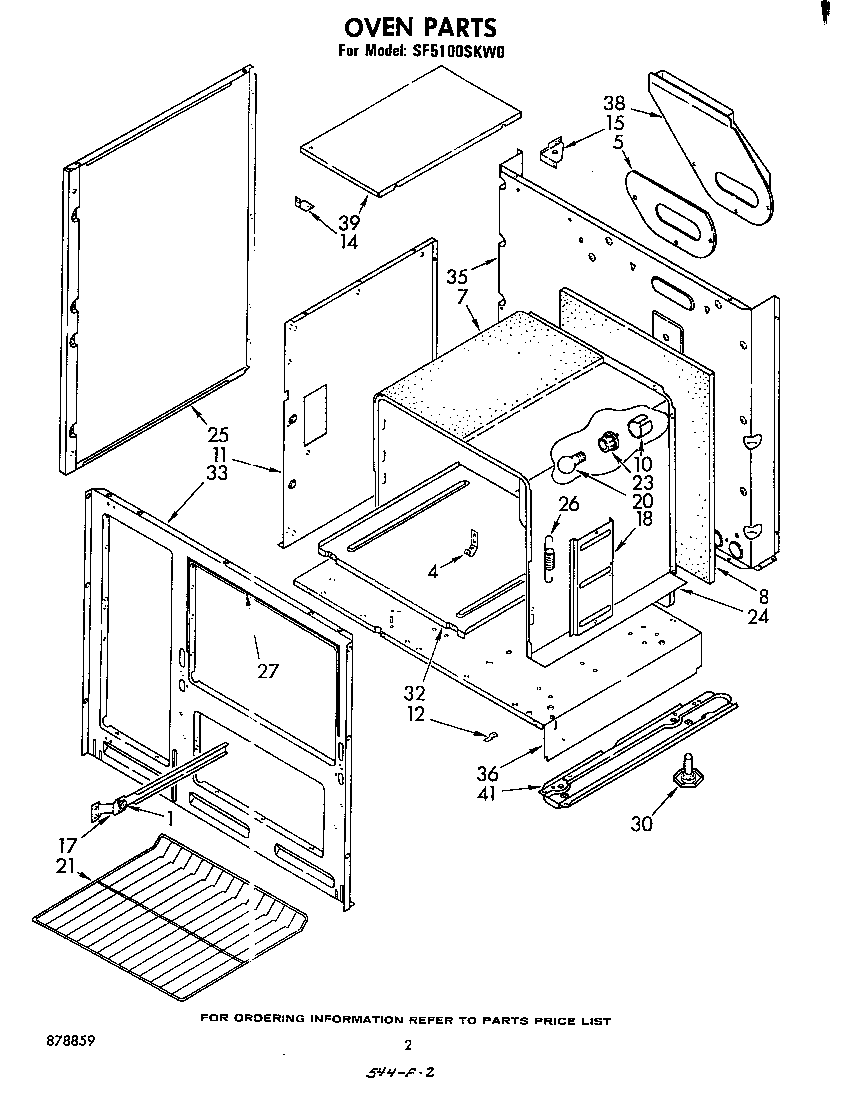

Oven diagram

Insulation

Part #878533

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 878533. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Insulation 878534
#8

Oven diagram

Insulation

Part #878534

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 878534. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Panel Cf 878724
#18B

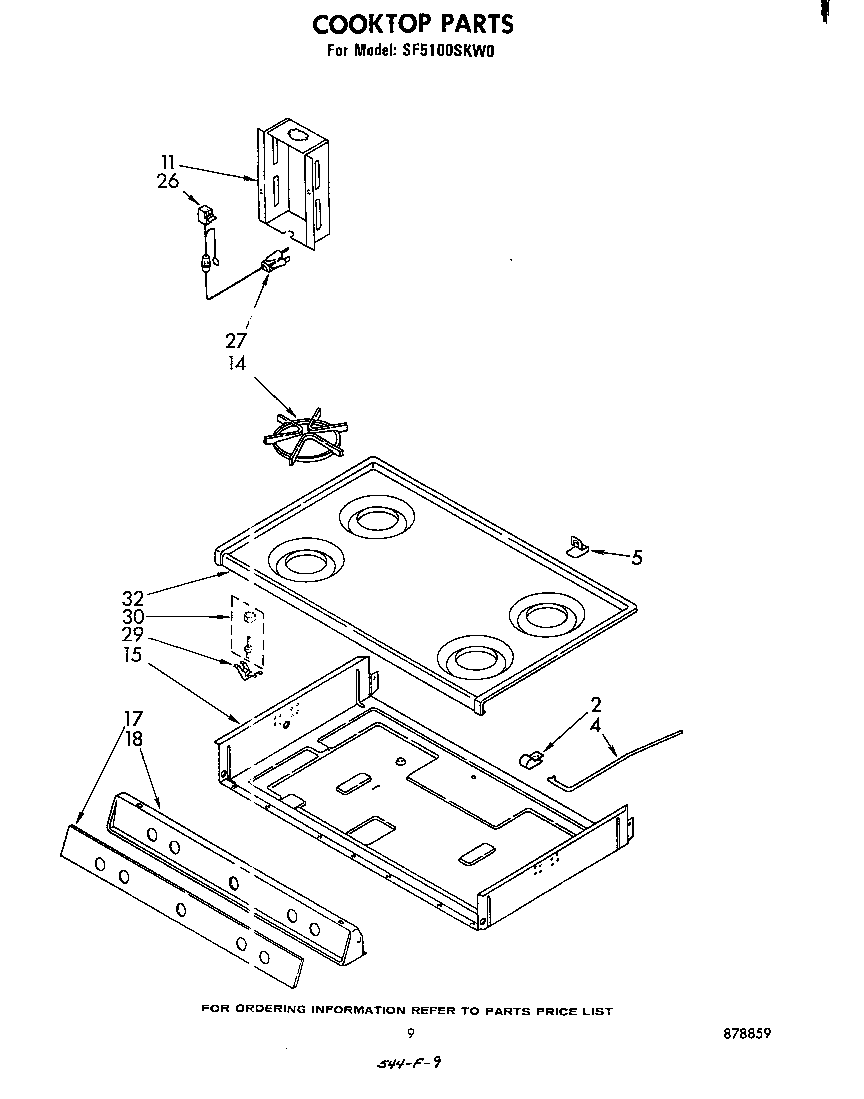

Cook top diagram

Panel cf

Part #878724

The manufacturer no longer makes this part, and there's no substitute part

Wire Cover 878719
#11

Cook top diagram

Wire cover

Part #878719

The manufacturer no longer makes this part, and there's no substitute part

Gas Tubing 878716
#14

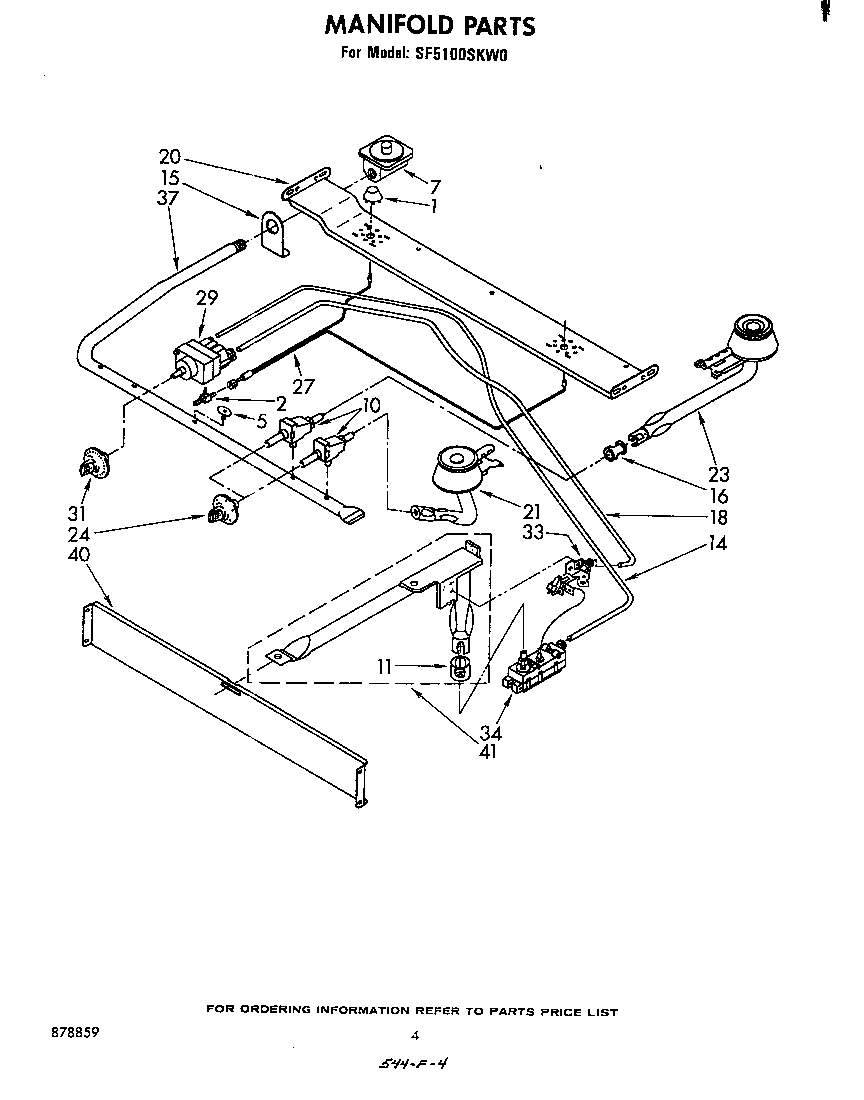

Manifold diagram

Gas tubing

Part #878716

The manufacturer no longer makes this part, and there's no substitute part

Clock Timer 878597
#4

Backguard diagram

Clock timer

Part #878597

The manufacturer no longer makes this part, and there's no substitute part

Box 878548
#15

Cook top diagram

Box

Part #878548

The manufacturer no longer makes this part, and there's no substitute part
