Bosch
Electric Wall Oven

Model # HBL745AUC/01 Official Bosch wall oven

Here are the diagrams and repair parts for Official Bosch HBL745AUC-01 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Wall Oven Filter 489268
#489268

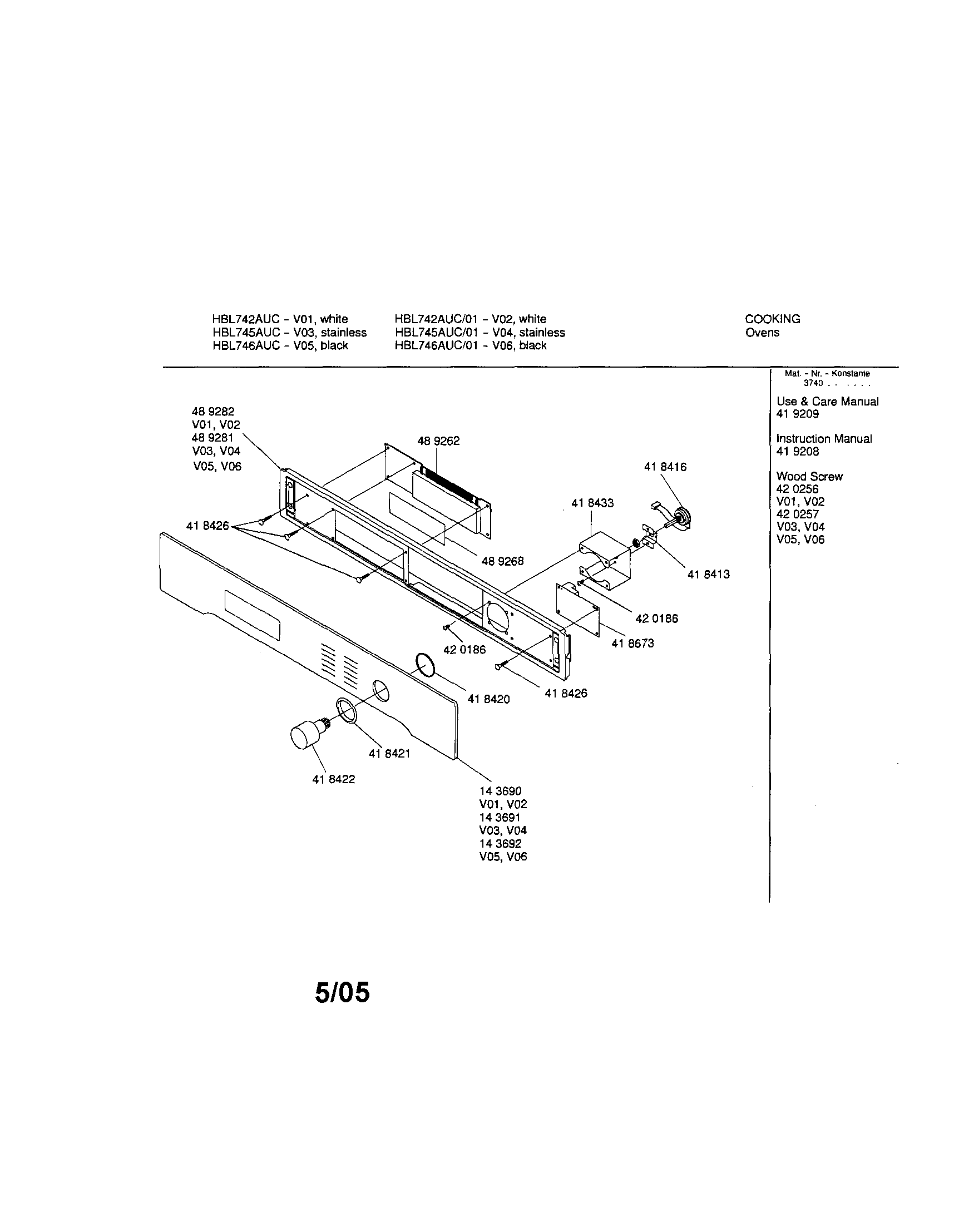

Fascia panel diagram

Wall oven filter

Part #489268

Replaced by #00489268

?
Manufacturer substitution
This part replaces 489268. Substitute parts can look different from the original.
$29.04 |
17% OFF Phone Price : $35.04
In Stock
Oven Bulb 420228
#420228

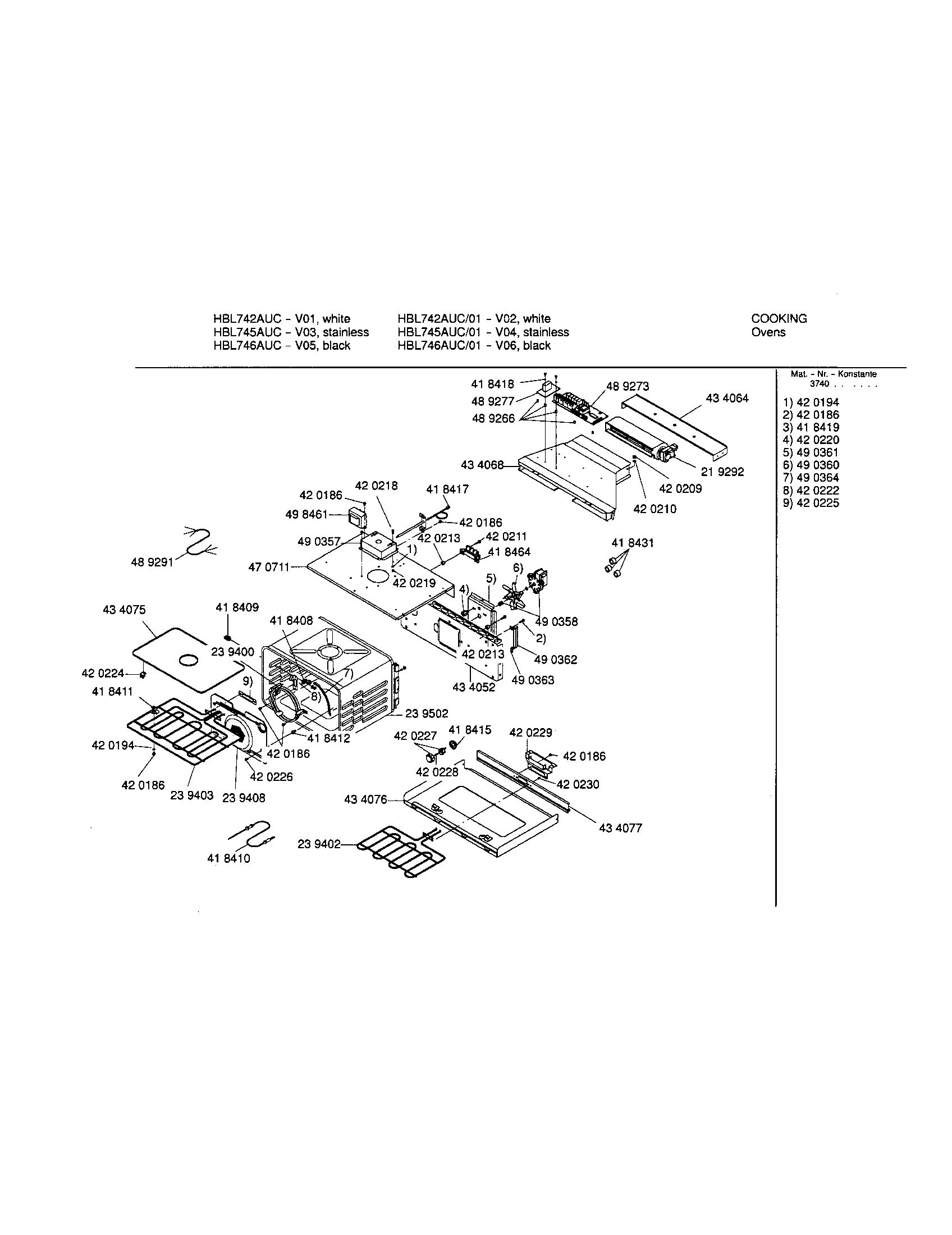

Cavity diagram

Oven bulb

Part #420228

Replaced by #00189351

?
Manufacturer substitution
This part replaces 420228. Substitute parts can look different from the original.
$25.79 |
19% OFF Phone Price : $31.79
In Stock
Relay Board 418673
#418673

Fascia panel diagram

Relay board

Part #418673

The manufacturer no longer makes this part, and there's no substitute part

Mounting 420237
#420237

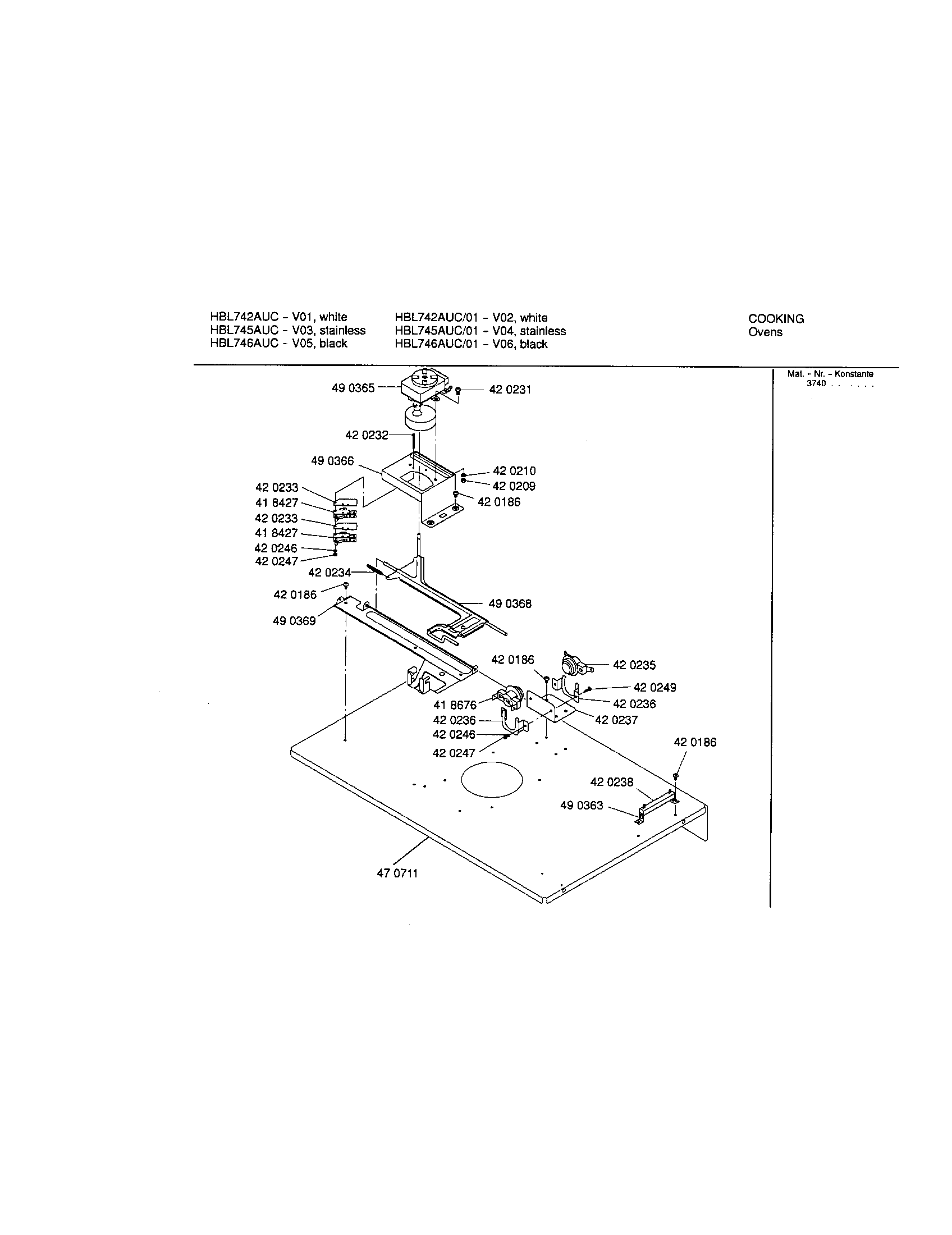

Internal top panel diagram

Mounting

Part #420237

The manufacturer no longer makes this part, and there's no substitute part

Screw 420249
#420249

Internal top panel diagram

Screw

Part #420249

The manufacturer no longer makes this part, and there's no substitute part

Channel 490357
#490357

Cavity diagram

Channel

Part #490357

The manufacturer no longer makes this part, and there's no substitute part

Nut 420252
#420252

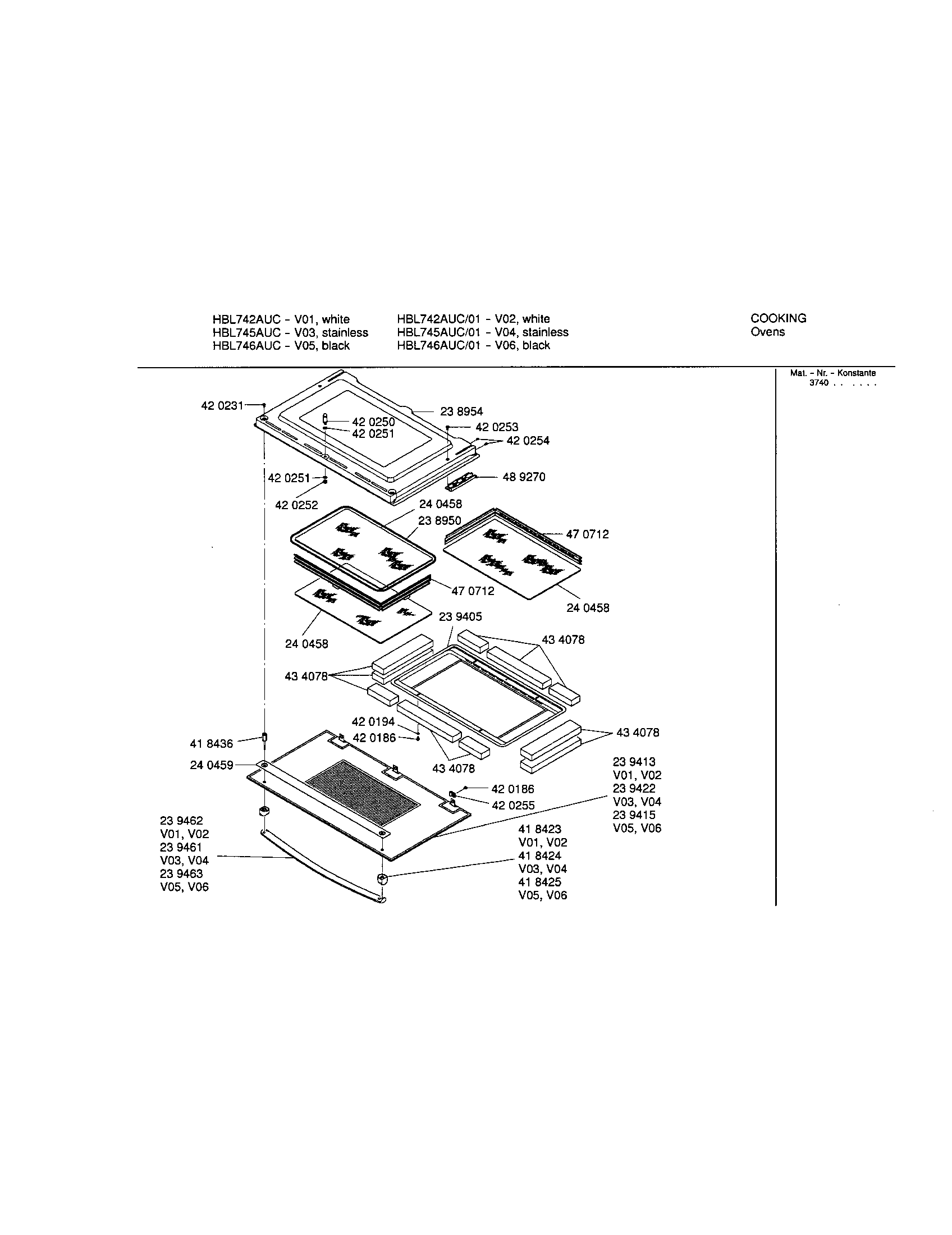

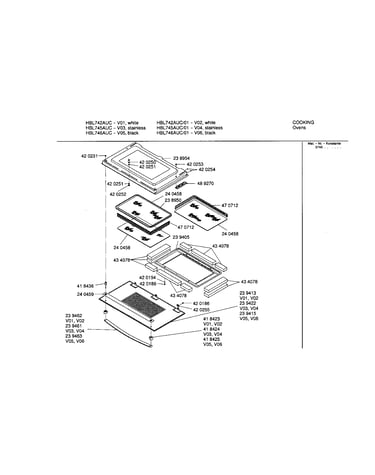

Door diagram

Nut

Part #420252

The manufacturer no longer makes this part, and there's no substitute part

Handle 421499
#421499

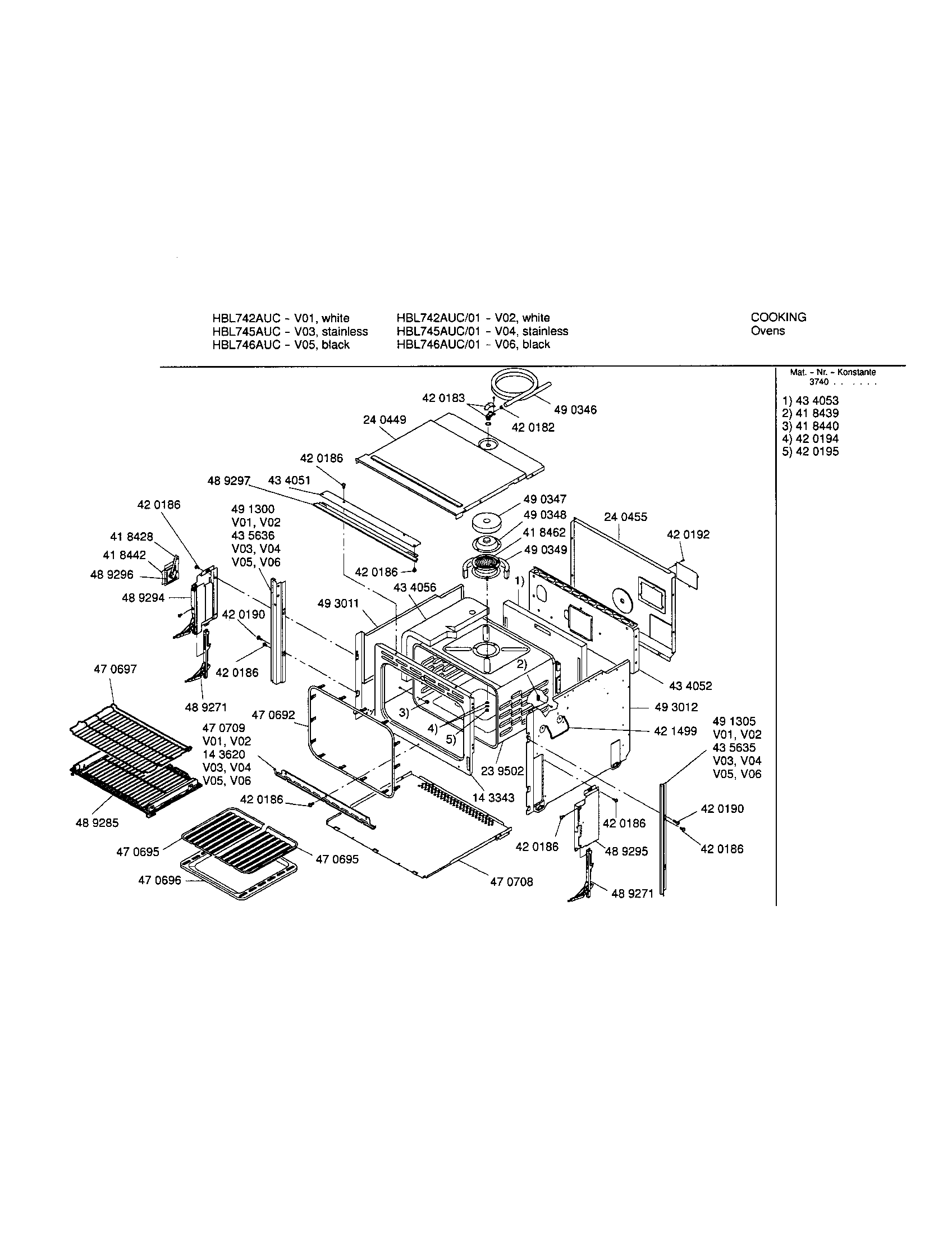

Body diagram

Handle

Part #421499

The manufacturer no longer makes this part, and there's no substitute part

Screw 420257
#420257

Fascia panel diagram

Screw

Part #420257

The manufacturer no longer makes this part, and there's no substitute part

Door Hinge 489295
#489295

Body diagram

Door hinge

Part #489295

The manufacturer no longer makes this part, and there's no substitute part
