Amana
Chest Freezer

Model # AFC1004AW-PAFC1004AW0 Official Amana chest freezer

Here are the diagrams and repair parts for Official Amana AFC1004AW-PAFC1004AW0 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Run Capacitor R0651012
#9999

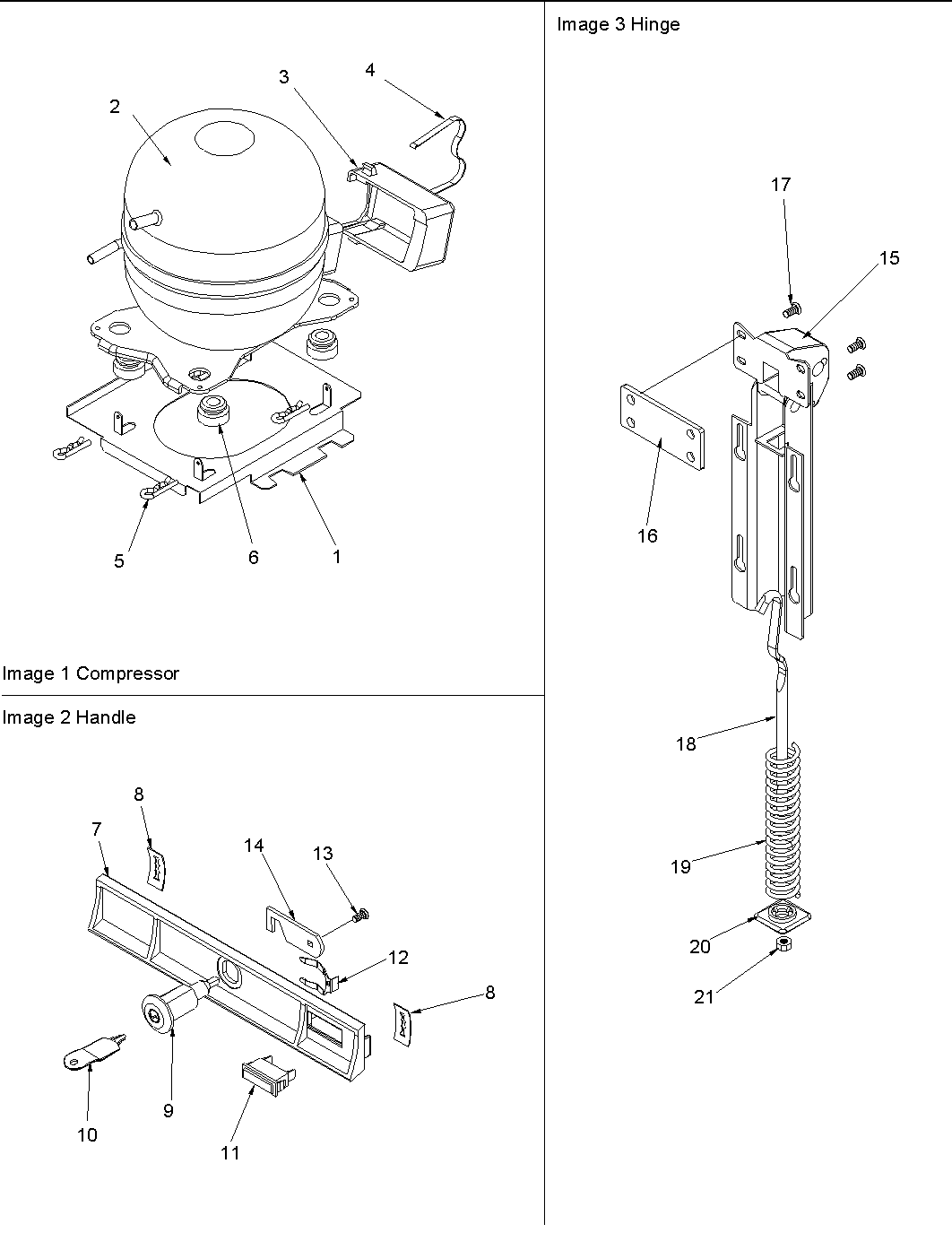

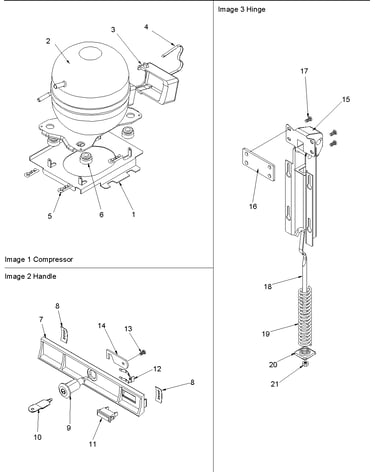

Compressor, hinge & lock diagram

Run capacitor

Part #R0651012

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces R0651012. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Kit R0131226
#2

Compressor, hinge & lock diagram

Kit

Part #R0131226

Replaced by #W10237328

?
Manufacturer substitution
This part replaces R0131226. Substitute parts can look different from the original.
$387.50 |
$12.00 OFF Phone Price : $399.50
In Stock
Hinge Kit R0000154
#15

Compressor, hinge & lock diagram

Hinge kit

Part #R0000154

Replaced by #4356752

?
Manufacturer substitution
This part replaces R0000154. Substitute parts can look different from the original.
$68.02
In Stock
Bracket, Com R9800535
#1

Compressor, hinge & lock diagram

Bracket, com

Part #R9800535

Replaced by #3-81556-001

?
Manufacturer substitution
This part replaces R9800535. Substitute parts can look different from the original.
$10.80
In Stock
Freezer Basket R0660007
#11

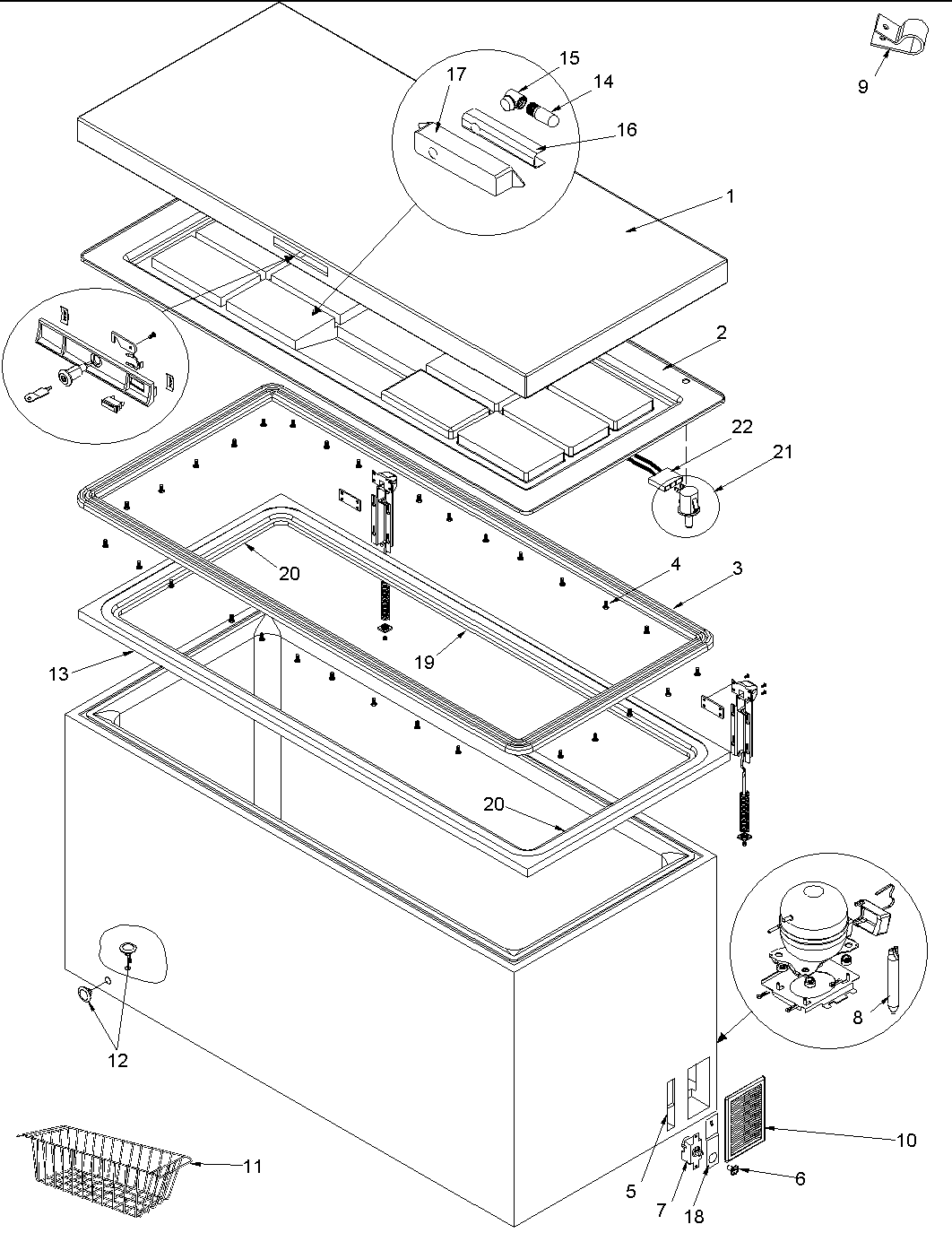

Door gasket, liner & hardware diagram

Freezer basket

Part #R0660007

Replaced by #8210434A

?
Manufacturer substitution
This part replaces R0660007. Substitute parts can look different from the original.
$35.36 |
15% OFF Phone Price : $41.36
In Stock
Control,ther R0131223
#7

Door gasket, liner & hardware diagram

Control,ther

Part #R0131223

Replaced by #WP4-35940-001

?
Manufacturer substitution
This part replaces R0131223. Substitute parts can look different from the original.
$118.93 |
9% OFF Phone Price : $130.93
In Stock
Handle Clip R0651501
#8

Compressor, hinge & lock diagram

Handle clip

Part #R0651501

Replaced by #3-24059-024

?
Manufacturer substitution
This part replaces R0651501. Substitute parts can look different from the original.
$9.79
In Stock
Overload Protector R0131228
#9999

Compressor, hinge & lock diagram

Overload protector

Part #R0131228

Replaced by #61004883

?
Manufacturer substitution
This part replaces R0131228. Substitute parts can look different from the original.
$35.58
In Stock
Relay R0131227
#9999

Compressor, hinge & lock diagram

Relay

Part #R0131227

Replaced by #W11673287

?
Manufacturer substitution
This part replaces R0131227. Substitute parts can look different from the original.
$36.96
In Stock
Screw Control R0660022
#9999

Door gasket, liner & hardware diagram

Screw control

Part #R0660022

Replaced by #3-24004-049

?
Manufacturer substitution
This part replaces R0660022. Substitute parts can look different from the original.
This item is not returnable
$7.29
In Stock
