Model # WL650901 Official Campbell Hausfeld air compressor

Here are the diagrams and repair parts for Official Campbell Hausfeld WL650901 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 61 parts |

#47

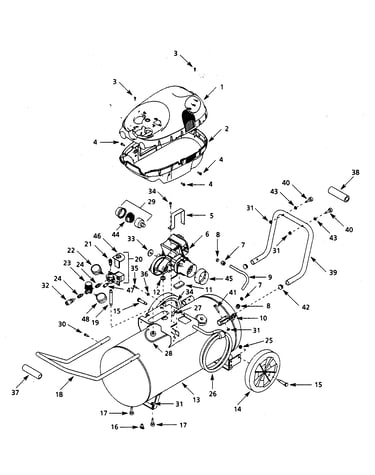

Compressor diagram

Unloader valve

Part #CW211500AV

The manufacturer no longer makes this part, and there's no substitute part

Compressor diagram

Screw

Part #ST058502AV

The manufacturer no longer makes this part, and there's no substitute part

#NI

Compressor diagram

Owner's manual

Part #IN608901AV

The manufacturer no longer makes this part, and there's no substitute part

#11

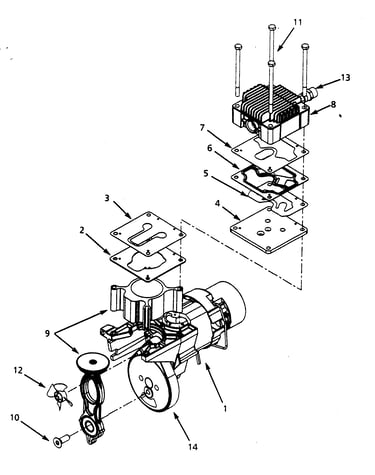

Pump assy diagram

Hex hd scr

Part #WL211100AJ

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Pressure Gauge GA016711AV

#48

Compressor diagram

Air compressor pressure gauge

Part #GA016711AV

The manufacturer no longer makes this part, and there's no substitute part

Compressor diagram

Air compressor motor bracket

Part #BA018300AV

The manufacturer no longer makes this part, and there's no substitute part

#12

Pump assy diagram

Air compressor cooling fan

Part #WL008400AV

The manufacturer no longer makes this part, and there's no substitute part

#46

Compressor diagram

Lever switch

Part #CW210900AV

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Pressure Switch And Manual Shut-off CW211400AV

#20

Compressor diagram

Air compressor pressure switch and manual shut-off

Part #CW211400AV

The manufacturer no longer makes this part, and there's no substitute part

#19

Compressor diagram

Nipple

Part #ST070362AV

The manufacturer no longer makes this part, and there's no substitute part
