Top-Mount Refrigerator

Model # HTS16HBRFRWW Official Hotpoint refrigerator - r series

Here are the diagrams and repair parts for Official Hotpoint HTS16HBRFRWW refrigerator - r series, as well as links to manuals and error code tables, if available.

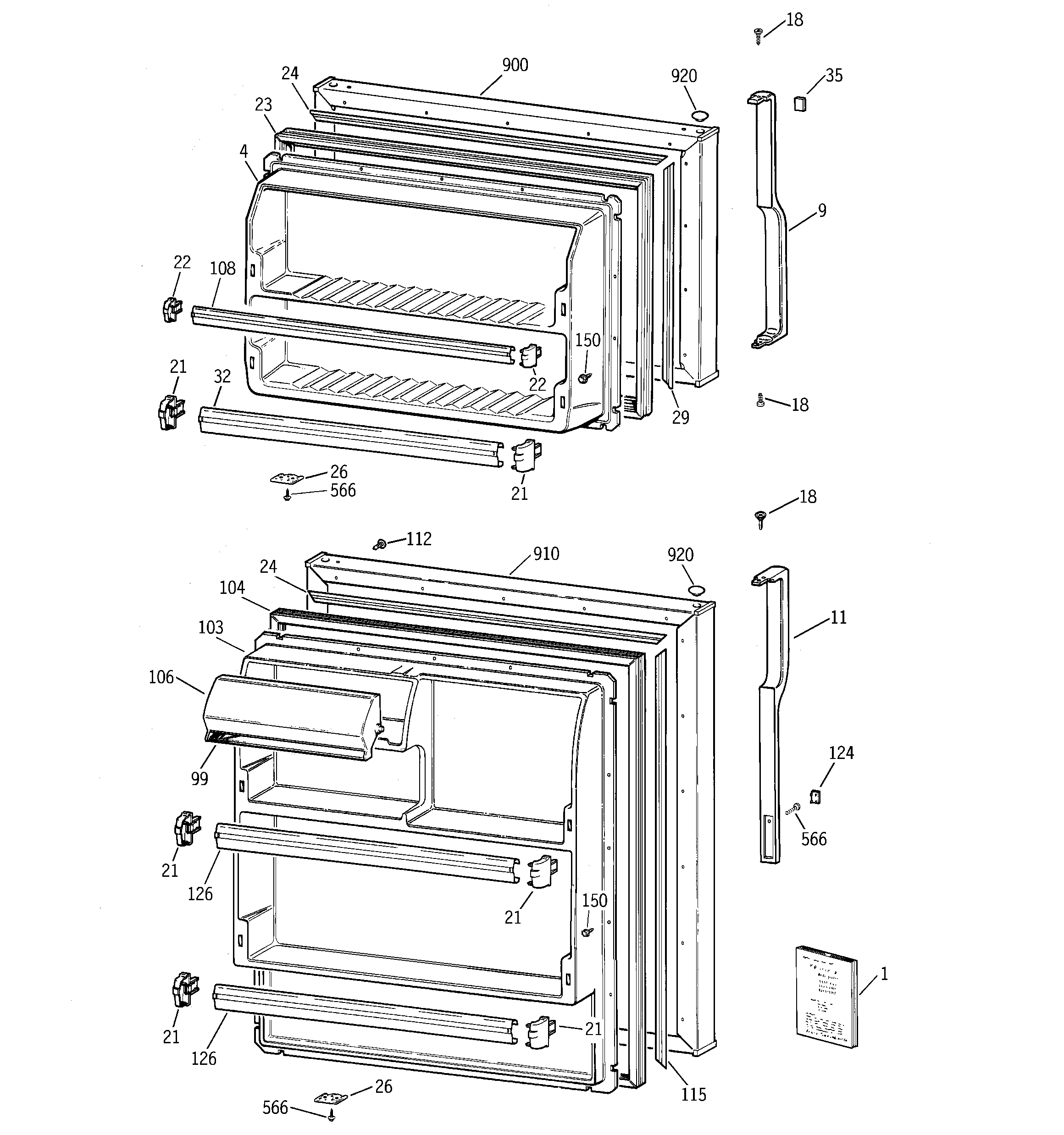

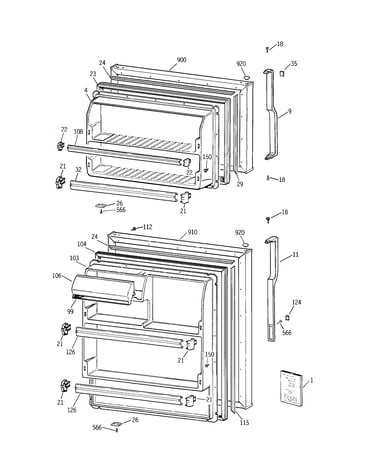

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
HTS16HBRFRWW Refrigerators
Dryer Filter WR86X0096
#740

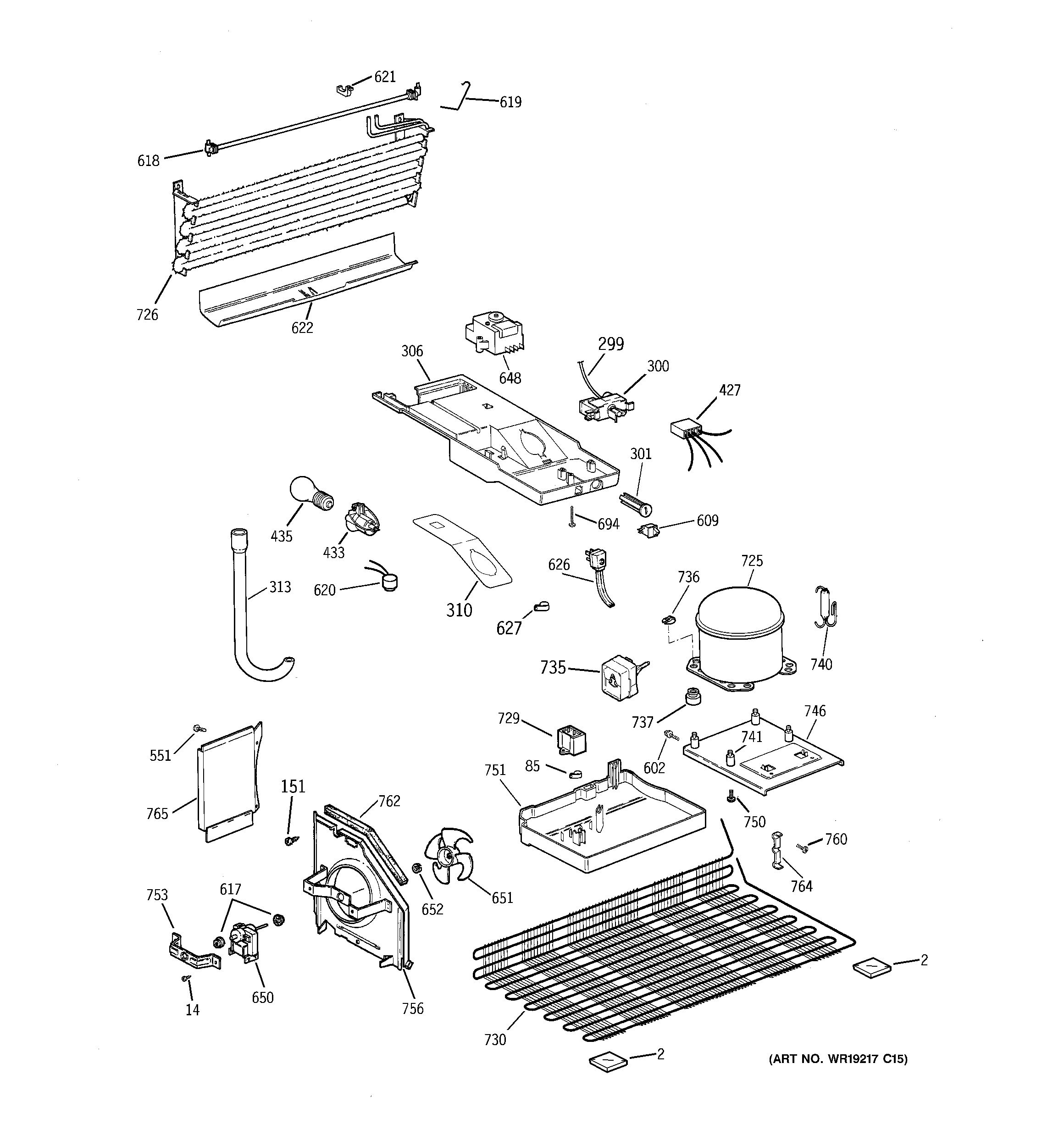

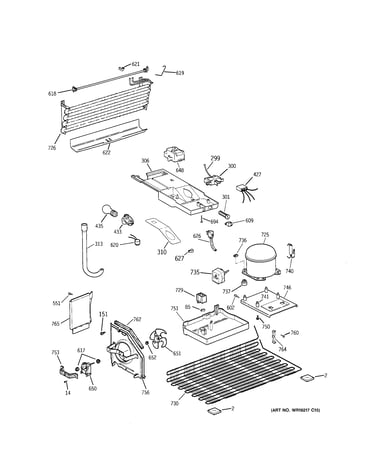

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$70.21 |
8% OFF Phone Price : $76.21
In Stock
G.e. Appliance Light Bulb, 40-watt (replaces -2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#435

Unit parts diagram

G.e. appliance light bulb, 40-watt (replaces -2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

1.72 (18)
BEST SELLER
$15.31 |
12% OFF Phone Price : $17.31
In Stock
Refrigerator Ac/dc Motor WR60X10138
#610

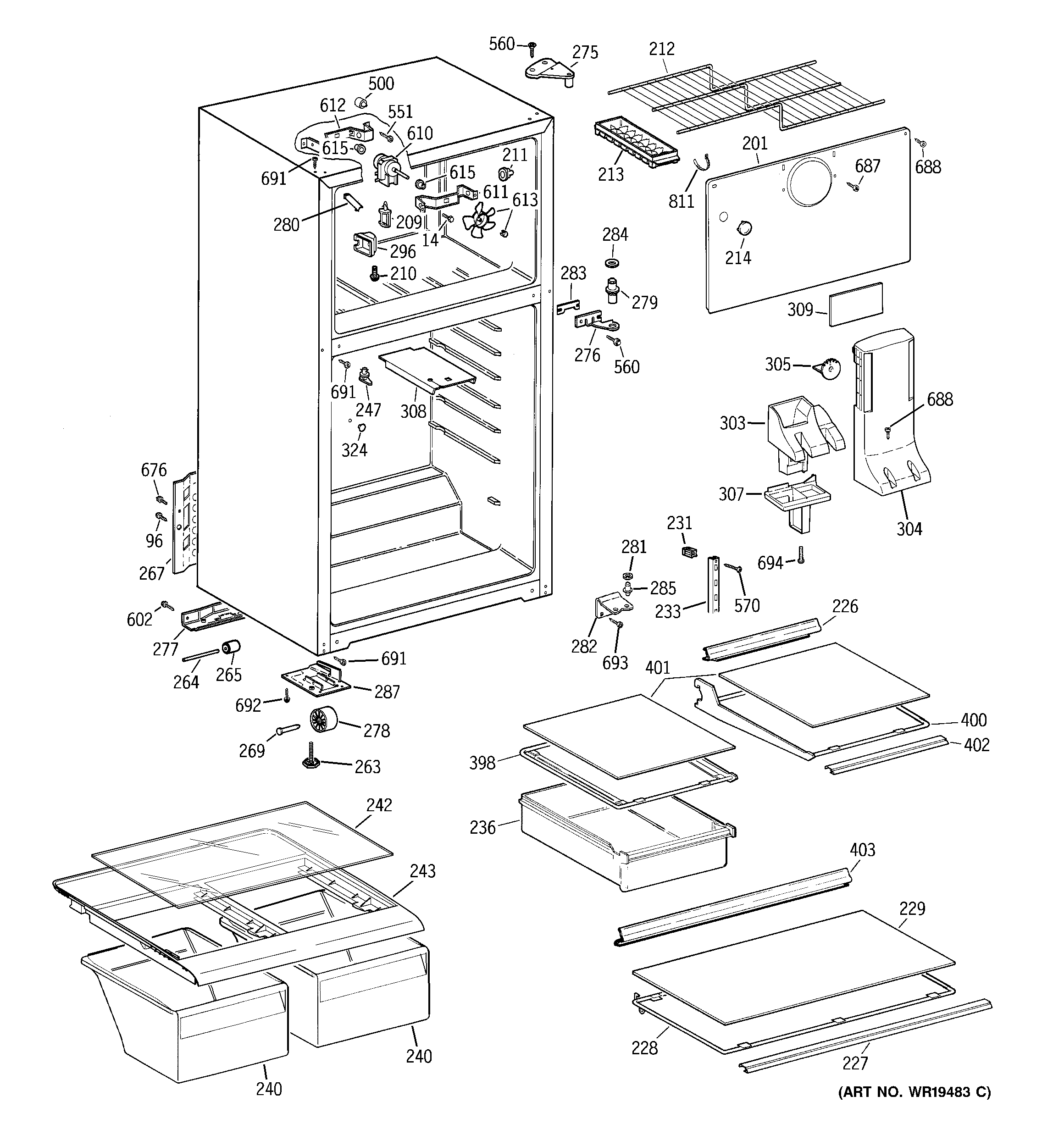

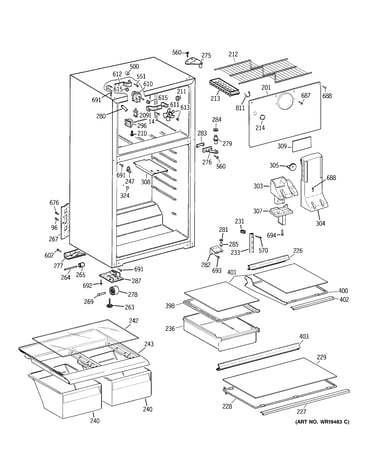

Cabinet diagram

Refrigerator ac/dc motor

Part #WR60X10138

Replaced by #WR60X31522

?
Manufacturer substitution
This part replaces WR60X10138. Substitute parts can look different from the original.
BEST SELLER
$75.63 |
7% OFF Phone Price : $81.63
In Stock
Capacitor WR62X0079
#729

Unit parts diagram

Capacitor

Part #WR62X0079

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
4.33 (3)
BEST SELLER
$55.55 |
10% OFF Phone Price : $61.55
In Stock
Refrigerator Compressor WR87X10085
#725

Unit parts diagram

Refrigerator compressor

Part #WR87X10085

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X10085. Substitute parts can look different from the original.
BEST SELLER
$488.54 |
$12.00 OFF Phone Price : $500.54
In Stock
Condenser Fan Blade WR60X10088
#651

Unit parts diagram

Condenser fan blade

Part #WR60X10088

Replaced by #WR60X10207

?
Manufacturer substitution
This part replaces WR60X10088. Substitute parts can look different from the original.
5 (2)
BEST SELLER
This item is not returnable
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10146
#281

Cabinet diagram

Refrigerator door hinge nylon washer

Part #WR01X10146

Replaced by #WR01X27364

?
Manufacturer substitution
This part replaces WR01X10146. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.40 |
12% OFF Phone Price : $8.40
In Stock
Defrost Eco WR50X10021
#620

Unit parts diagram

Defrost eco

Part #WR50X10021

Replaced by #WR50X10071

?
Manufacturer substitution
This part replaces WR50X10021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$25.18 |
19% OFF Phone Price : $31.18
In Stock
Refrigerator Light Switch WR23X10143
#609

Unit parts diagram

Refrigerator light switch

Part #WR23X10143

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Drawer Cover (replaces Wr17x11661) WR17X11662
#243

Cabinet diagram

Refrigerator drawer cover (replaces wr17x11661)

Part #WR17X11662

4 (4)
$63.75 |
9% OFF Phone Price : $69.75
In Stock
