Kenmore
Mechanical Sewing Machine

Model # 38512614490 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 38512614490 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

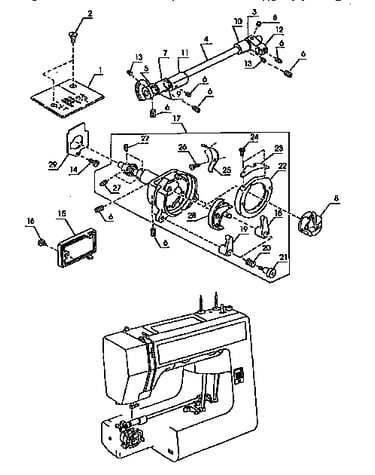

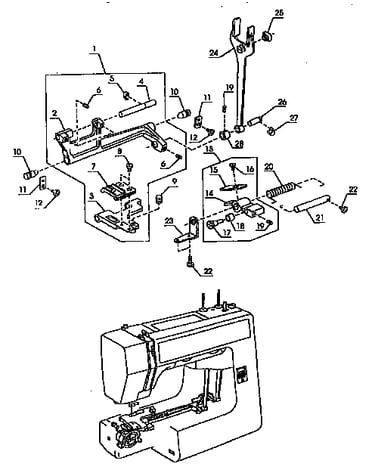

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 229 parts  |
Adjustment Plate 735130009
#34

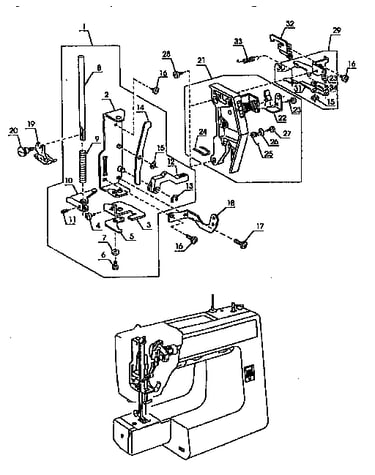

Presser bar assembly diagram

Adjustment plate

Part #735130009

The manufacturer no longer makes this part, and there's no substitute part

Tie Wrap 000053008
#34

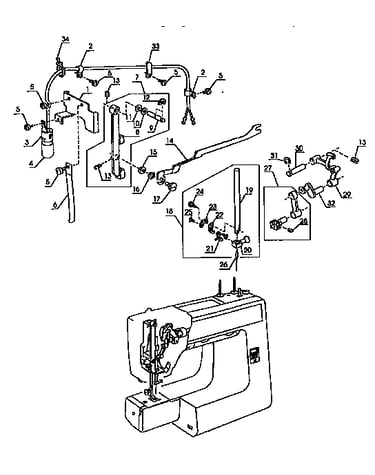

Neddle bar assembly diagram

Tie wrap

Part #000053008

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Sliding Buttonhole Foot 648801108
#10

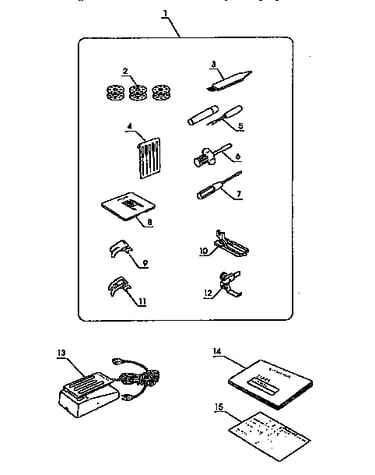

Attachment parts diagram

Sewing machine sliding buttonhole foot

Part #648801108

The manufacturer no longer makes this part, and there's no substitute part

Index Spring 735117000
#2

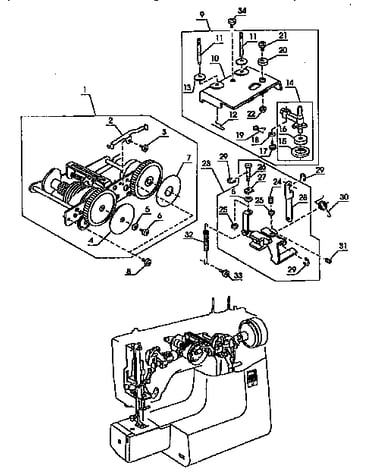

Feed regulator assembly diagram

Index spring

Part #735117000

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Screw 000115504
#5

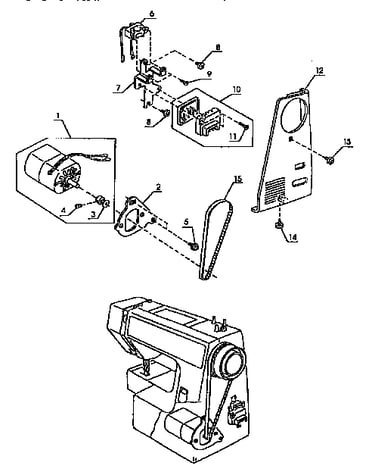

Motor assembly diagram

Sewing machine screw

Part #000115504

The manufacturer no longer makes this part, and there's no substitute part

Stopper 735024009
#3

Presser bar assembly diagram

Stopper

Part #735024009

The manufacturer no longer makes this part, and there's no substitute part

Carry Handle 735017205
#11

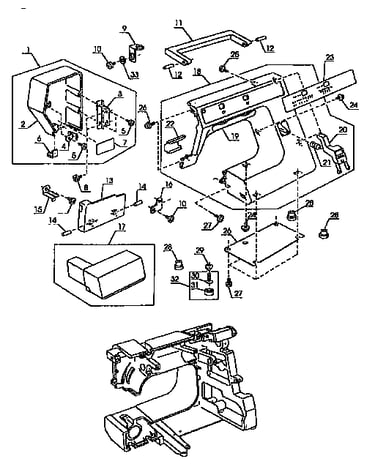

Base assembly diagram

Carry handle

Part #735017205

The manufacturer no longer makes this part, and there's no substitute part

Washer 735054008
#22

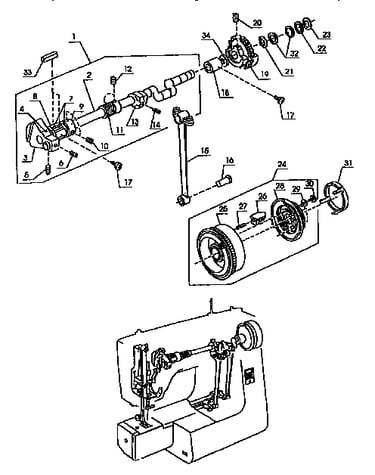

Upper shaft complete diagram

Washer

Part #735054008

The manufacturer no longer makes this part, and there's no substitute part

Fastener 000021708
#4

Upper shaft complete diagram

Fastener

Part #000021708

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block 647511002
#10

Motor assembly diagram

Terminal block

Part #647511002

The manufacturer no longer makes this part, and there's no substitute part
