Troybilt
Gas Pressure Washer

Model # 020344-1 Official Troybilt pressure washer

Here are the diagrams and repair parts for Official Troybilt 020344-1 pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Pressure Washer Outlet Tube Kit (replaces 190634gs, 2840260gs, 2840890gs) 201497GS
#12

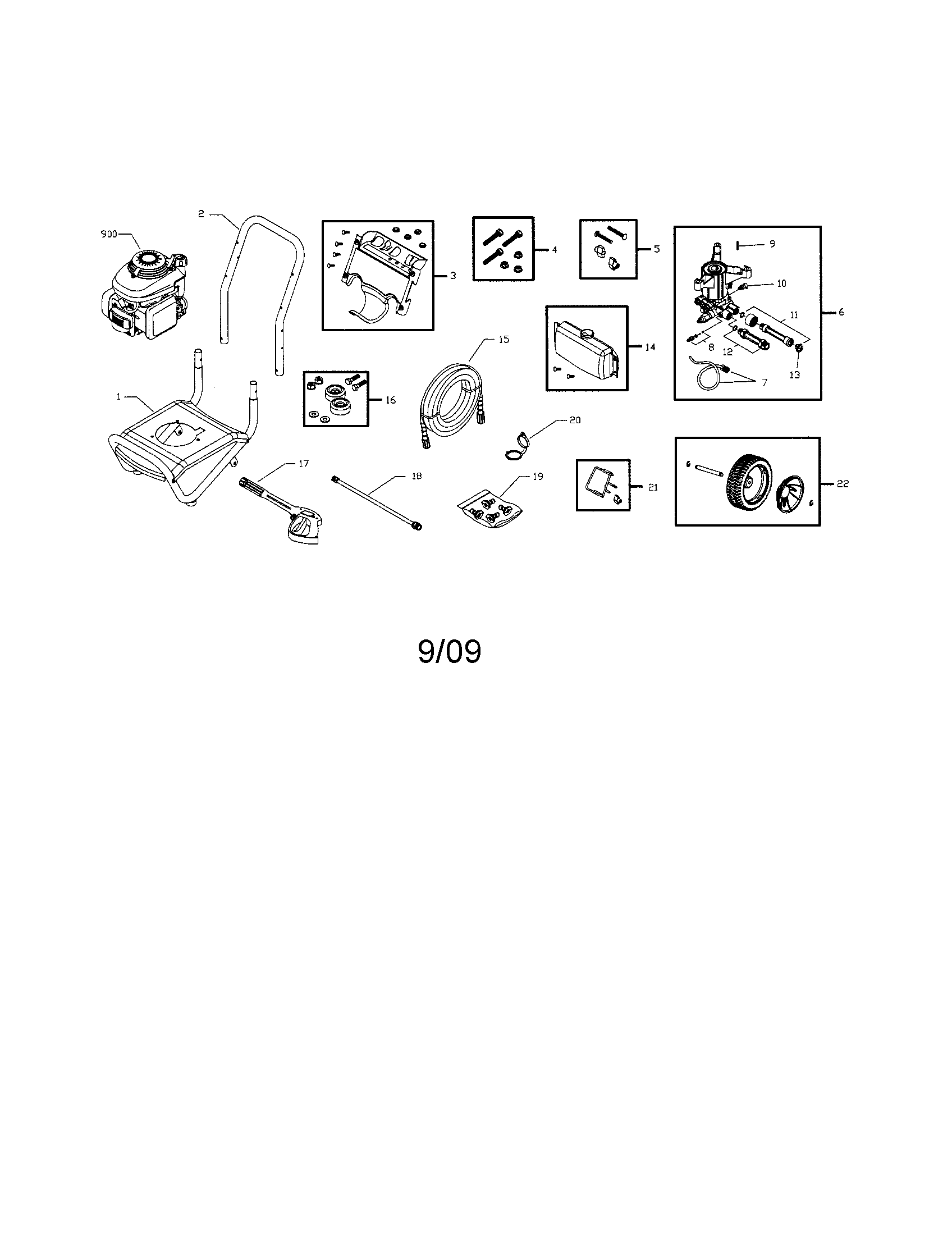

Main unit diagram

Pressure washer outlet tube kit (replaces 190634gs, 2840260gs, 2840890gs)

Part #201497GS

BEST SELLER
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Pressure Washer Water Inlet Screen (replaces 1266330gs, B2384) B2384GS
#13

Main unit diagram

Pressure washer water inlet screen (replaces 1266330gs, b2384)

Part #B2384GS

BEST SELLER
This item is not returnable
$6.04 |
14% OFF Phone Price : $7.04
In Stock
Pressure Washer Pump Kit 202274GS
#6

Main unit diagram

Pressure washer pump kit

Part #202274GS

Replaced by #207365GS

?
Manufacturer substitution
This part replaces 202274GS. Substitute parts can look different from the original.
BEST SELLER
$214.89 |
5% OFF Phone Price : $226.89
In Stock
Extension Wand 200595GS
#18

Main unit diagram

Extension wand

Part #200595GS

Replaced by #706595

?
Manufacturer substitution
This part replaces 200595GS. Substitute parts can look different from the original.
BEST SELLER
$50.80 |
11% OFF Phone Price : $56.80
In Stock
Pressure Washer Water Inlet Kit (replaces 2840250gs, 2841220gs) 201496GS
#11

Main unit diagram

Pressure washer water inlet kit (replaces 2840250gs, 2841220gs)

Part #201496GS

$49.48 |
11% OFF Phone Price : $55.48
In Stock
Pressure Washer Chemical Injection Kit (replaces 11587628pgs, 1250280gs, 1560520gs, 1982520gs, 231b2327gs, 480480gs) 192914GS
#8

Main unit diagram

Pressure washer chemical injection kit (replaces 11587628pgs, 1250280gs, 1560520gs, 1982520gs, 231b2327gs, 480480gs)

Part #192914GS

This item is not returnable
$26.70 |
18% OFF Phone Price : $32.70
In Stock
Generac Pressure Washer Vibration Kit 192310GS
#16

Main unit diagram

Generac pressure washer vibration kit

Part #192310GS

This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Pressure Washer Spray Nozzle (replaces 201580xgs) 195983XGS
#19A

Main unit diagram

Pressure washer spray nozzle (replaces 201580xgs)

Part #195983XGS

This item is not returnable
$18.09 |
10% OFF Phone Price : $20.09
In Stock
Pressure Washer Detergent Spray Nozzle 198841GS
#19D

Main unit diagram

Pressure washer detergent spray nozzle

Part #198841GS

This item is not returnable
$18.09 |
10% OFF Phone Price : $20.09
In Stock
Pressure Washer Spray Nozzle 195983AEGS
#19C

Main unit diagram

Pressure washer spray nozzle

Part #195983AEGS

This item is not returnable
$18.09 |
10% OFF Phone Price : $20.09
In Stock
