Model # 10217322 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 10217322 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

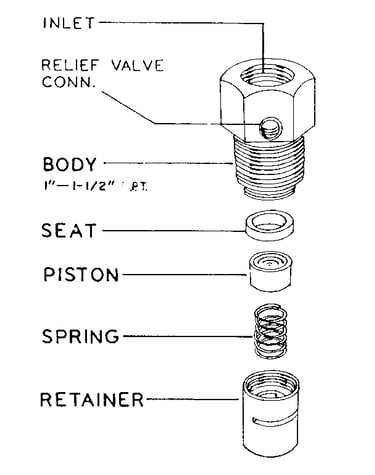

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Piston Assembly 39201
#2

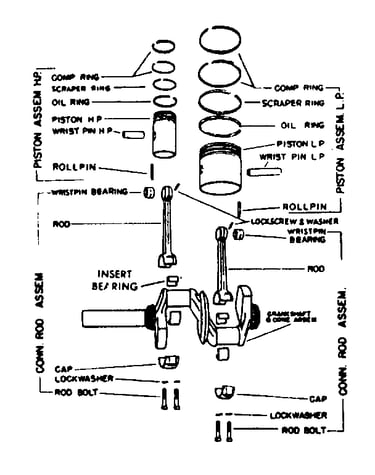

Piston and connector rod assembly diagram

Piston assembly

Part #39201

The manufacturer no longer makes this part, and there's no substitute part

Screw 39255
#3

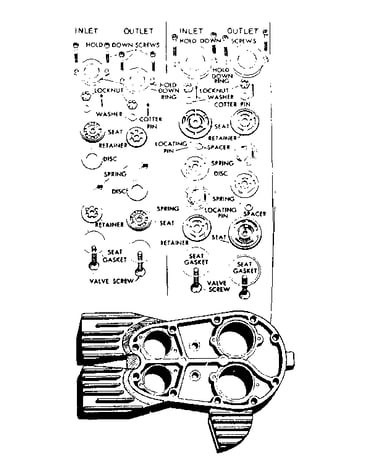

Head assembly diagram

Screw

Part #39255

The manufacturer no longer makes this part, and there's no substitute part

Housing Ay 38258
#3

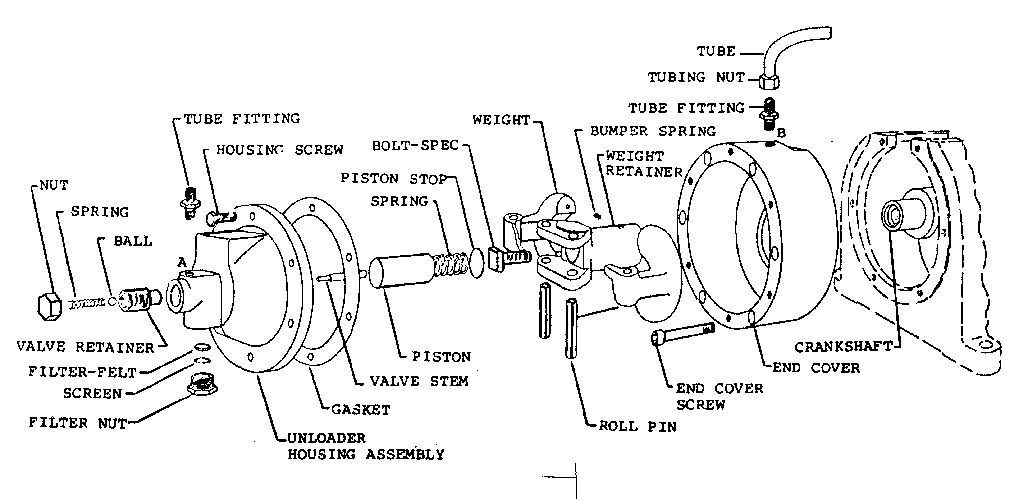

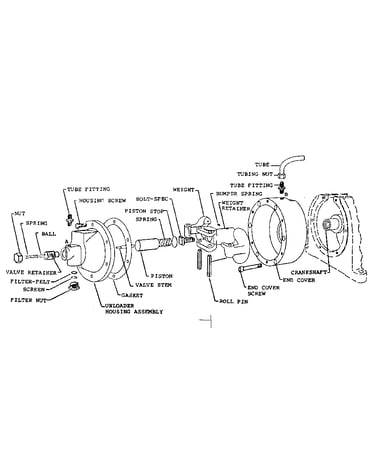

Centrifugal unloader diagram

Housing ay

Part #38258

The manufacturer no longer makes this part, and there's no substitute part

Piston 39110
#2D

Piston and connector rod assembly diagram

Piston

Part #39110

The manufacturer no longer makes this part, and there's no substitute part

Valve Spring 38828
#28

Head assembly diagram

Valve spring

Part #38828

The manufacturer no longer makes this part, and there's no substitute part

Valve Seat 38615
#18

Head assembly diagram

Valve seat

Part #38615

The manufacturer no longer makes this part, and there's no substitute part

Piston Assembly 39202
#3

Piston and connector rod assembly diagram

Piston assembly

Part #39202

The manufacturer no longer makes this part, and there's no substitute part

Intercooler 38598
#14

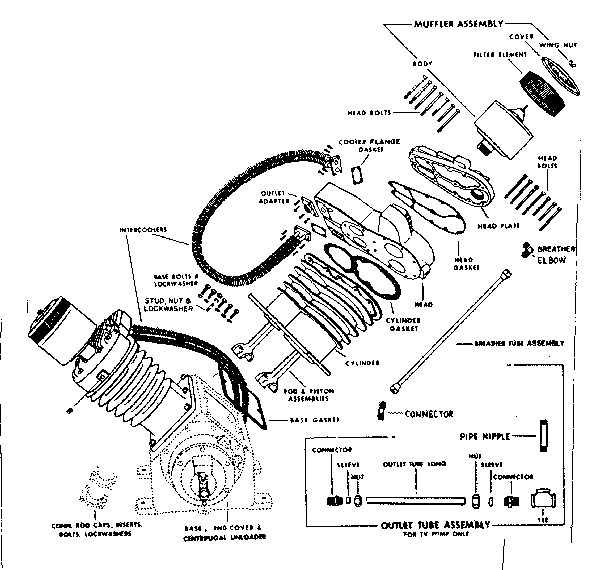

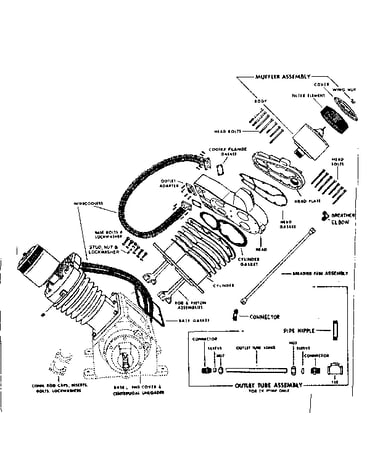

Replacement parts diagram

Intercooler

Part #38598

The manufacturer no longer makes this part, and there's no substitute part

Bolt 98654
#23

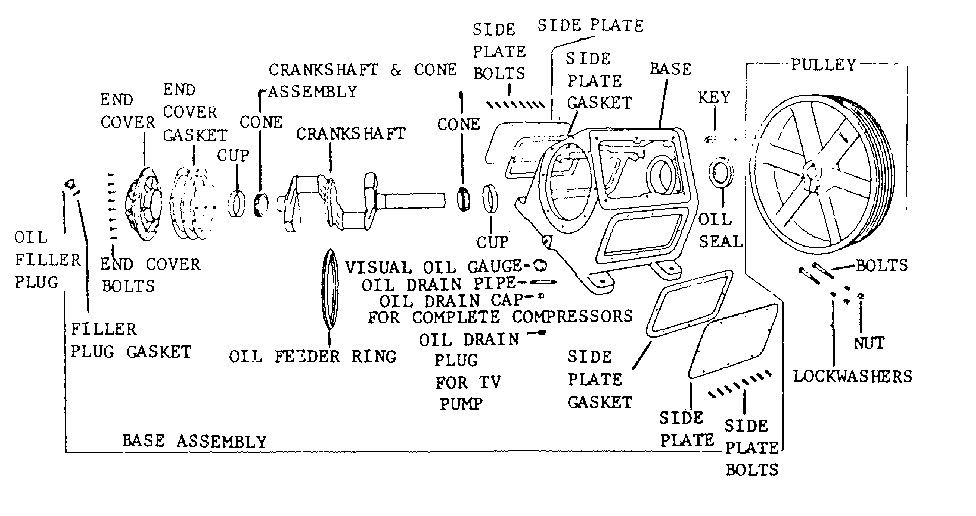

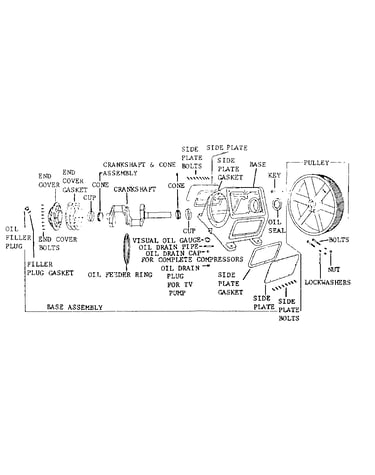

Base assembly diagram

Bolt

Part #98654

The manufacturer no longer makes this part, and there's no substitute part

Valve Disc 38620
#31

Head assembly diagram

Valve disc

Part #38620

The manufacturer no longer makes this part, and there's no substitute part
