Craftsman
Power Drill

Model # 31511250 Official Craftsman 3/8" reversible electric drill with speed torque control

Here are the diagrams and repair parts for Official Craftsman 31511250 3/8" reversible electric drill with speed torque control, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

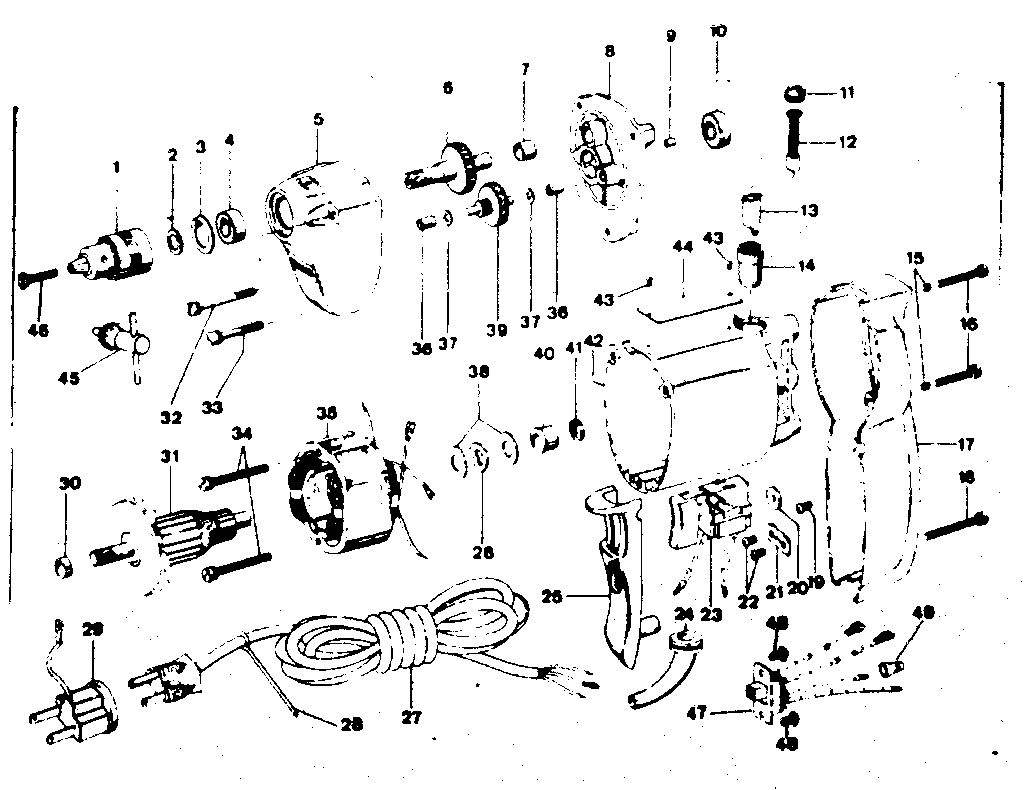

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Screw 1-930993-01
#19

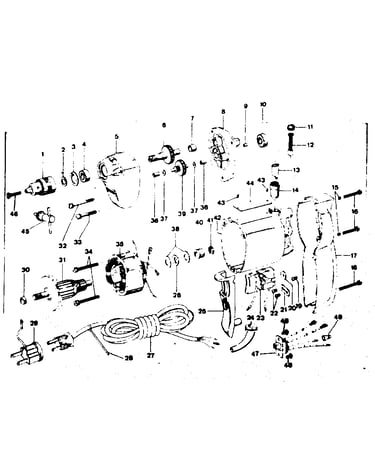

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-623654-00
#32

Unit parts diagram

Screw

Part #1-623654-00

The manufacturer no longer makes this part, and there's no substitute part

Arm Cover 1-713513-828
#30

Unit parts diagram

Arm cover

Part #1-713513-828

The manufacturer no longer makes this part, and there's no substitute part

Wire Connctr 1-623173-01
#49

Unit parts diagram

Wire connctr

Part #1-623173-01

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 4-614336-03
#42

Unit parts diagram

Motor housing

Part #4-614336-03

The manufacturer no longer makes this part, and there's no substitute part

Chuck 1-623261-00
#1

Unit parts diagram

Chuck

Part #1-623261-00

The manufacturer no longer makes this part, and there's no substitute part

Armature 2-614342-01
#31

Unit parts diagram

Armature

Part #2-614342-01

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-703493-804
#38

Unit parts diagram

Washer

Part #1-703493-804

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 1-621635-01
#4

Unit parts diagram

Ball bearing

Part #1-621635-01

The manufacturer no longer makes this part, and there's no substitute part
