Model # SAV5401AWQ Official Maytag washer

Here are the diagrams and repair parts for Official Maytag SAV5401AWQ washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Rotary Knob 22003913
#11

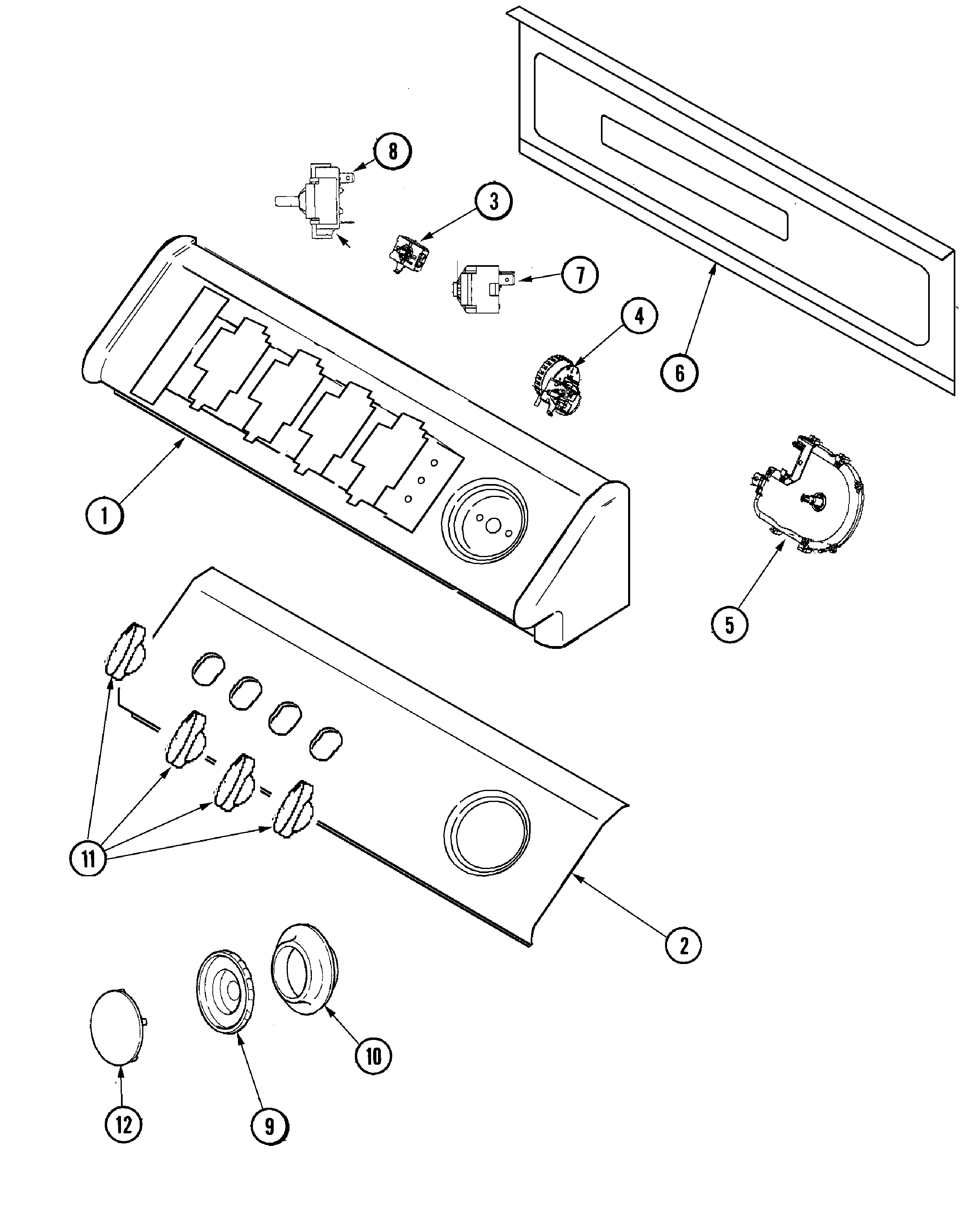

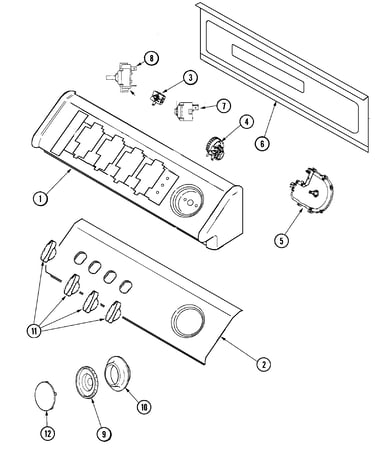

Control panel diagram

Rotary knob

Part #22003913

Replaced by #WP22001663

?
Manufacturer substitution
This part replaces 22003913. Substitute parts can look different from the original.
$37.12 |
14% OFF Phone Price : $43.12
In Stock
Laundry Appliance Timer Knob Insert 22001664
#12

Control panel diagram

Laundry appliance timer knob insert

Part #22001664

Replaced by #WP22001664

?
Manufacturer substitution
This part replaces 22001664. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Mallory Timer 27001048
#5

Control panel diagram

Mallory timer

Part #27001048

The manufacturer no longer makes this part, and there's no substitute part

Timer Knob 22002996
#9

Control panel diagram

Timer knob

Part #22002996

The manufacturer no longer makes this part, and there's no substitute part

Screw (hex Head) (series 10) (non-illus) 33001855
#5A

Control panel diagram

Screw (hex head) (series 10) (non-illus)

Part #33001855

The manufacturer no longer makes this part, and there's no substitute part

Graphic Control 27001049
#2

Control panel diagram

Graphic control

Part #27001049

The manufacturer no longer makes this part, and there's no substitute part

Temperature Switch 22001825
#3

Control panel diagram

Temperature switch

Part #22001825

The manufacturer no longer makes this part, and there's no substitute part

Panel 27001051
#6

Control panel diagram

Panel

Part #27001051

The manufacturer no longer makes this part, and there's no substitute part

Pressure Switch 27001047
#4

Control panel diagram

Pressure switch

Part #27001047

The manufacturer no longer makes this part, and there's no substitute part

Speed Switch 22002578
#8

Control panel diagram

Speed switch

Part #22002578

The manufacturer no longer makes this part, and there's no substitute part
