Model # 360827900 Official Kenmore automatic chrome oscillating juicer

Here are the diagrams and repair parts for Official Kenmore 360827900 automatic chrome oscillating juicer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Upper Housng 911661
#5

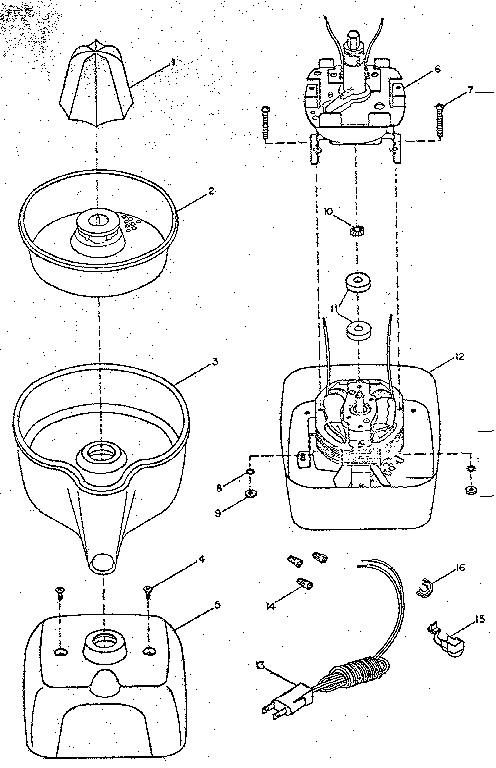

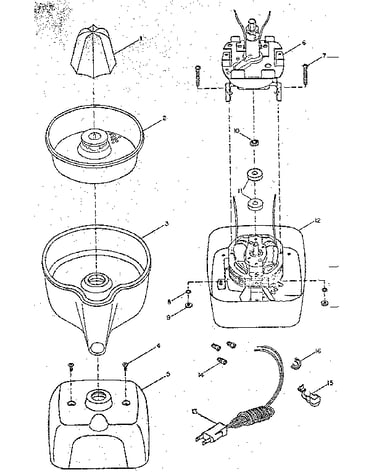

Replacement parts diagram

Upper housng

Part #911661

The manufacturer no longer makes this part, and there's no substitute part

Grip Master 121023
#15

Replacement parts diagram

Grip master

Part #121023

The manufacturer no longer makes this part, and there's no substitute part

Lower Housng 900128
#12

Replacement parts diagram

Lower housng

Part #900128

The manufacturer no longer makes this part, and there's no substitute part

Cord 108461
#13

Replacement parts diagram

Cord

Part #108461

The manufacturer no longer makes this part, and there's no substitute part

Drive Assembly 900125
#6

Replacement parts diagram

Drive assembly

Part #900125

The manufacturer no longer makes this part, and there's no substitute part

Nut, 8 - 32 Hex L/P
Nut, 8 - 32 hex

Part #L/P

The manufacturer no longer makes this part, and there's no substitute part

Strainer 601203
#2

Replacement parts diagram

Strainer

Part #601203

The manufacturer no longer makes this part, and there's no substitute part

Cord Grip 121059
#16

Replacement parts diagram

Cord grip

Part #121059

The manufacturer no longer makes this part, and there's no substitute part

Washer 019008
#11

Replacement parts diagram

Washer

Part #019008

The manufacturer no longer makes this part, and there's no substitute part

Pinion 147008
#10

Replacement parts diagram

Pinion

Part #147008

The manufacturer no longer makes this part, and there's no substitute part
