Model # MMV5165BAS14 Official Maytag microwave/hood combo
Here are the diagrams and repair parts for Official Maytag MMV5165BAS14 microwave/hood combo, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
MMV5165BAS14 Microwave/Hood Combo
#15

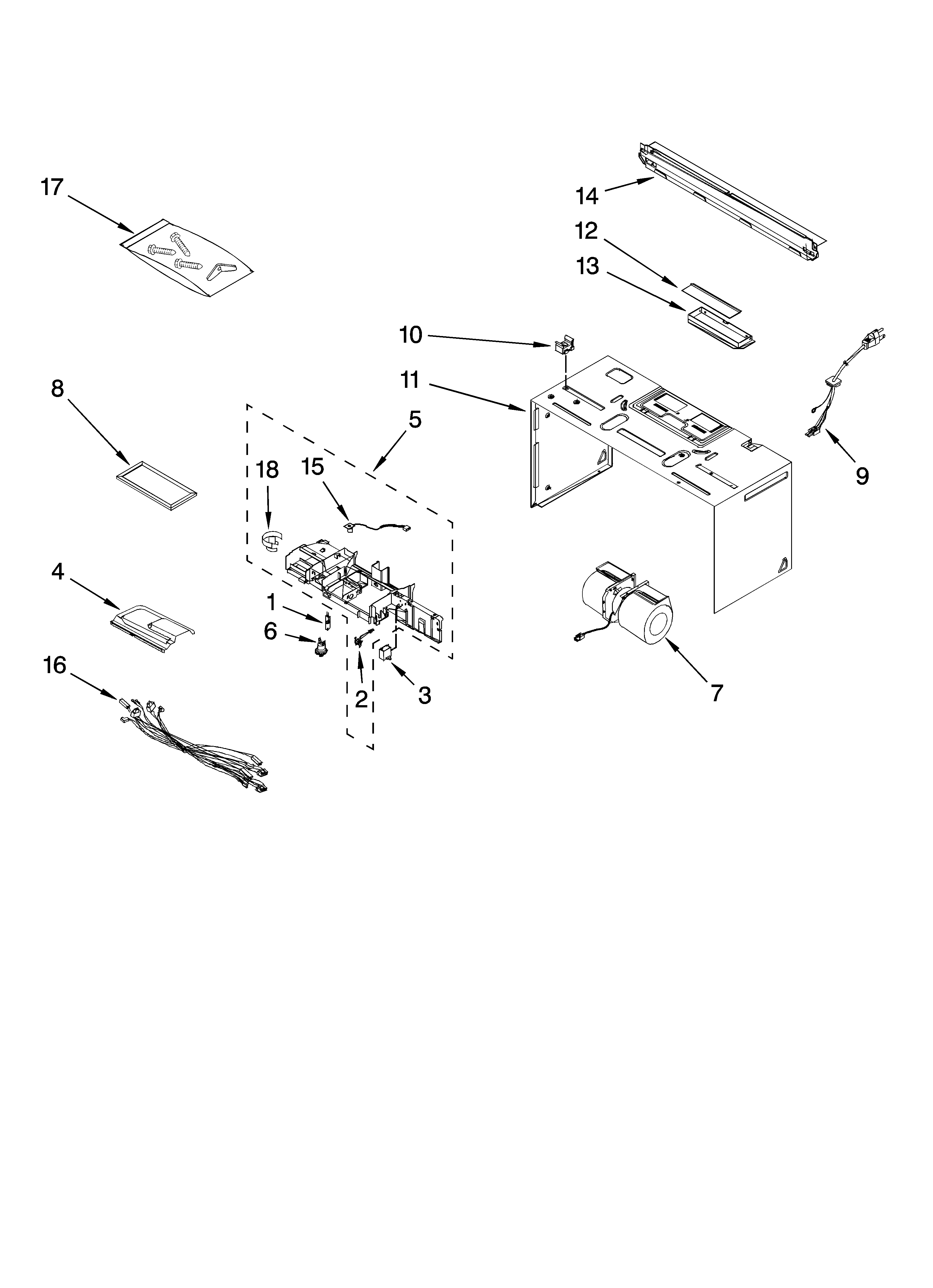

Interior and ventilation parts diagram
Microwave latch body and switch assembly
Part #DE96-00414A
$54.86 |
10% OFF Phone Price : $60.86
In Stock
#14
Interior and ventilation parts diagram
Microwave door interlock switch (replaces 3405-000178)
Part #3405-001034
$25.69 |
19% OFF Phone Price : $31.69
Back Order
#21
Interior and ventilation parts diagram
Thermostat
Part #DE47-20007A
Replaced by #DE47-20007B
?
Manufacturer substitution
This part replaces DE47-20007A. Substitute parts can look different from the original.
$14.75 |
12% OFF Phone Price : $16.75
In Stock
#18
Interior and ventilation parts diagram
Range thermal cut-off (replaces de47-20117a)
Part #DE47-20034A
$20.47 |
23% OFF Phone Price : $26.47
In Stock
#20
Interior and ventilation parts diagram
Magnetron
Part #W10126786
Replaced by #WPW10126786
?
Manufacturer substitution
This part replaces W10126786. Substitute parts can look different from the original.
$169.74 |
7% OFF Phone Price : $181.74
In Stock
#17
Interior and ventilation parts diagram
Thermostat
Part #DE47-20059A
Replaced by #DE47-20059B
?
Manufacturer substitution
This part replaces DE47-20059A. Substitute parts can look different from the original.
$30.62 |
16% OFF Phone Price : $36.62
In Stock
Microwave light socket (replaces de72-10043a)
Part #DE47-00006A
This item is not returnable
$20.98 |
22% OFF Phone Price : $26.98
In Stock
#6A
Control panel parts diagram
Microwave door handle (stainless)
Part #W10187840
Replaced by #WPW10187840
?
Manufacturer substitution
This part replaces W10187840. Substitute parts can look different from the original.
$74.81 |
7% OFF Phone Price : $80.81
In Stock
#6
Cabinet and air flow parts diagram
Thermostat
Part #DE47-20196A
Replaced by #DE47-20196C
?
Manufacturer substitution
This part replaces DE47-20196A. Substitute parts can look different from the original.
$20.98 |
22% OFF Phone Price : $26.98
In Stock
#30
Interior and ventilation parts diagram
Microwave stirrer fan cover clip (white)
Part #DE66-20095B
This item is not returnable
$17.71
In Stock
