Amana
Chest Freezer

Model # AQC2227BRW Official Amana chest freezer

Here are the diagrams and repair parts for Official Amana AQC2227BRW chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

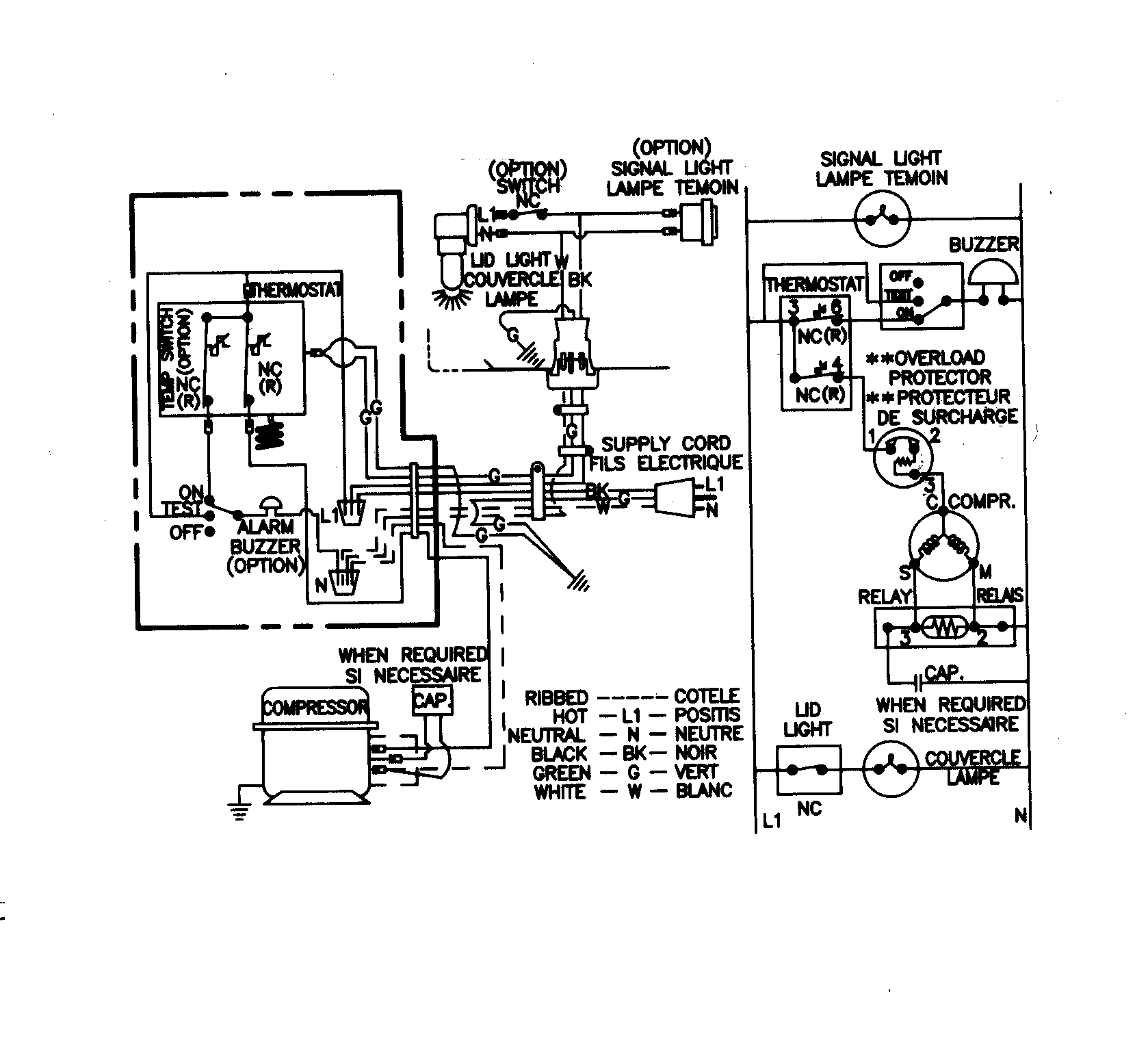

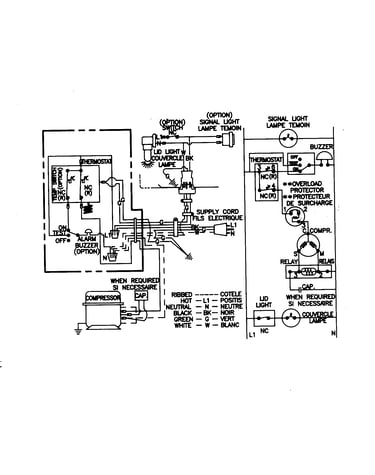

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Refrigerator Uv Dye Dryer 13900-1
#6

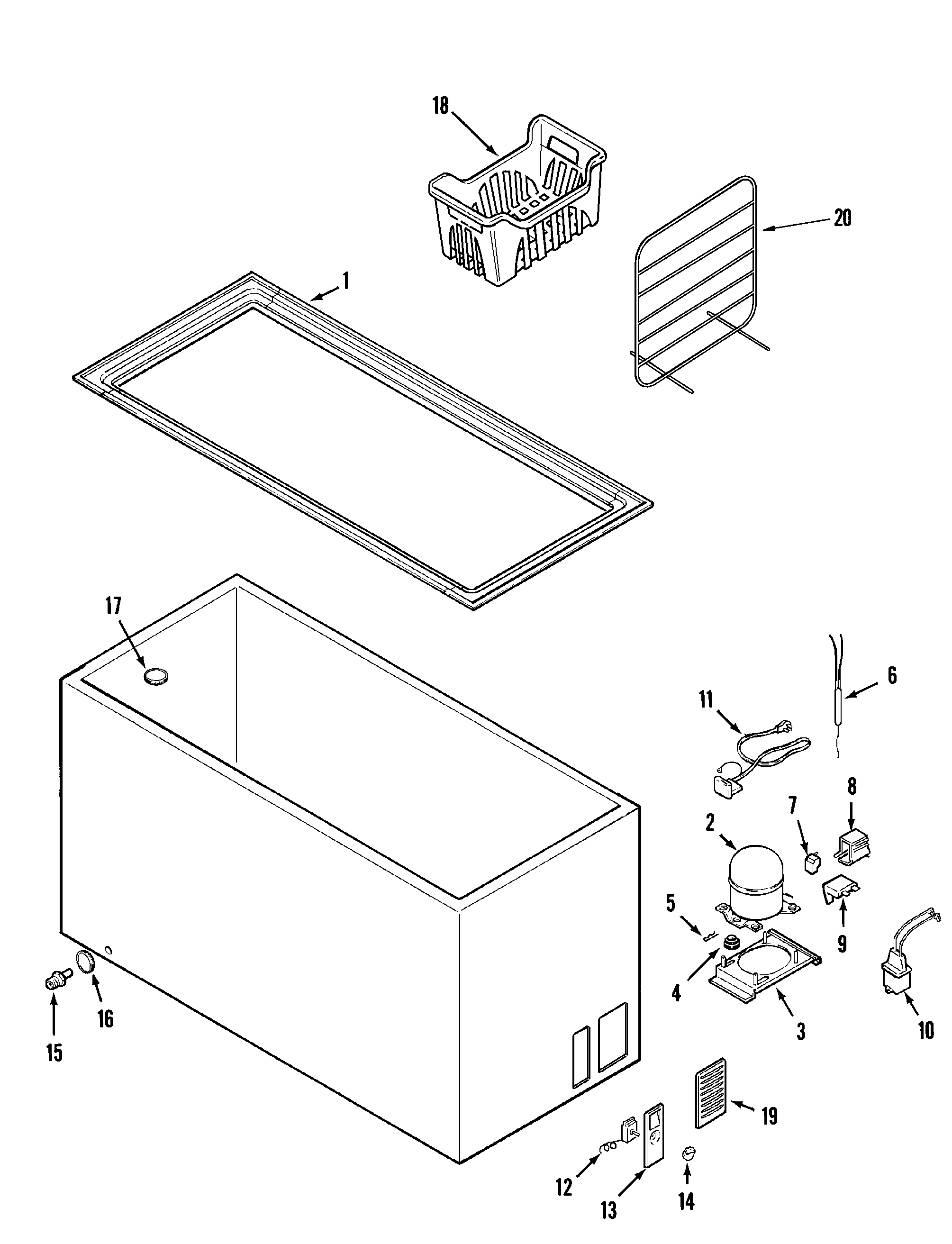

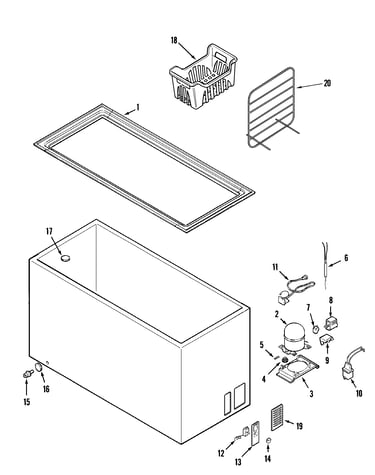

Cabinet diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Compressor 68001279
#2

Cabinet diagram

Compressor

Part #68001279

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 68001279. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Light Bulb 09100073
#18

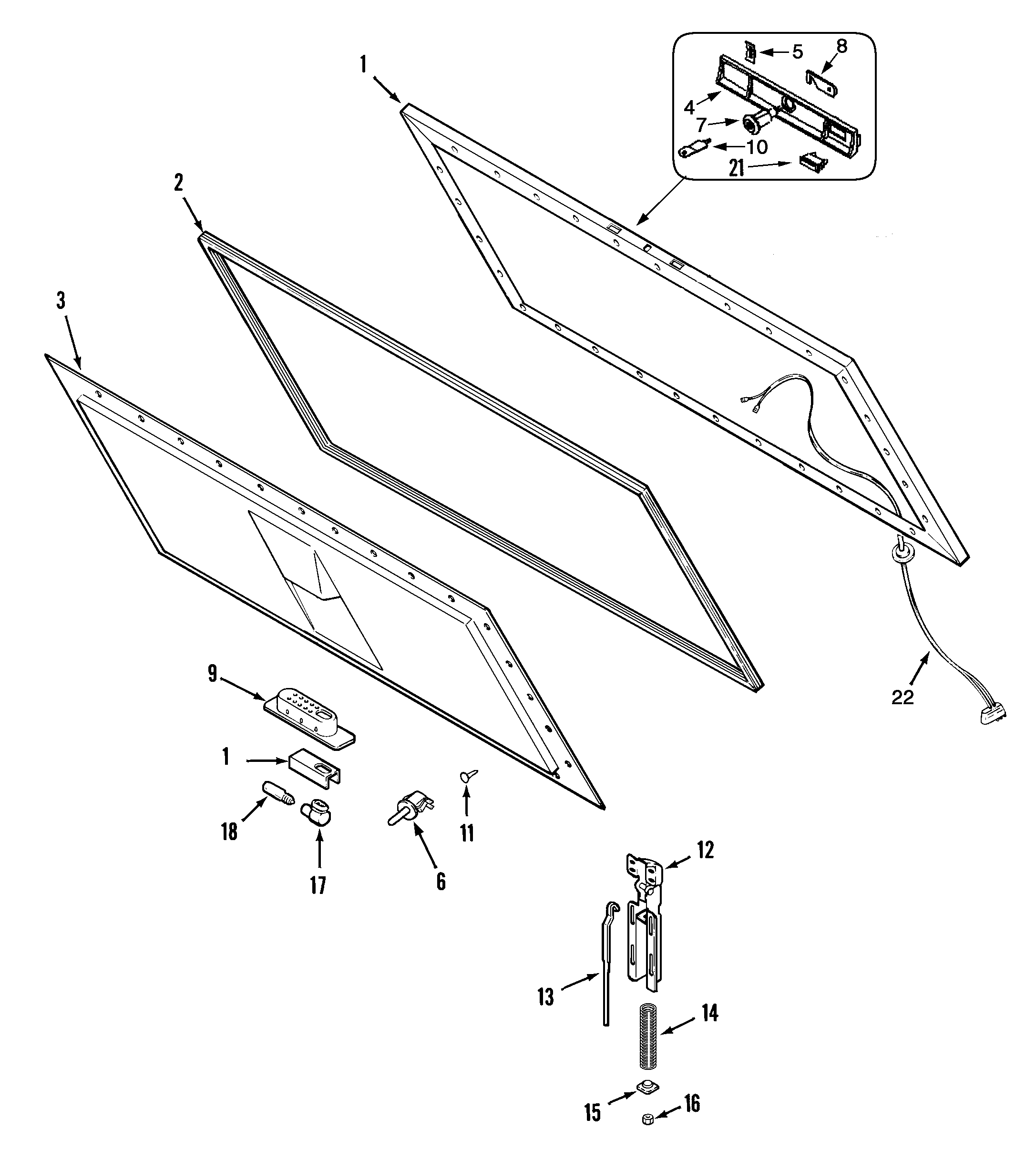

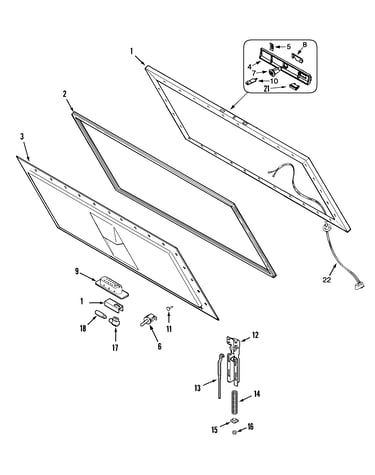

Lid diagram

Light bulb

Part #09100073

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces 09100073. Substitute parts can look different from the original.
BEST SELLER
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Screw 68001156
#8A

Lid diagram

Screw

Part #68001156

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 68001156. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Temperature Control 68001451
#12

Cabinet diagram

Temperature control

Part #68001451

Replaced by #WP4-35940-001

?
Manufacturer substitution
This part replaces 68001451. Substitute parts can look different from the original.
$118.93 |
9% OFF Phone Price : $130.93
In Stock
Lid Kit (wht 68001144
#1

Lid diagram

Lid kit (wht

Part #68001144

Replaced by #4390903

?
Manufacturer substitution
This part replaces 68001144. Substitute parts can look different from the original.
$479.88 |
$12.00 OFF Phone Price : $491.88
In Stock
Hinge Shim 68001171
#12B

Lid diagram

Hinge shim

Part #68001171

Replaced by #1-17548-006

?
Manufacturer substitution
This part replaces 68001171. Substitute parts can look different from the original.
$18.96
In Stock
Wiring Harness R0000143
#11

Cabinet diagram

Wiring harness

Part #R0000143

Replaced by #4-35136-002

?
Manufacturer substitution
This part replaces R0000143. Substitute parts can look different from the original.
$82.62 |
7% OFF Phone Price : $88.62
In Stock
Base Bracket 68001631
#3A

Cabinet diagram

Base bracket

Part #68001631

Replaced by #3-81556-001

?
Manufacturer substitution
This part replaces 68001631. Substitute parts can look different from the original.
$10.80
In Stock
Light Switch 68001449
#6

Lid diagram

Light switch

Part #68001449

Replaced by #W10917237

?
Manufacturer substitution
This part replaces 68001449. Substitute parts can look different from the original.
This item is not returnable
$25.79 |
19% OFF Phone Price : $31.79
In Stock
