Model # MDG17CSBGW2 Official Maytag gas commercial dryer
Here are the diagrams and repair parts for Official Maytag MDG17CSBGW2 gas commercial dryer, as well as links to manuals and error code tables, if available.
Installation guideBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
MDG17CSBGW2 Gas Commercial Dryer
#30

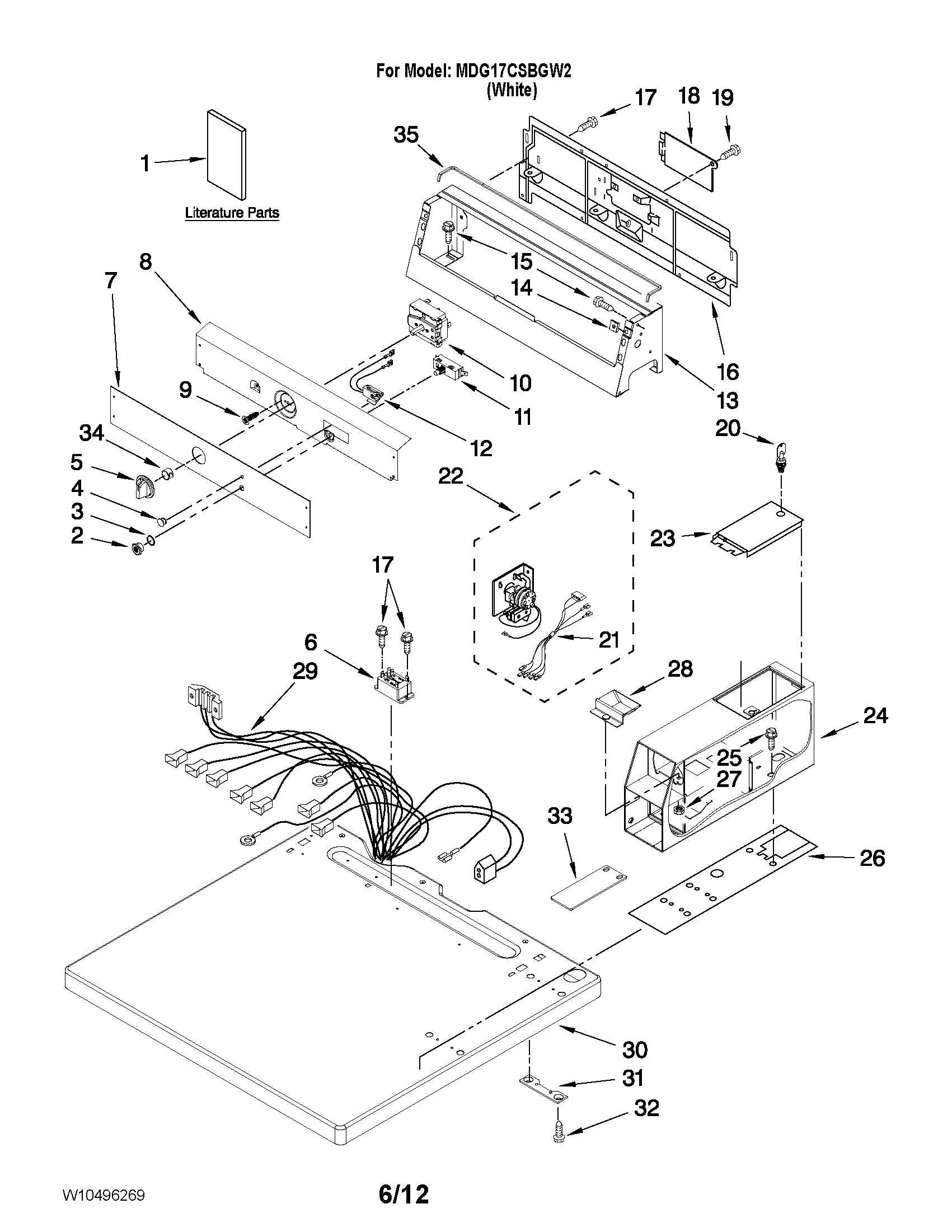

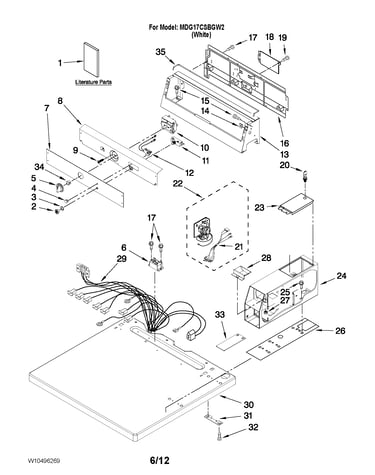

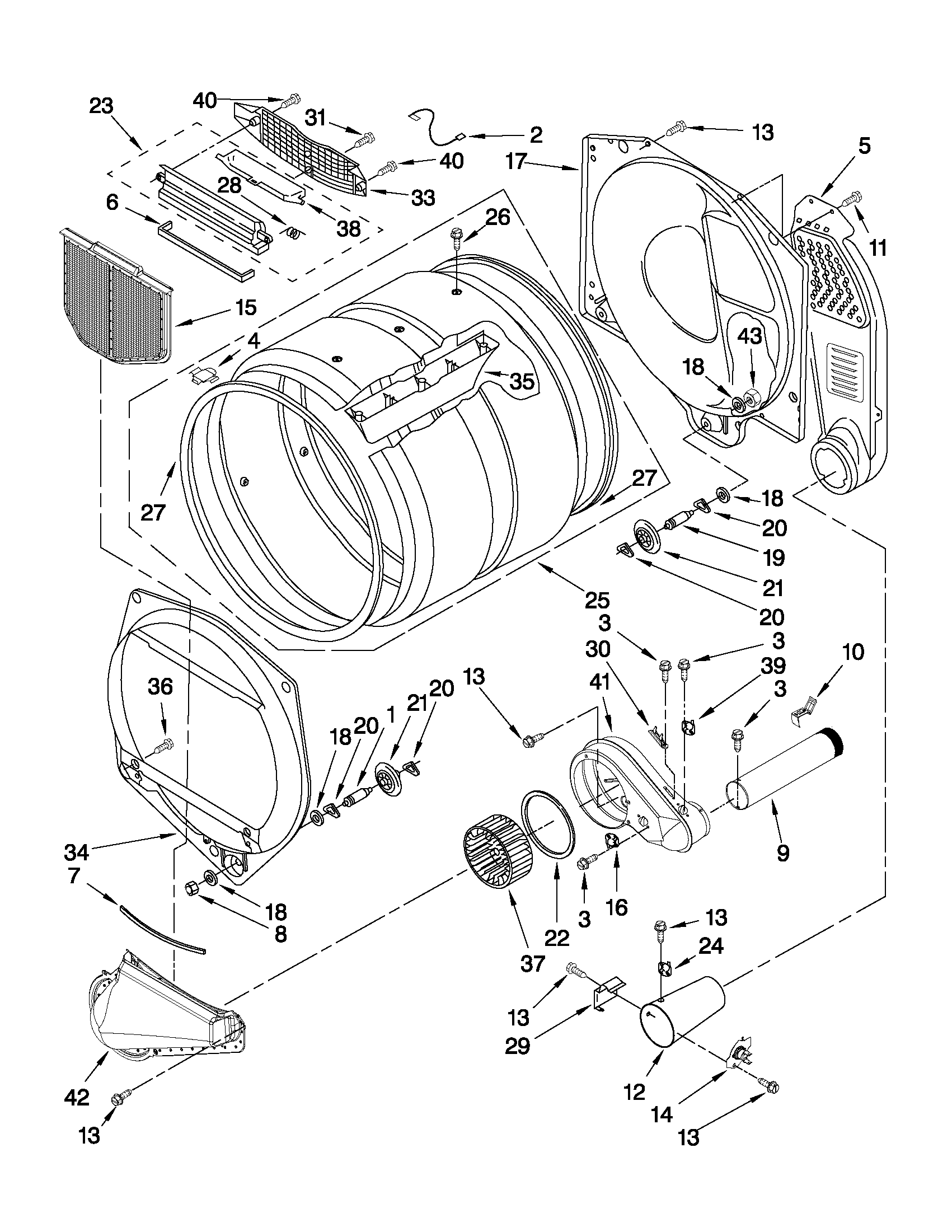

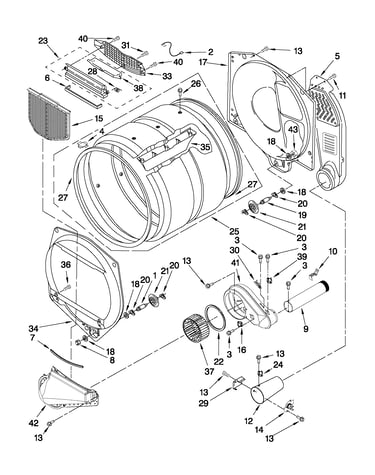

Bulkhead parts diagram
Dryer thermal fuse
Part #3392519
Replaced by #WP3392519
?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
$17.60 |
10% OFF Phone Price : $19.60
In Stock
#21
Bulkhead parts diagram
Dryer drum support roller
Part #W10314171
Replaced by #WPW10314173
?
Manufacturer substitution
This part replaces W10314171. Substitute parts can look different from the original.
$14.45 |
12% OFF Phone Price : $16.45
In Stock
#NI
Optional parts (not included) diagram
Whirlpool dryer repair kit (4392067) (replaces 2015, 80047) - dryer maintenance kit by whirlpool
Part #4392067
$44.51 |
12% OFF Phone Price : $50.51
In Stock

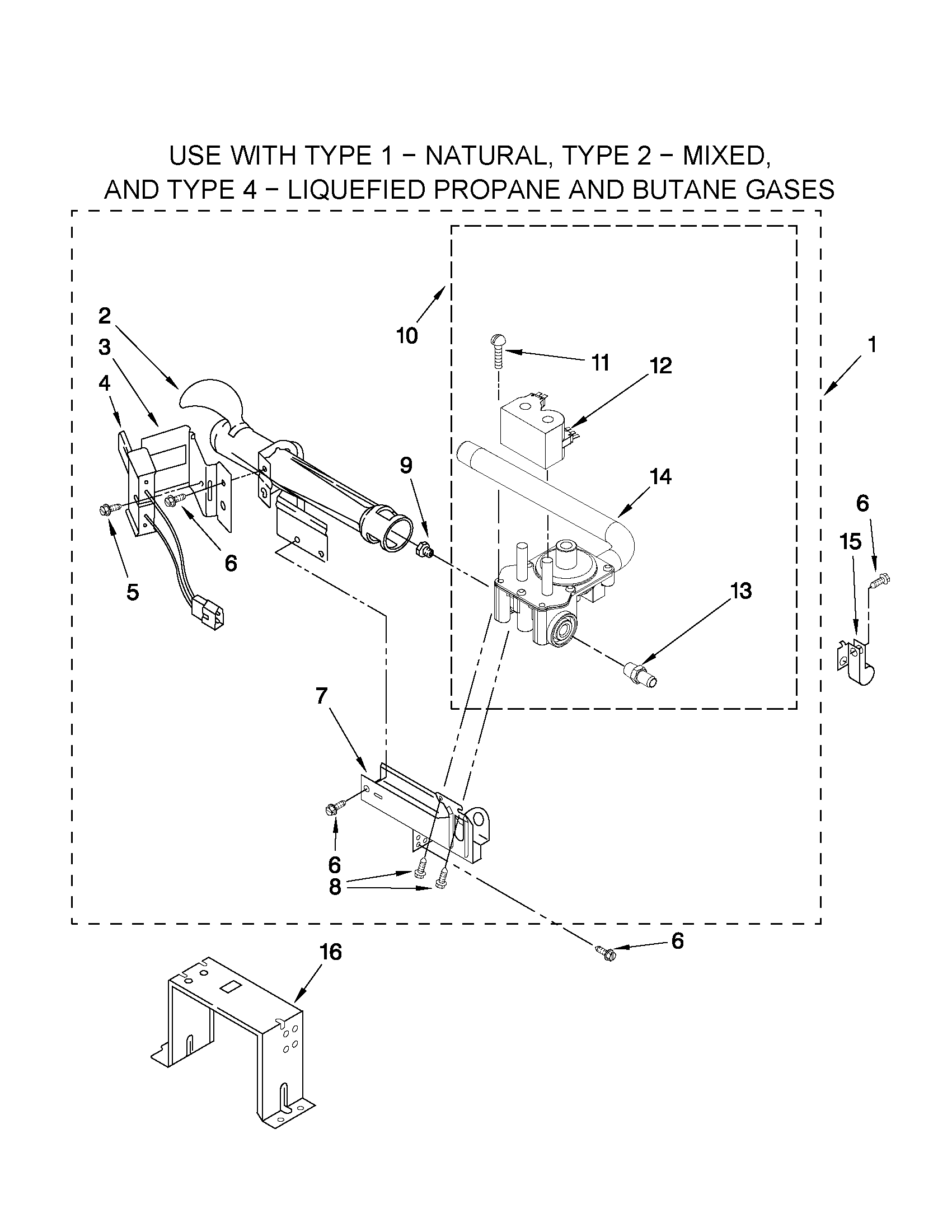

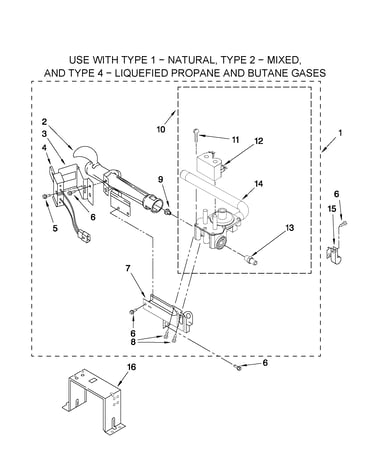

Igniter
Part #686590
Replaced by #279311
?
Manufacturer substitution
This part replaces 686590. Substitute parts can look different from the original.
$25.20 |
19% OFF Phone Price : $31.20
In Stock

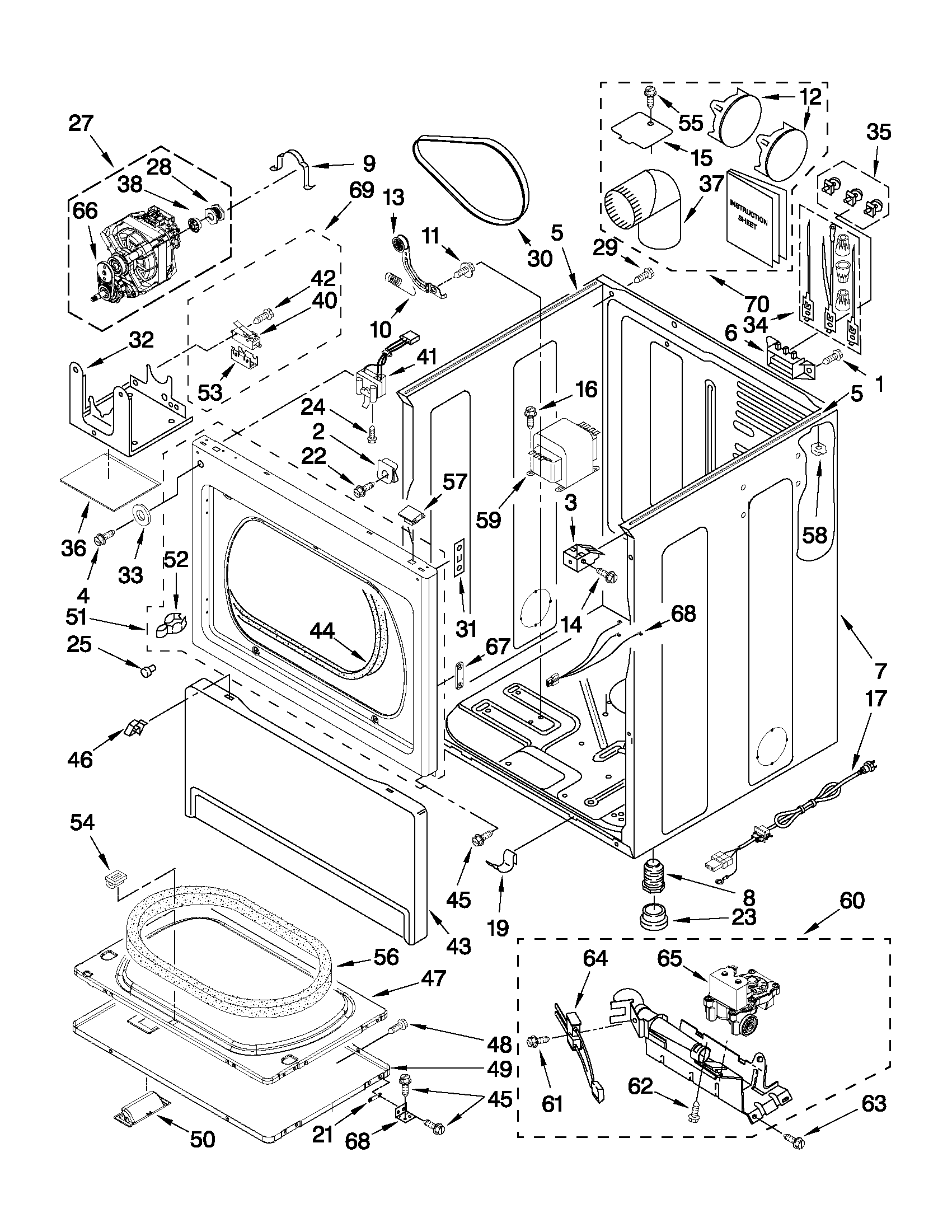

#52
Cabinet parts diagram
Strike
Part #696144
Replaced by #279570
?
Manufacturer substitution
This part replaces 696144. Substitute parts can look different from the original.
This item is not returnable
$4.01 |
20% OFF Phone Price : $5.01
In Stock
#54
Cabinet parts diagram
Catch
Part #3392538
Replaced by #279570
?
Manufacturer substitution
This part replaces 3392538. Substitute parts can look different from the original.
This item is not returnable
$4.01 |
20% OFF Phone Price : $5.01
In Stock
#15
Bulkhead parts diagram
Screen
Part #W10049370
Replaced by #W10120998
?
Manufacturer substitution
This part replaces W10049370. Substitute parts can look different from the original.
$58.47 |
9% OFF Phone Price : $64.47
In Stock
#27
Bulkhead parts diagram
Seal
Part #W10166807
Replaced by #280114
?
Manufacturer substitution
This part replaces W10166807. Substitute parts can look different from the original.
$29.62 |
17% OFF Phone Price : $35.62
In Stock
#19
Bulkhead parts diagram
Dryer drum support roller shaft
Part #W10359272
Replaced by #WPW10359272
?
Manufacturer substitution
This part replaces W10359272. Substitute parts can look different from the original.
$33.63 |
15% OFF Phone Price : $39.63
In Stock
#1
Bulkhead parts diagram
Dryer drum support roller shaft
Part #W10359271
Replaced by #WPW10359271
?
Manufacturer substitution
This part replaces W10359271. Substitute parts can look different from the original.
$37.52 |
14% OFF Phone Price : $43.52
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $44.51 |12% OFF Phone Price : $50.51
- $8.29 |11% OFF Phone Price : $9.29
- $31.19 |16% OFF Phone Price : $37.19
