Model # WED50P2 Official White-Westinghouse dehumidifier - 5995242095

Here are the diagrams and repair parts for Official White-Westinghouse WED50P2 dehumidifier - 5995242095, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 51 parts |

Kelvinator Room Air Conditioner Lock Nut 08007481

#14

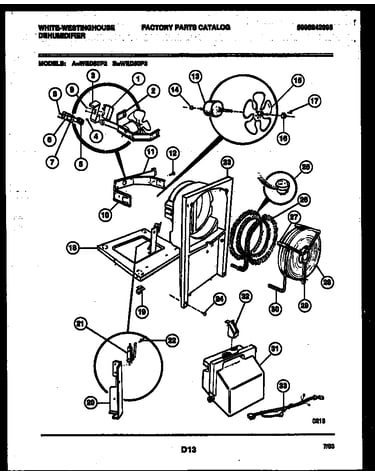

Air, water and condensing parts diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable

$5.74

In Stock

Qty

Air, water and condensing parts diagram

Switch

Part #5303012345

$39.35

In Stock

Qty

Air, water and condensing parts diagram

Bracket

Part #5303296824

This item is not returnable

$2.99

In Stock

Qty

Screw

Part #08016435

This item is not returnable

$2.16

In Stock

Qty

#17

Air, water and condensing parts diagram

Screw

Part #5308007473

Replaced by #5304455651

$13.26

In Stock

Qty

#10

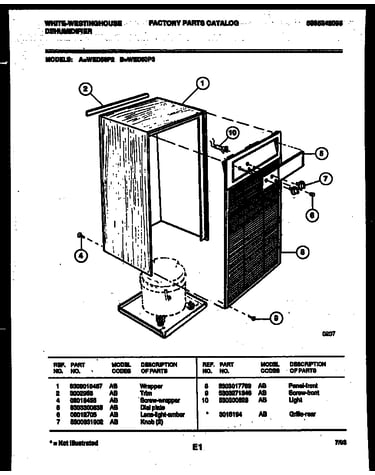

Cabinet and control parts diagram

Light

Part #530300828

The manufacturer no longer makes this part, and there's no substitute part

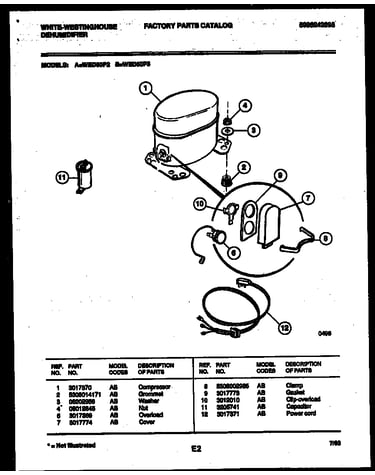

Compressor parts diagram

Clamp

Part #5308002985

The manufacturer no longer makes this part, and there's no substitute part

Cabinet and control parts diagram

Cabinet

Part #5308016457

The manufacturer no longer makes this part, and there's no substitute part

Air, water and condensing parts diagram

Guard

Part #5303283906

The manufacturer no longer makes this part, and there's no substitute part

Compressor parts diagram

Gasket

Part #3017773

The manufacturer no longer makes this part, and there's no substitute part
