MTD
Electric Walk-Behind Mower

Model # 18A-C06-700 Official MTD electric lawn mower

Here are the diagrams and repair parts for Official MTD 18A-C06-700 electric lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Ryobi Lawn Vacuum Hose Handle Plug 720-0369
#3

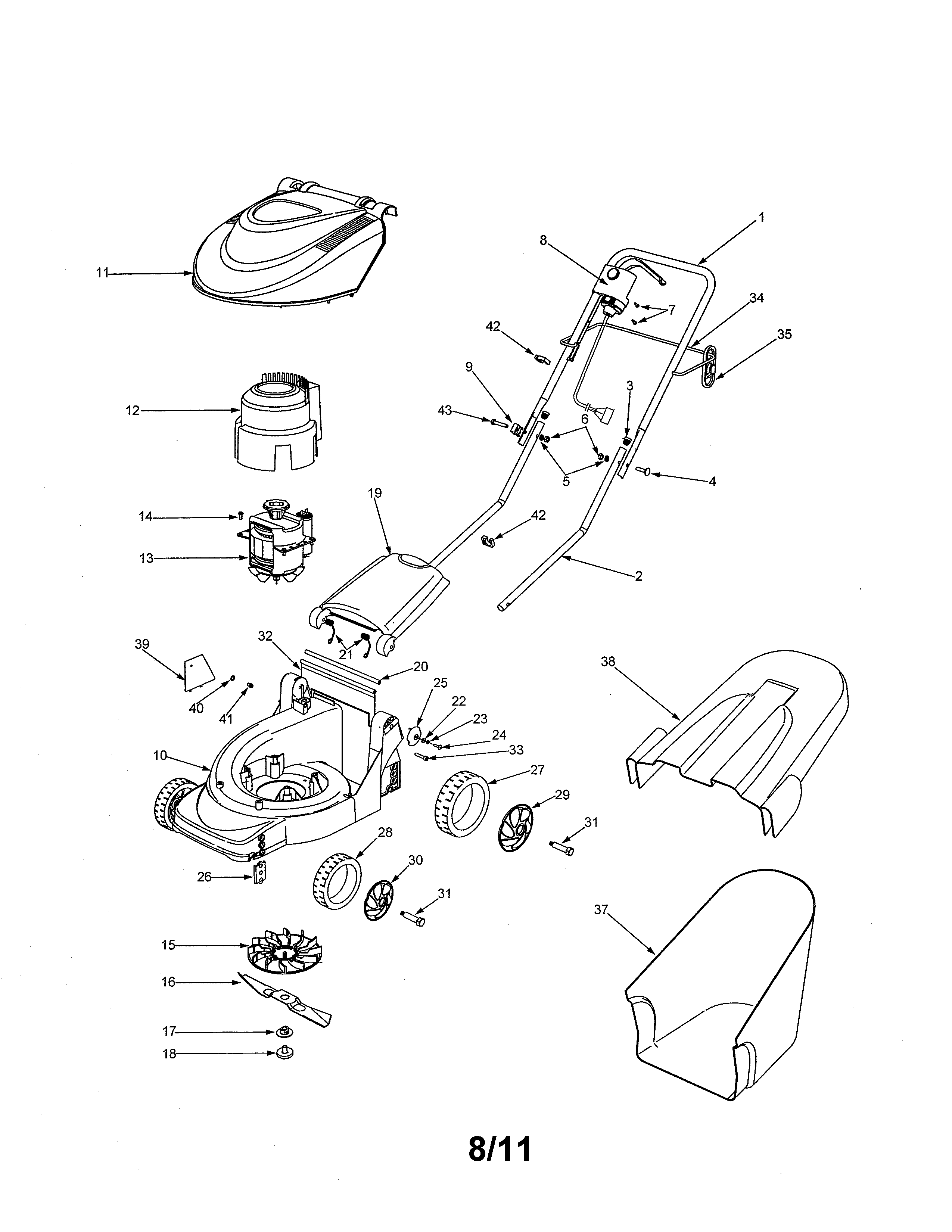

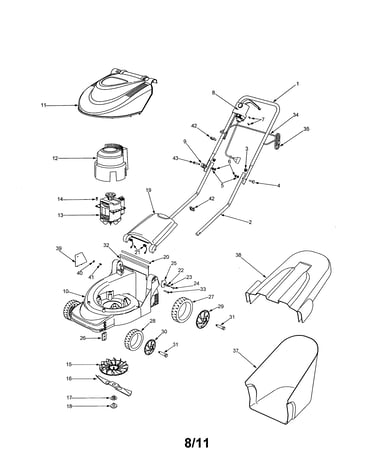

Electric mower diagram

Ryobi lawn vacuum hose handle plug

Part #720-0369

$24.11
In Stock
Upper Handle 749-1042A
#1

Electric mower diagram

Upper handle

Part #749-1042A

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 712-0690
#6

Electric mower diagram

Hex nut

Part #712-0690

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Lock Washer 731-2452
#17

Electric mower diagram

Lawn mower lock washer

Part #731-2452

The manufacturer no longer makes this part, and there's no substitute part

Rod 747-1072
#20

Electric mower diagram

Rod

Part #747-1072

The manufacturer no longer makes this part, and there's no substitute part

Blade 742-0804
#16

Electric mower diagram

Blade

Part #742-0804

The manufacturer no longer makes this part, and there's no substitute part

Screw M6x30 710-1758
#33

Electric mower diagram

Screw m6x30

Part #710-1758

The manufacturer no longer makes this part, and there's no substitute part

Wheel 734-1884-0637
#27

Electric mower diagram

Wheel

Part #734-1884-0637

The manufacturer no longer makes this part, and there's no substitute part

Electric Motor 724-0310
#13

Electric mower diagram

Electric motor

Part #724-0310

The manufacturer no longer makes this part, and there's no substitute part

Blade Hub 631-0148
#15

Electric mower diagram

Blade hub

Part #631-0148

The manufacturer no longer makes this part, and there's no substitute part
