Model # CT9800SH3SS Official GE built-in oven with microwave

Here are the diagrams and repair parts for Official GE CT9800SH3SS built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

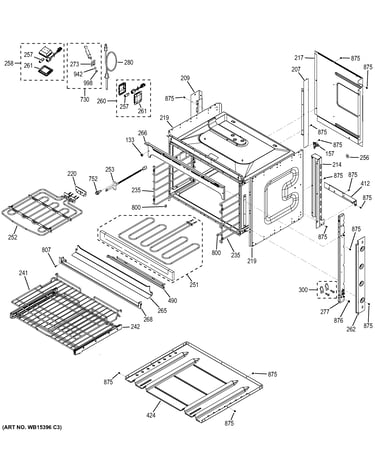

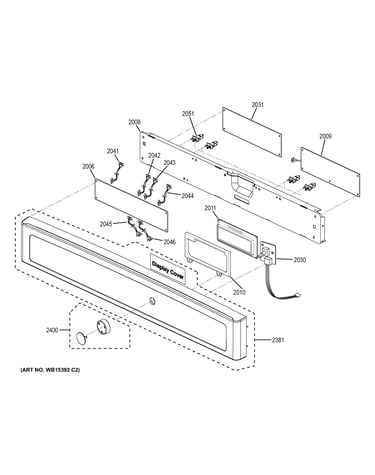

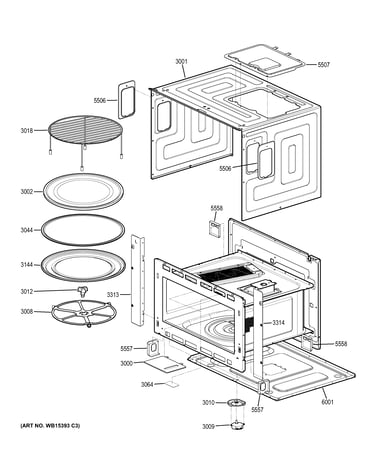

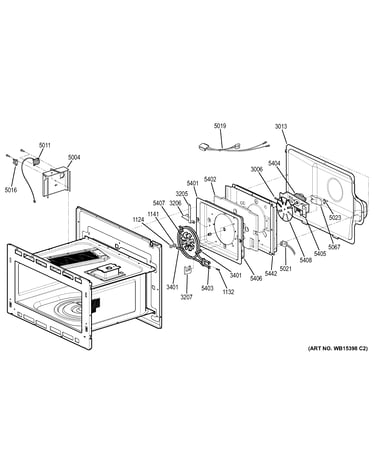

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Microwave Fuse WB27X10388
#5001

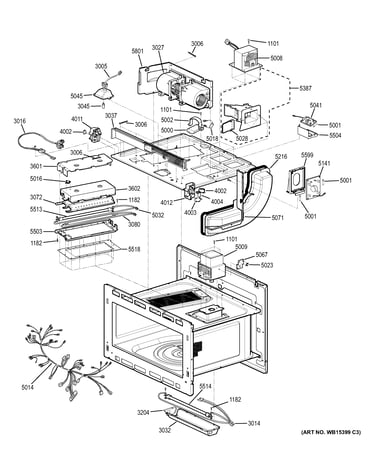

Insulator parts diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Magnetron WB27X10305
#5009

Insulator parts diagram

Microwave magnetron

Part #WB27X10305

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Interlock Switch WB24X10029
#4002

Insulator parts diagram

Microwave door interlock switch

Part #WB24X10029

Replaced by #WB24X10047

?
Manufacturer substitution
This part replaces WB24X10029. Substitute parts can look different from the original.
BEST SELLER
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Wall Oven Cooling Fan Sensor Board WB27T11463
#599

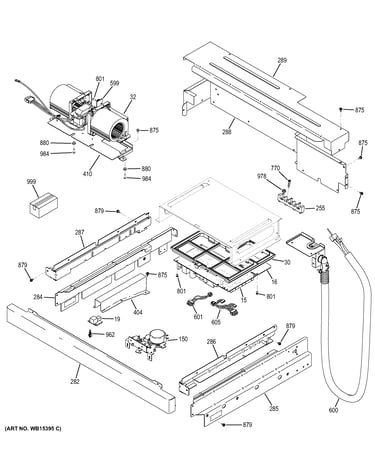

Center spacer diagram

Wall oven cooling fan sensor board

Part #WB27T11463

BEST SELLER
This item is not returnable
$50.23 |
11% OFF Phone Price : $56.23
In Stock
Drive Capacitor WB27X10701
#5000

Insulator parts diagram

Drive capacitor

Part #WB27X10701

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10701. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
13% OFF Phone Price : $47.91
In Stock
Wall Oven Door Window Assembly WB56X27480
#338

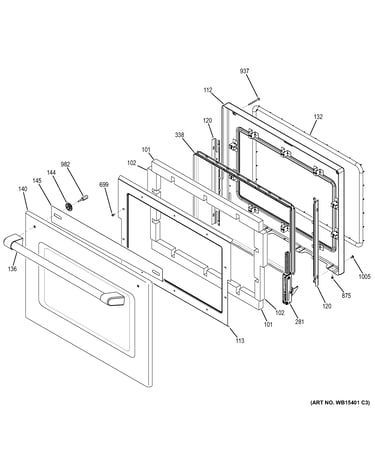

Door diagram
