Frigidaire
Upright Freezer

Model # FFU12C2CW3 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFU12C2CW3 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Filter Drier 216634500
#4

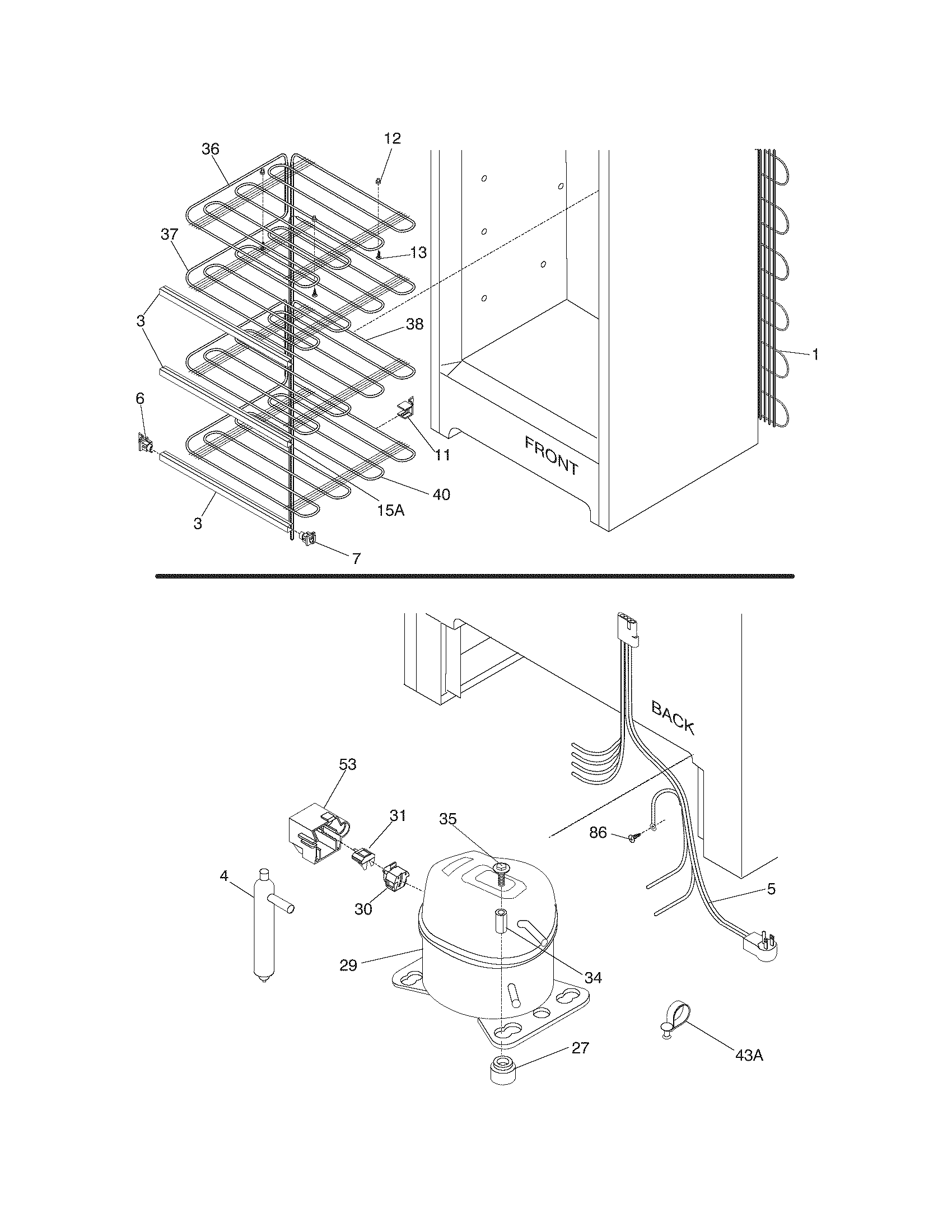

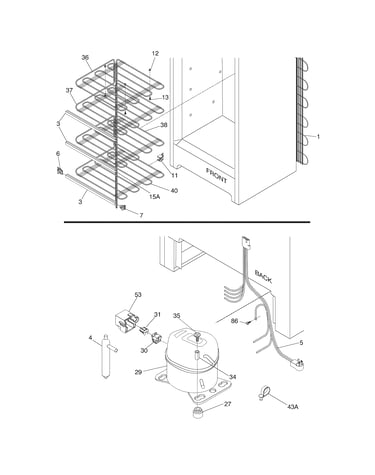

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Drain Plug (replaces 5306593887) 216502600
#3

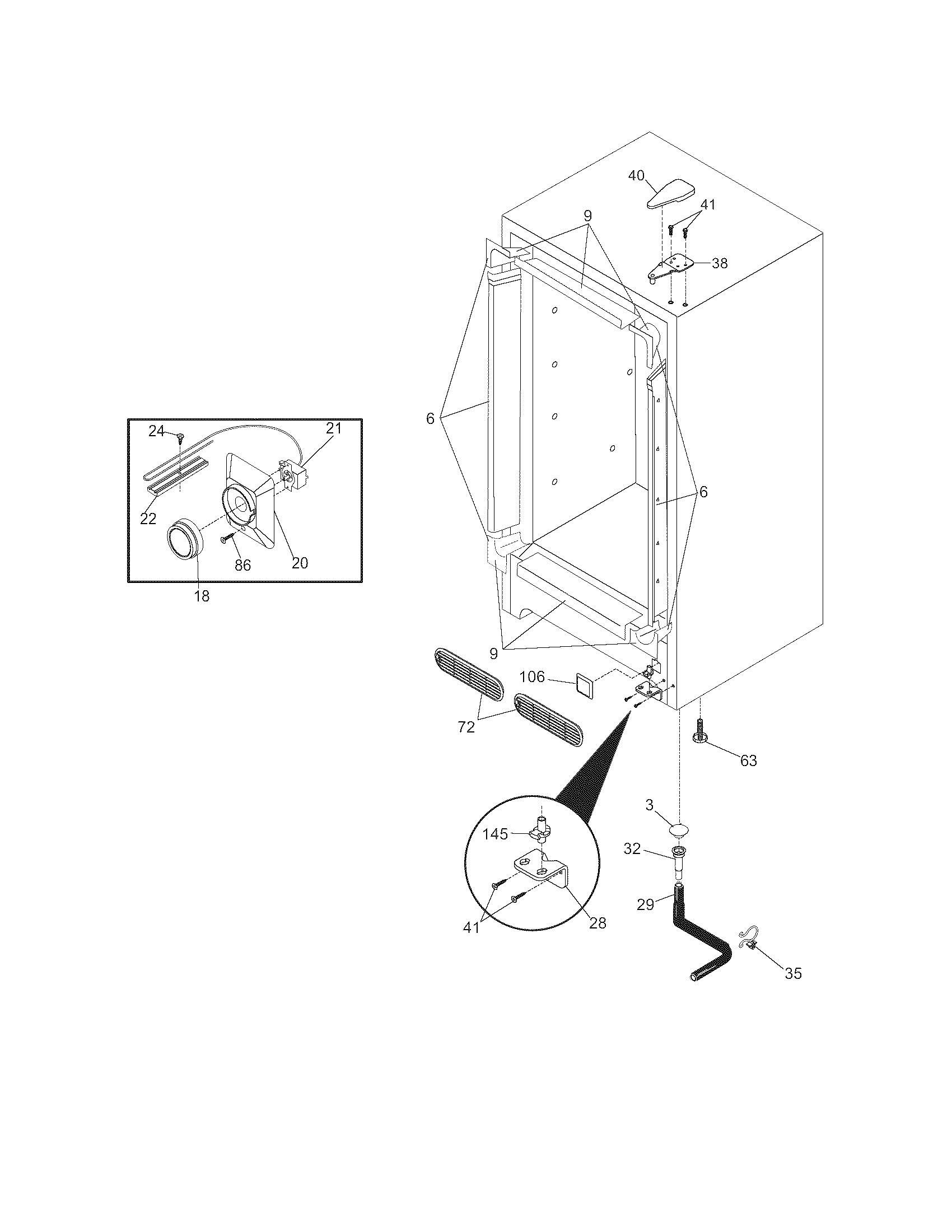

Cabinet diagram

Freezer drain plug (replaces 5306593887)

Part #216502600

BEST SELLER
This item is not returnable
$13.04 |
13% OFF Phone Price : $15.04
In Stock
Freezer Door Gasket 216522303
#1

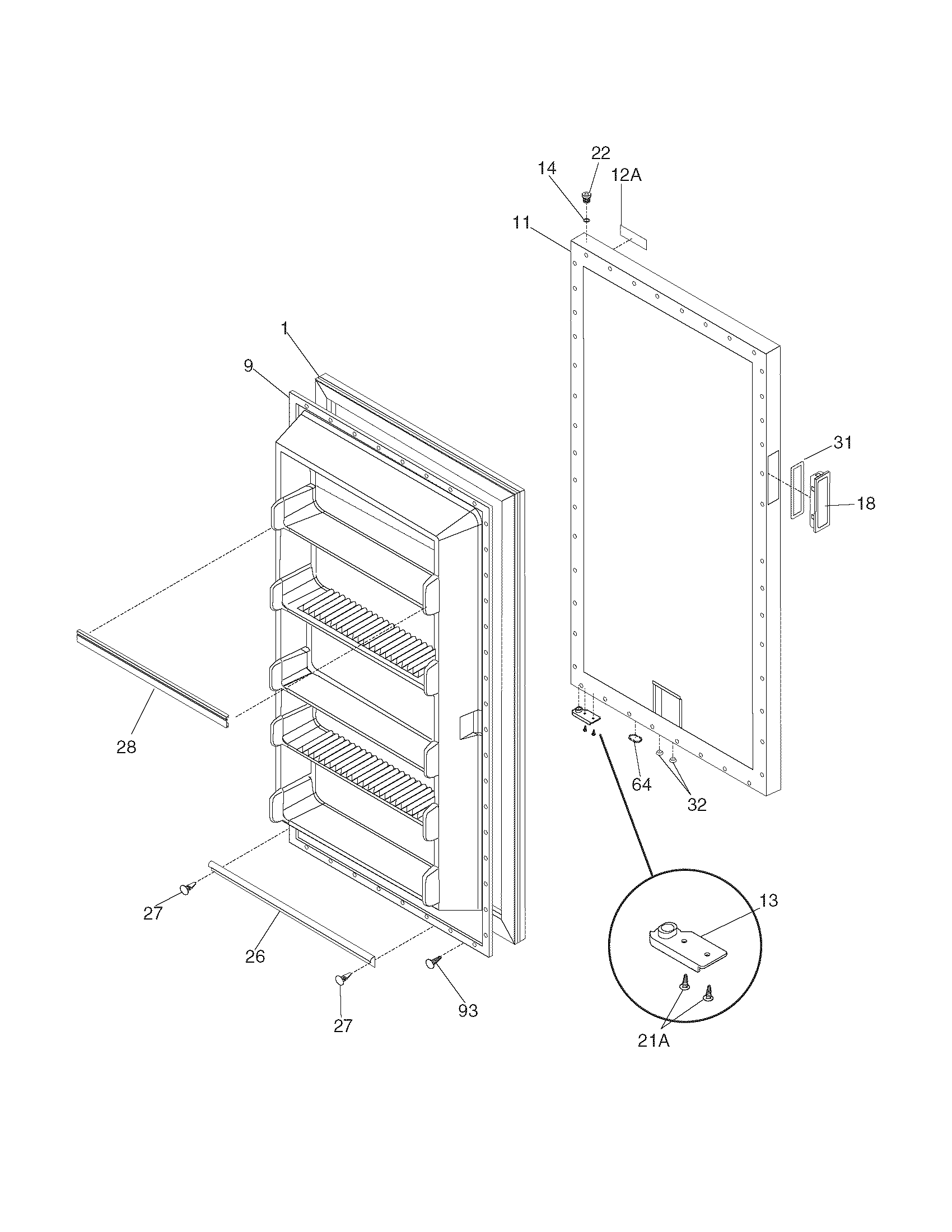

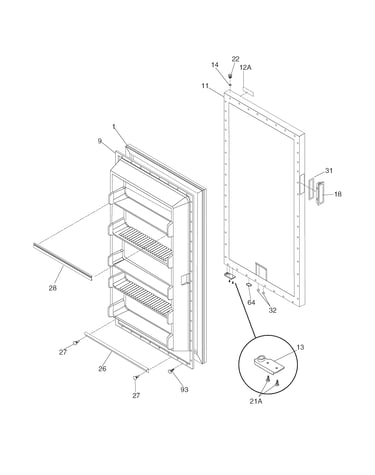

Door diagram

Freezer door gasket

Part #216522303

Replaced by #5304507202

?
Manufacturer substitution
This part replaces 216522303. Substitute parts can look different from the original.
BEST SELLER
$125.91 |
9% OFF Phone Price : $137.91
In Stock
Freezer Drain Hose Adapter 5308005500
#32

Cabinet diagram

Freezer drain hose adapter

Part #5308005500

Replaced by #5304511843

?
Manufacturer substitution
This part replaces 5308005500. Substitute parts can look different from the original.
This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Touch Paint 5303305324
#NI

Cabinet diagram

Touch paint

Part #5303305324

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Support 3091418
#6

System diagram

Support

Part #3091418

Replaced by #297001600

?
Manufacturer substitution
This part replaces 3091418. Substitute parts can look different from the original.
This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Freezer Breather Valve 5309950074
#32

Door diagram

Freezer breather valve

Part #5309950074

This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Support 08037928
#7

System diagram

Support

Part #08037928

Replaced by #297001500

?
Manufacturer substitution
This part replaces 08037928. Substitute parts can look different from the original.
This item is not returnable
$18.32 |
10% OFF Phone Price : $20.32
In Stock
Temperature Control 216788100
#21

Cabinet diagram

Temperature control

Part #216788100

Replaced by #297216004

?
Manufacturer substitution
This part replaces 216788100. Substitute parts can look different from the original.
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Freezer Shelf Trim 216847804
#3

System diagram

Freezer shelf trim

Part #216847804

Replaced by #5304509722

?
Manufacturer substitution
This part replaces 216847804. Substitute parts can look different from the original.
This item is not returnable
$22.08 |
21% OFF Phone Price : $28.08
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
