Model # JKD910SB3SS Official GE warming drawer

Here are the diagrams and repair parts for Official GE JKD910SB3SS warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Drawer Pan WB58X10004
#12

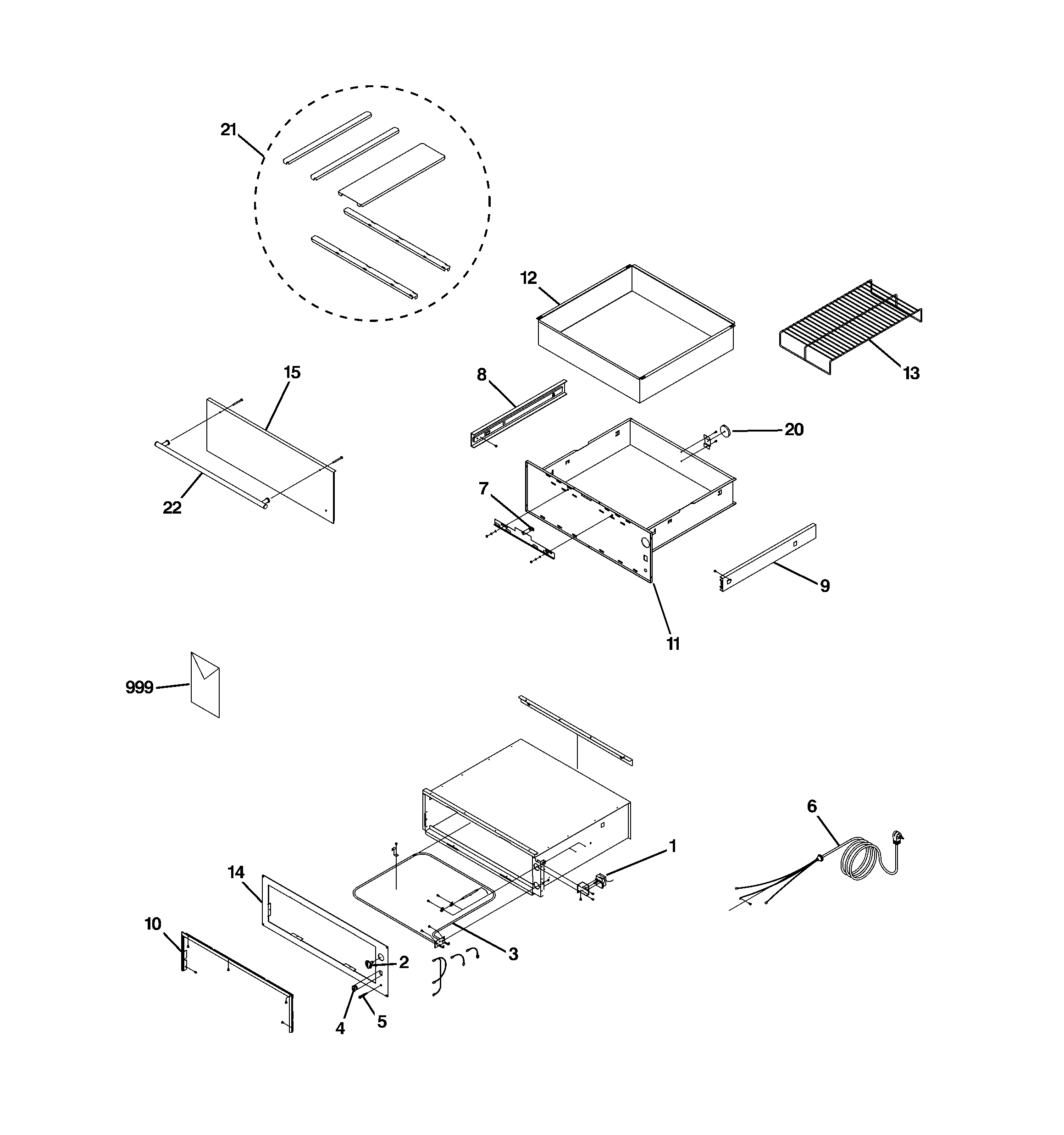

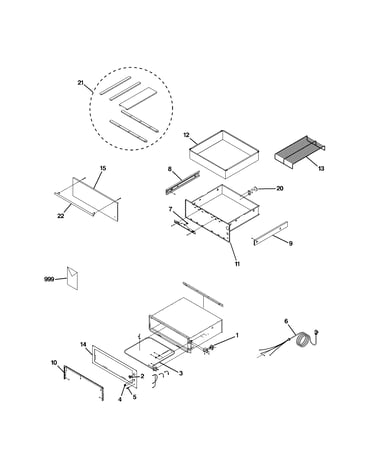

Warmer drawer diagram

Drawer pan

Part #WB58X10004

$268.62
In Stock
Gasket Seal WB02X10945
#10

Warmer drawer diagram

Gasket seal

Part #WB02X10945

$186.80
In Stock
Heating Element WB44X10029
#3

Warmer drawer diagram

Heating element

Part #WB44X10029

$86.69 |
6% OFF Phone Price : $92.69
In Stock
Magnet Closure WB02X10592
#20

Warmer drawer diagram

Magnet closure

Part #WB02X10592

$153.33
In Stock
Uc/install J 49-8933
#999

Warmer drawer diagram

Uc/install j

Part #49-8933

Replaced by #49-8933-1

?
Manufacturer substitution
This part replaces 49-8933. Substitute parts can look different from the original.
$20.49
In Stock
Wire Rack WB48X10010
#13

Warmer drawer diagram

Wire rack

Part #WB48X10010

Replaced by #WB48X10045

?
Manufacturer substitution
This part replaces WB48X10010. Substitute parts can look different from the original.
$143.09 |
8% OFF Phone Price : $155.09
In Stock
Drawer Frame WB58X10003
#11

Warmer drawer diagram

Drawer frame

Part #WB58X10003

Replaced by #WB58X10017

?
Manufacturer substitution
This part replaces WB58X10003. Substitute parts can look different from the original.
$314.22
In Stock
Rail Kit, 27 WB64X10001
#21

Warmer drawer diagram

Rail kit, 27

Part #WB64X10001

Replaced by #WB64X10031

?
Manufacturer substitution
This part replaces WB64X10001. Substitute parts can look different from the original.
$228.07
In Stock
Drwr Frt Gla WB55X10649
#15

Warmer drawer diagram

Drwr frt gla

Part #WB55X10649

The manufacturer no longer makes this part, and there's no substitute part

Panel Face 2 WB56X10251
#14

Warmer drawer diagram

Panel face 2

Part #WB56X10251

The manufacturer no longer makes this part, and there's no substitute part
