Model # FFC0522FW7 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFC0522FW7 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Filter Drier 216987500
#4

System diagram

Filter drier

Part #216987500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216987500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock

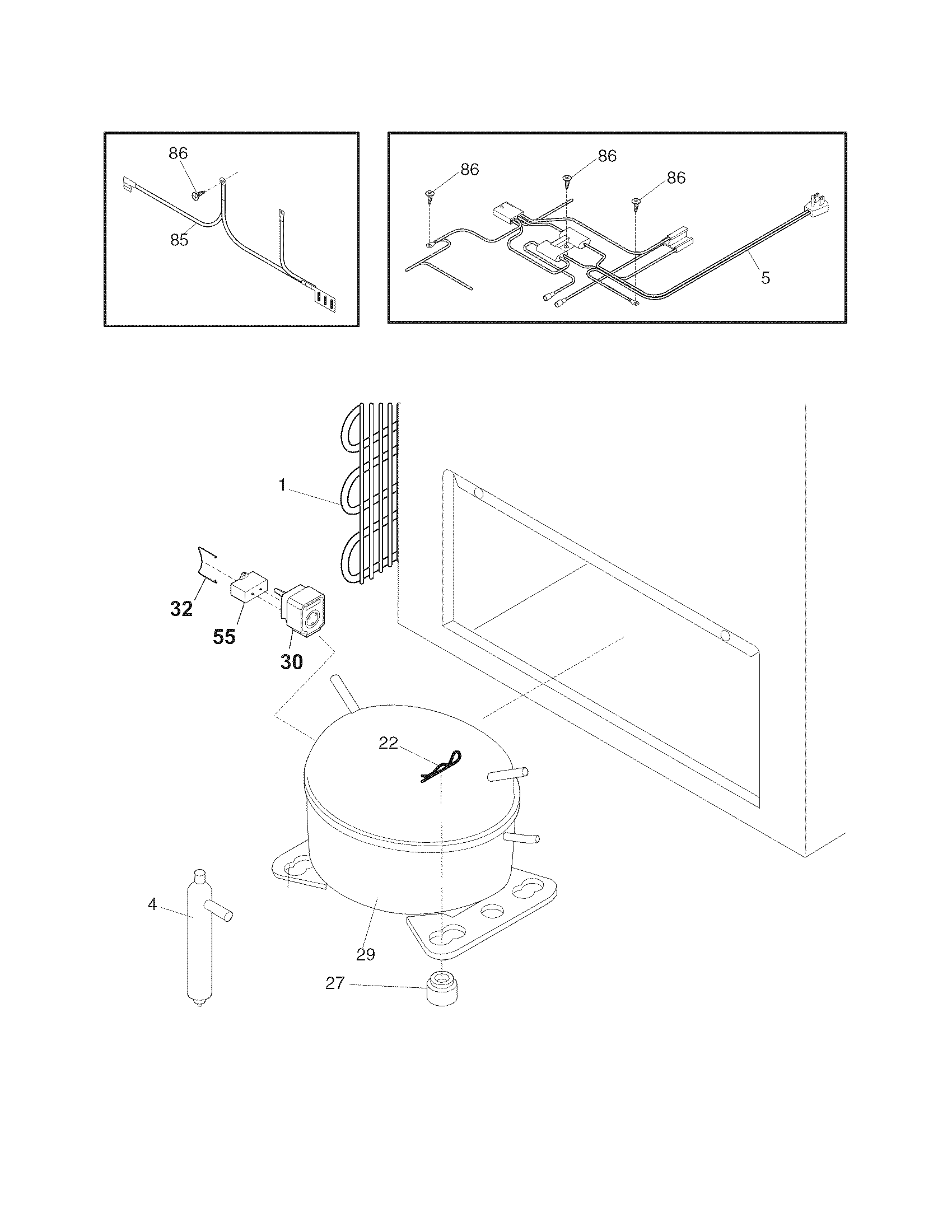

Compressor 297199800
#29

System diagram

Compressor

Part #297199800

Replaced by #5304507767

?
Manufacturer substitution
This part replaces 297199800. Substitute parts can look different from the original.
BEST SELLER
$362.44 |
$12.00 OFF Phone Price : $374.44
In Stock
Freezer Drain Plug (replaces 5306593887) 216502600
#3

Cabinet diagram

Freezer drain plug (replaces 5306593887)

Part #216502600

BEST SELLER
This item is not returnable
$13.04 |
13% OFF Phone Price : $15.04
In Stock
Touch Paint 5303305324
#NI

Cabinet diagram

Touch paint

Part #5303305324

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock

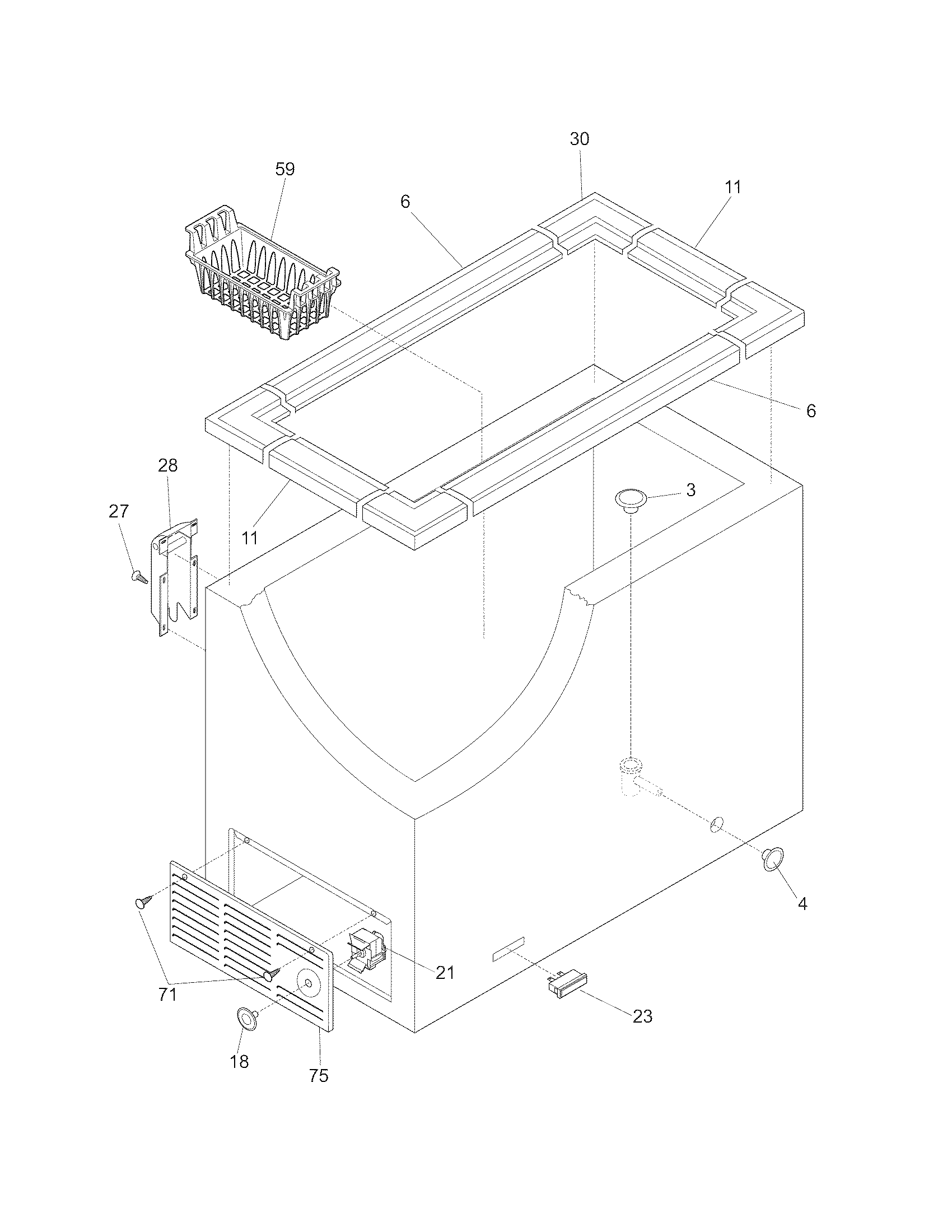

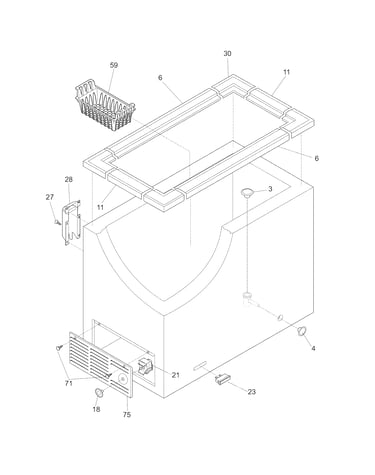

Basket 216848203
#59

Cabinet diagram

Basket

Part #216848203

Replaced by #216848200

?
Manufacturer substitution
This part replaces 216848203. Substitute parts can look different from the original.
$41.64 |
13% OFF Phone Price : $47.64
In Stock
Freezer Compressor Overload And Relay Clamp 216954300
#32

System diagram

Freezer compressor overload and relay clamp

Part #216954300

This item is not returnable
$18.77 |
10% OFF Phone Price : $20.77
In Stock
Universal/multiflex (frigidaire) Freezer Electronic Control Board 216954217
#30

System diagram

Universal/multiflex (frigidaire) freezer electronic control board

Part #216954217

$87.49
In Stock

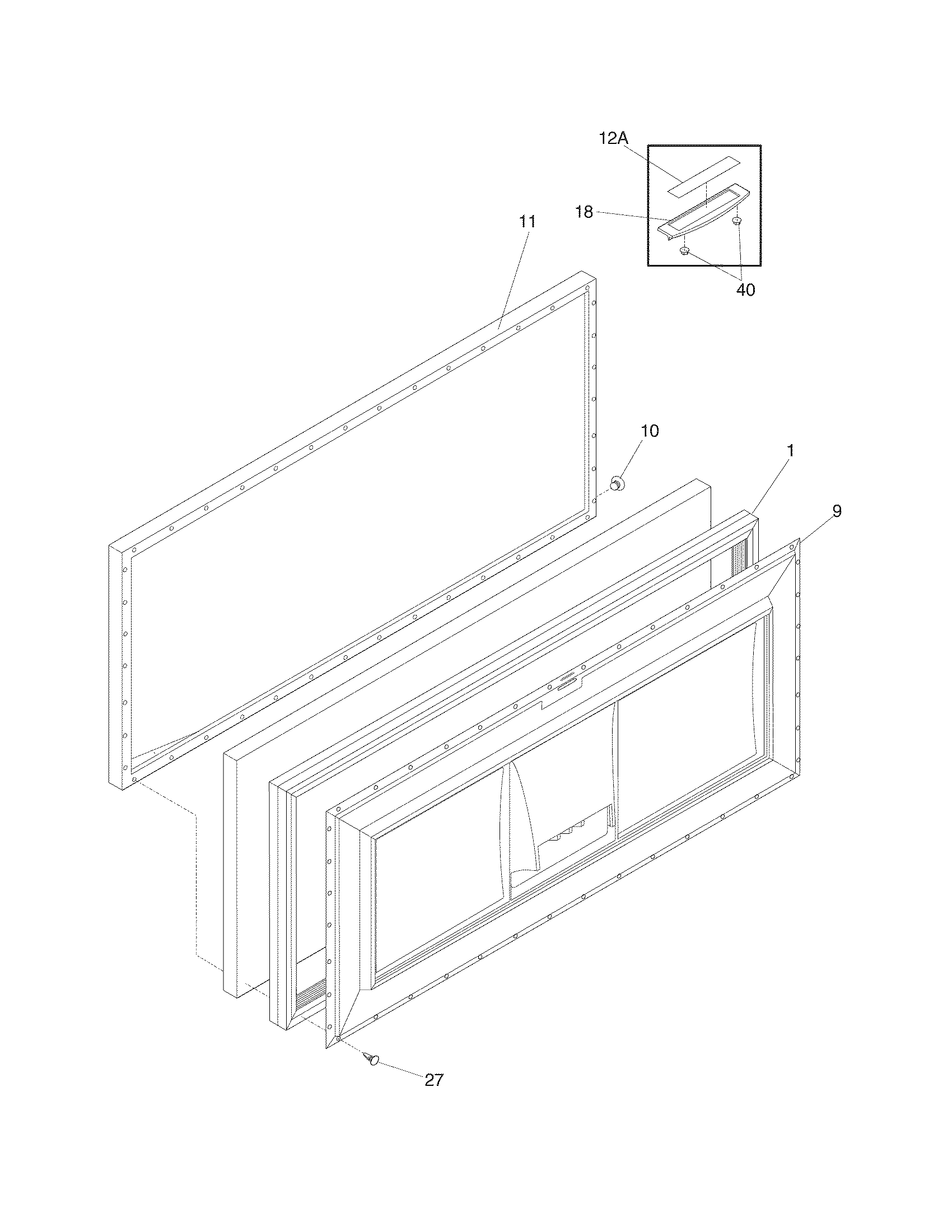

Freezer Nut 216922700
#40

Door diagram

Freezer nut

Part #216922700

This item is not returnable
$13.31 |
13% OFF Phone Price : $15.31
In Stock
Freezer Gasket And Liner Fastener Kit 5304406520
#NI

Door diagram

Freezer gasket and liner fastener kit

Part #5304406520

$34.42 |
15% OFF Phone Price : $40.42
In Stock
Refrigeration Appliance Screw, #10-24 X 1/2-in 216337701
#27

Cabinet diagram

Refrigeration appliance screw, #10-24 x 1/2-in

Part #216337701

$13.26
In Stock
