Amana
Chest Freezer

Model # CI7.7 Official Amana compact chest freezer

Here are the diagrams and repair parts for Official Amana CI77 compact chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
675-071-700, Liner, Lid R0140101
#3

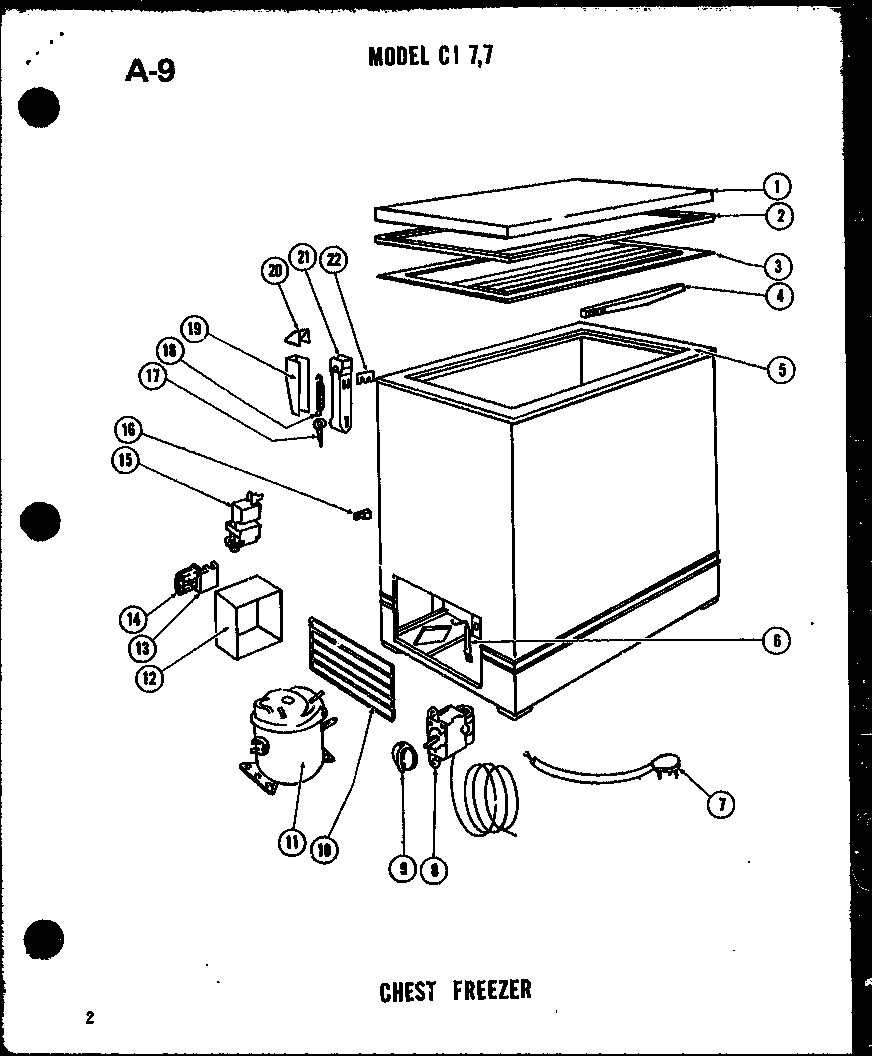

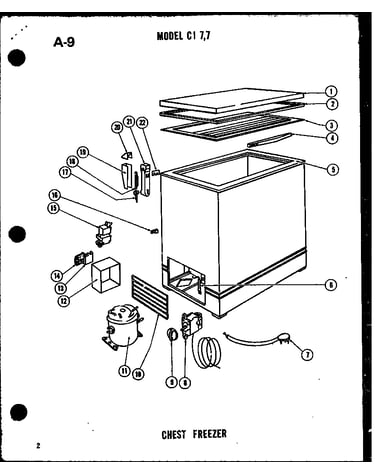

Compressor/gasket/lid diagram

675-071-700, liner, lid

Part #R0140101

The manufacturer no longer makes this part, and there's no substitute part

Compressor, Danfoss, Prod. & Serv. Replacement R0141701
#11

Compressor/gasket/lid diagram

Compressor, danfoss, prod. & serv. replacement

Part #R0141701

The manufacturer no longer makes this part, and there's no substitute part

675-071-720, Collar, Cabinet R0140301
#5

Compressor/gasket/lid diagram

675-071-720, collar, cabinet

Part #R0140301

The manufacturer no longer makes this part, and there's no substitute part

675-070-130, Spring, Hinge R0140701
#18

Compressor/gasket/lid diagram

675-070-130, spring, hinge

Part #R0140701

The manufacturer no longer makes this part, and there's no substitute part

675-067-410, Drier, Strainer R0142201
#6

Compressor/gasket/lid diagram

675-067-410, drier, strainer

Part #R0142201

The manufacturer no longer makes this part, and there's no substitute part

675-072-990, Handle R0140201
#4A

Compressor/gasket/lid diagram

675-072-990, handle

Part #R0140201

The manufacturer no longer makes this part, and there's no substitute part

675-066-541, Temperature Control R0142101
#8

Compressor/gasket/lid diagram

675-066-541, temperature control

Part #R0142101

The manufacturer no longer makes this part, and there's no substitute part

675-070-160, Hinge Cover, Bottom R0140601
#19

Compressor/gasket/lid diagram

675-070-160, hinge cover, bottom

Part #R0140601

The manufacturer no longer makes this part, and there's no substitute part

Relay R0141801
#15B

Compressor/gasket/lid diagram

Relay

Part #R0141801

The manufacturer no longer makes this part, and there's no substitute part

675-071-780, Lid, Outer Shell R0139901
#1

Compressor/gasket/lid diagram

675-071-780, lid, outer shell

Part #R0139901

The manufacturer no longer makes this part, and there's no substitute part
