Model # RM52000 Official Broan range hood

Here are the diagrams and repair parts for Official Broan RM52000 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 43 parts |

Range Hood Light Socket And Housing B02300791

#474

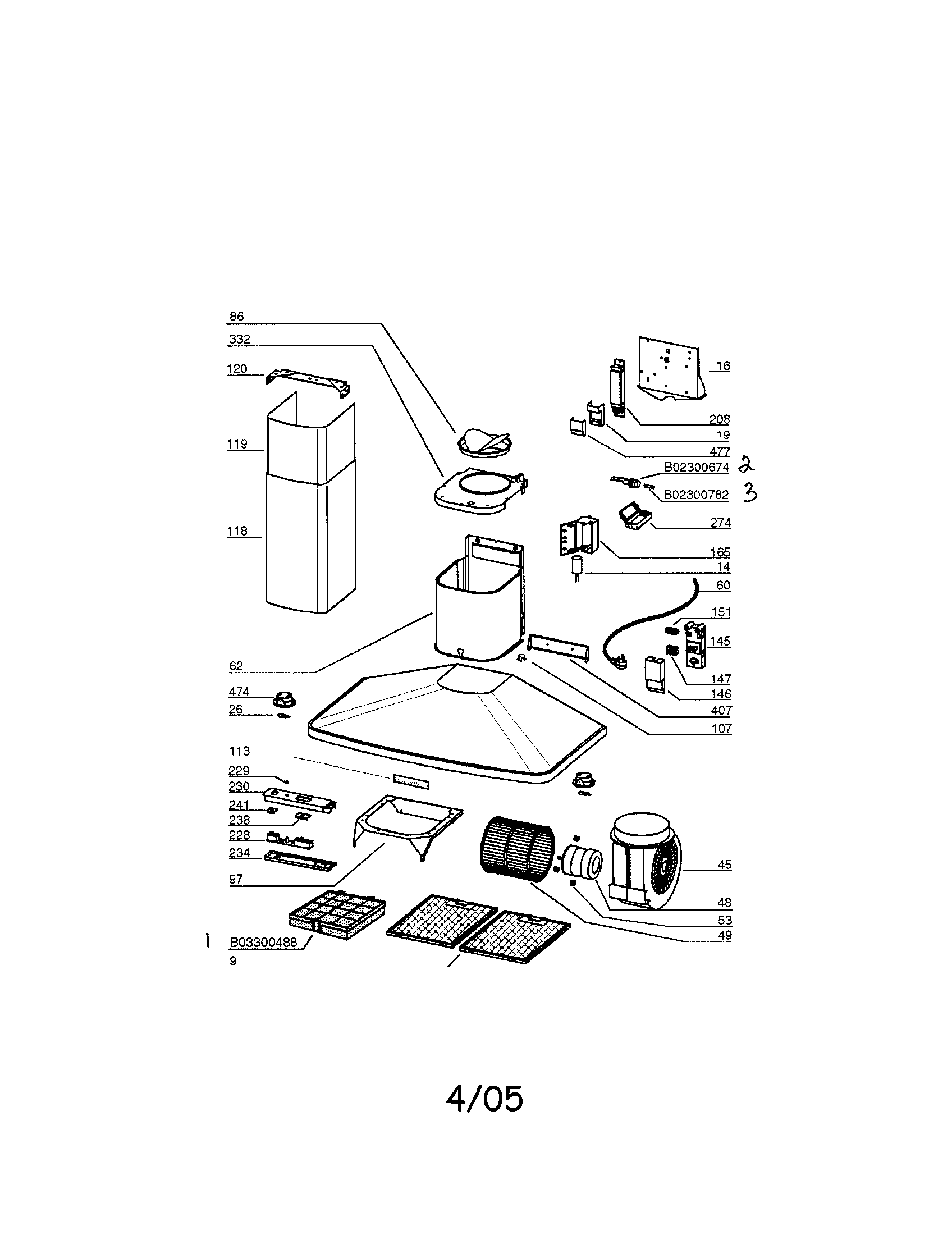

Range hood diagram

Range hood light socket and housing

Part #B02300791

The manufacturer no longer makes this part, and there's no substitute part

Range hood diagram

Range hood blower assembly

Part #B06001991

Replaced by #SB06001991

$171.09 |

7% OFF Phone Price : $183.09

In Stock

Qty

Range hood diagram

Range hood grease filter

Part #B08087294

Replaced by #SB08087294

$39.68 |

13% OFF Phone Price : $45.68

In Stock

Qty

#48

Range hood diagram

Range hood fan motor

Part #B02310187

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Wheel Assembly B03295076

#49

Range hood diagram

Range hood blower wheel assembly

Part #B03295076

Replaced by #SB03295076

$38.27 |

14% OFF Phone Price : $44.27

In Stock

Qty

#86

Range hood diagram

Range hood round damper, 6-in

Part #B08088378

Replaced by #SB08088378

This item is not returnable

$20.00 |

23% OFF Phone Price : $26.00

In Stock

Qty

Range hood diagram

Range hood fuse

Part #B02300782

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Electronic Control Board Housing B03295072

#234

Range hood diagram

Range hood electronic control board housing

Part #B03295072

The manufacturer no longer makes this part, and there's no substitute part

#208

Range hood diagram

Range hood transformer

Part #B02300783

The manufacturer no longer makes this part, and there's no substitute part

#274

Range hood diagram

Clamp

Part #B03295035

Replaced by #SB03295035

$25.71

In Stock

Qty
