Model # RBD245PDB10 Official Whirlpool electric oven
Here are the diagrams and repair parts for Official Whirlpool RBD245PDB10 electric oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

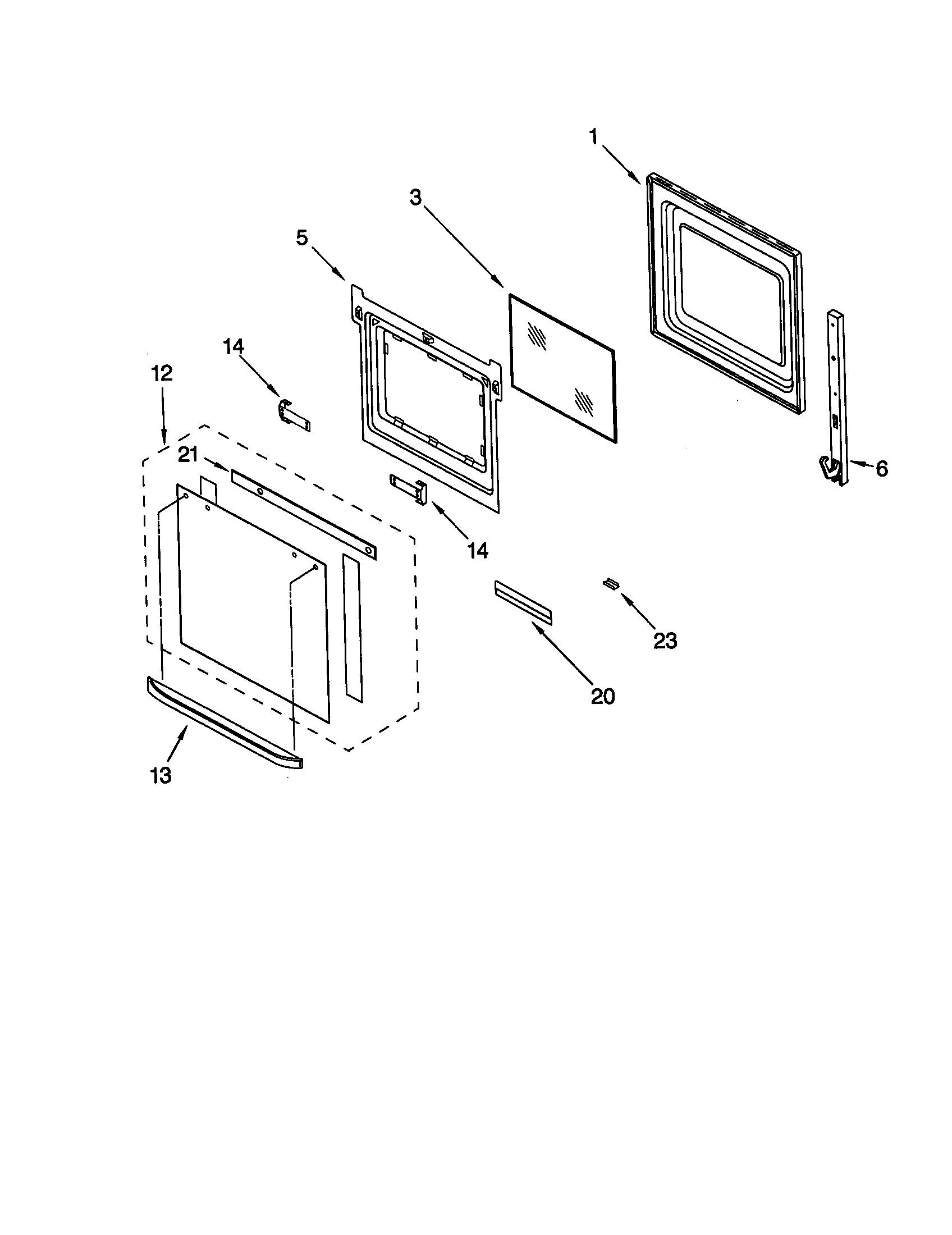

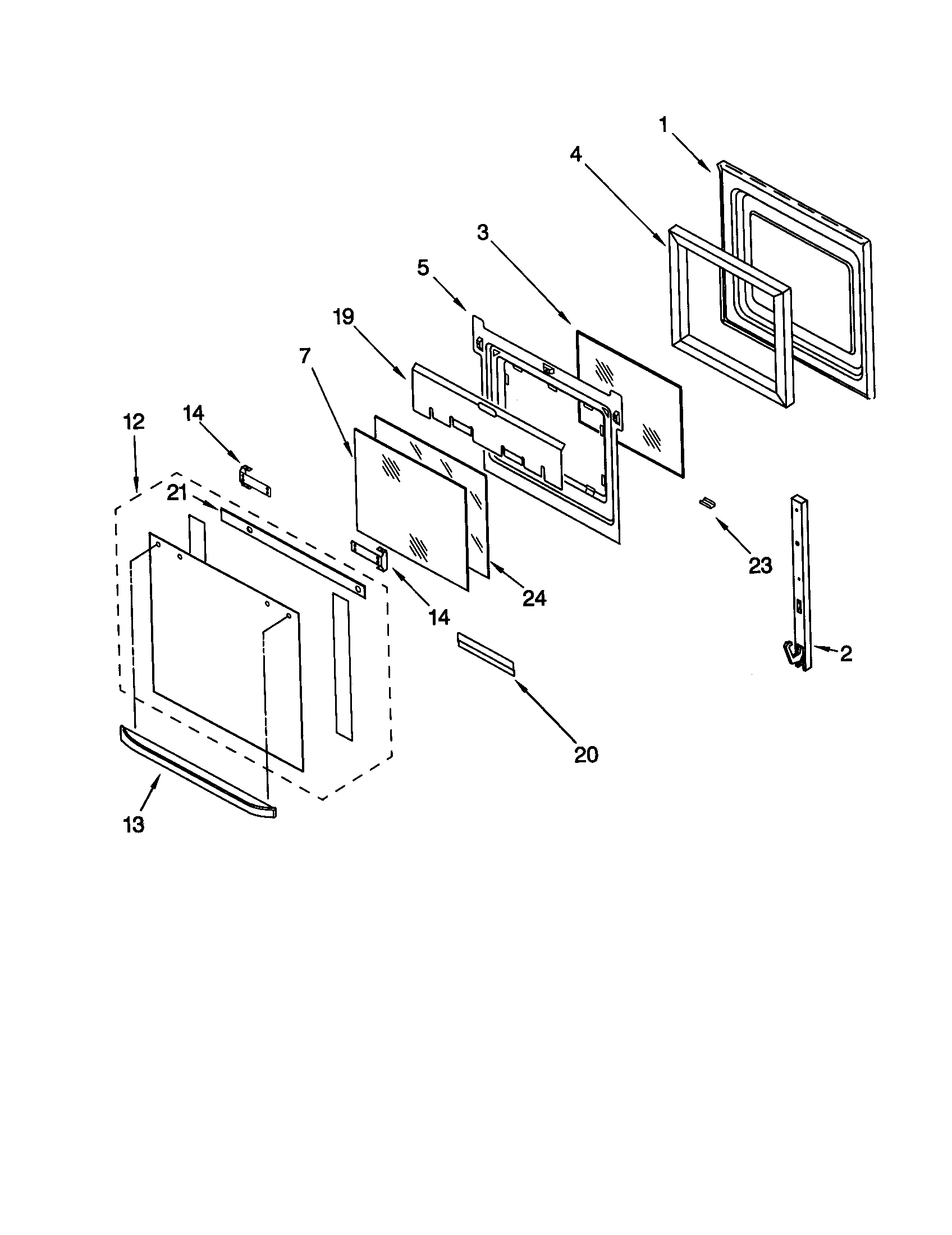

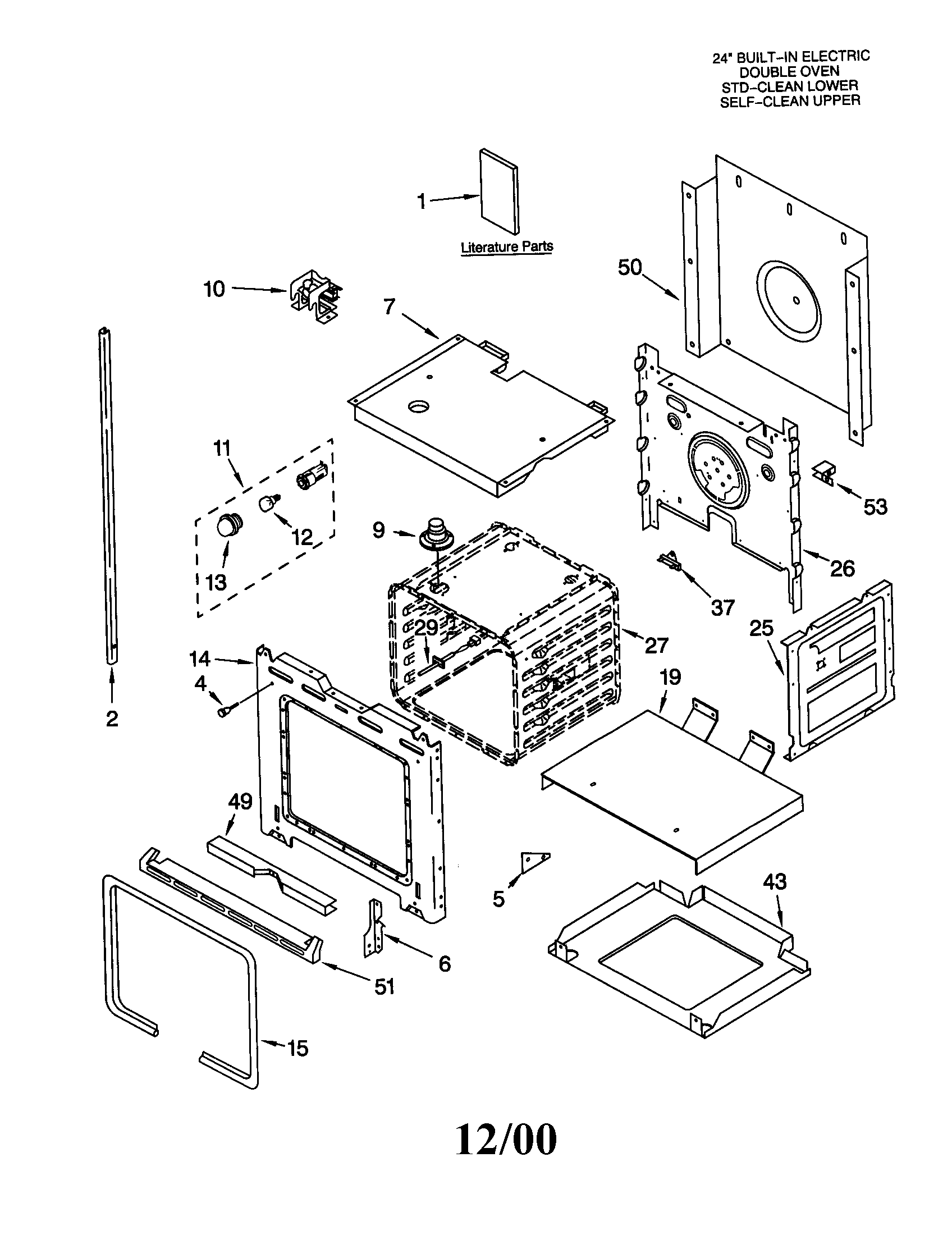

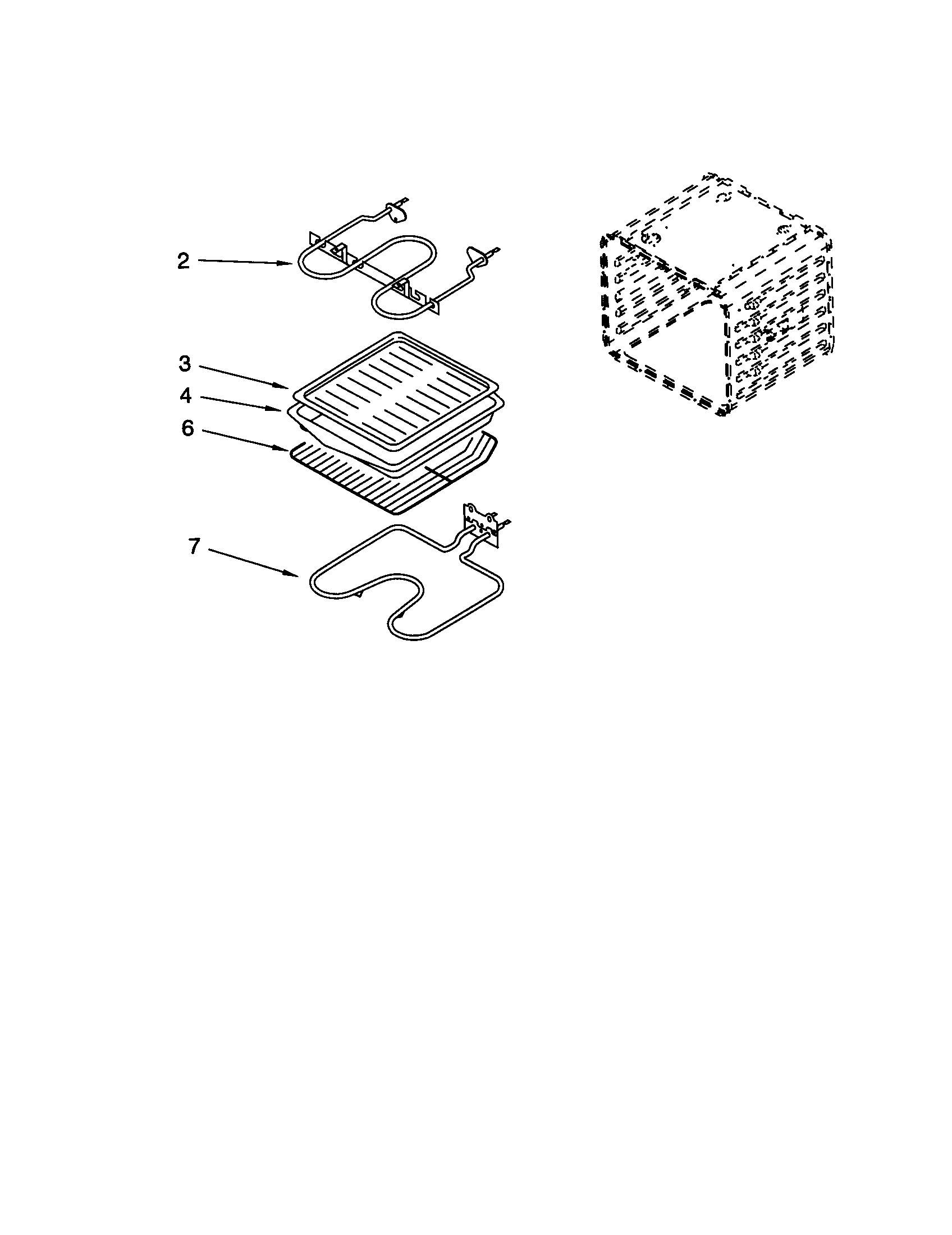

SELECT DIAGRAM
Browse Parts forRBD245PDB10 Wall Ovens
- Screw
Part #3400832
Replaced by #WP3400832
?Manufacturer substitutionThis part replaces 3400832. Substitute parts can look different from the original.This item is not returnable$4.41 |18% OFF Phone Price : $5.41In Stock - #1C

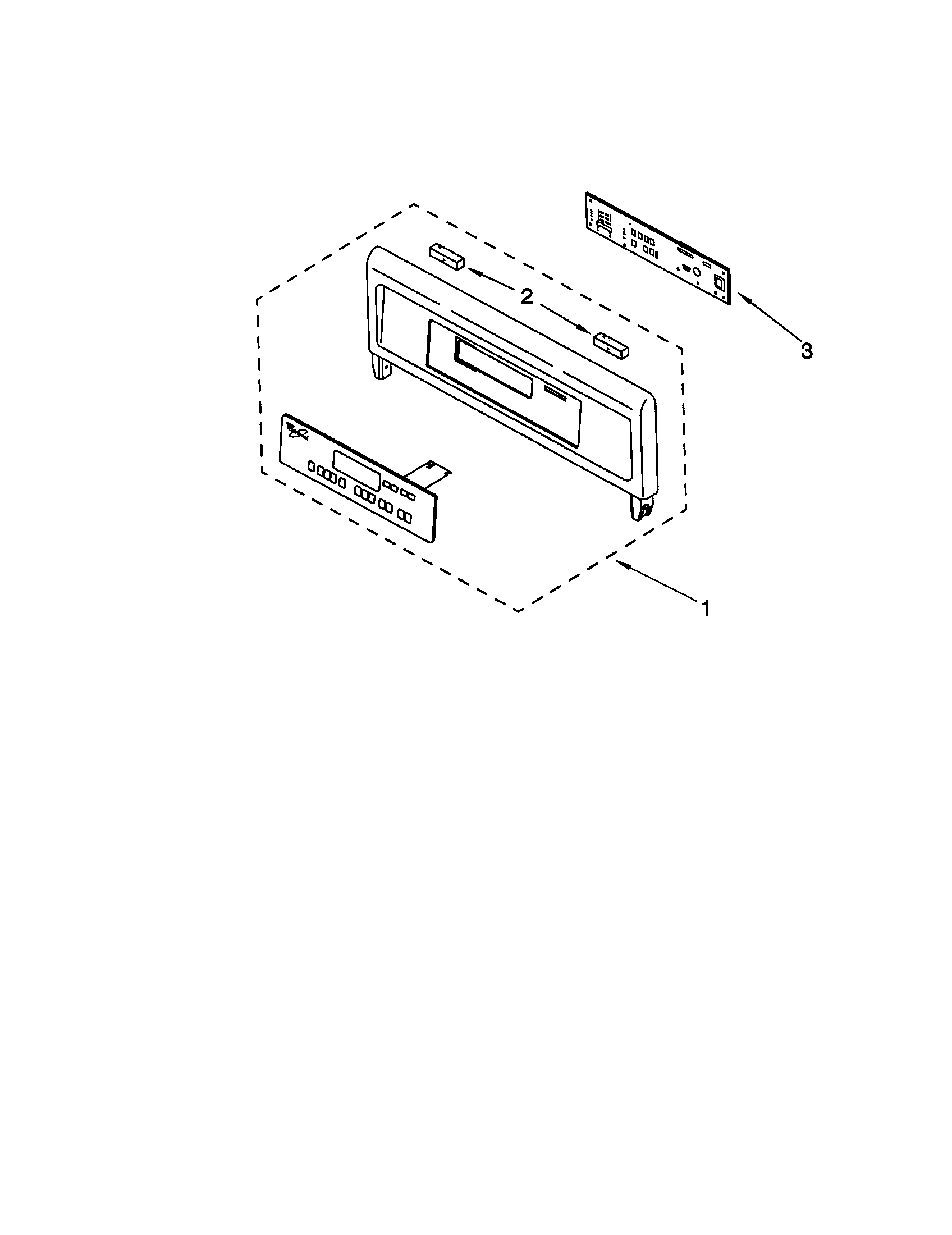

Control panel diagram
ScrewPart #8281179
Replaced by #WP3400832
?Manufacturer substitutionThis part replaces 8281179. Substitute parts can look different from the original.This item is not returnable$4.41 |18% OFF Phone Price : $5.41In Stock - Light bulb
Part #4452166
Replaced by #WP4173175
?Manufacturer substitutionThis part replaces 4452166. Substitute parts can look different from the original.This item is not returnable$35.88 |14% OFF Phone Price : $41.88In Stock #NI

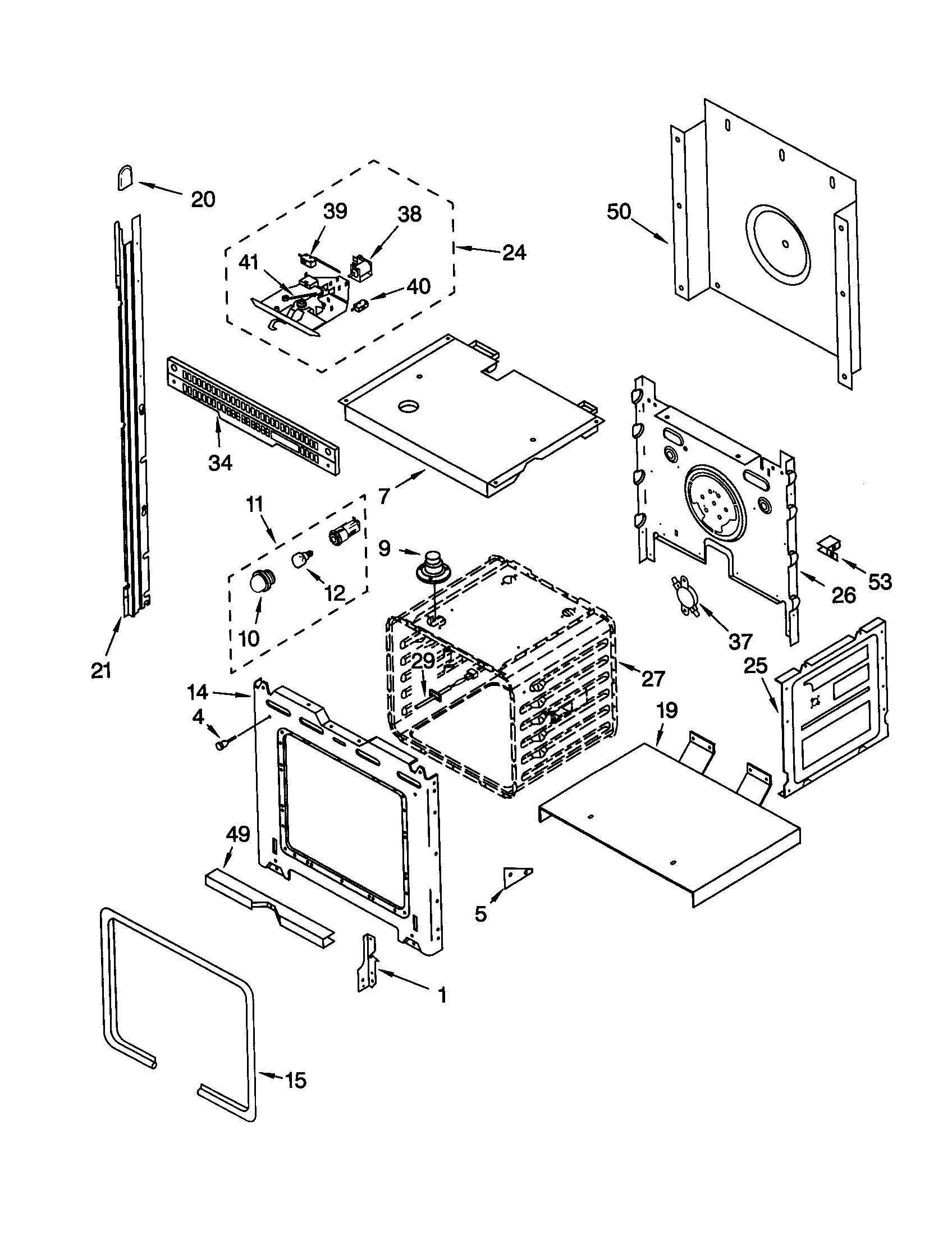

All parts diagram
Wire tiePart #4454842
Replaced by #WPW10339879
?Manufacturer substitutionThis part replaces 4454842. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock#NI
All parts diagram
Wire tiePart #4454835
Replaced by #WPW10339879
?Manufacturer substitutionThis part replaces 4454835. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock- #11

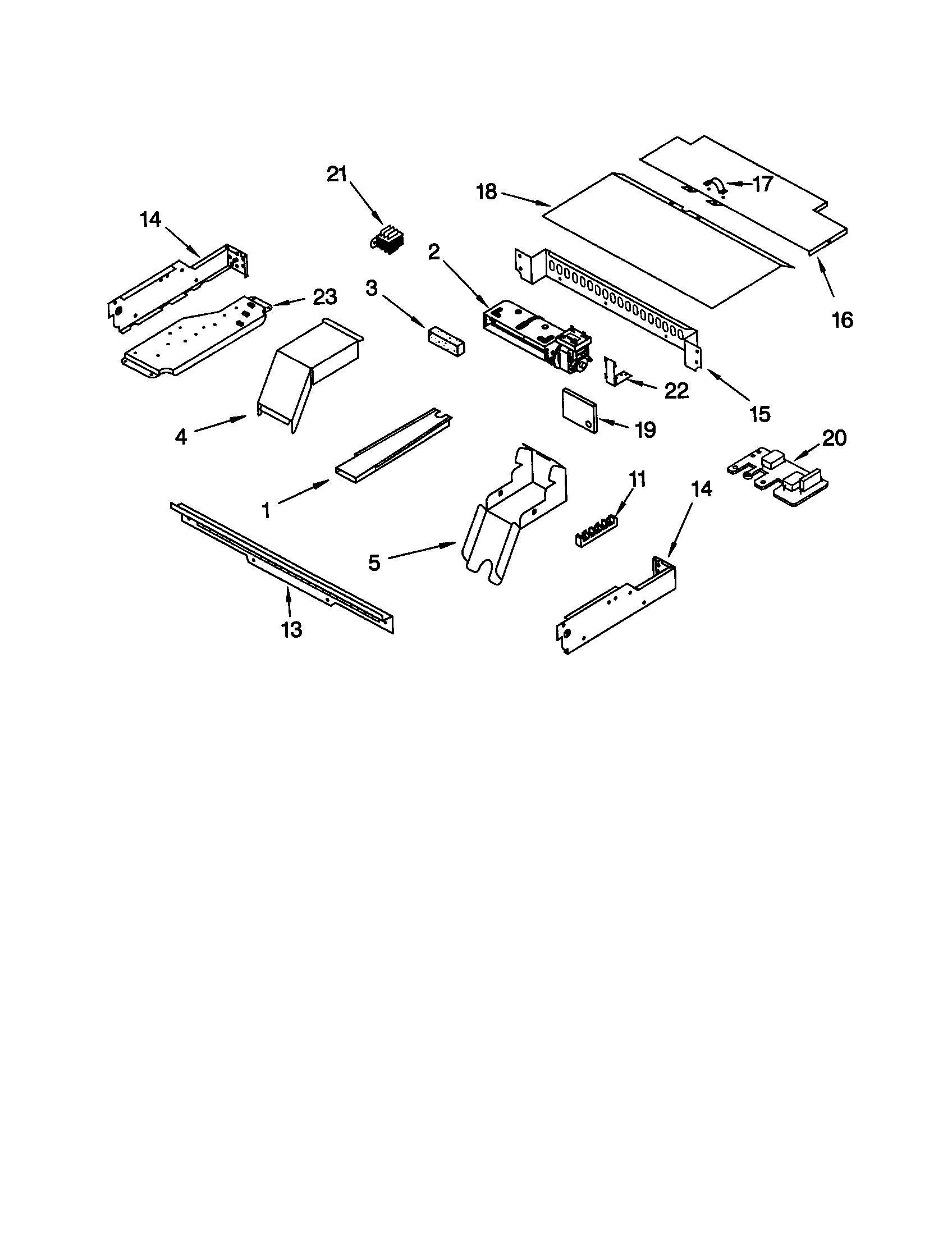

Top venting diagram
Terminal blockPart #4449868
Replaced by #WP8203546
?Manufacturer substitutionThis part replaces 4449868. Substitute parts can look different from the original.This item is not returnable$17.40 |10% OFF Phone Price : $19.40In Stock - #1
Top venting diagram
Wall oven ventPart #4451759
$42.07 |12% OFF Phone Price : $48.07In Stock - #3
Top venting diagram
Foam sealPart #4451758
Replaced by #W10491987
?Manufacturer substitutionThis part replaces 4451758. Substitute parts can look different from the original.This item is not returnable$23.81In Stock #NI
All parts diagram
Wall oven touch-up paintPart #261869
Replaced by #WP261869
?Manufacturer substitutionThis part replaces 261869. Substitute parts can look different from the original.This item is not returnable$15.26 |12% OFF Phone Price : $17.26In Stock- Nut
Part #112432
Replaced by #WP112432
?Manufacturer substitutionThis part replaces 112432. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock
