Model # 106154381 Official Craftsman single-cylinder tank-type paint sprayer

Here are the diagrams and repair parts for Official Craftsman 106154381 single-cylinder tank-type paint sprayer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Craftsman Crankshaft VS-4-1
#26

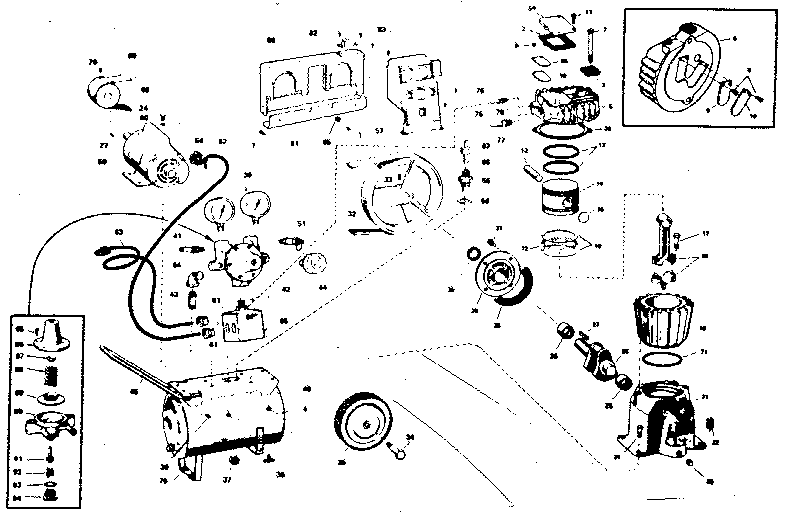

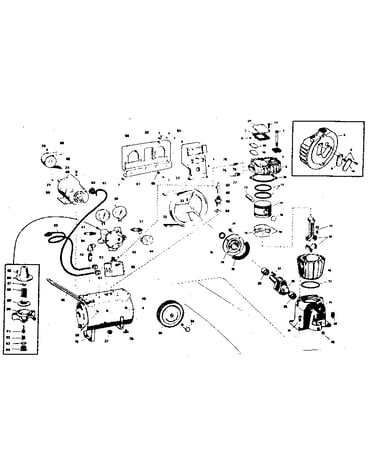

Unit diagram

Craftsman crankshaft

Part #VS-4-1

The manufacturer no longer makes this part, and there's no substitute part

Valve V-2017
#51

Unit diagram

Valve

Part #V-2017

The manufacturer no longer makes this part, and there's no substitute part

Compression Connector STD-183
#77

Unit diagram

Compression connector

Part #STD-183

The manufacturer no longer makes this part, and there's no substitute part

Drain Cock STD-301
#36

Unit diagram

Drain cock

Part #STD-301

The manufacturer no longer makes this part, and there's no substitute part

Axle Bolt STD-334
#34

Unit diagram

Axle bolt

Part #STD-334

The manufacturer no longer makes this part, and there's no substitute part

Valve CV-2014
#55

Unit diagram

Valve

Part #CV-2014

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal STD-216
#30

Unit diagram

Oil seal

Part #STD-216

The manufacturer no longer makes this part, and there's no substitute part

Cylinder VS-6
#19

Unit diagram

Cylinder

Part #VS-6

The manufacturer no longer makes this part, and there's no substitute part

Piston Pin VS-14
#12

Unit diagram

Piston pin

Part #VS-14

The manufacturer no longer makes this part, and there's no substitute part

Piston VT-55
#14

Unit diagram

Piston

Part #VT-55

The manufacturer no longer makes this part, and there's no substitute part
