Craftsman
Front-Engine Lawn Tractor

Model # 536250860 Official Craftsman 26" 7-hp lawn tractor with recoil start

Here are the diagrams and repair parts for Official Craftsman 536250860 26" 7-hp lawn tractor with recoil start, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

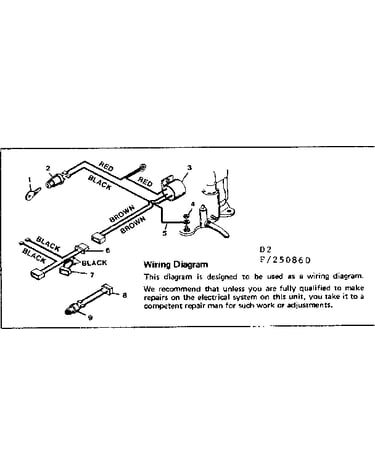

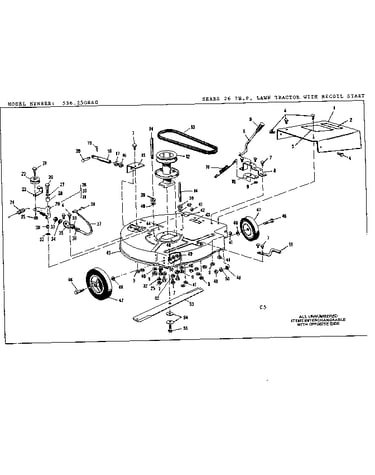

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 242 parts  |
Carriage Bolt 998013
#82

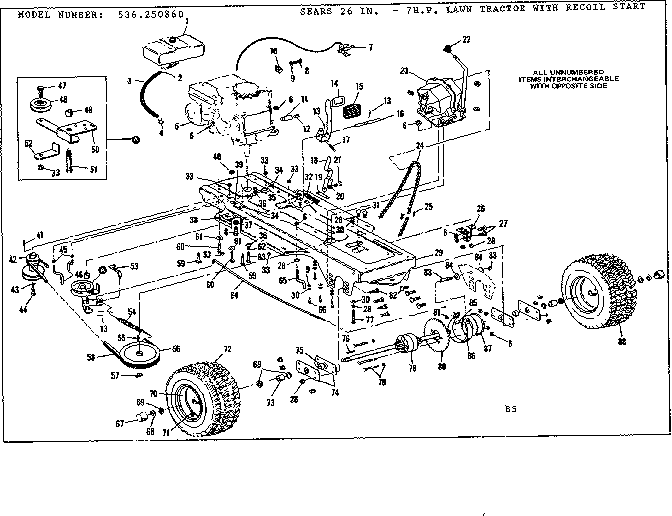

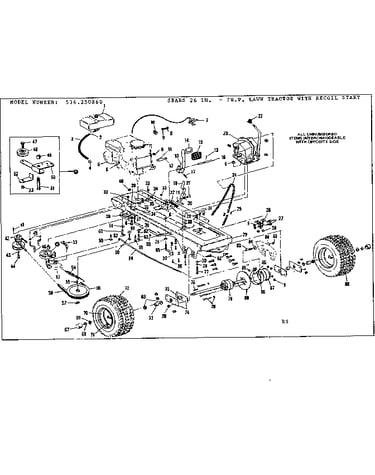

Drive assembly diagram

Carriage bolt

Part #998013

The manufacturer no longer makes this part, and there's no substitute part

Washer 36006
#7C

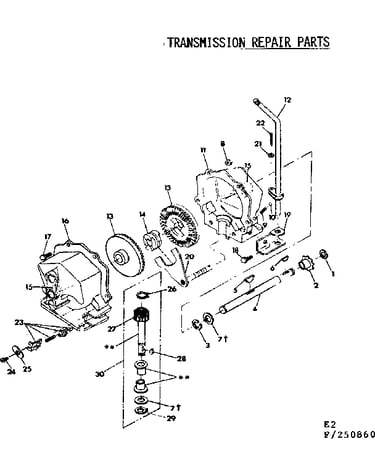

Transmission diagram

Washer

Part #36006

Replaced by #583728901

?
Manufacturer substitution
This part replaces 36006. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Housing 774345
#1

Differential diagram

Housing

Part #774345

Replaced by #774660

?
Manufacturer substitution
This part replaces 774345. Substitute parts can look different from the original.
$58.20
In Stock
Snap Ring 462
#26

Transmission diagram

Snap ring

Part #462

Replaced by #783002MA

?
Manufacturer substitution
This part replaces 462. Substitute parts can look different from the original.
$10.49
In Stock
Harpin Cottr 39521
Harpin cottr

Part #39521

Replaced by #31X9MA

?
Manufacturer substitution
This part replaces 39521. Substitute parts can look different from the original.
This item is not returnable
$6.23
In Stock
E-ring 26178
#81

Drive assembly diagram

E-ring

Part #26178

Replaced by #577598MA

?
Manufacturer substitution
This part replaces 26178. Substitute parts can look different from the original.
This item is not returnable
$7.77
In Stock
Screw 39573
#68

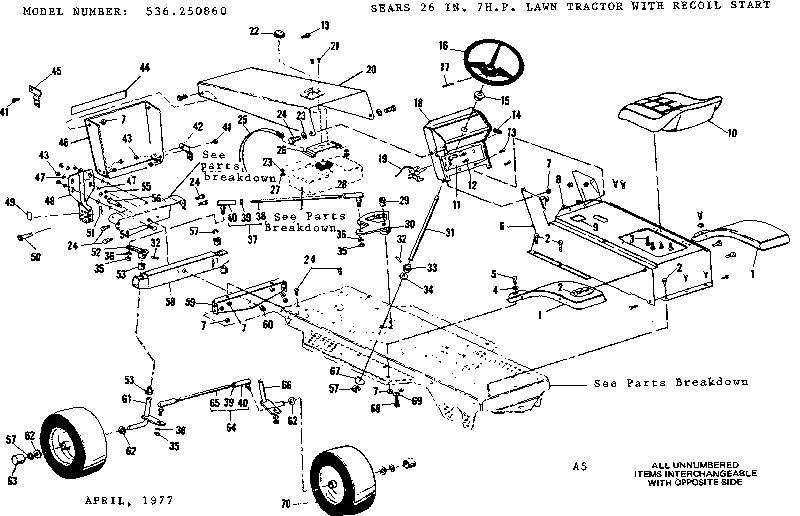

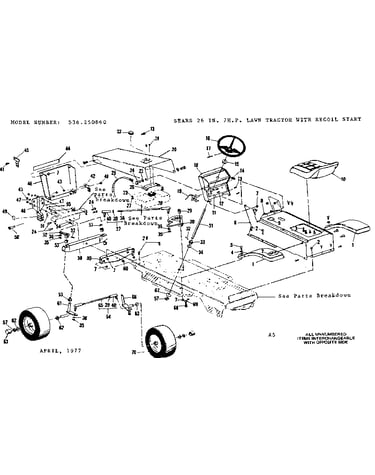

Main frame diagram

Screw

Part #39573

Replaced by #1X20MA

?
Manufacturer substitution
This part replaces 39573. Substitute parts can look different from the original.
$7.57
In Stock
Axle Washer 642
Axle washer

Part #642

Replaced by #17X192MA

?
Manufacturer substitution
This part replaces 642. Substitute parts can look different from the original.
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Lock Nut 997316
#40

Drive assembly diagram

Lock nut

Part #997316

Replaced by #997316MA

?
Manufacturer substitution
This part replaces 997316. Substitute parts can look different from the original.
This item is not returnable
$6.40
In Stock
Gear 778067
#4

Differential diagram

Gear

Part #778067

Replaced by #778132

?
Manufacturer substitution
This part replaces 778067. Substitute parts can look different from the original.
$28.44
In Stock
