Model # AZ85E18DACM1 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ85E18DACM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Room Air Conditioner Heater High-limit Thermostat WP28X10005
#2003

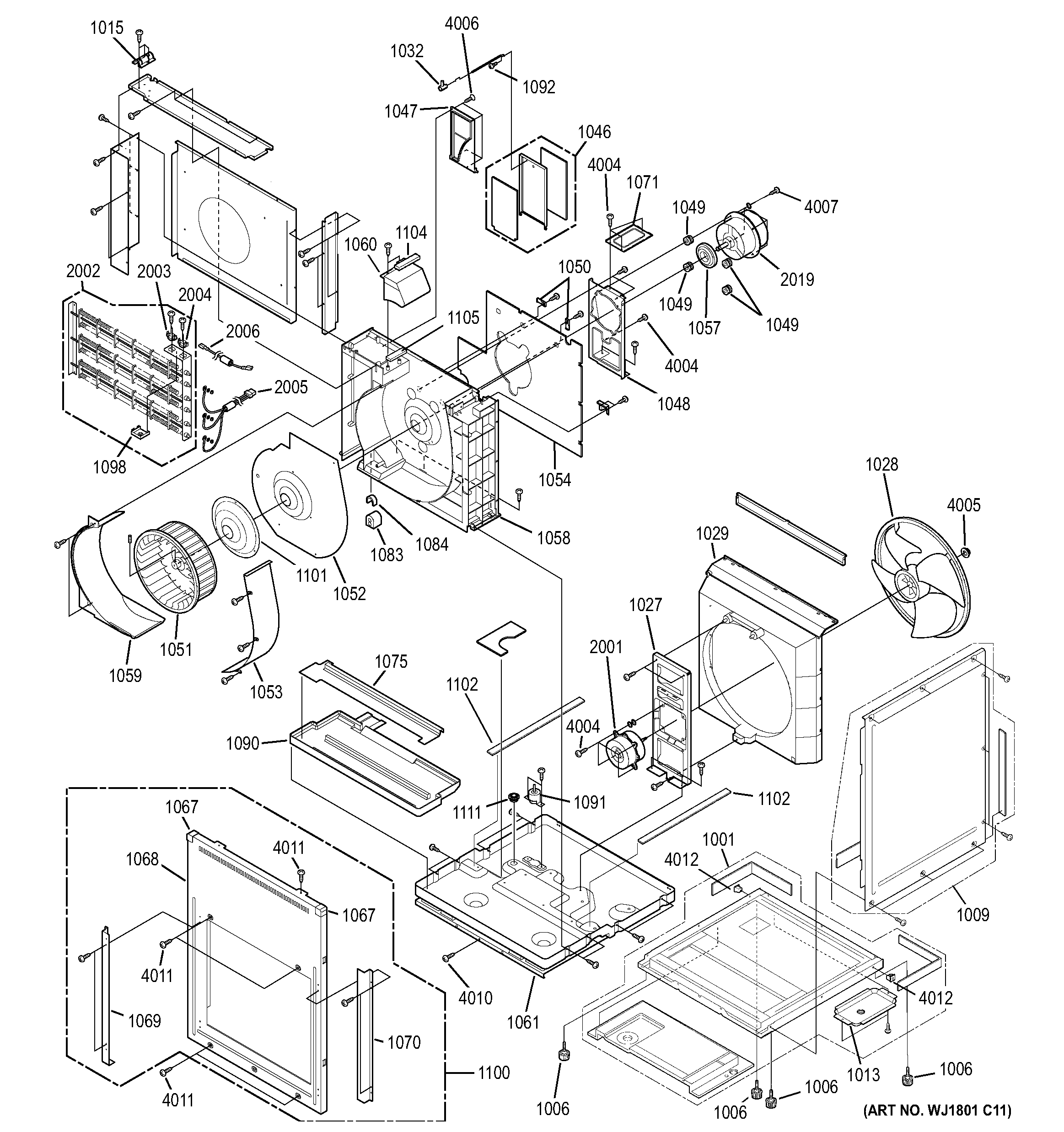

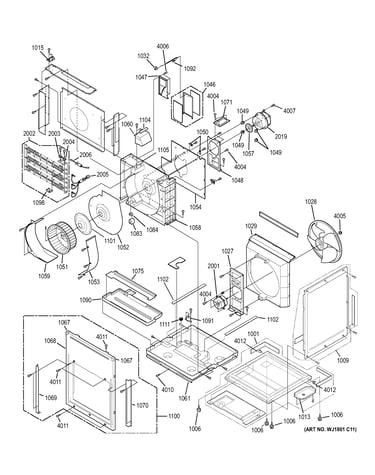

Motor, heater & base pan parts diagram

Room air conditioner heater high-limit thermostat

Part #WP28X10005

$35.76 |
14% OFF Phone Price : $41.76
In Stock
Room Air Conditioner Fan Control Board WP29X10033
#2008

Control parts diagram

Room air conditioner fan control board

Part #WP29X10033

$165.78 |
7% OFF Phone Price : $177.78
In Stock
Room Air Conditioner Heater High-limit Thermostat WP28X10007
#2004

Motor, heater & base pan parts diagram

Room air conditioner heater high-limit thermostat

Part #WP28X10007

Replaced by #WP28X10013

?
Manufacturer substitution
This part replaces WP28X10007. Substitute parts can look different from the original.
$52.16 |
10% OFF Phone Price : $58.16
In Stock
Thermistor WP27X10073
#2023

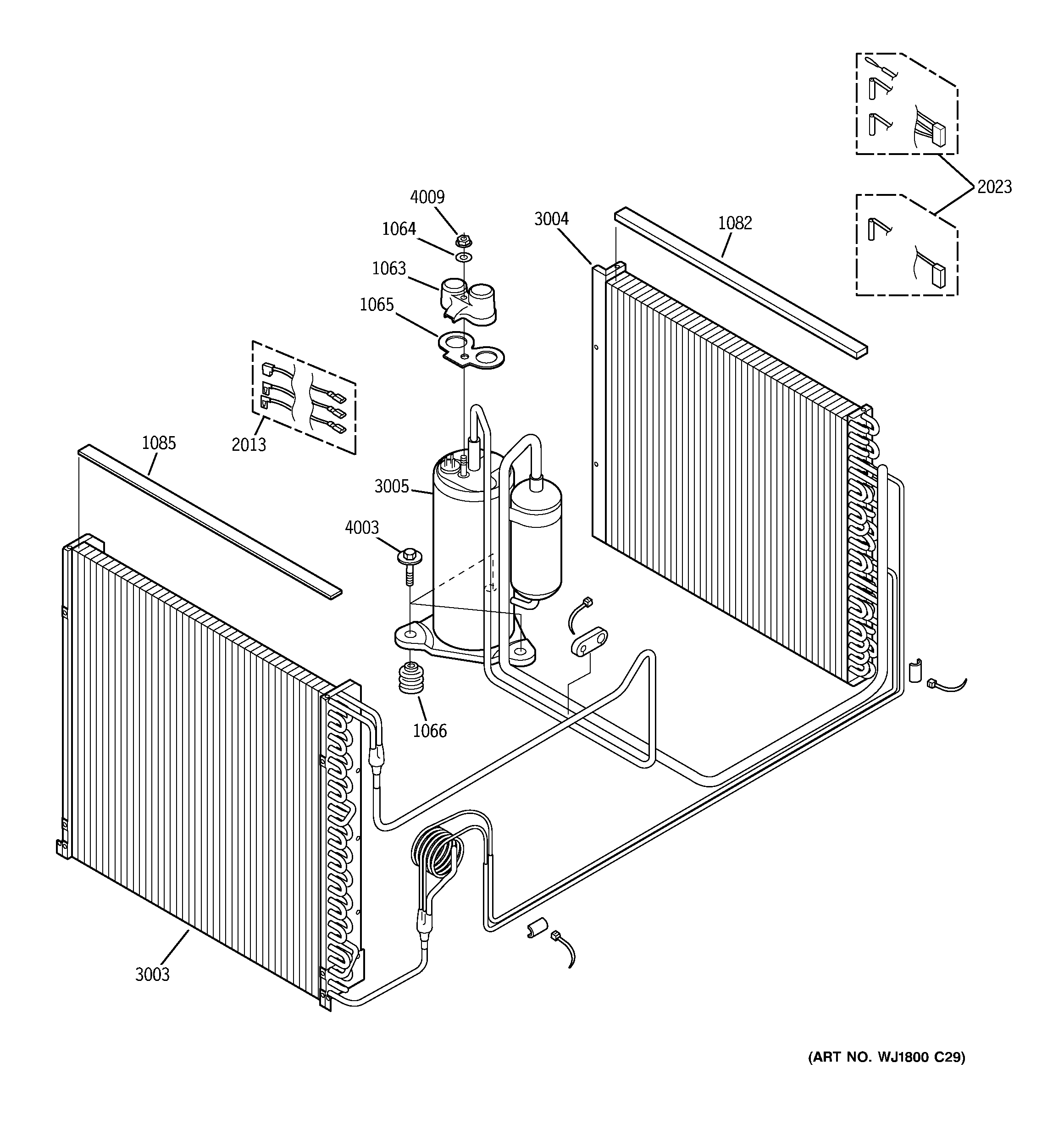

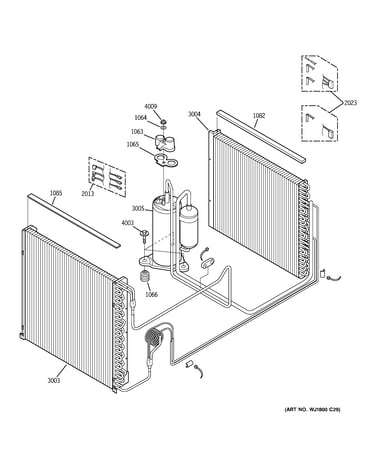

Unit parts diagram

Thermistor

Part #WP27X10073

$17.03
In Stock
R-capa Lead WP37X10001
#2012

Control parts diagram

R-capa lead

Part #WP37X10001

This item is not returnable
$7.17
In Stock
Motor Cushion WP01X10027
#1049

Motor, heater & base pan parts diagram

Motor cushion

Part #WP01X10027

$8.11
In Stock
Divider R As WP81X10001
#1045

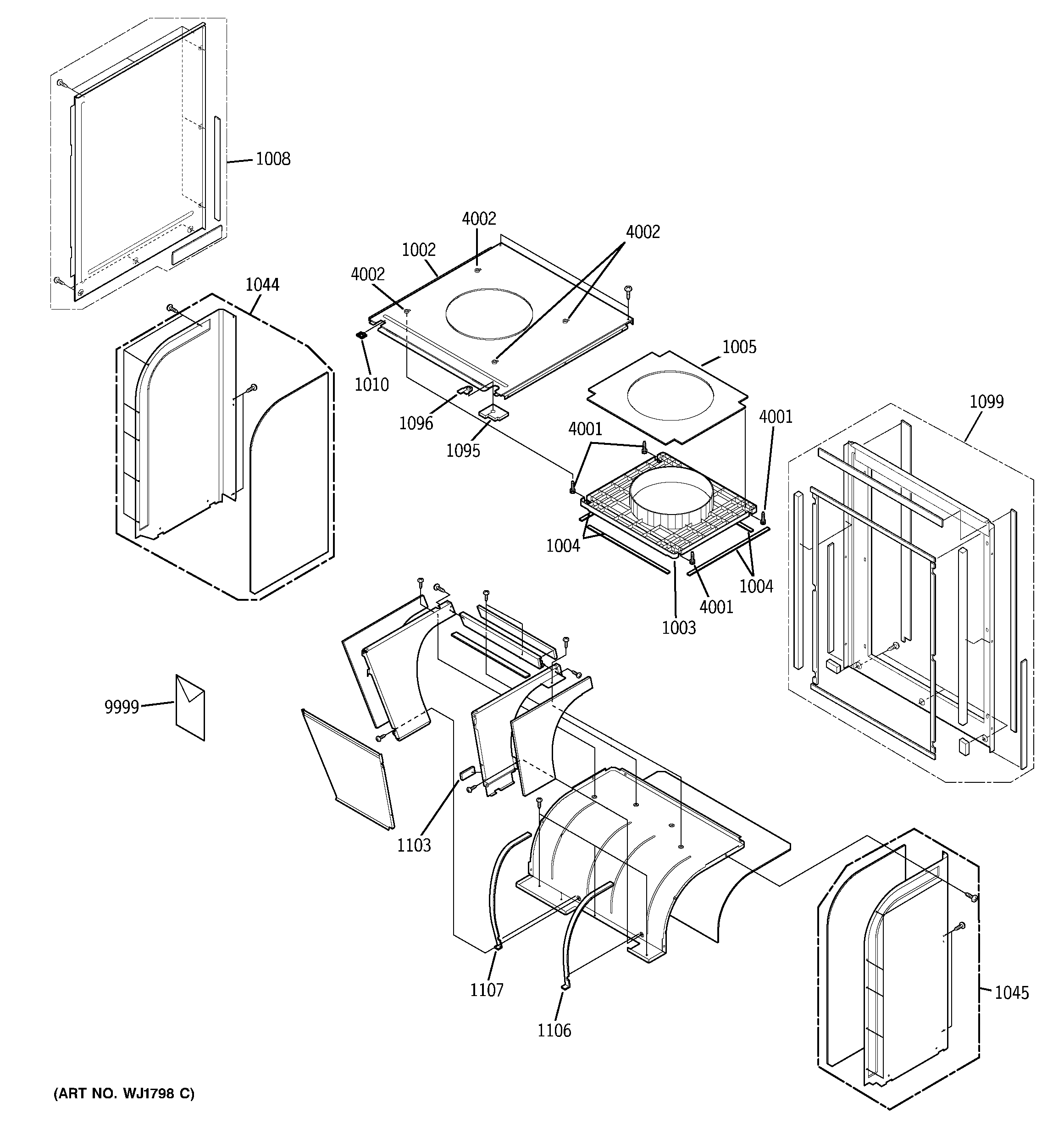

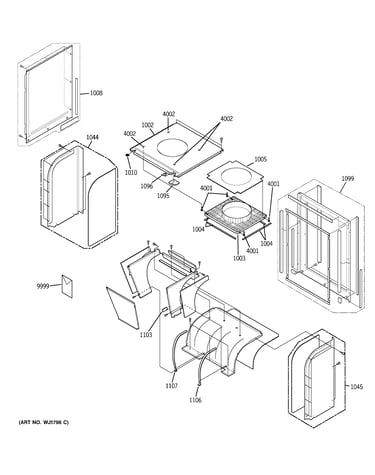

Chassis parts diagram

Divider r as

Part #WP81X10001

$56.47
In Stock
Motor Angle WP65X10017
#1027

Motor, heater & base pan parts diagram

Motor angle

Part #WP65X10017

$32.91
In Stock
Capillary Tube WP56X10059
#5004

Capillary tubes diagram

Capillary tube

Part #WP56X10059

$26.99
In Stock
Cord Holder WP01X10009
#1073

Control parts diagram

Cord holder

Part #WP01X10009

This item is not returnable
$4.35
In Stock
