Bottom-Mount Refrigerator

Model # MBL1957FEZ02 Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MBL1957FEZ02 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

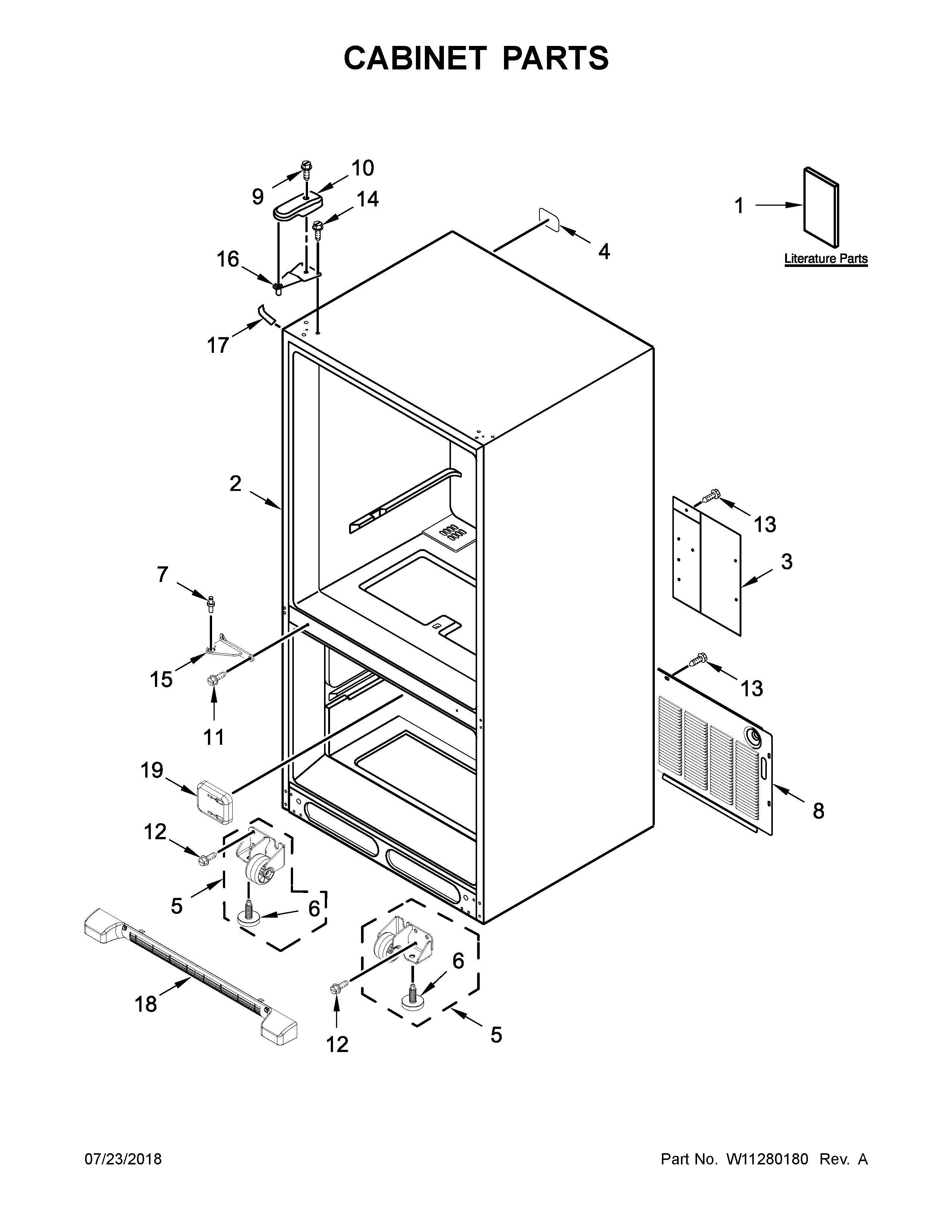

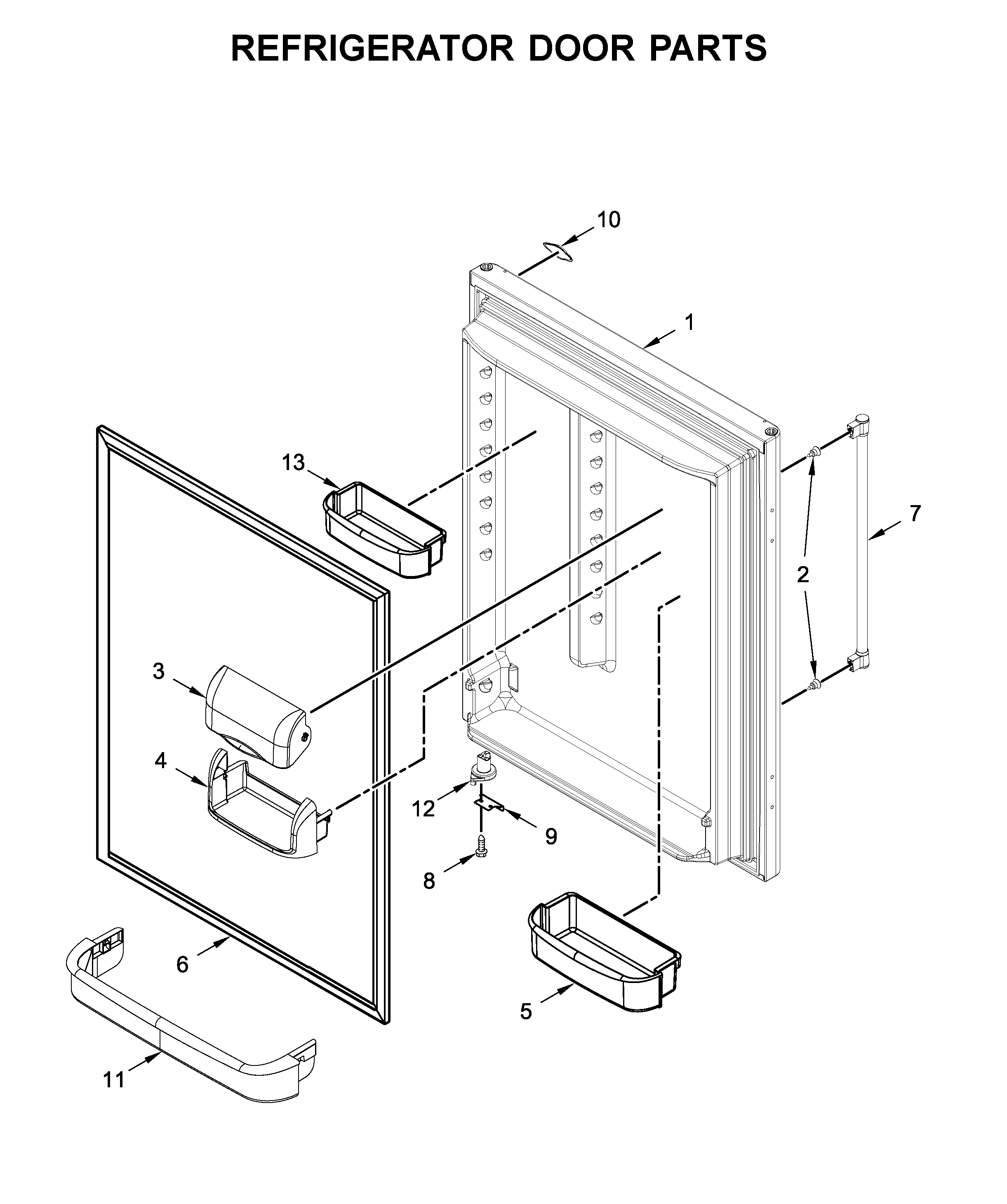

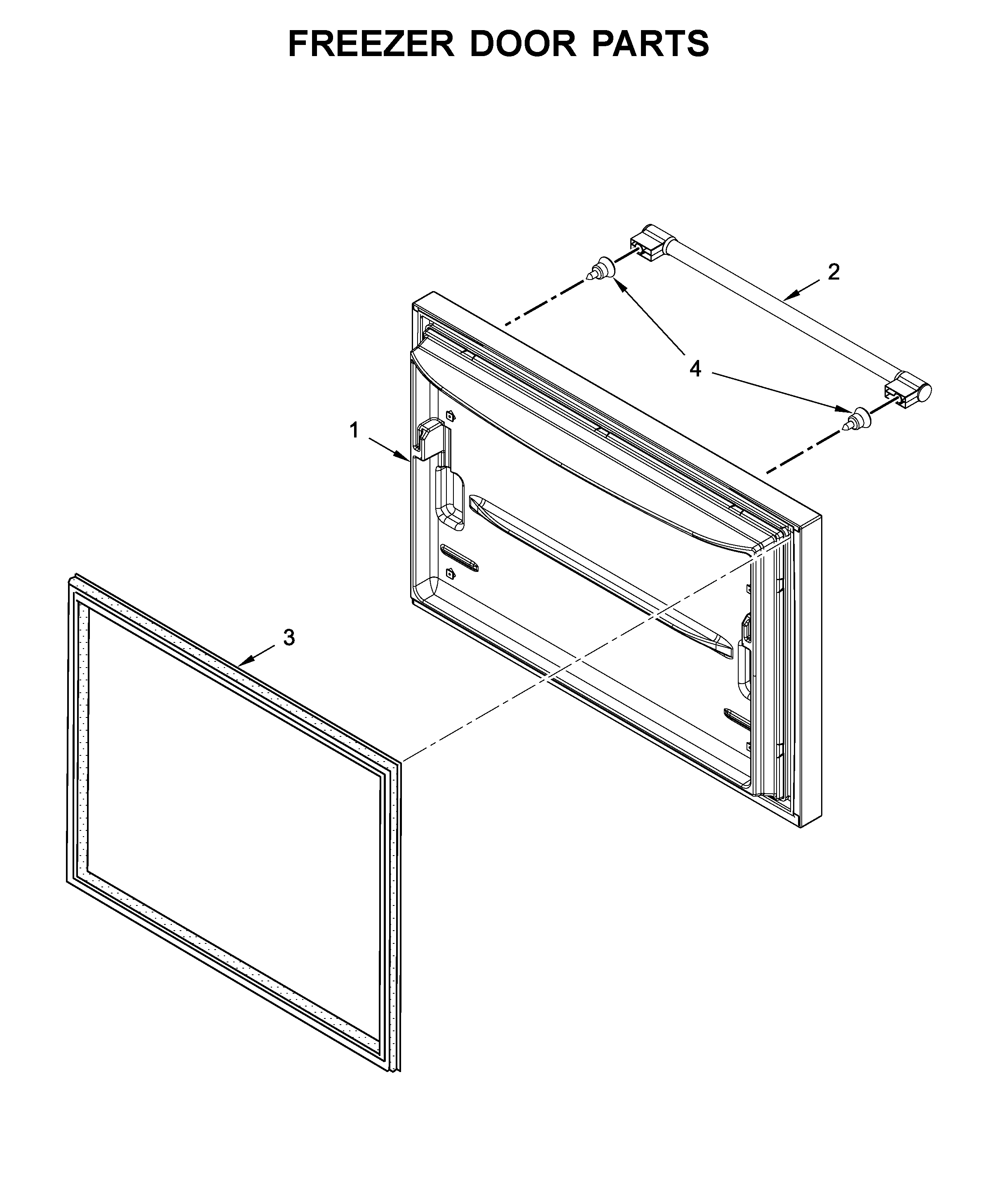

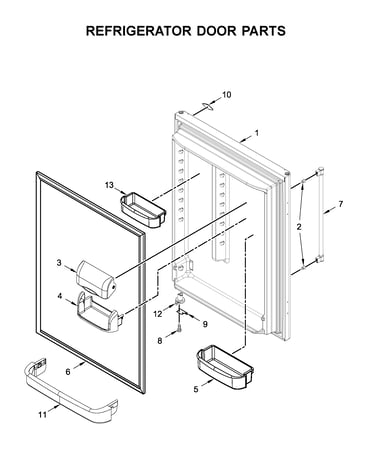

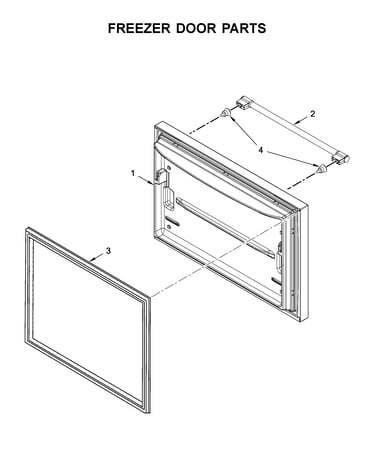

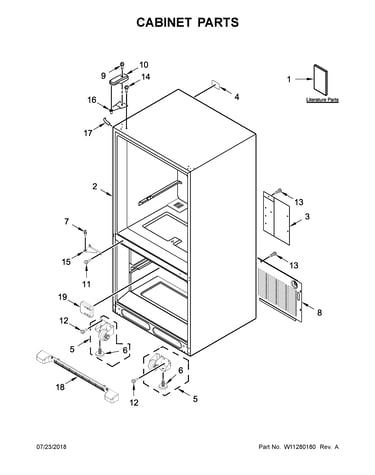

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
MBL1957FEZ02 Refrigerators
Drier Tube W10177049
#27

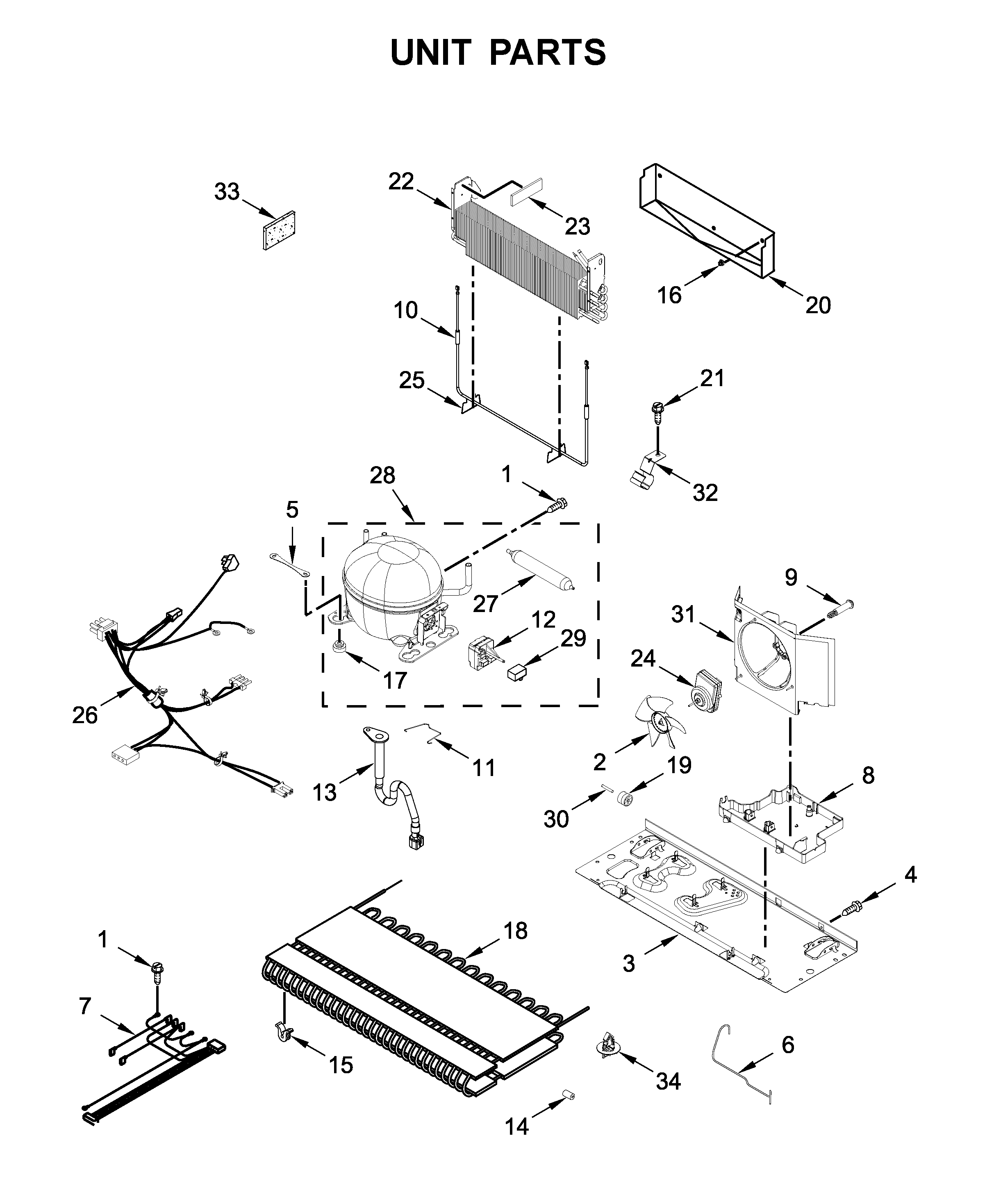

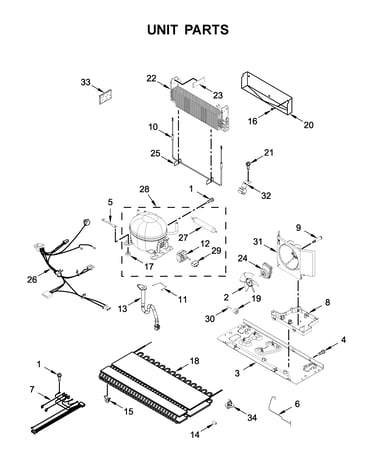

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Thermistor 12791409SP
#30

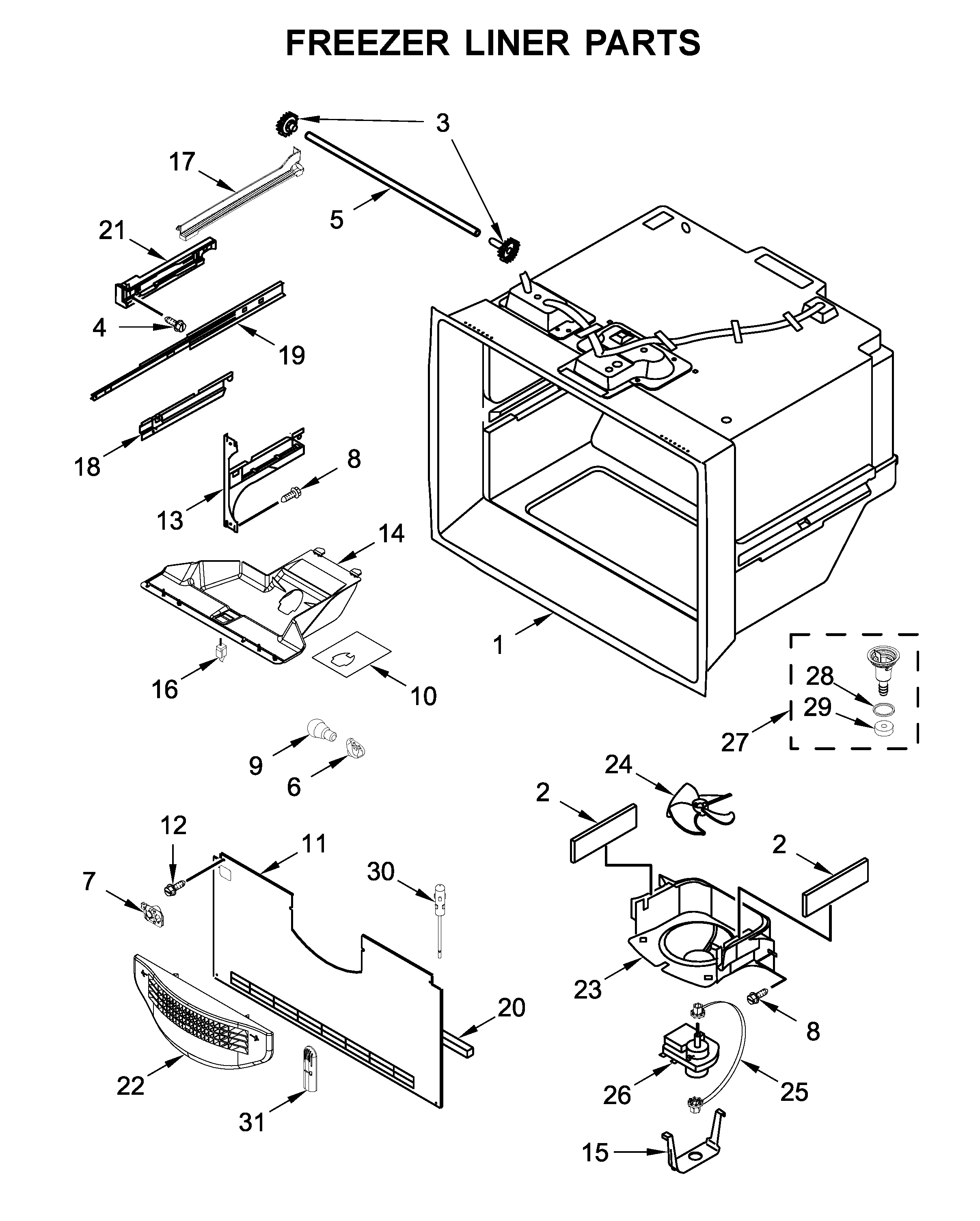

Freezer liner parts diagram

Refrigerator thermistor

Part #12791409SP

Replaced by #W10316760

?
Manufacturer substitution
This part replaces 12791409SP. Substitute parts can look different from the original.
BEST SELLER
$45.40 |
12% OFF Phone Price : $51.40
In Stock
Refrigerator Electronic Control Board W10503278
#5

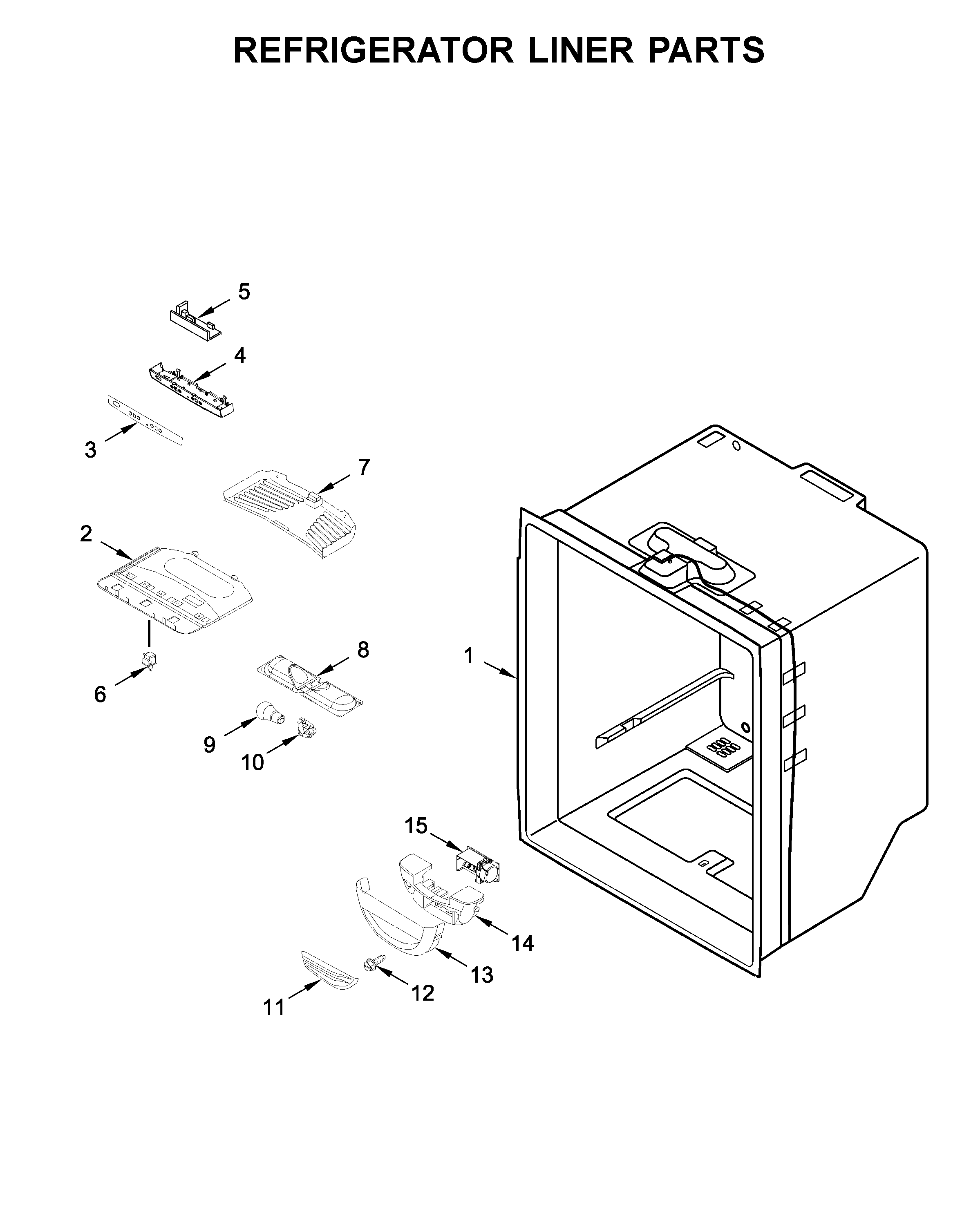

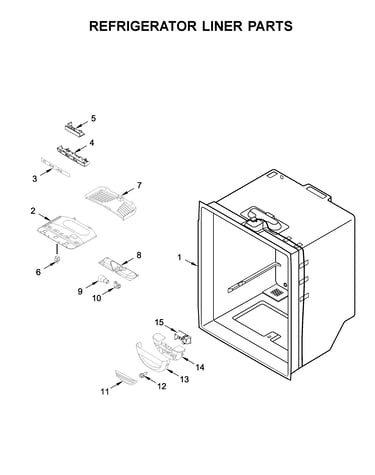

Refrigerator liner parts diagram

Refrigerator electronic control board

Part #W10503278

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces W10503278. Substitute parts can look different from the original.
BEST SELLER
$142.81 |
8% OFF Phone Price : $154.81
In Stock
Refrigerator Switch C3680310V
#6

Refrigerator liner parts diagram

Refrigerator switch

Part #C3680310V

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310V. Substitute parts can look different from the original.
BEST SELLER
$24.42 |
20% OFF Phone Price : $30.42
In Stock
Refrigerator Evaporator Fan Blade 2169142
#24

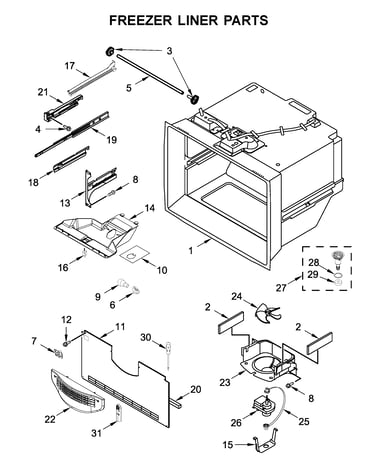

Freezer liner parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$34.25 |
15% OFF Phone Price : $40.25
In Stock
Light Swit 12466105
#16

Freezer liner parts diagram

Light swit

Part #12466105

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466105. Substitute parts can look different from the original.
BEST SELLER
$20.09 |
23% OFF Phone Price : $26.09
In Stock

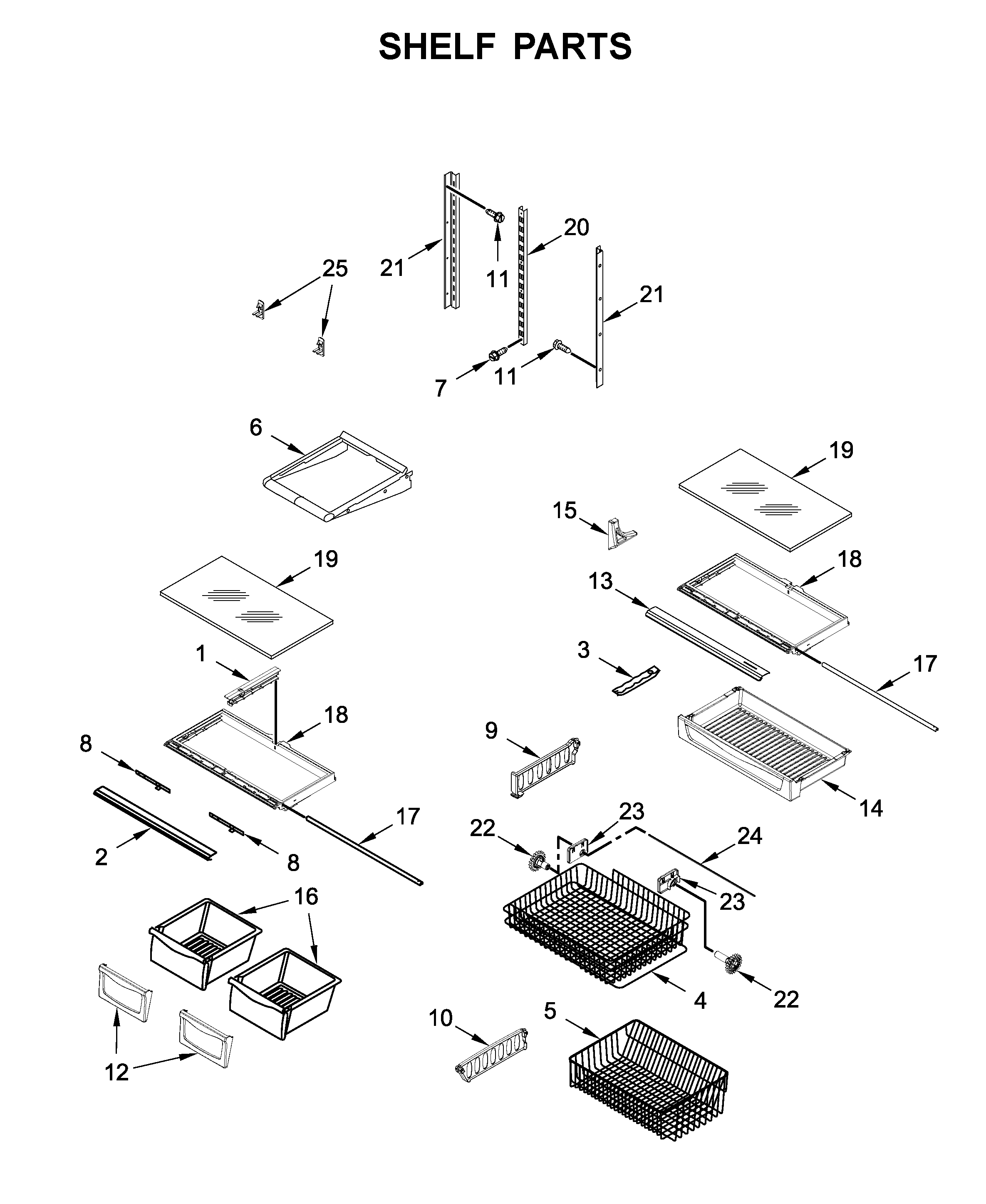

Refrigerator Crisper Drawer Support Rail, Center W10671238
#1

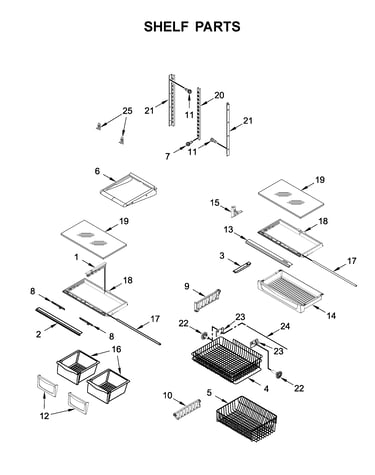

Shelf parts diagram

Refrigerator crisper drawer support rail, center

Part #W10671238

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces W10671238. Substitute parts can look different from the original.
BEST SELLER
$44.87 |
12% OFF Phone Price : $50.87
In Stock
Compressor W10879296
#28

Unit parts diagram

Compressor

Part #W10879296

Replaced by #W10507884

?
Manufacturer substitution
This part replaces W10879296. Substitute parts can look different from the original.
BEST SELLER
$370.43 |
$12.00 OFF Phone Price : $382.43
In Stock
Refrigerator Run Capacitor W10350564
#29

Unit parts diagram

Refrigerator run capacitor

Part #W10350564

Replaced by #WPW10350564

?
Manufacturer substitution
This part replaces W10350564. Substitute parts can look different from the original.
BEST SELLER
$41.24 |
13% OFF Phone Price : $47.24
In Stock
Refrigerator Evaporator Fan Motor W10128551
#26

Freezer liner parts diagram

Refrigerator evaporator fan motor

Part #W10128551

Replaced by #WPW10128551

?
Manufacturer substitution
This part replaces W10128551. Substitute parts can look different from the original.
BEST SELLER
$55.86 |
10% OFF Phone Price : $61.86
In Stock
