Kenmore Elite
Wall Oven/Microwave Combo

Model # 79049119410 Official Kenmore Elite electric oven with microwave

Here are the diagrams and repair parts for Official Kenmore Elite 79049119410 electric oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

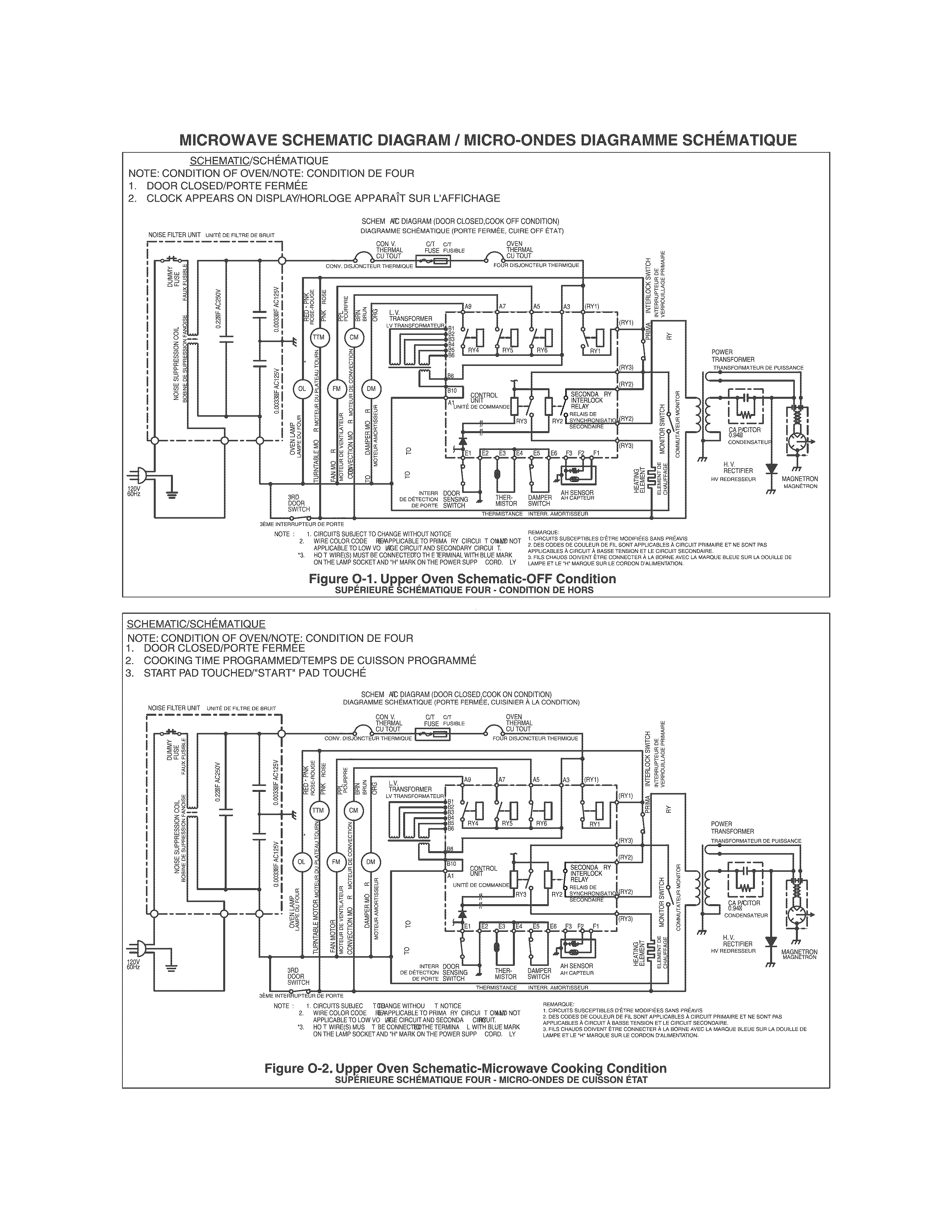

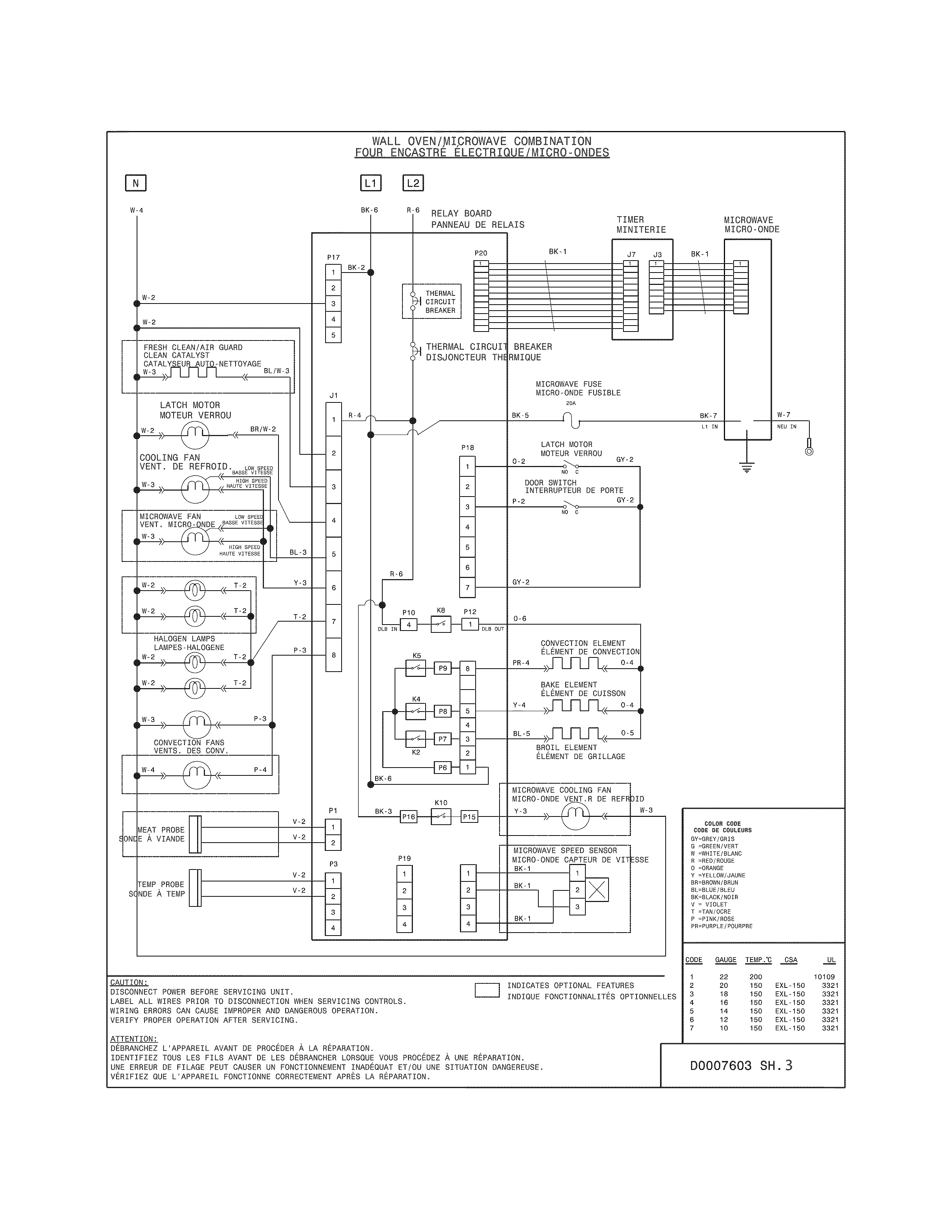

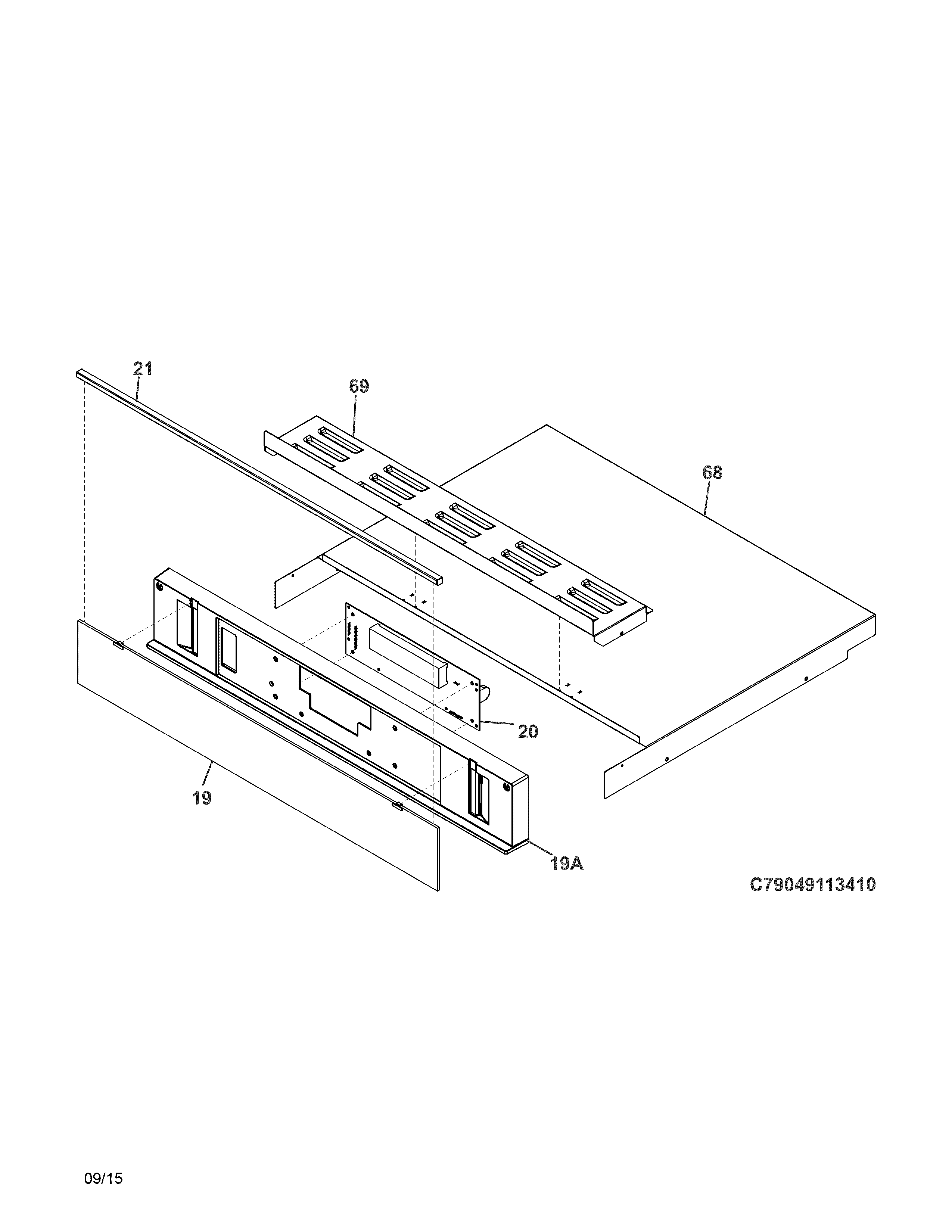

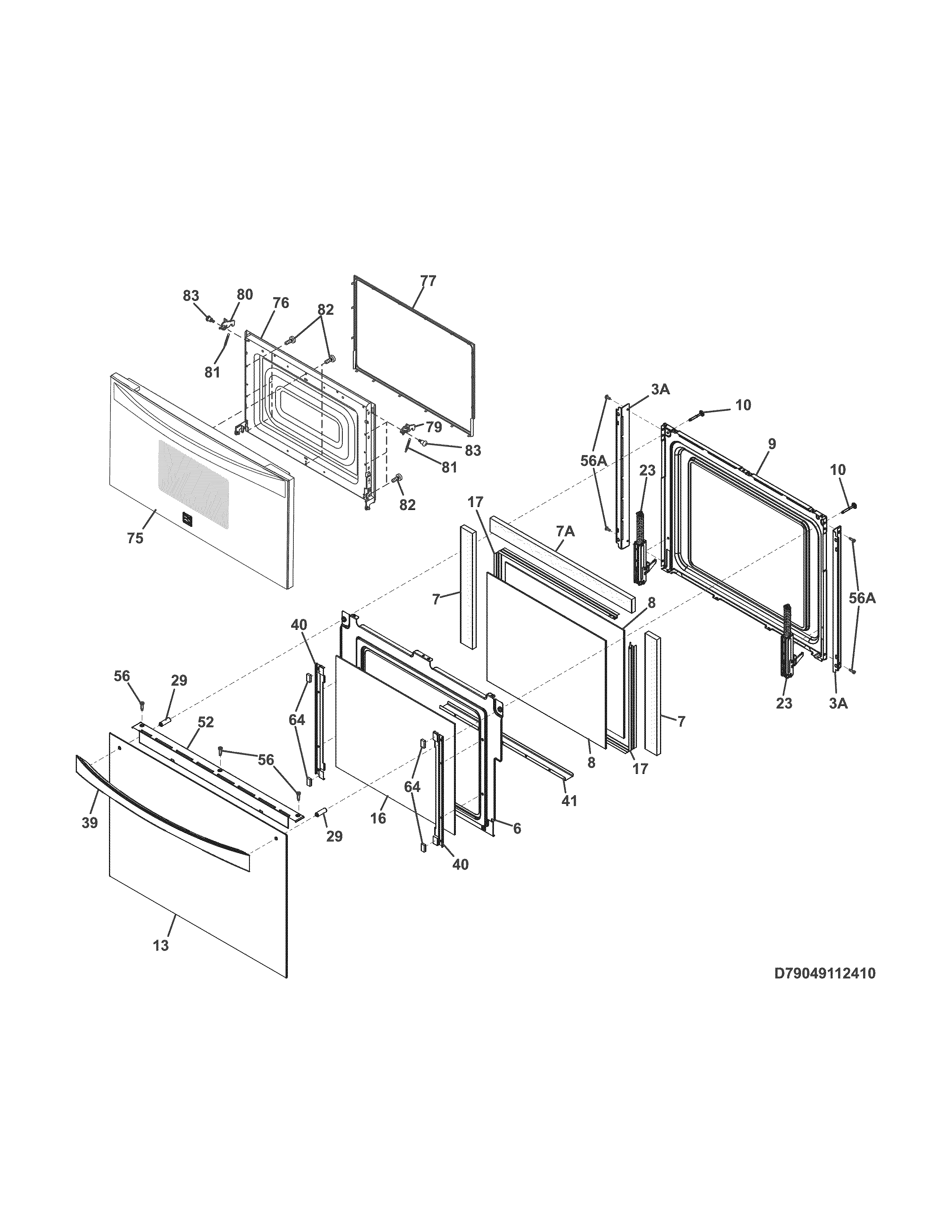

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 257 parts  |
Range Oven Temperature Sensor 318562500
#37

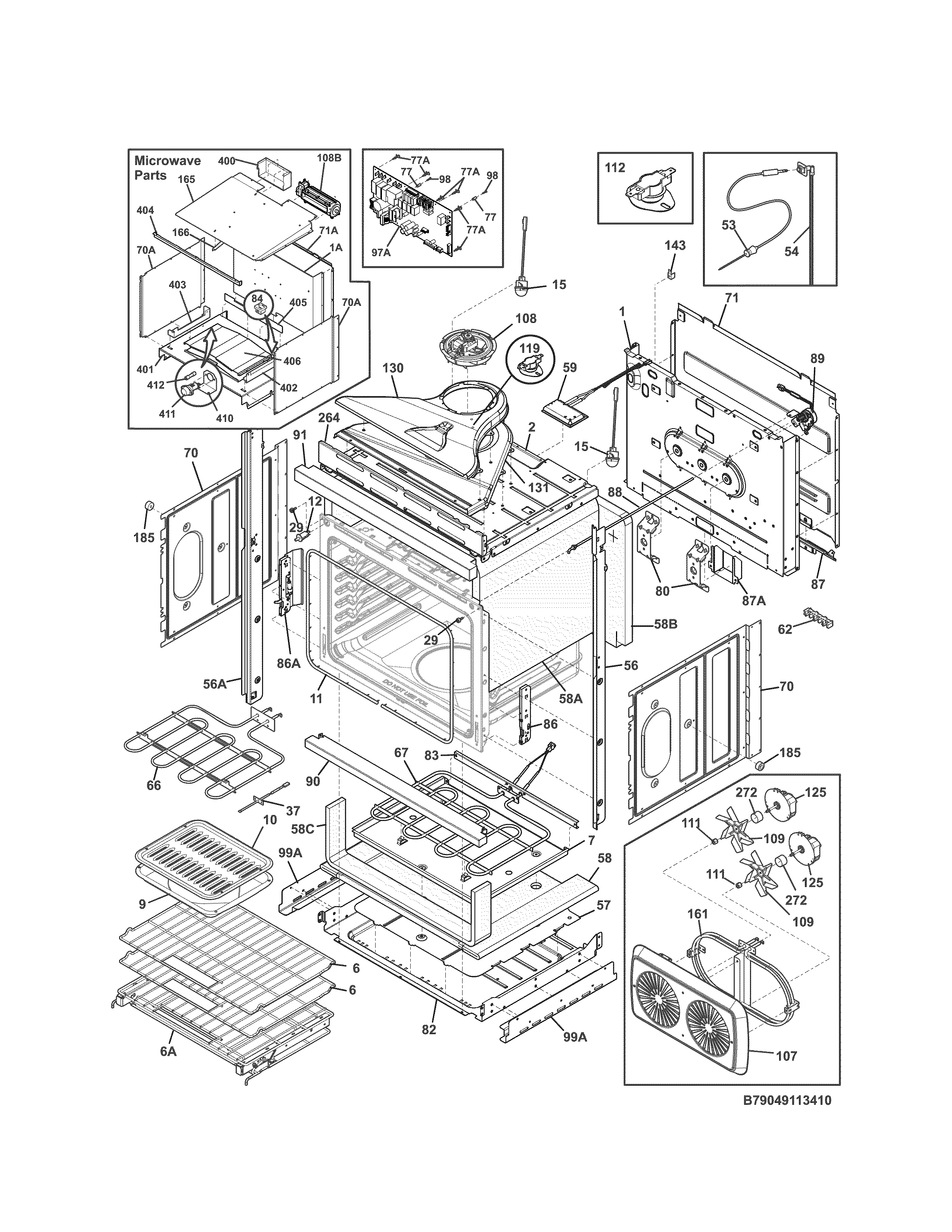

Lower oven diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
#119

Lower oven diagram

Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Fuse 318576100
#412

Lower oven diagram

Fuse

Part #318576100

Replaced by #318647300

?
Manufacturer substitution
This part replaces 318576100. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Holder 318576200
#411

Lower oven diagram

Holder

Part #318576200

Replaced by #318647300

?
Manufacturer substitution
This part replaces 318576200. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Switch 5304440027
#2

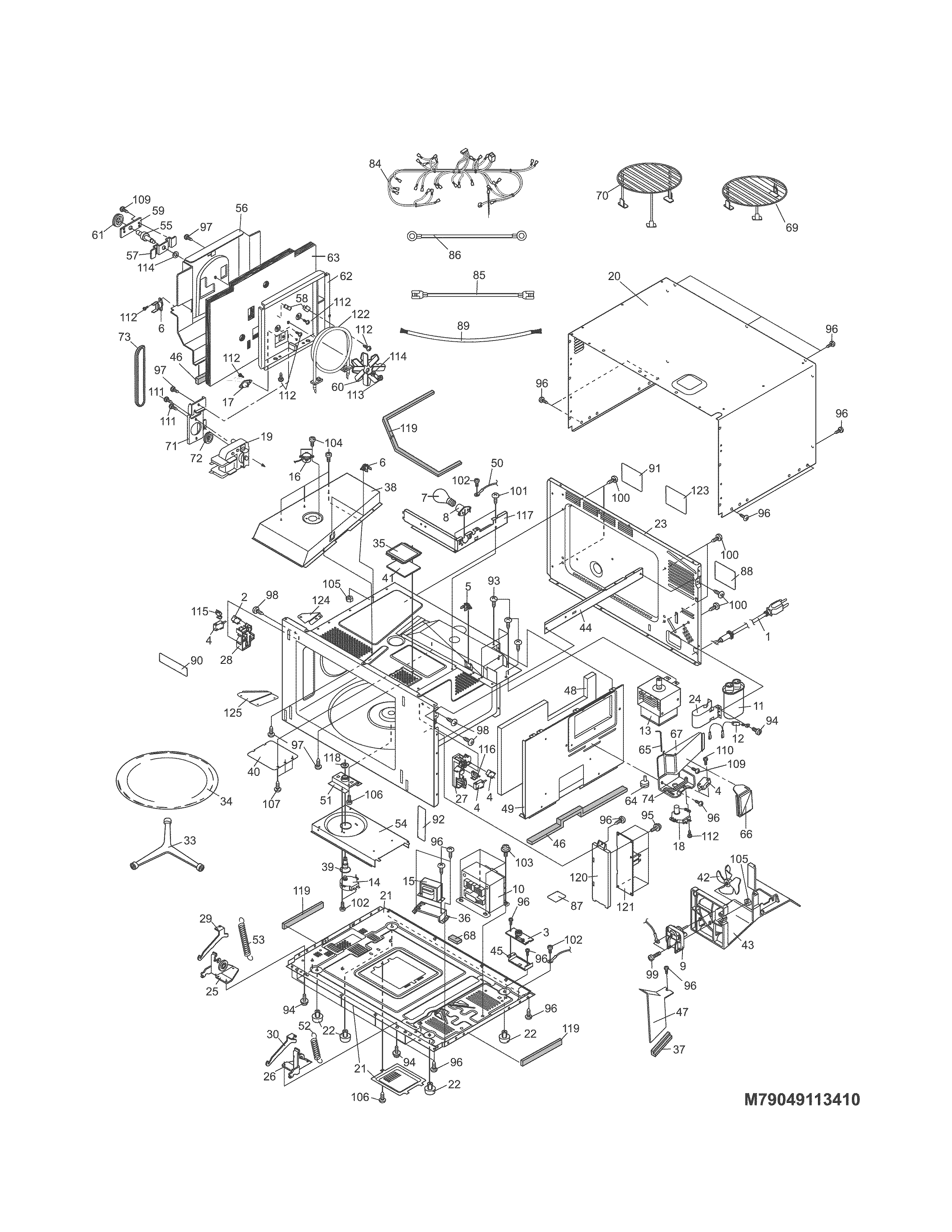

Microwave diagram

Switch

Part #5304440027

Replaced by #5304468224

?
Manufacturer substitution
This part replaces 5304440027. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Microwave High-voltage Capacitor (replaces 5303319549, 75304470539) 5304470539
#11

Microwave diagram

Microwave high-voltage capacitor (replaces 5303319549, 75304470539)

Part #5304470539

BEST SELLER
$115.12 |
9% OFF Phone Price : $127.12
In Stock
Microwave Latch Body (replaces 75304470548) 5304470548
#28

Microwave diagram

Microwave latch body (replaces 75304470548)

Part #5304470548

BEST SELLER
This item is not returnable
$35.60 |
14% OFF Phone Price : $41.60
In Stock
Wall Oven Safety Thermostat 318578509
#112

Lower oven diagram

Wall oven safety thermostat

Part #318578509

BEST SELLER
$44.99 |
12% OFF Phone Price : $50.99
In Stock
Microwave Door Latch Hook (replaces 75304470547) 5304470547
#27

Microwave diagram

Microwave door latch hook (replaces 75304470547)

Part #5304470547

$37.10 |
14% OFF Phone Price : $43.10
In Stock
Wall Oven Relay Control Board 316570503
#97A

Lower oven diagram

Wall oven relay control board

Part #316570503

This item is not returnable
$264.72 |
$12.00 OFF Phone Price : $276.72
In Stock
