GE
Compact Refrigerator

Model # SFR03BAZABB Official GE refrigerator

Here are the diagrams and repair parts for Official GE SFR03BAZABB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

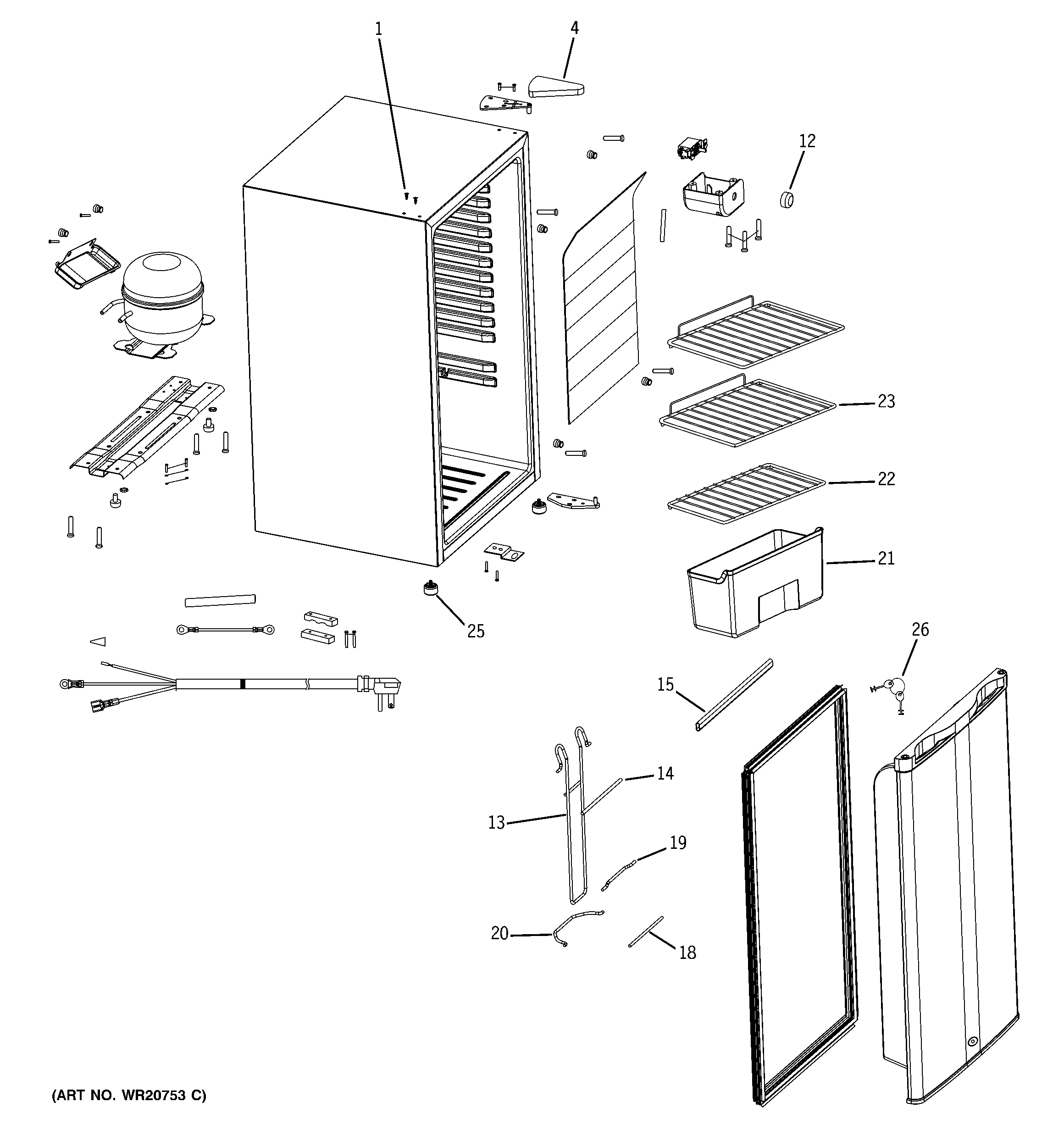

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Refrigerator Plug WR02X12864
#1

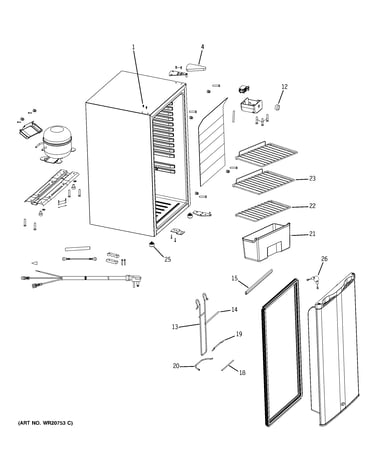

Refrigerator parts diagram

Refrigerator plug

Part #WR02X12864

The manufacturer no longer makes this part, and there's no substitute part

Top Hinge Co WR02X12865
#4

Refrigerator parts diagram

Top hinge co

Part #WR02X12865

The manufacturer no longer makes this part, and there's no substitute part

Ge Small Wire S WR17X12841
#22

Refrigerator parts diagram

Ge small wire s

Part #WR17X12841

The manufacturer no longer makes this part, and there's no substitute part

Big Wire She WR17X12842
#23

Refrigerator parts diagram

Big wire she

Part #WR17X12842

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Crisper WR32X10815
#21

Refrigerator parts diagram

Refrigerator crisper

Part #WR32X10815

The manufacturer no longer makes this part, and there's no substitute part

Half Width D WR17X12633
#18

Refrigerator parts diagram

Half width d

Part #WR17X12633

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Can Rack Bar WR17X12631
#19

Refrigerator parts diagram

Refrigerator can rack bar

Part #WR17X12631

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Can Rack WR17X12628
#13

Refrigerator parts diagram

Refrigerator can rack

Part #WR17X12628

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door WR17X12630
#15

Refrigerator parts diagram

Refrigerator door

Part #WR17X12630

The manufacturer no longer makes this part, and there's no substitute part

Half Width D WR17X12632
#20

Refrigerator parts diagram

Half width d

Part #WR17X12632

The manufacturer no longer makes this part, and there's no substitute part
