Kenmore
Warming Drawer

Model # 36349199992 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 36349199992 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

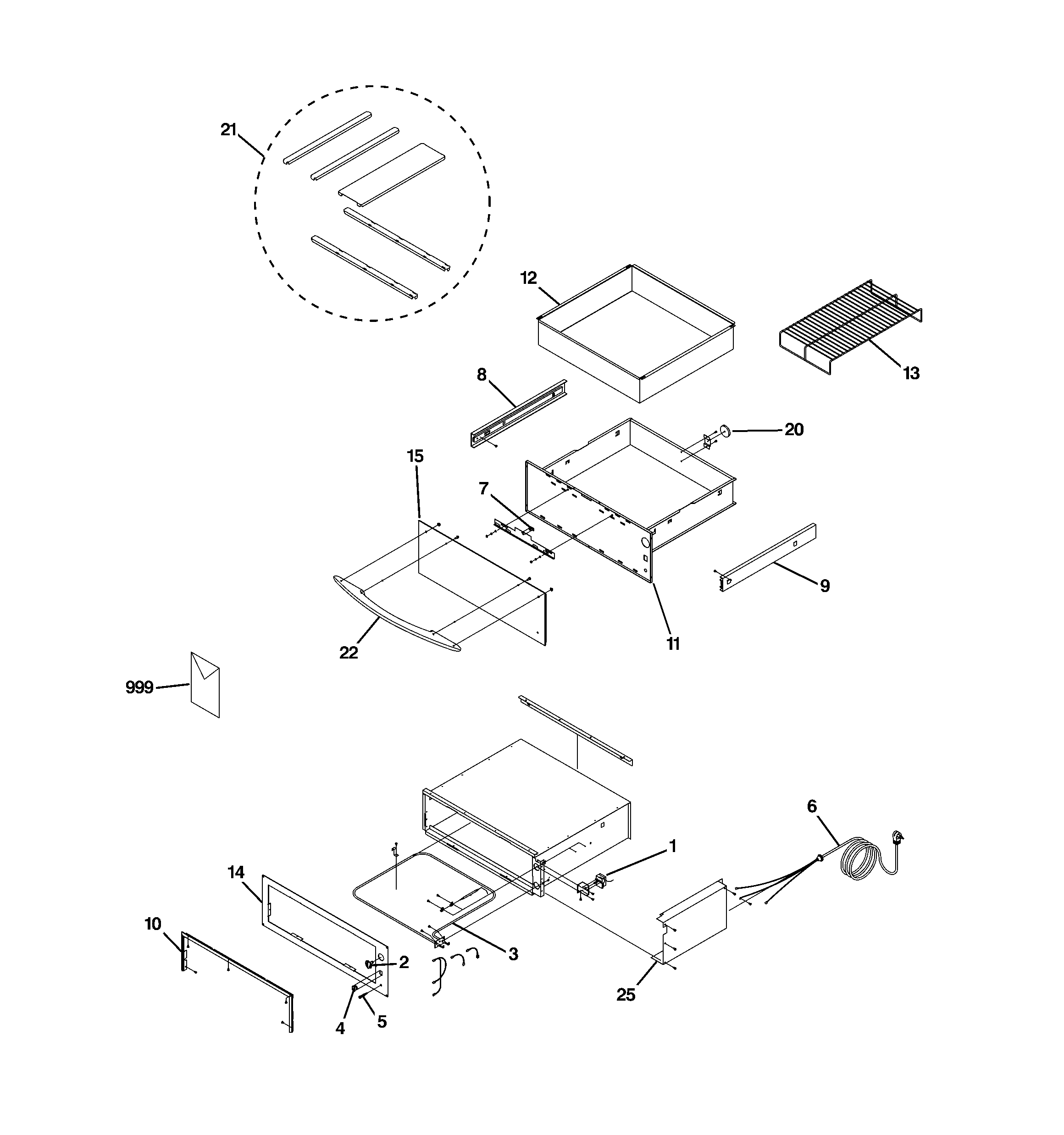

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Heating Element WB44X10029
#3

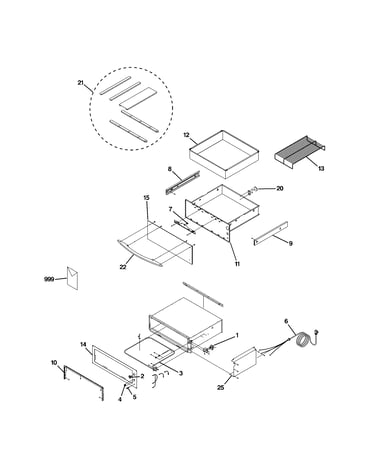

Warming drawer diagram

Heating element

Part #WB44X10029

$86.69 |
6% OFF Phone Price : $92.69
In Stock
Magnet Closure WB02X10592
#20

Warming drawer diagram

Magnet closure

Part #WB02X10592

$153.33
In Stock
Uc/install J 49-8933
#999

Warming drawer diagram

Uc/install j

Part #49-8933

Replaced by #49-8933-1

?
Manufacturer substitution
This part replaces 49-8933. Substitute parts can look different from the original.
$20.49
In Stock
Rail Kit, 30 WB64X10002
#21

Warming drawer diagram

Rail kit, 30

Part #WB64X10002

Replaced by #WB64X10032

?
Manufacturer substitution
This part replaces WB64X10002. Substitute parts can look different from the original.
$248.70
In Stock
Drawer Frame WB58X10005
#11

Warming drawer diagram

Drawer frame

Part #WB58X10005

Replaced by #WB58X10016

?
Manufacturer substitution
This part replaces WB58X10005. Substitute parts can look different from the original.
$348.96
In Stock
Wire Rack WB48X10010
#13

Warming drawer diagram

Wire rack

Part #WB48X10010

Replaced by #WB48X10045

?
Manufacturer substitution
This part replaces WB48X10010. Substitute parts can look different from the original.
$143.09 |
8% OFF Phone Price : $155.09
In Stock
Drawer Pan WB58X10006
#12

Warming drawer diagram

Drawer pan

Part #WB58X10006

The manufacturer no longer makes this part, and there's no substitute part

Panel WB55X10714
#15

Warming drawer diagram

Panel

Part #WB55X10714

The manufacturer no longer makes this part, and there's no substitute part

Slide Left WB02X10589
#8

Warming drawer diagram

Slide left

Part #WB02X10589

The manufacturer no longer makes this part, and there's no substitute part

Power Cord WB02X10588
#6

Warming drawer diagram

Power cord

Part #WB02X10588

The manufacturer no longer makes this part, and there's no substitute part
