Walk-Behind Mower

Model # 536916603 Official Craftsman 18" hand reel lawn mower

Here are the diagrams and repair parts for Official Craftsman 536916603 18" hand reel lawn mower, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
536916603 18" Hand Reel Lawn Mower
Lock Nut 9424215
#6

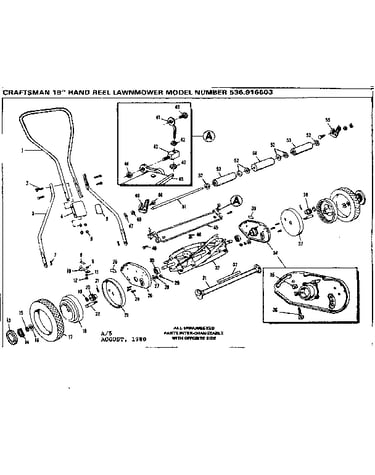

Replacement parts diagram

Lock nut

Part #9424215

Replaced by #703251

?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
$8.07
11% OFF Phone Price : $9.07
In Stock
Axle Washer 642
#16

Replacement parts diagram

Axle washer

Part #642

Replaced by #17X192MA

?
Manufacturer substitution
This part replaces 642. Substitute parts can look different from the original.
$8.49
11% OFF Phone Price : $9.49
In Stock
Carriage Bolt 998010
#50

Replacement parts diagram

Carriage bolt

Part #998010

The manufacturer no longer makes this part, and there's no substitute part

Screw 999602
#36

Replacement parts diagram

Screw

Part #999602

Replaced by #650517

?
Manufacturer substitution
This part replaces 999602. Substitute parts can look different from the original.
This item is not returnable
In Stock
Bracket Rh 36034
#49

Replacement parts diagram

Bracket rh

Part #36034

The manufacturer no longer makes this part, and there's no substitute part

Snap Ring 2380
#15

Replacement parts diagram

Snap ring

Part #2380

The manufacturer no longer makes this part, and there's no substitute part

Square Nut 120372
#35

Replacement parts diagram

Square nut

Part #120372

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 996425
#52

Replacement parts diagram

Flat washer

Part #996425

The manufacturer no longer makes this part, and there's no substitute part

Reel Assembly 22878
#32

Replacement parts diagram

Reel assembly

Part #22878

The manufacturer no longer makes this part, and there's no substitute part

Shoulder Bolt 35266
#12

Replacement parts diagram

Shoulder bolt

Part #35266

The manufacturer no longer makes this part, and there's no substitute part
