Frigidaire
Electric Wall Oven

Model # FEB24S2ABA Official Frigidaire electric oven

Here are the diagrams and repair parts for Official Frigidaire FEB24S2ABA electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Bulb 3201908
#15

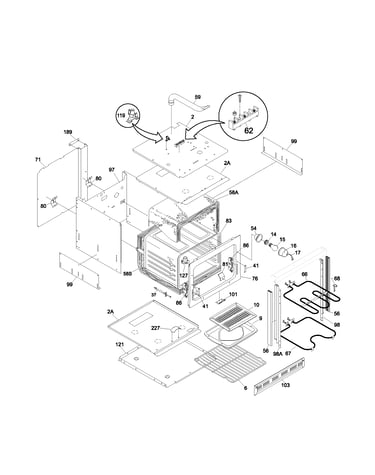

Body diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Probe 318198500
#37

Body diagram

Probe

Part #318198500

Replaced by #316217002

?
Manufacturer substitution
This part replaces 318198500. Substitute parts can look different from the original.
BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Bake Element 5303323865
#67

Body diagram

Bake element

Part #5303323865

Replaced by #318255101

?
Manufacturer substitution
This part replaces 5303323865. Substitute parts can look different from the original.
BEST SELLER
$132.85 |
8% OFF Phone Price : $144.85
In Stock
Receptacle 5308011085
#14

Body diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Rocker Switch 316005607
#24

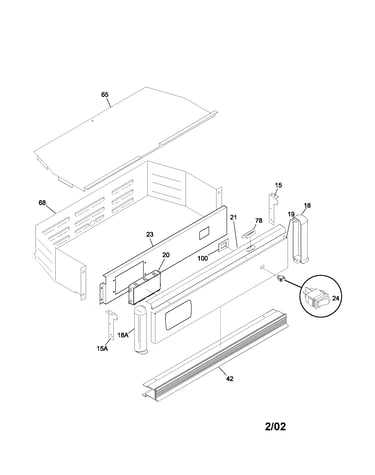

Control panel diagram

Rocker switch

Part #316005607

Replaced by #5304527842

?
Manufacturer substitution
This part replaces 316005607. Substitute parts can look different from the original.
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Light Switch 316005602
#24

Control panel diagram

Light switch

Part #316005602

Replaced by #5304527841

?
Manufacturer substitution
This part replaces 316005602. Substitute parts can look different from the original.
This item is not returnable
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Glass 318210907
#4

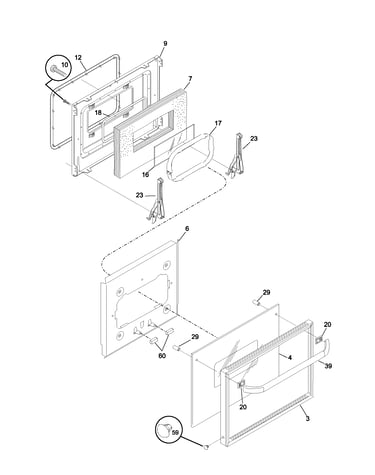

Door diagram

Glass

Part #318210907

Replaced by #318051557

?
Manufacturer substitution
This part replaces 318210907. Substitute parts can look different from the original.
$211.19 |
5% OFF Phone Price : $223.19
In Stock
Wall Oven Door Inner Heat Seal 318053204
#18

Door diagram

Wall oven door inner heat seal

Part #318053204

$51.89 |
10% OFF Phone Price : $57.89
In Stock
Wall Oven Broil Element Support Hanger 5304403015
#68

Body diagram

Wall oven broil element support hanger

Part #5304403015

$26.80 |
18% OFF Phone Price : $32.80
In Stock
Adapter Assembly 5303310542
#127

Body diagram

Adapter assembly

Part #5303310542

Replaced by #318317100

?
Manufacturer substitution
This part replaces 5303310542. Substitute parts can look different from the original.
$61.19 |
9% OFF Phone Price : $67.19
In Stock
