Kenmore
Top-Mount Refrigerator

Model # 25331133300 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25331133300 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

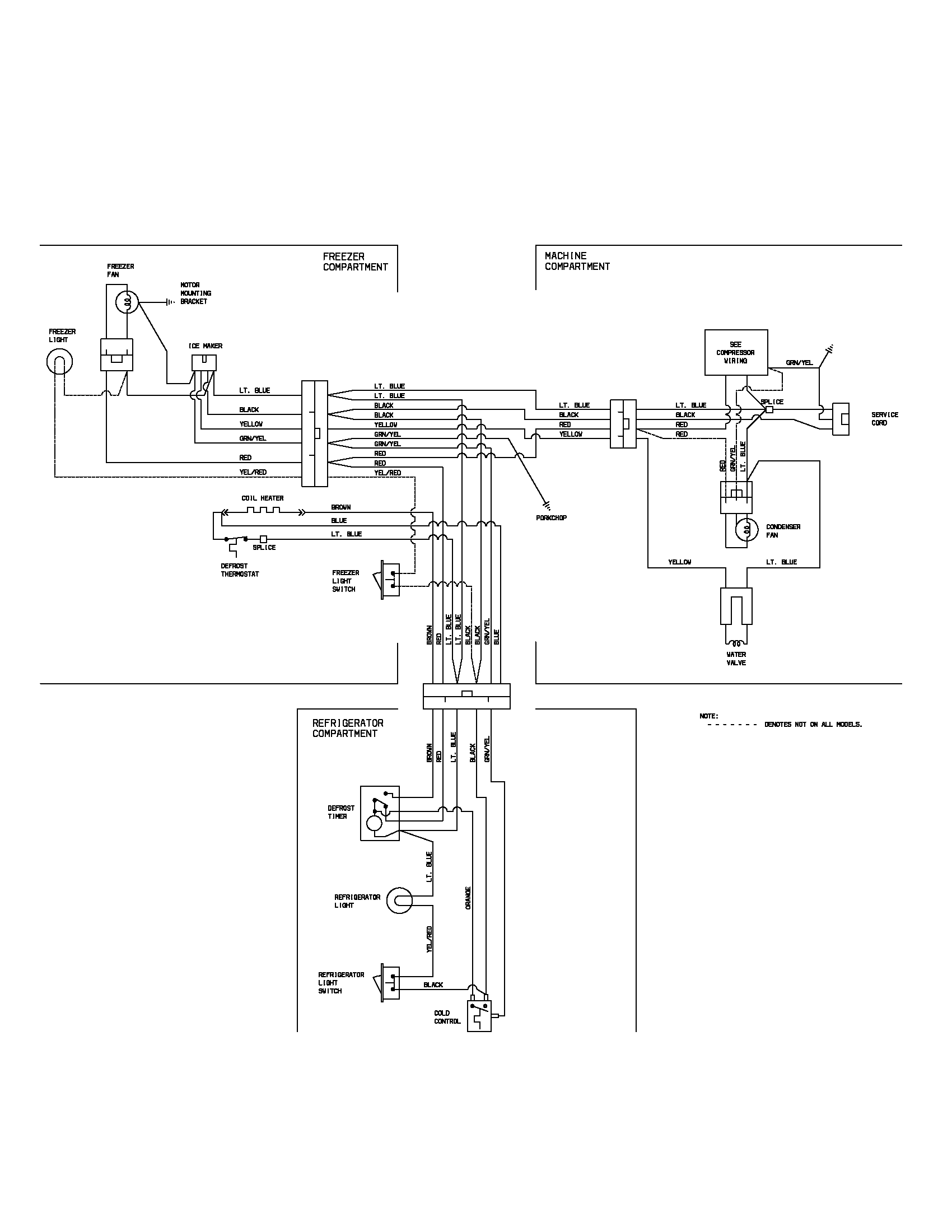

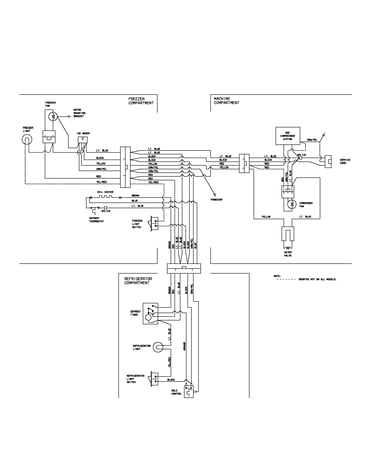

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |
Refrigerator Filter Drier 218944001
#4

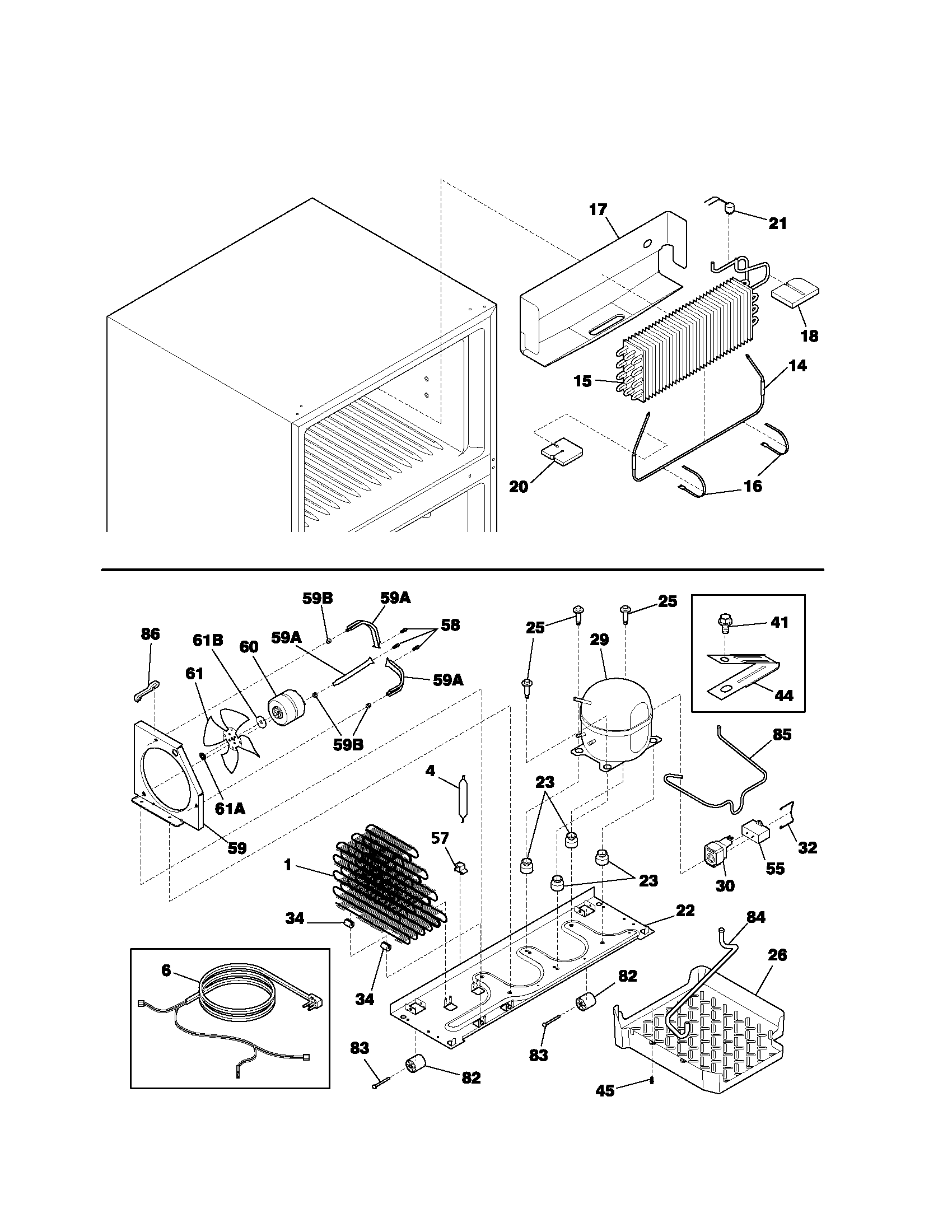

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Door Rack Support (240534901) - Refrigerator Shelving Part By Frigidaire 240534901
#4

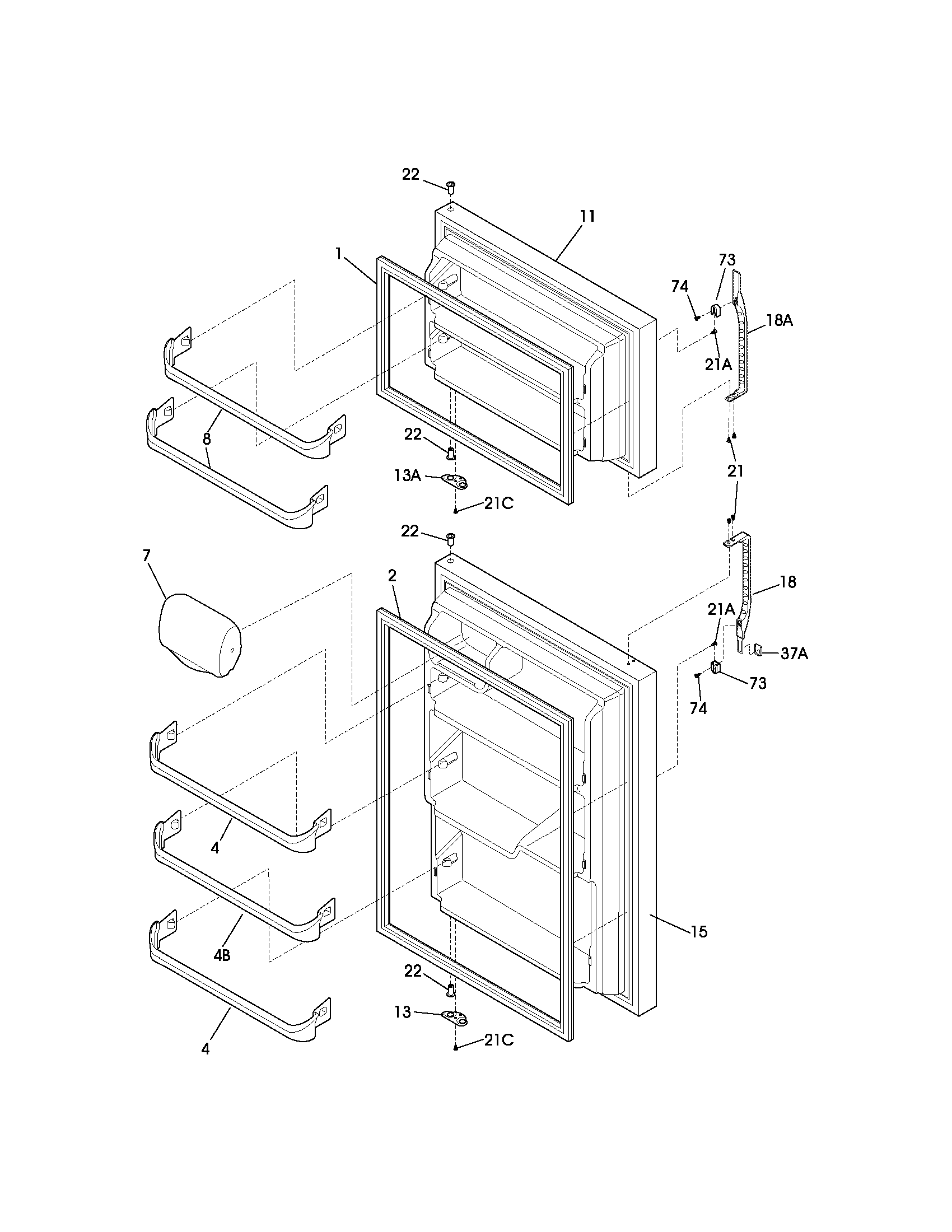

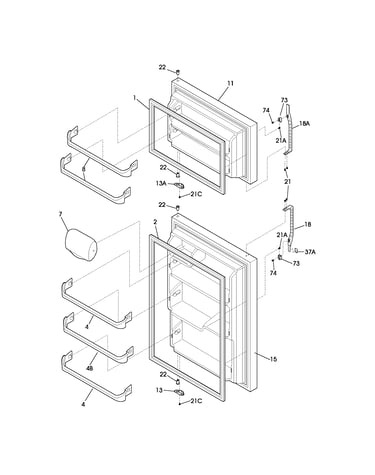

Door diagram

Door rack support (240534901) - refrigerator shelving part by frigidaire

Part #240534901

BEST SELLER
$35.81 |
14% OFF Phone Price : $41.81
In Stock
Galaxy Refrigerator Door Shelf Rail 240534701
#4B

Door diagram

Galaxy refrigerator door shelf rail

Part #240534701

BEST SELLER
$45.97 |
12% OFF Phone Price : $51.97
In Stock
Frigidaire Refrigerator Drawer Hanger, Right (replaces 240460501) 240530701
#42

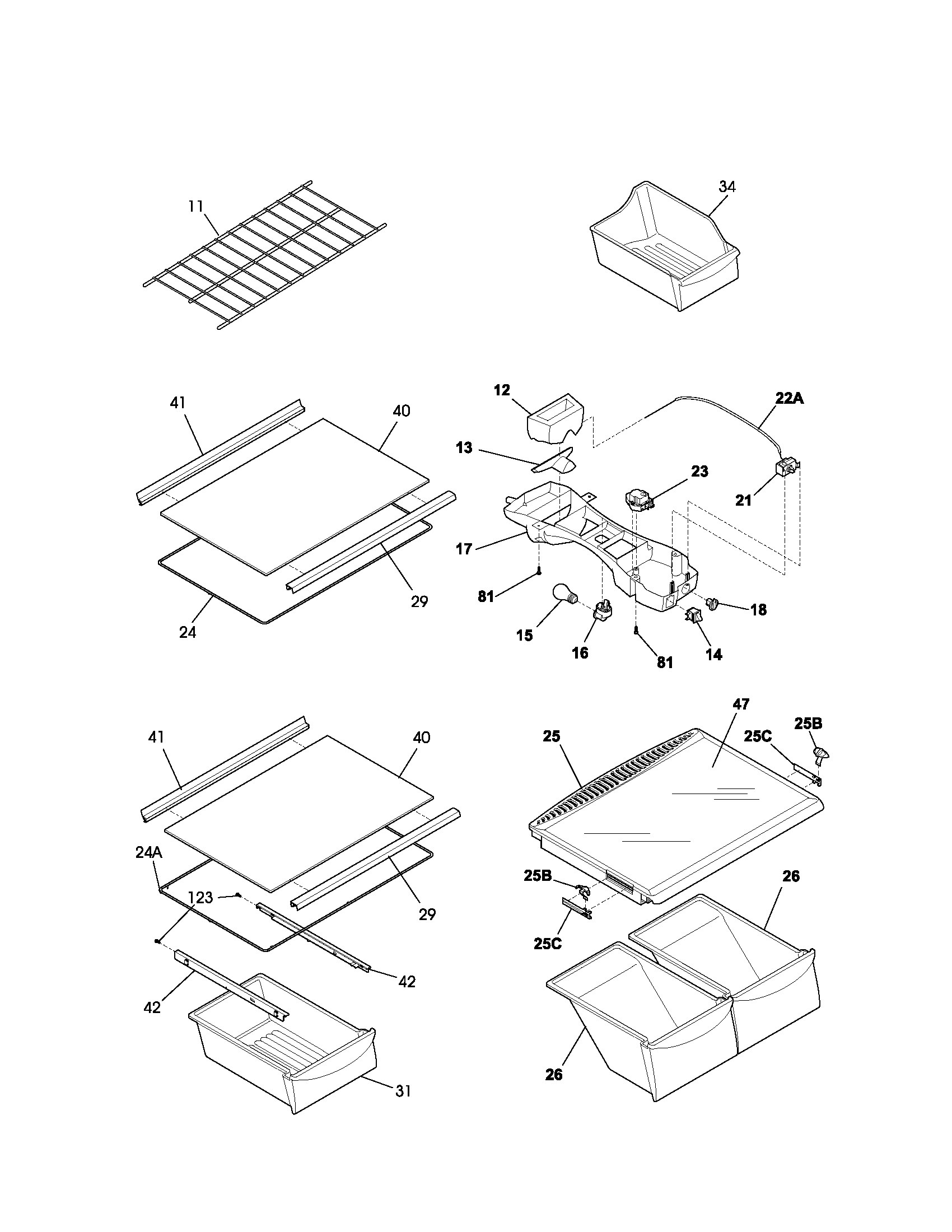

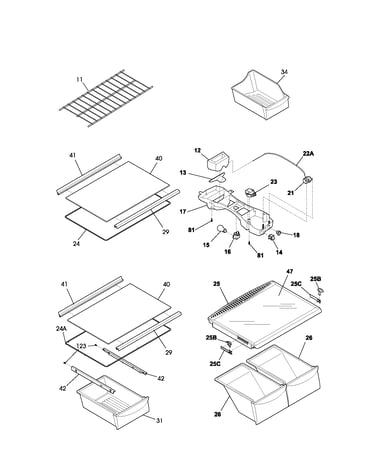

Shelves diagram

Frigidaire refrigerator drawer hanger, right (replaces 240460501)

Part #240530701

BEST SELLER
$46.12 |
12% OFF Phone Price : $52.12
In Stock
Washer 240311301
#34

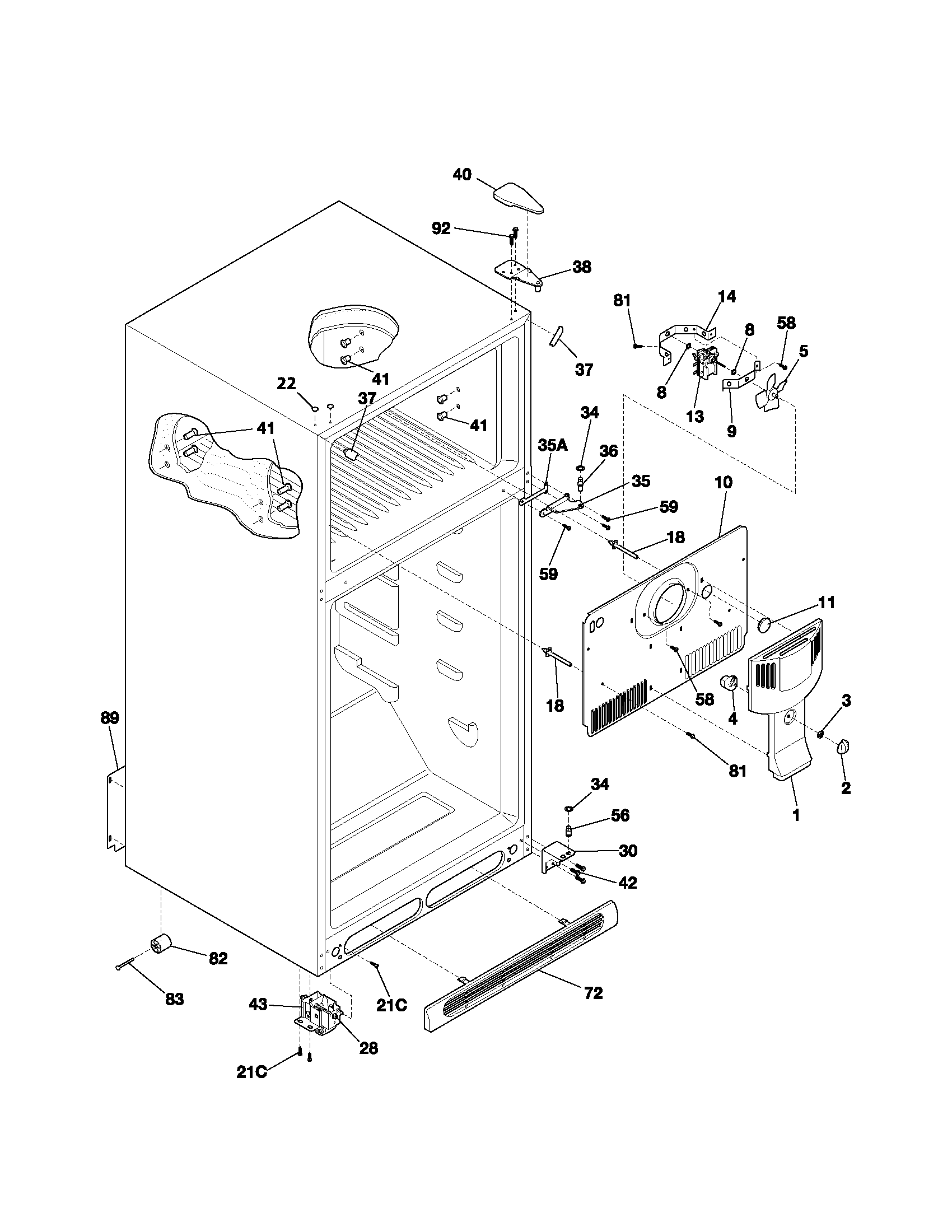

Cabinet diagram

Washer

Part #240311301

Replaced by #240311303

?
Manufacturer substitution
This part replaces 240311301. Substitute parts can look different from the original.
BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Drawer Hanger, Left (replaces 240460401) 240530601
#42

Shelves diagram

Refrigerator drawer hanger, left (replaces 240460401)

Part #240530601

BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Water Inlet Valve 240519601
#55

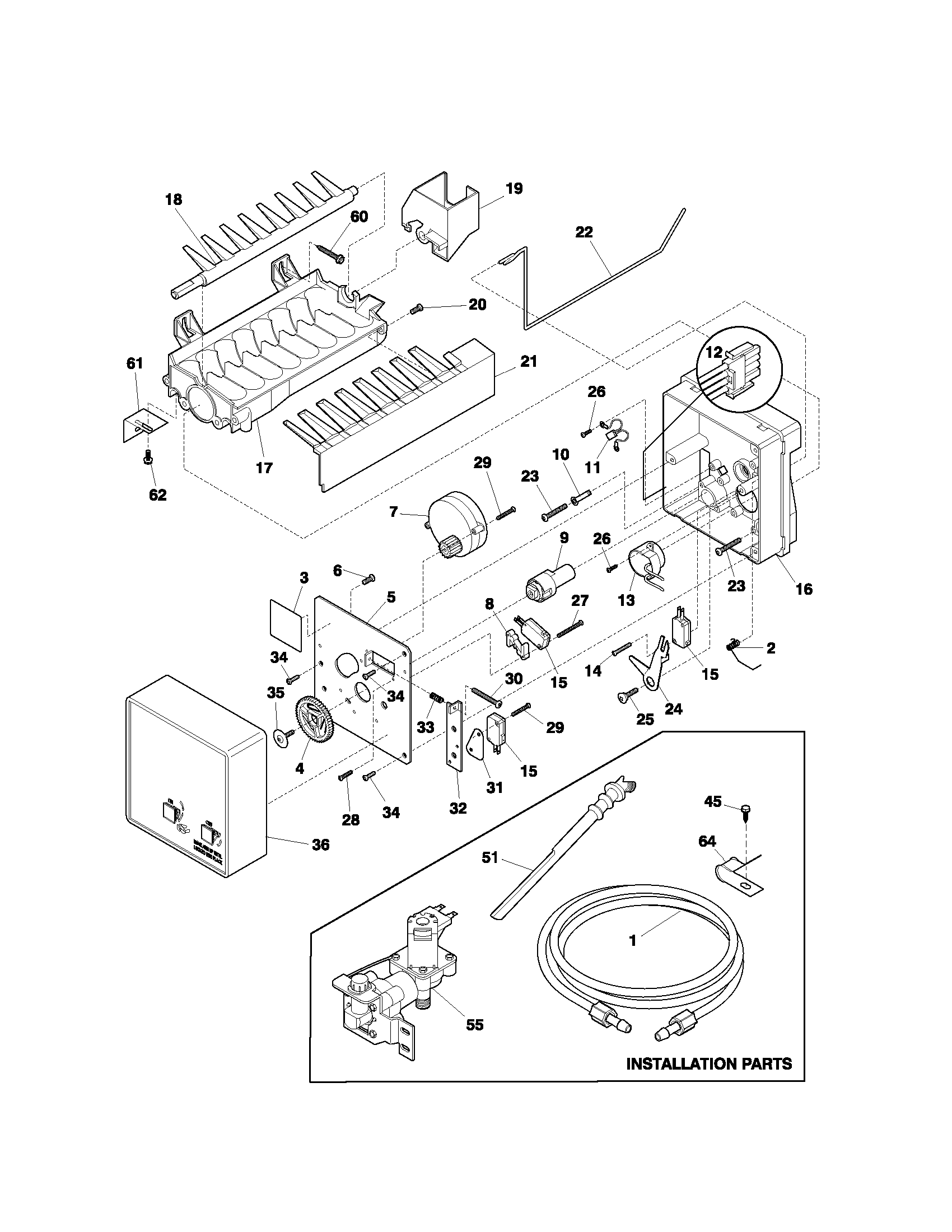

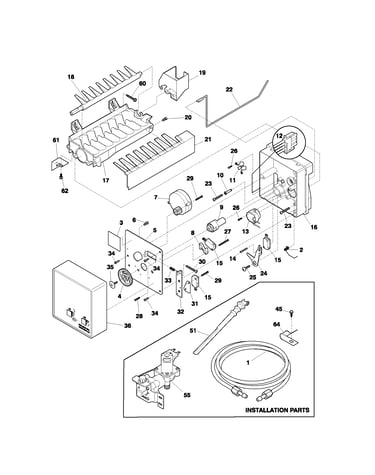

Ice maker diagram

Water inlet valve

Part #240519601

Replaced by #242252603

?
Manufacturer substitution
This part replaces 240519601. Substitute parts can look different from the original.
BEST SELLER
$49.88 |
11% OFF Phone Price : $55.88
In Stock
Refrigerator Compressor 5303918264
#29

System diagram

Refrigerator compressor

Part #5303918264

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 5303918264. Substitute parts can look different from the original.
BEST SELLER
$449.52 |
$12.00 OFF Phone Price : $461.52
In Stock
Refrigerator Shelf Trim, Front 240357704
#29

Shelves diagram

Refrigerator shelf trim, front

Part #240357704

BEST SELLER
$47.12 |
11% OFF Phone Price : $53.12
In Stock
Refrigerator Evaporator (replaces 5303918250, 5303918431) 5303918274
#15

System diagram

Refrigerator evaporator (replaces 5303918250, 5303918431)

Part #5303918274

BEST SELLER
$300.95 |
$12.00 OFF Phone Price : $312.95
In Stock
