Model # CDE06RP3NBD1 Official GE refrigerator drawer

Here are the diagrams and repair parts for Official GE CDE06RP3NBD1 refrigerator drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

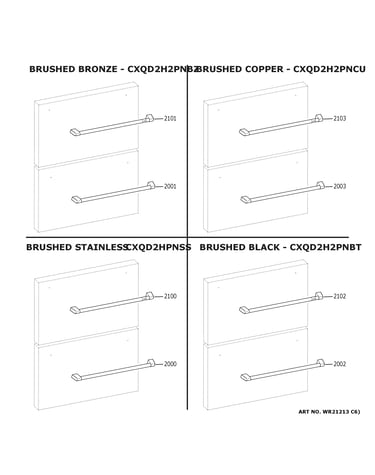

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Main Control Board WR55X30057
#21

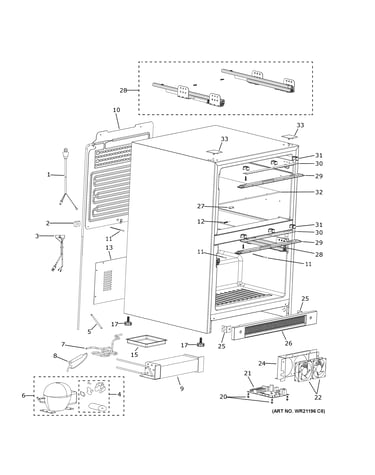

Cabinet diagram

Main control board

Part #WR55X30057

$154.95 |
7% OFF Phone Price : $166.95
In Stock
Upper Partit WR01X28255
#40

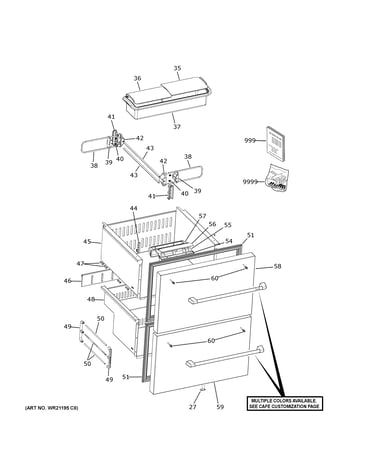

Doors & drawers diagram

Upper partit

Part #WR01X28255

This item is not returnable
$5.00
In Stock
Refrigerator Cable Clamp WR01X28259
#47

Doors & drawers diagram

Refrigerator cable clamp

Part #WR01X28259

$8.11
In Stock
Led Light WR55X28260
#30

Cabinet diagram

Led light

Part #WR55X28260

$66.51 |
8% OFF Phone Price : $72.51
In Stock
Compressor WR87X30061
#6

Cabinet diagram

Compressor

Part #WR87X30061

$363.48
In Stock
Refrigerator Sensor WR55X28281
#11

Cabinet diagram

Refrigerator sensor

Part #WR55X28281

$36.89 |
14% OFF Phone Price : $42.89
In Stock
Display Cont WR13X28266
#54

Doors & drawers diagram

Display cont

Part #WR13X28266

$98.93
In Stock
Upper Pariti WR13X28264
#42

Doors & drawers diagram

Upper pariti

Part #WR13X28264

This item is not returnable
$5.00
In Stock
Condenser Jumper WR87X30055
#7

Cabinet diagram

Condenser jumper

Part #WR87X30055

$15.31
In Stock
Condenser WR87X30062
#9

Cabinet diagram

Condenser

Part #WR87X30062

$59.04
In Stock
