Gibson
Chest Freezer

Model # GFC05M3EW4 Official Gibson freezer

Here are the diagrams and repair parts for Official Gibson GFC05M3EW4 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Filter Drier 216634500
#4

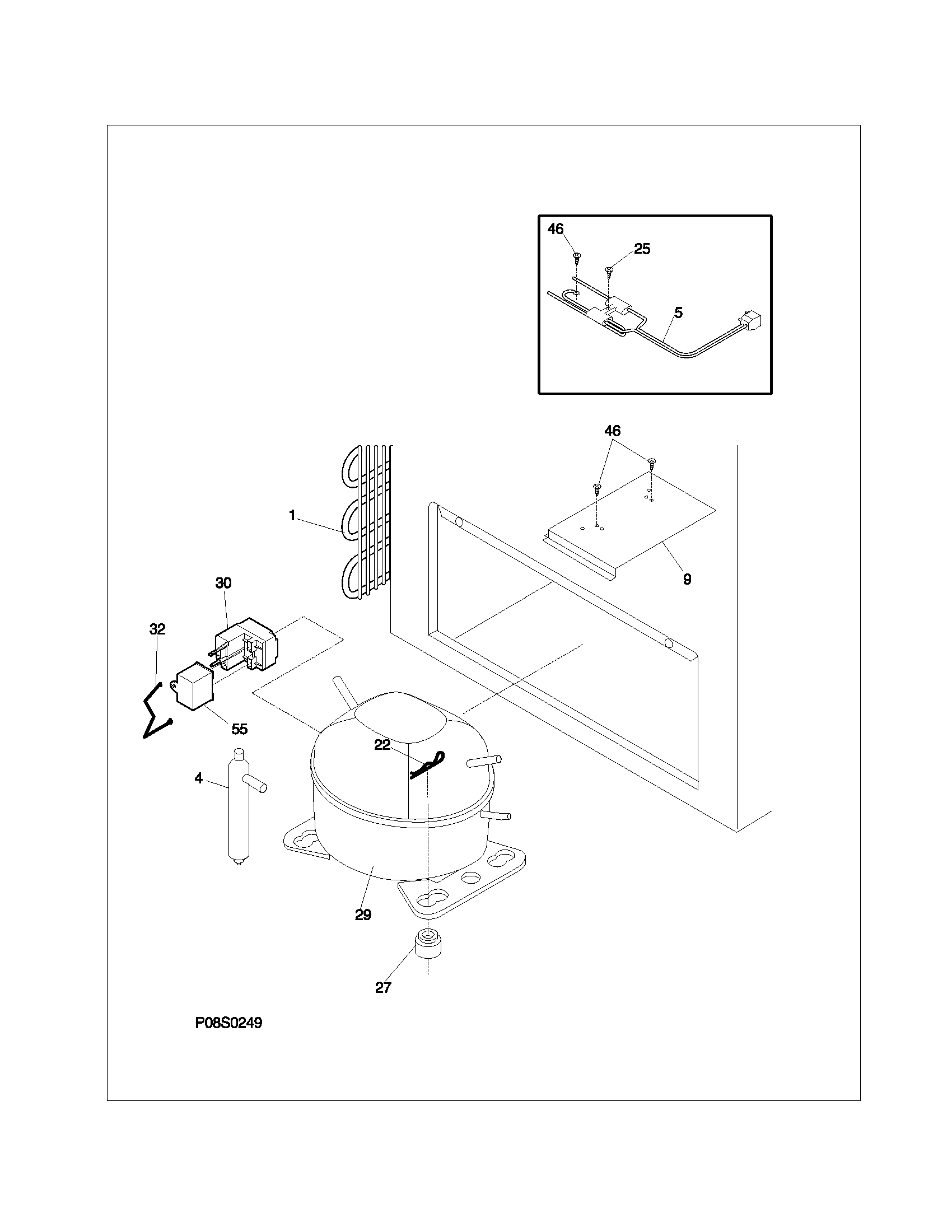

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Door Key 216702900
#5

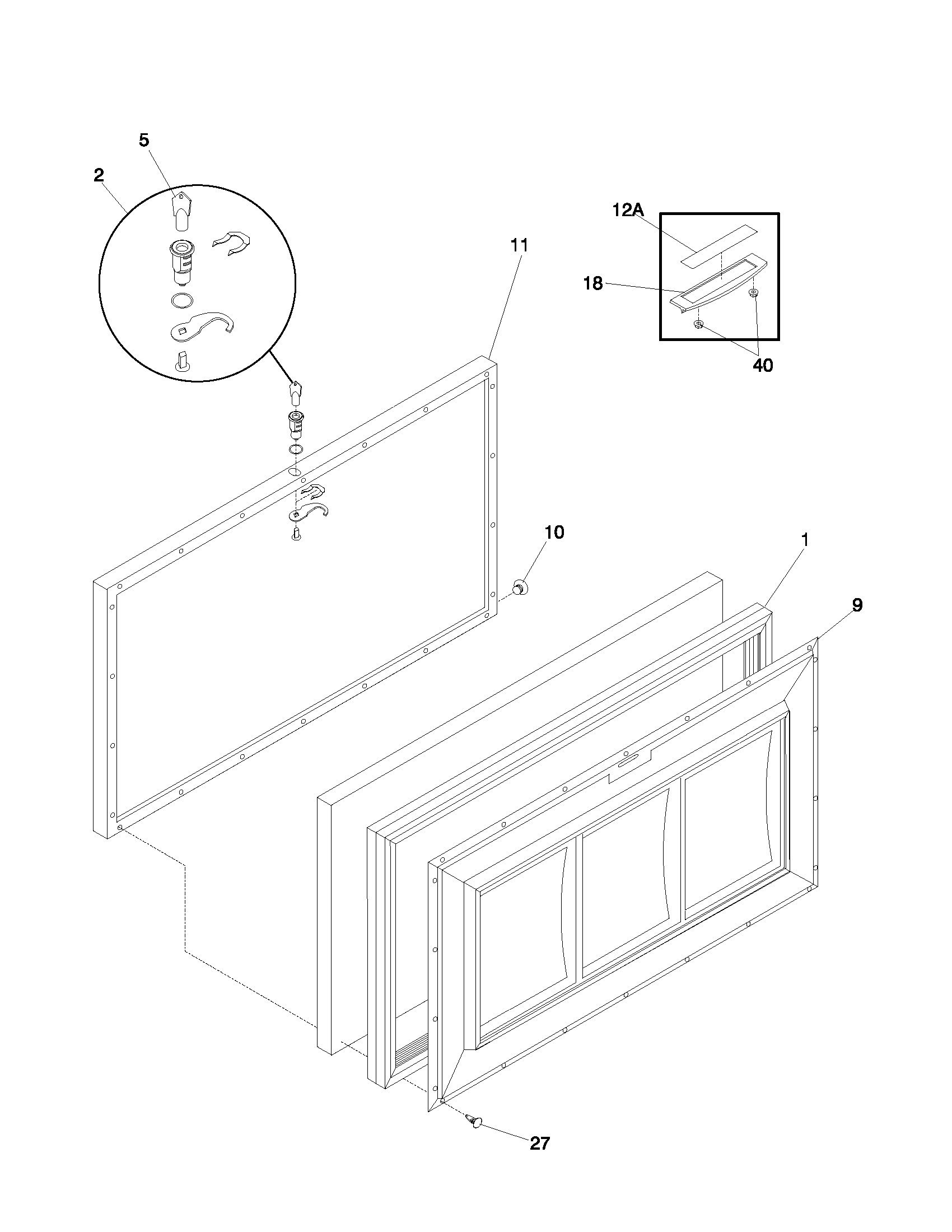

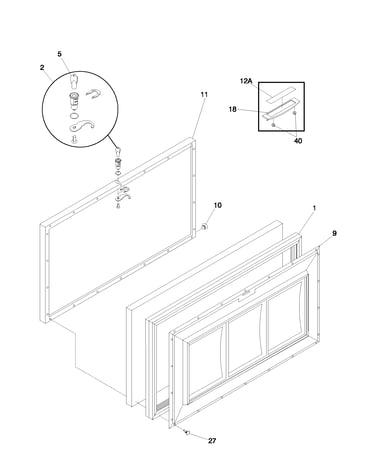

Door diagram

Freezer door key

Part #216702900

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Capacitor 216696700
#55

System diagram

Capacitor

Part #216696700

Replaced by #297286802

?
Manufacturer substitution
This part replaces 216696700. Substitute parts can look different from the original.
BEST SELLER
$38.69 |
13% OFF Phone Price : $44.69
In Stock
Basket 216078600
#59

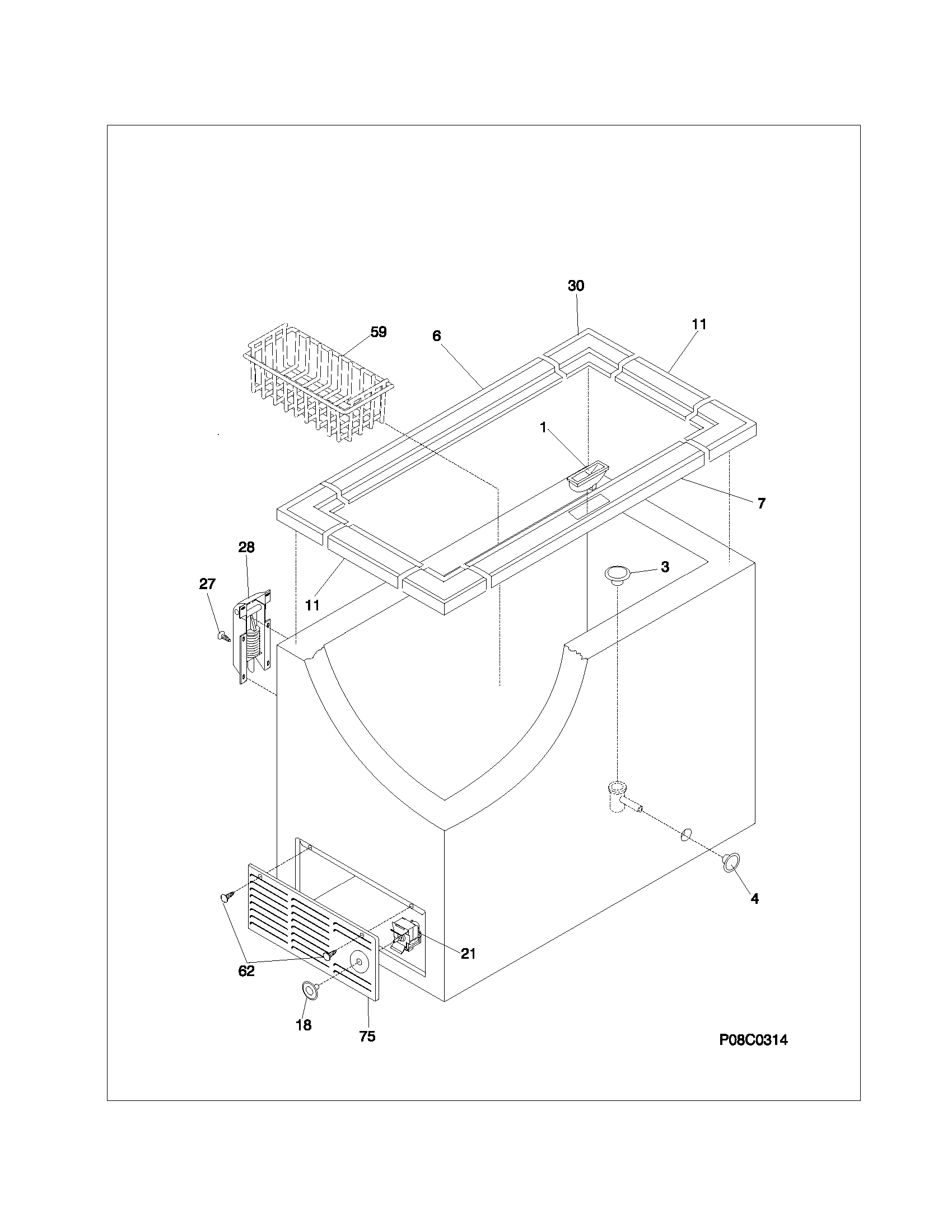

Cabinet diagram

Basket

Part #216078600

Replaced by #216848200

?
Manufacturer substitution
This part replaces 216078600. Substitute parts can look different from the original.
$40.43 |
13% OFF Phone Price : $46.43
In Stock
Kelvinator Freezer Lid Gasket (replaces 216078400, 216078403, 216078405, 216480802, 216480803) 216480801
#1

Door diagram

Kelvinator freezer lid gasket (replaces 216078400, 216078403, 216078405, 216480802, 216480803)

Part #216480801

$126.30 |
9% OFF Phone Price : $138.30
In Stock
Freezer Temperature Control Knob 216707200
#18

Cabinet diagram

Freezer temperature control knob

Part #216707200

$37.39 |
14% OFF Phone Price : $43.39
In Stock
Temperature Control 216714400
#21

Cabinet diagram

Temperature control

Part #216714400

Replaced by #5304496559

?
Manufacturer substitution
This part replaces 216714400. Substitute parts can look different from the original.
This item is not returnable
$41.79 |
13% OFF Phone Price : $47.79
In Stock
Compress W/o 216696600
#29

System diagram

Compress w/o

Part #216696600

Replaced by #5304443412

?
Manufacturer substitution
This part replaces 216696600. Substitute parts can look different from the original.
$620.55
In Stock
Screw 131420300
#62

Cabinet diagram

Screw

Part #131420300

Replaced by #131420300

?
Manufacturer substitution
This part replaces 131420300. Substitute parts can look different from the original.
This item is not returnable
$15.80
In Stock
Grommet 5308002681
#27

System diagram

Grommet

Part #5308002681

Replaced by #216498900

?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
