Model # WAT28401UC/06 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WAT28401UC-06 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

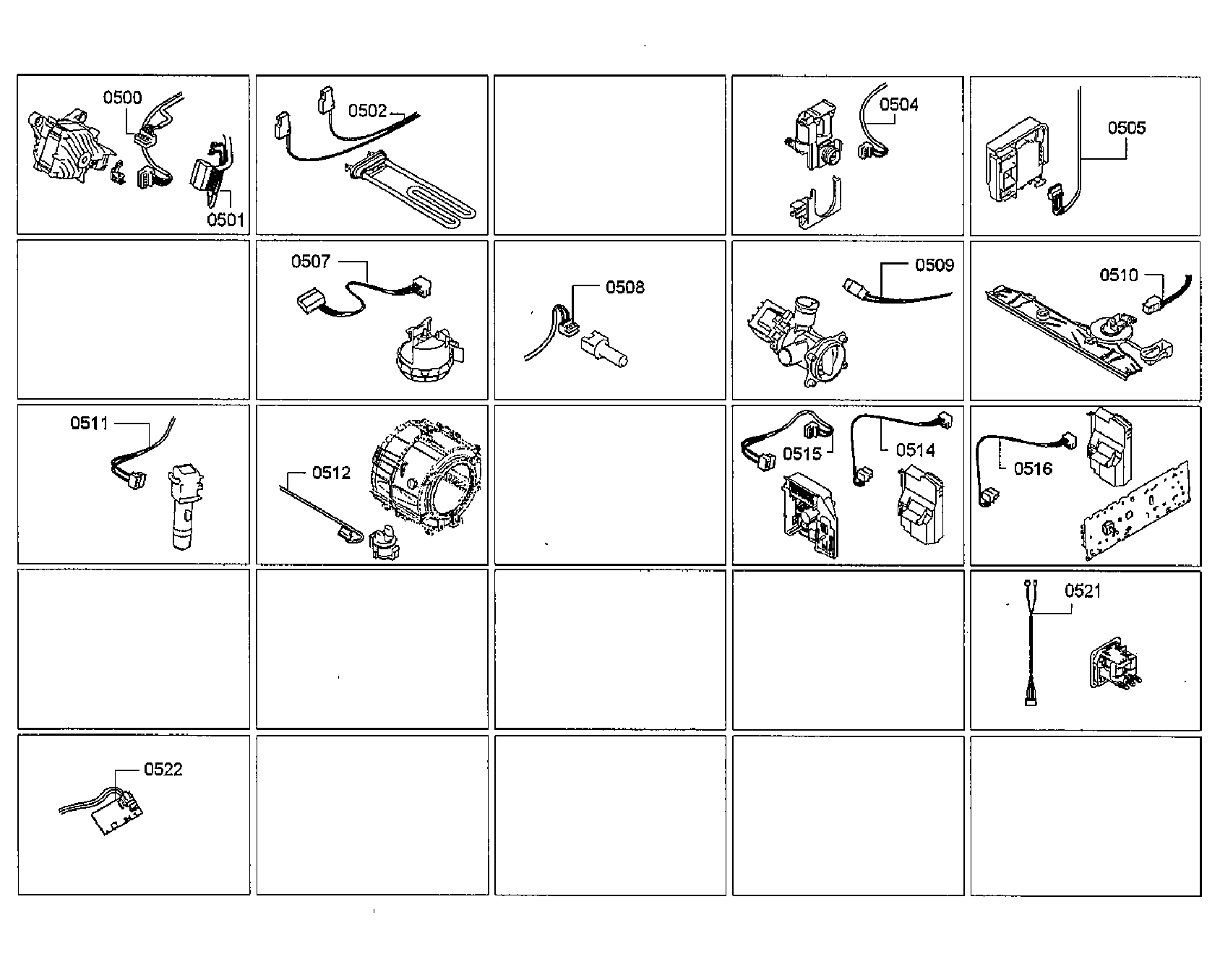

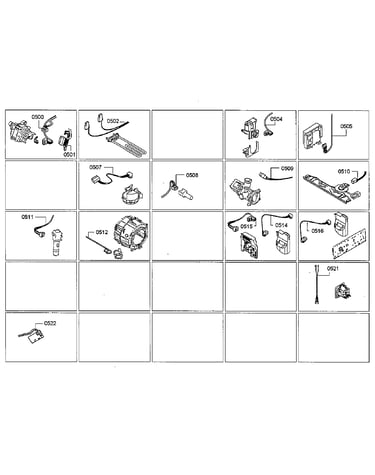

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Washer Door Lock 00635514
#211

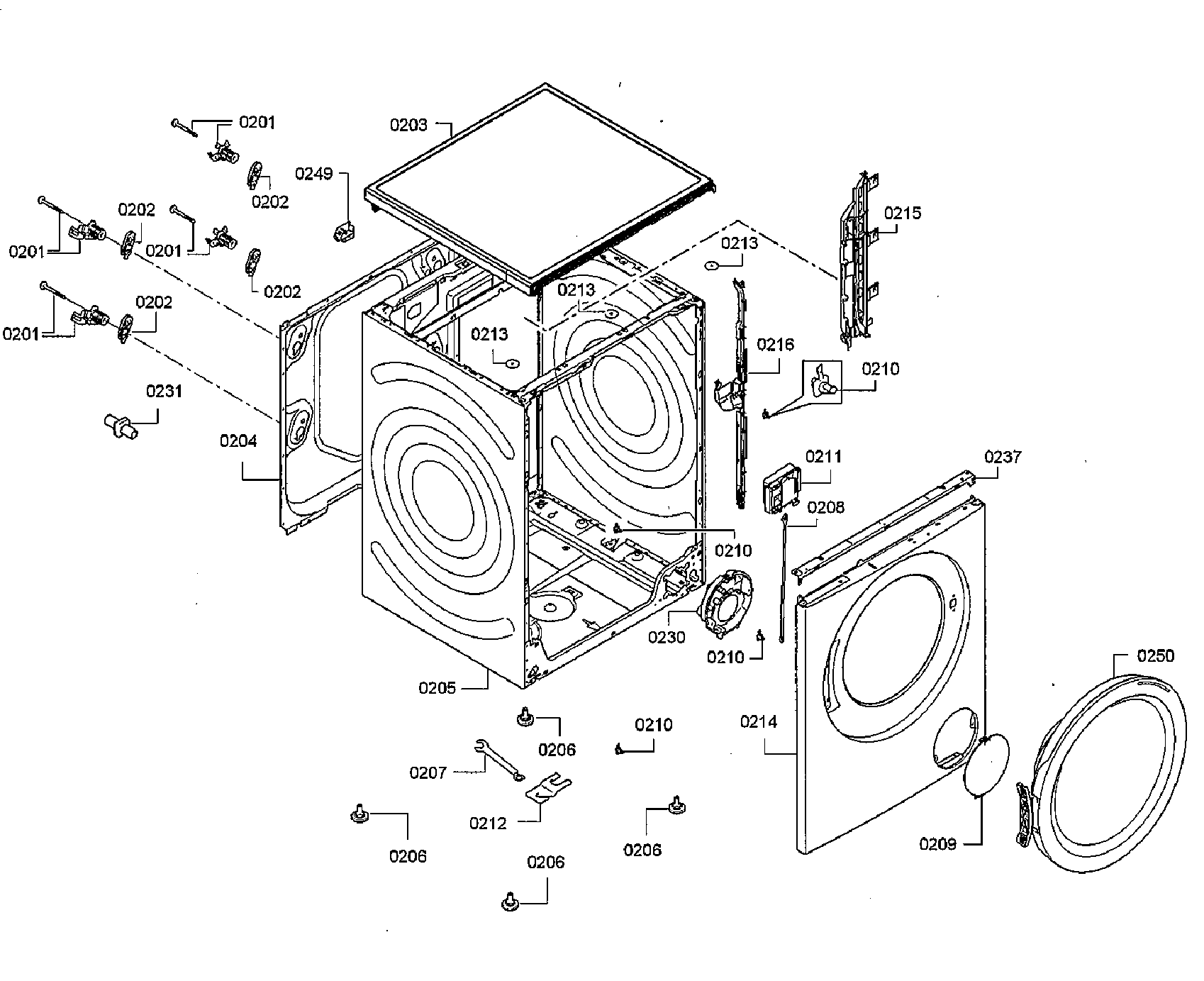

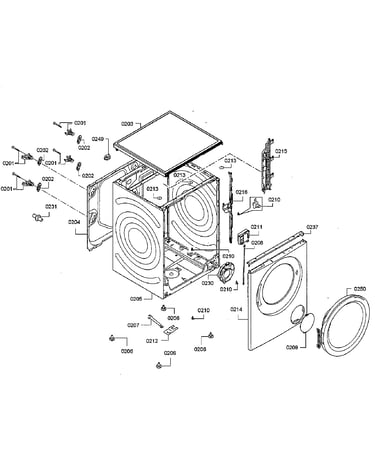

Cabinet diagram

Washer door lock

Part #00635514

Replaced by #10000916

?
Manufacturer substitution
This part replaces 00635514. Substitute parts can look different from the original.
$54.79 |
10% OFF Phone Price : $60.79
In Stock
Washer Drain Hose 00656689
#419

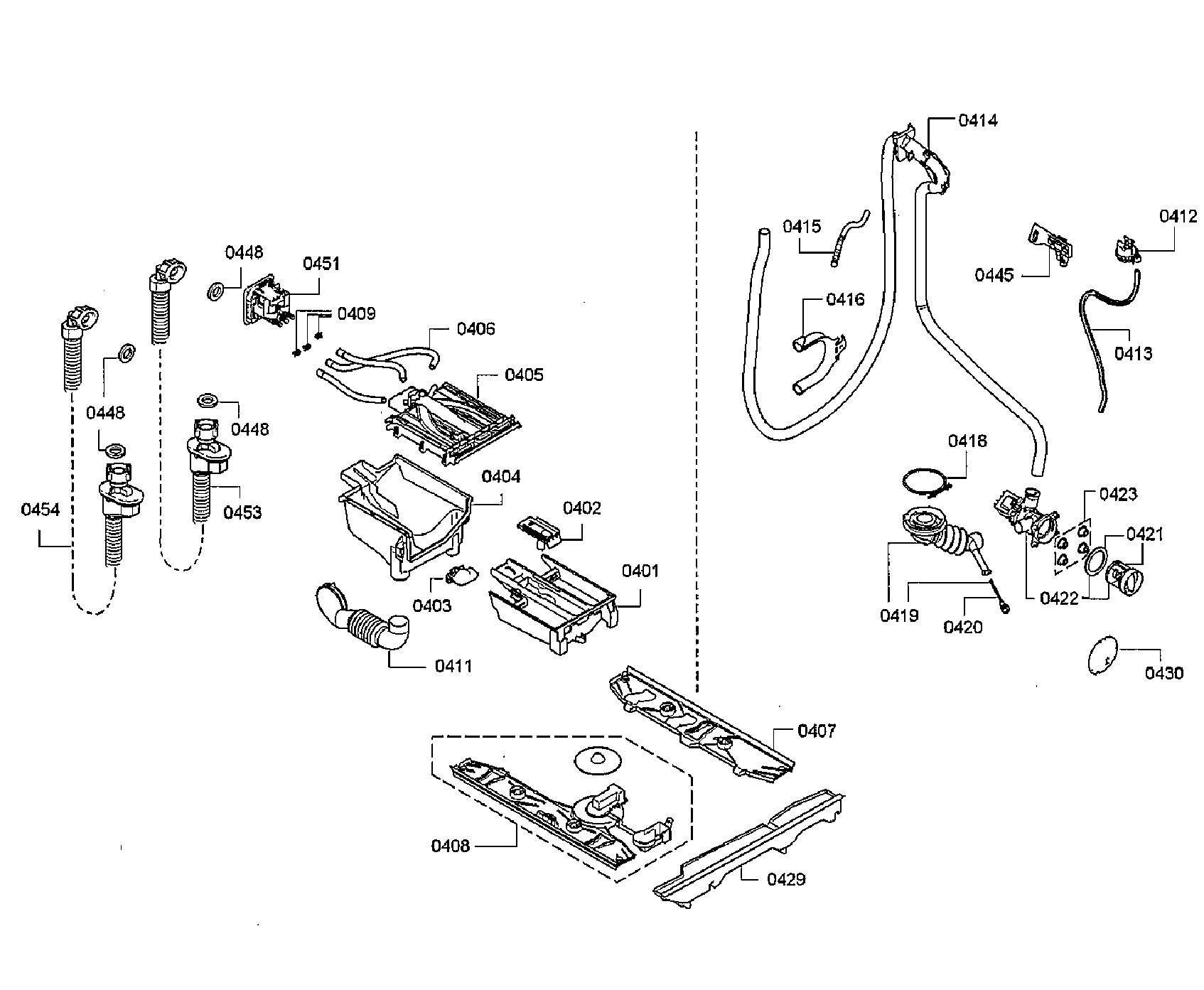

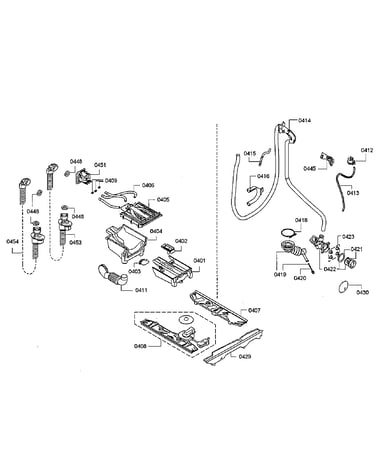

Dispenser/pump diagram

Washer drain hose

Part #00656689

$29.49 |
17% OFF Phone Price : $35.49
In Stock
Washer Door Boot 00680769
#313

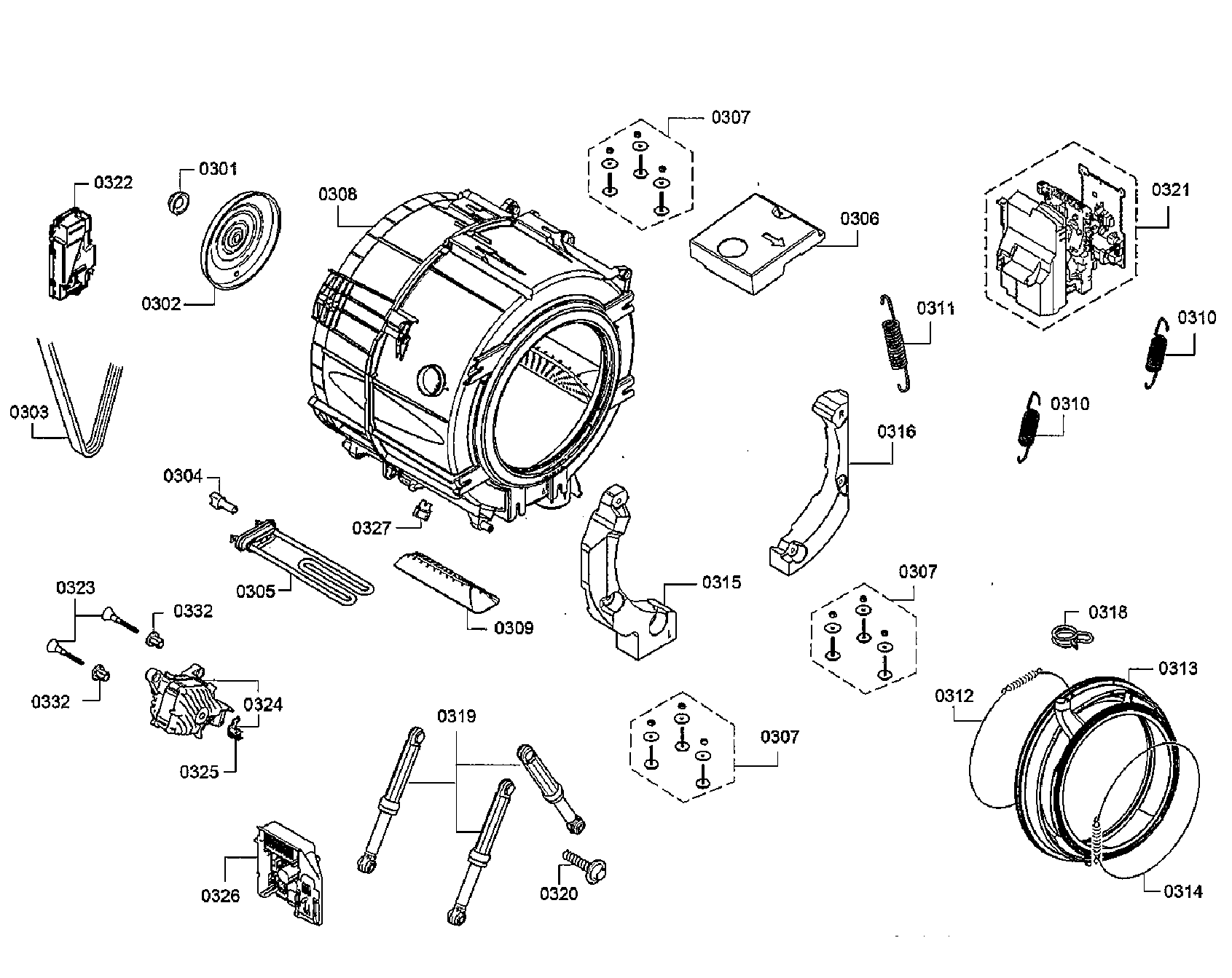

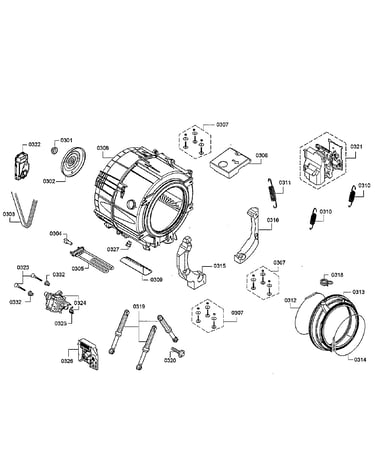

Tub diagram

Washer door boot

Part #00680769

Replaced by #00772653

?
Manufacturer substitution
This part replaces 00680769. Substitute parts can look different from the original.
$196.19 |
6% OFF Phone Price : $208.19
In Stock
Washer Door Boot Spring Clamp 00670743
#314

Tub diagram

Washer door boot spring clamp

Part #00670743

$16.63
In Stock
Hose 11006030
#414

Dispenser/pump diagram

Hose

Part #11006030

$46.47 |
11% OFF Phone Price : $52.47
In Stock
Display 00635431
#116

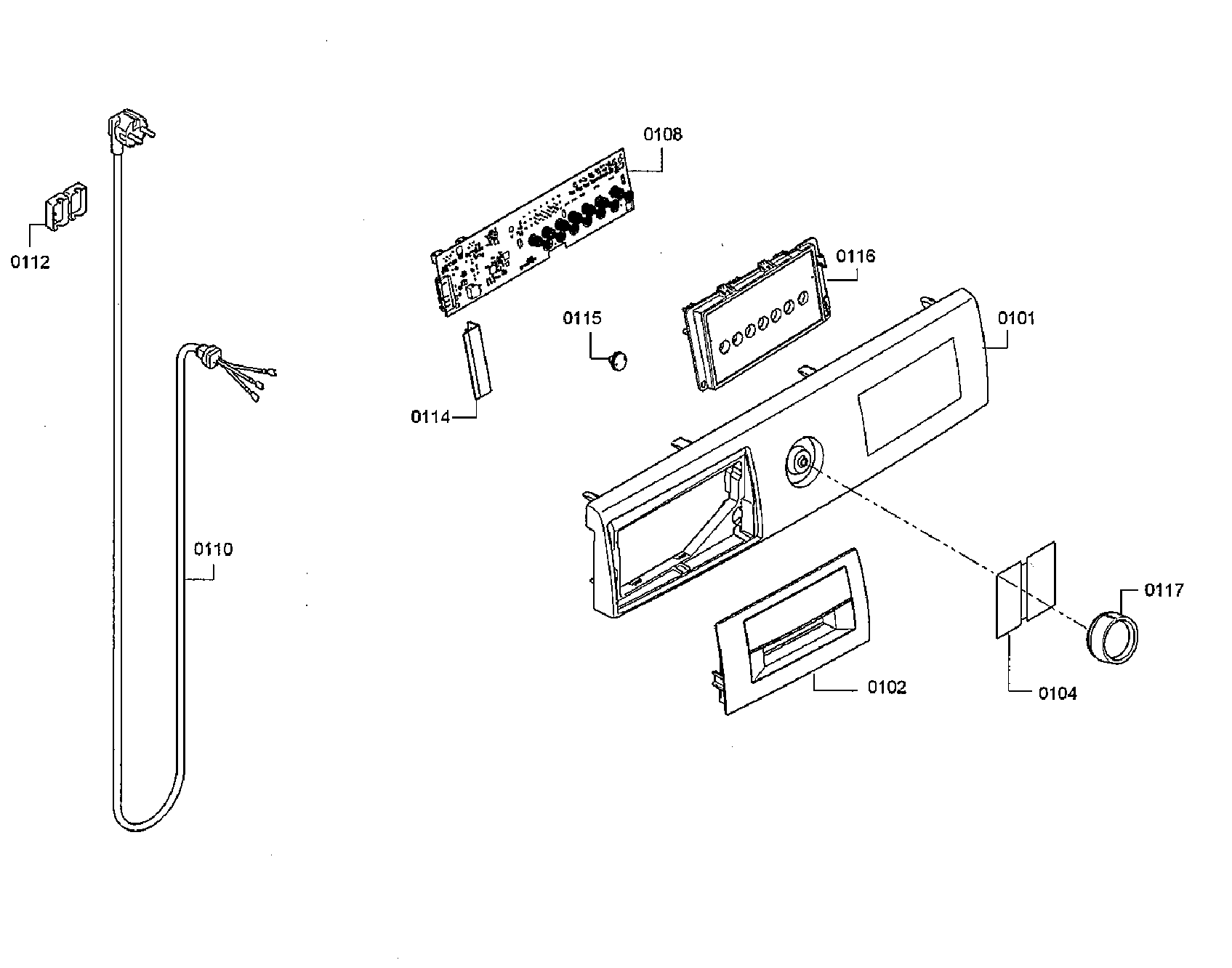

Control diagram

Display

Part #00635431

$46.11
In Stock
Washer Leveling Leg 00610643
#206

Cabinet diagram

Washer leveling leg

Part #00610643

This item is not returnable
$19.89
In Stock
Washer Door Assembly 00744610
#250

Cabinet diagram

Washer door assembly

Part #00744610

$309.82 |
$12.00 OFF Phone Price : $321.82
In Stock
Washer Door Boot Spring Clamp 00702576
#312

Tub diagram

Washer door boot spring clamp

Part #00702576

$7.00 |
13% OFF Phone Price : $8.00
In Stock
Pressure Sensor 00627460
#412

Dispenser/pump diagram

Pressure sensor

Part #00627460

$43.62
In Stock
