Model # MGDC300BW0 Official Maytag dryer

Here are the diagrams and repair parts for Official Maytag MGDC300BW0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

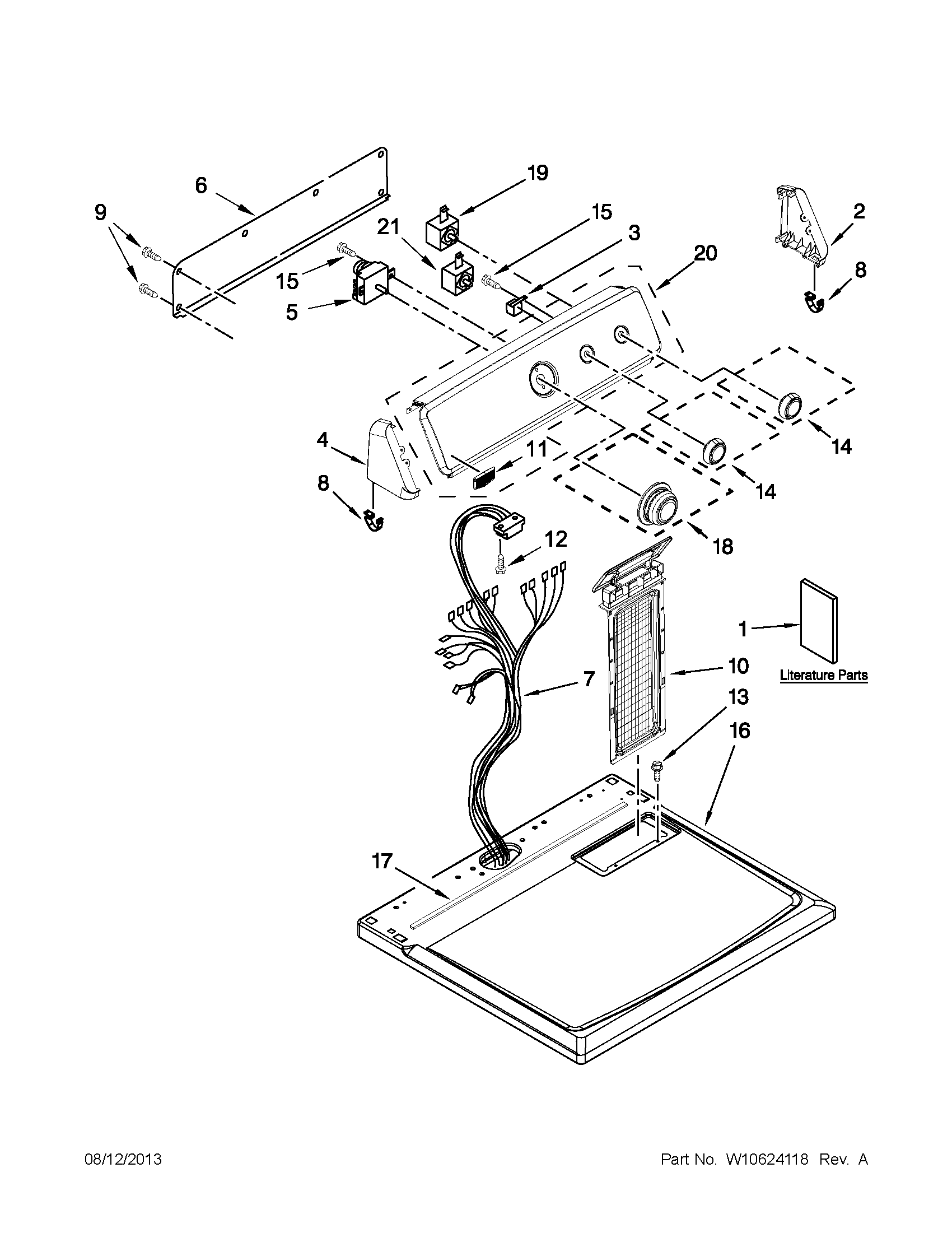

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Dryer Thermal Fuse 3392519
#7

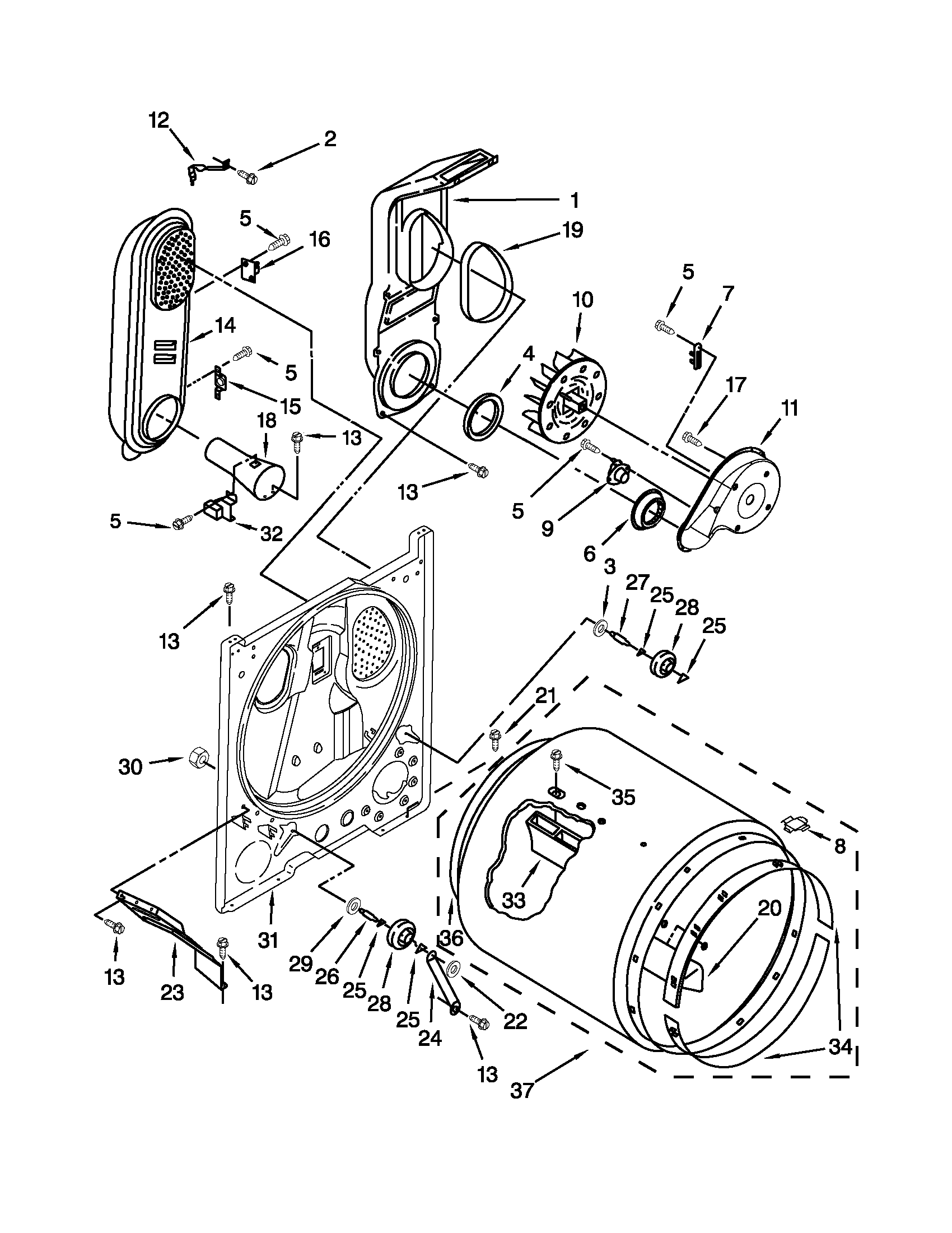

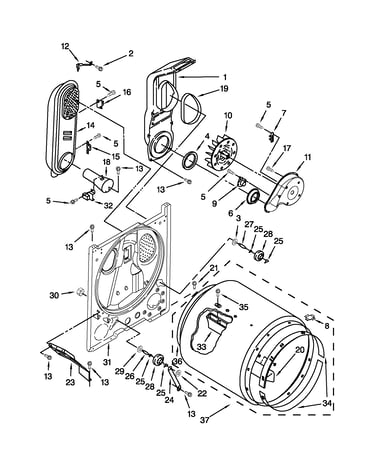

Bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$19.12 |
9% OFF Phone Price : $21.12
In Stock
Dryer Drum Support Roller W10314171
#28

Bulkhead parts diagram

Dryer drum support roller

Part #W10314171

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces W10314171. Substitute parts can look different from the original.
BEST SELLER
$16.24 |
11% OFF Phone Price : $18.24
In Stock
Dryer Valve Coil Kit 694540
#13

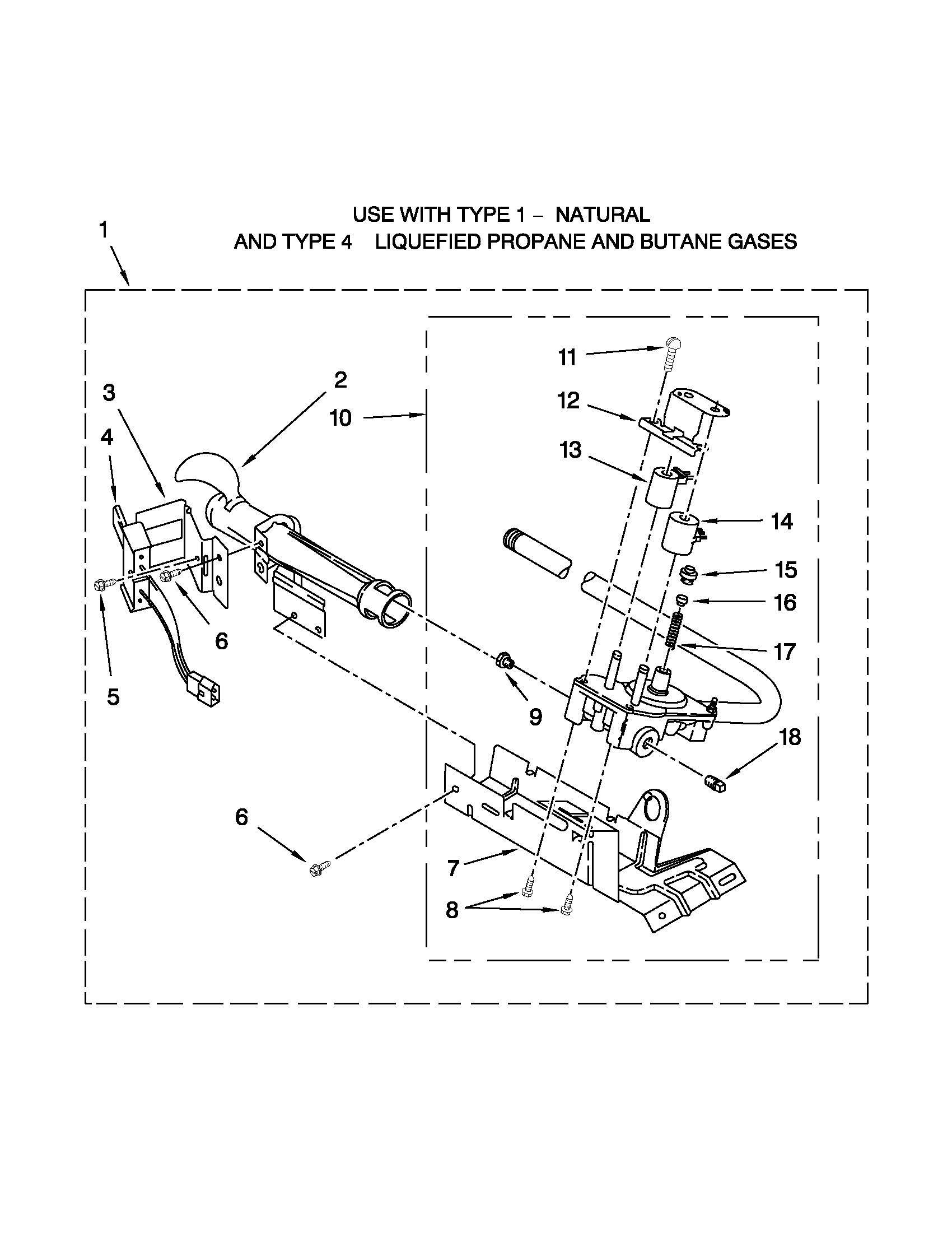

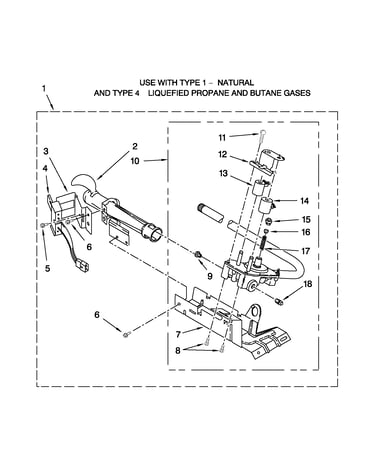

8318272 burner assembly parts diagram

Dryer valve coil kit

Part #694540

Replaced by #279834

?
Manufacturer substitution
This part replaces 694540. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Dryer Gas Valve Coil Kit 694539
#14

8318272 burner assembly parts diagram

Dryer gas valve coil kit

Part #694539

Replaced by #279834

?
Manufacturer substitution
This part replaces 694539. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Dryer Idler Pulley 691366
#26

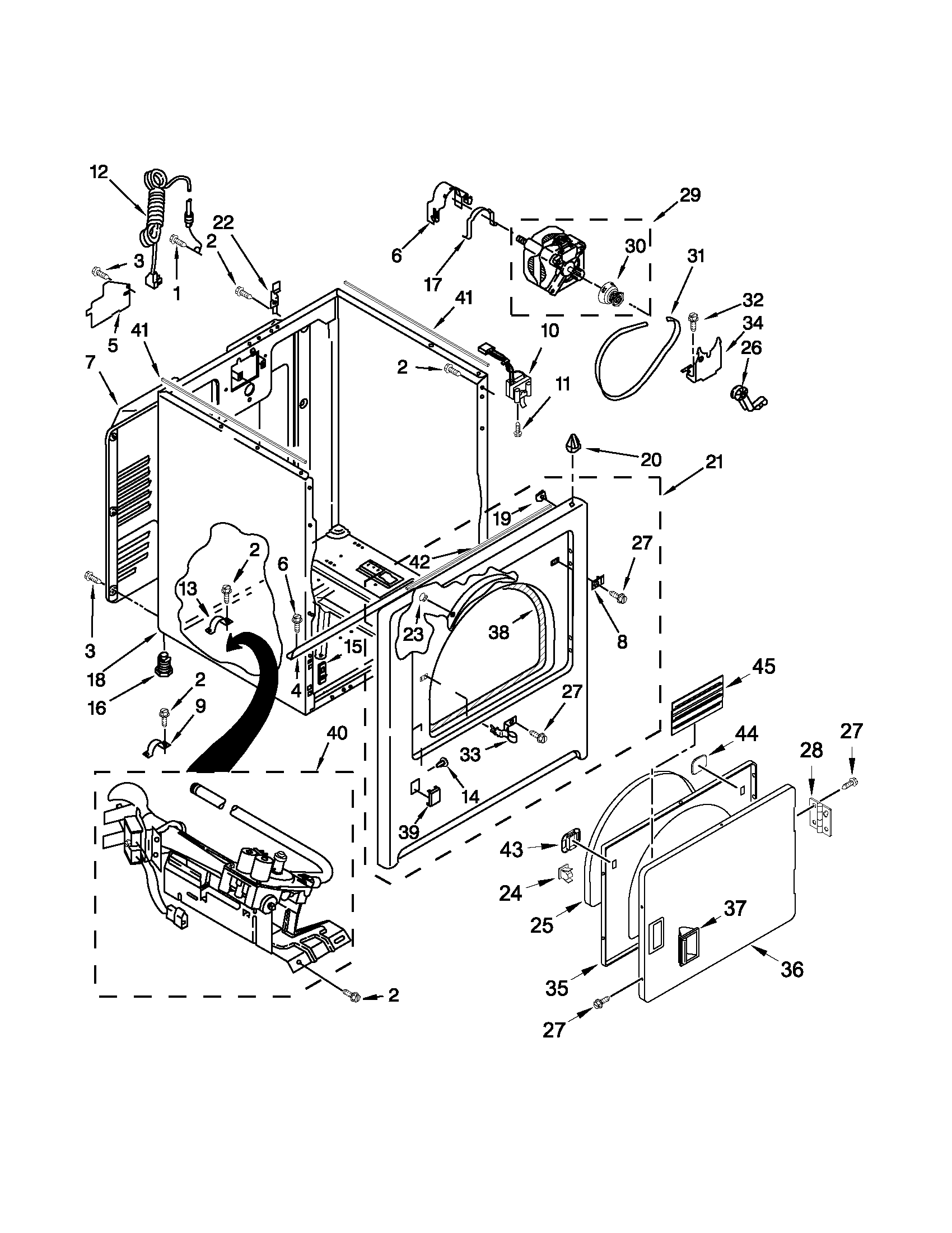

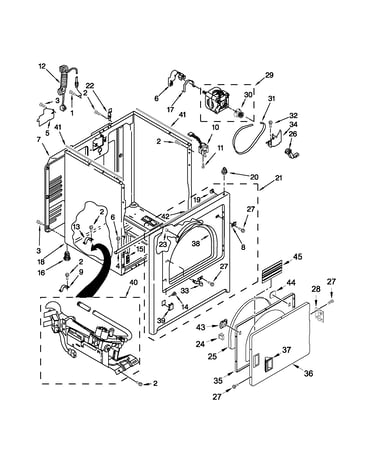

Cabinet parts diagram

Dryer idler pulley

Part #691366

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 691366. Substitute parts can look different from the original.
BEST SELLER
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Dryer Repair Kit 279948
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #279948

Replaced by #4392065

?
Manufacturer substitution
This part replaces 279948. Substitute parts can look different from the original.
BEST SELLER
$30.64 |
16% OFF Phone Price : $36.64
In Stock
Drive Motor W10396032
#29

Cabinet parts diagram

Drive motor

Part #W10396032

Replaced by #279827

?
Manufacturer substitution
This part replaces W10396032. Substitute parts can look different from the original.
BEST SELLER
$96.62 |
11% OFF Phone Price : $108.62
In Stock
Dryer Operating Thermostat 3387134
#9

Bulkhead parts diagram

Dryer operating thermostat

Part #3387134

Replaced by #WP3387134

?
Manufacturer substitution
This part replaces 3387134. Substitute parts can look different from the original.
BEST SELLER
$18.96 |
10% OFF Phone Price : $20.96
In Stock
Dryer Blower Wheel 694089
#10

Bulkhead parts diagram

Dryer blower wheel

Part #694089

Replaced by #WP694089

?
Manufacturer substitution
This part replaces 694089. Substitute parts can look different from the original.
BEST SELLER
$27.43 |
18% OFF Phone Price : $33.43
In Stock
Igniter 686590
#4

8318272 burner assembly parts diagram

Igniter

Part #686590

Replaced by #279311

?
Manufacturer substitution
This part replaces 686590. Substitute parts can look different from the original.
BEST SELLER
$22.08 |
21% OFF Phone Price : $28.08
In Stock
