GE
Upright Freezer

Model # FUF20SUARWW Official GE freezer - a series

Here are the diagrams and repair parts for Official GE FUF20SUARWW freezer - a series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Freezer Door Gasket WR24X10010
#8

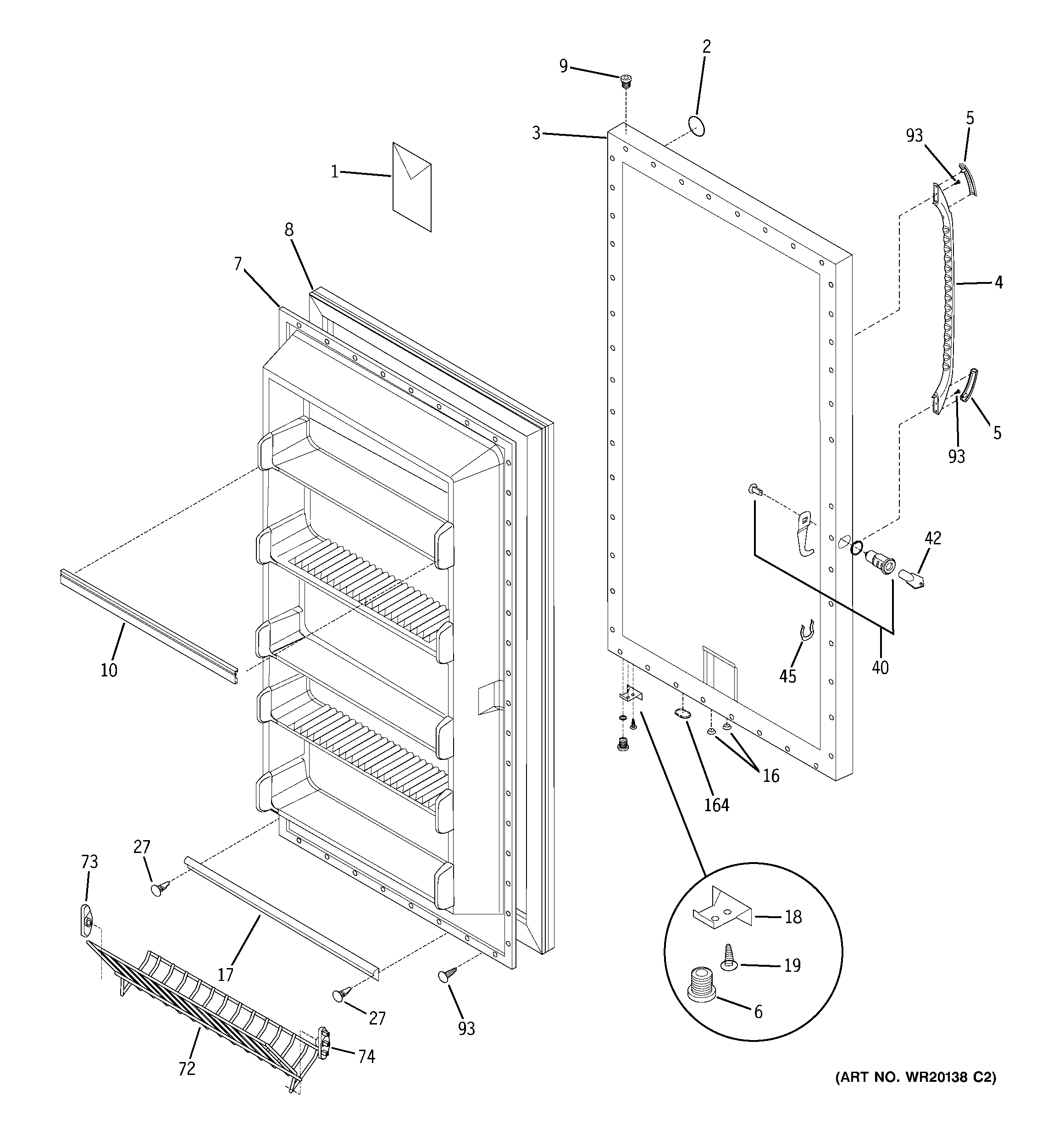

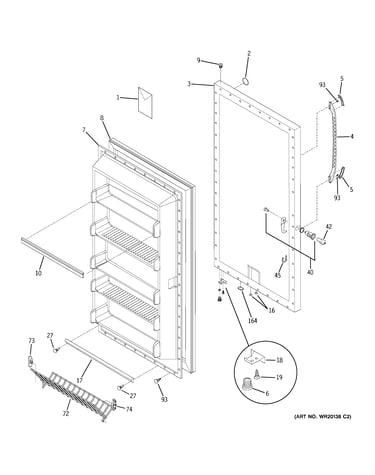

Freezer door diagram

Freezer door gasket

Part #WR24X10010

$186.70 |
6% OFF Phone Price : $198.70
In Stock
Freezer Temperature Control Thermostat WR09X10061
#43

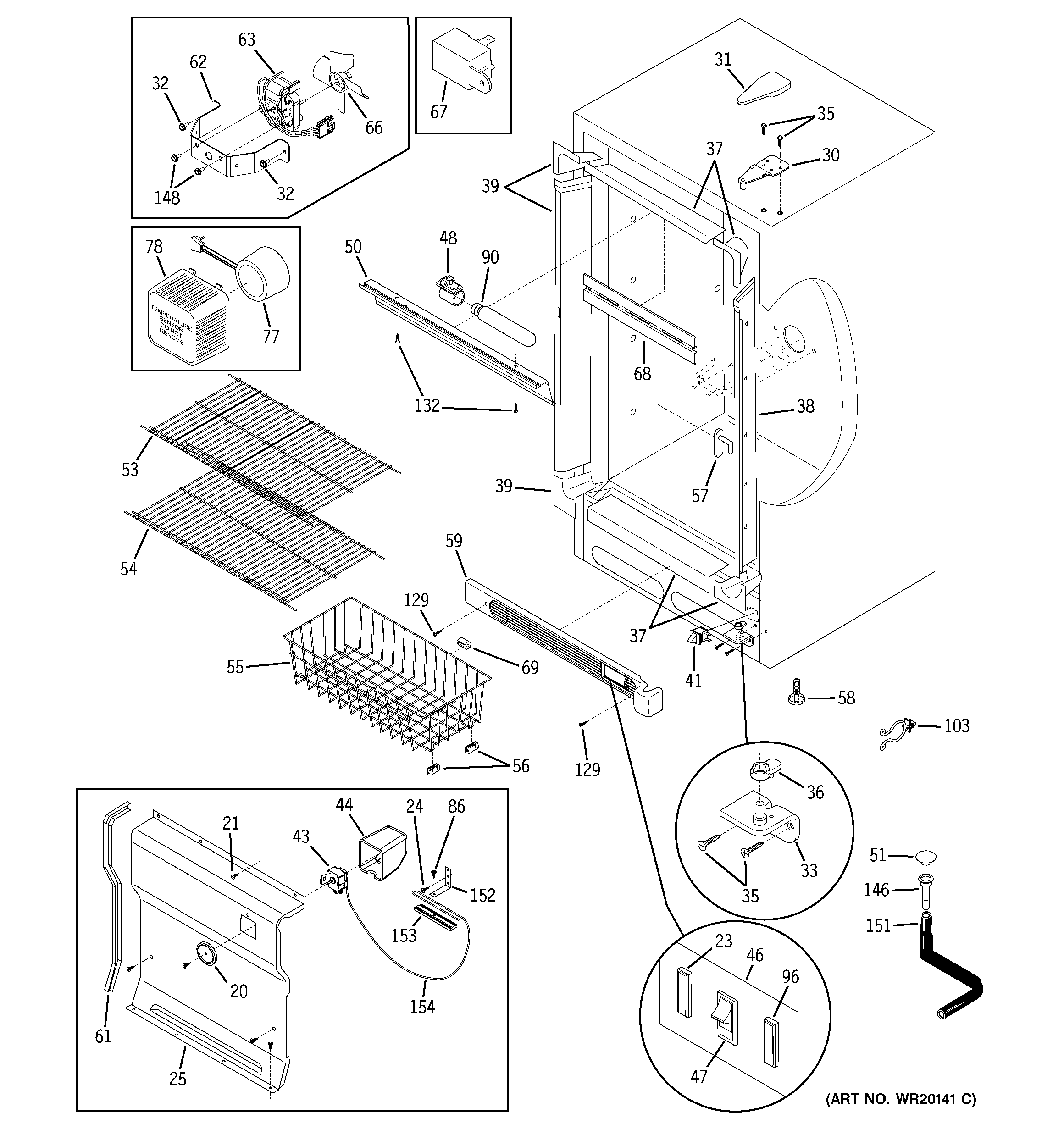

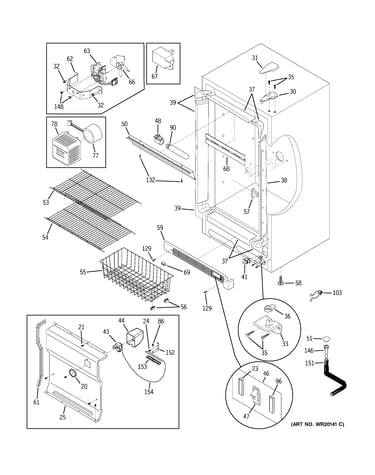

Cabinet diagram

Freezer temperature control thermostat

Part #WR09X10061

Replaced by #WR09X29511

?
Manufacturer substitution
This part replaces WR09X10061. Substitute parts can look different from the original.
$118.50 |
9% OFF Phone Price : $130.50
In Stock
Freezer Door Switch WR23X10303
#41

Cabinet diagram

Freezer door switch

Part #WR23X10303

$64.46 |
9% OFF Phone Price : $70.46
In Stock
Glide Basket WR02X11444
#56

Cabinet diagram

Glide basket

Part #WR02X11444

$81.57 |
7% OFF Phone Price : $87.57
In Stock
Temperature Complete Knob WR02X10860
#20

Cabinet diagram

Temperature complete knob

Part #WR02X10860

$38.89 |
13% OFF Phone Price : $44.89
In Stock
Condenser WR84X5007
#100

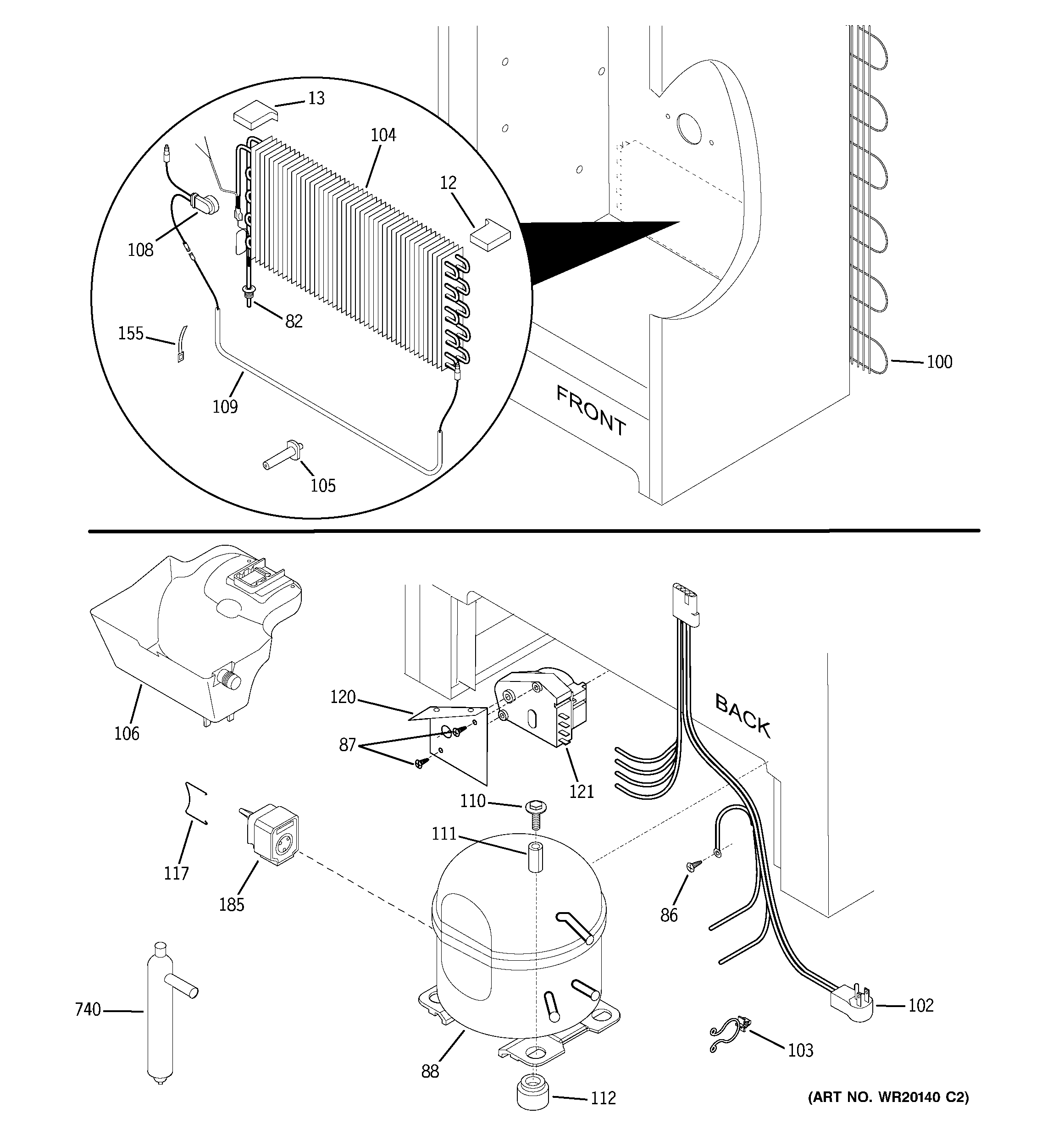

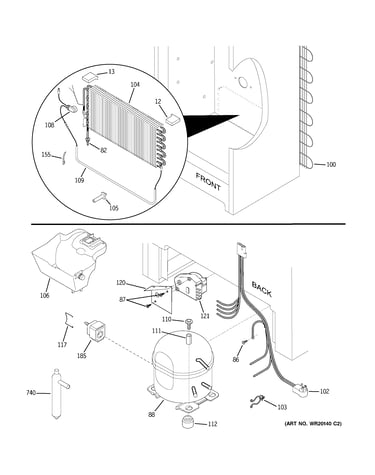

Unit parts diagram

Condenser

Part #WR84X5007

$279.53
In Stock
Strap-evap/h WR02X11458
#155

Unit parts diagram

Strap-evap/h

Part #WR02X11458

$33.20 |
15% OFF Phone Price : $39.20
In Stock
Inner Panel WR77X10060
#7

Freezer door diagram

Inner panel

Part #WR77X10060

This item is not returnable
$152.49 |
24% OFF Was : $199.39
In Stock
Clamp Capillary Tube WR02X11441
#154

Cabinet diagram

Clamp capillary tube

Part #WR02X11441

$8.11
In Stock
Lock WR05X10029
#40

Freezer door diagram

Lock

Part #WR05X10029

Replaced by #WR05X10038

?
Manufacturer substitution
This part replaces WR05X10029. Substitute parts can look different from the original.
$36.10 |
14% OFF Phone Price : $42.10
In Stock
