Model # HT500 TYPE 2 Official Black & Decker hedge trimmer

Here are the diagrams and repair parts for Official Black & Decker HT500-TYPE-2 hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Nameplate 149631-09
#42B

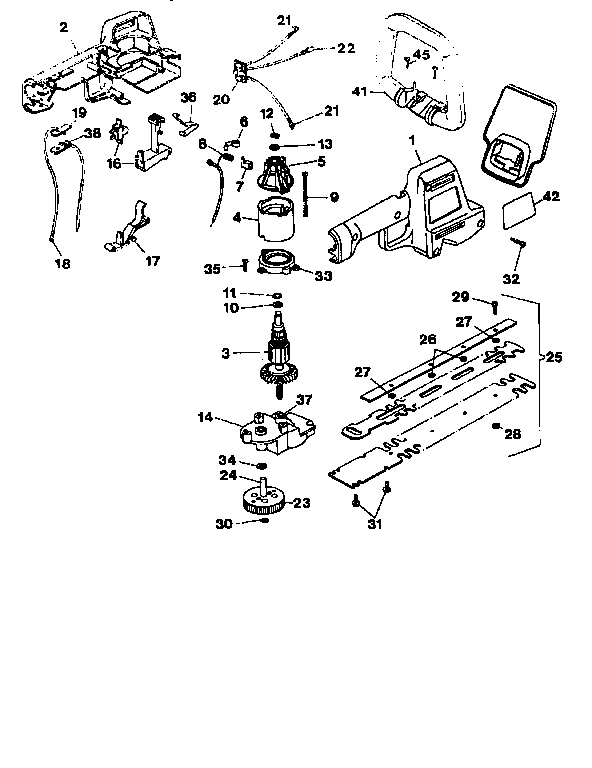

Replacement parts diagram

Nameplate

Part #149631-09

The manufacturer no longer makes this part, and there's no substitute part

Holder 148877-00
#7

Replacement parts diagram

Holder

Part #148877-00

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 157315-00
#11

Replacement parts diagram

Spring washer

Part #157315-00

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Wire Terminal 87486-00
#19

Replacement parts diagram

Line trimmer wire terminal

Part #87486-00

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 330019-04
#32

Replacement parts diagram

Lawn & garden equipment screw

Part #330019-04

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 330019-09
#9

Replacement parts diagram

Lawn & garden equipment screw

Part #330019-09

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 149631-08
#42A

Replacement parts diagram

Nameplate

Part #149631-08

The manufacturer no longer makes this part, and there's no substitute part

Hedge Trimmer Polarized Spade 151625-00
#38

Replacement parts diagram

Hedge trimmer polarized spade

Part #151625-00

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 148991-01
#14

Replacement parts diagram

Gear case

Part #148991-01

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 149631-07
#42

Replacement parts diagram

Nameplate

Part #149631-07

The manufacturer no longer makes this part, and there's no substitute part
