Model # CPLE24-1 Official Goodman split-system heat pump
Here are the diagrams and repair parts for Official Goodman CPLE24-1 split-system heat pump, as well as links to manuals and error code tables, if available.
Installation guide
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
CPLE24-1 Split-System Heat Pump
#111

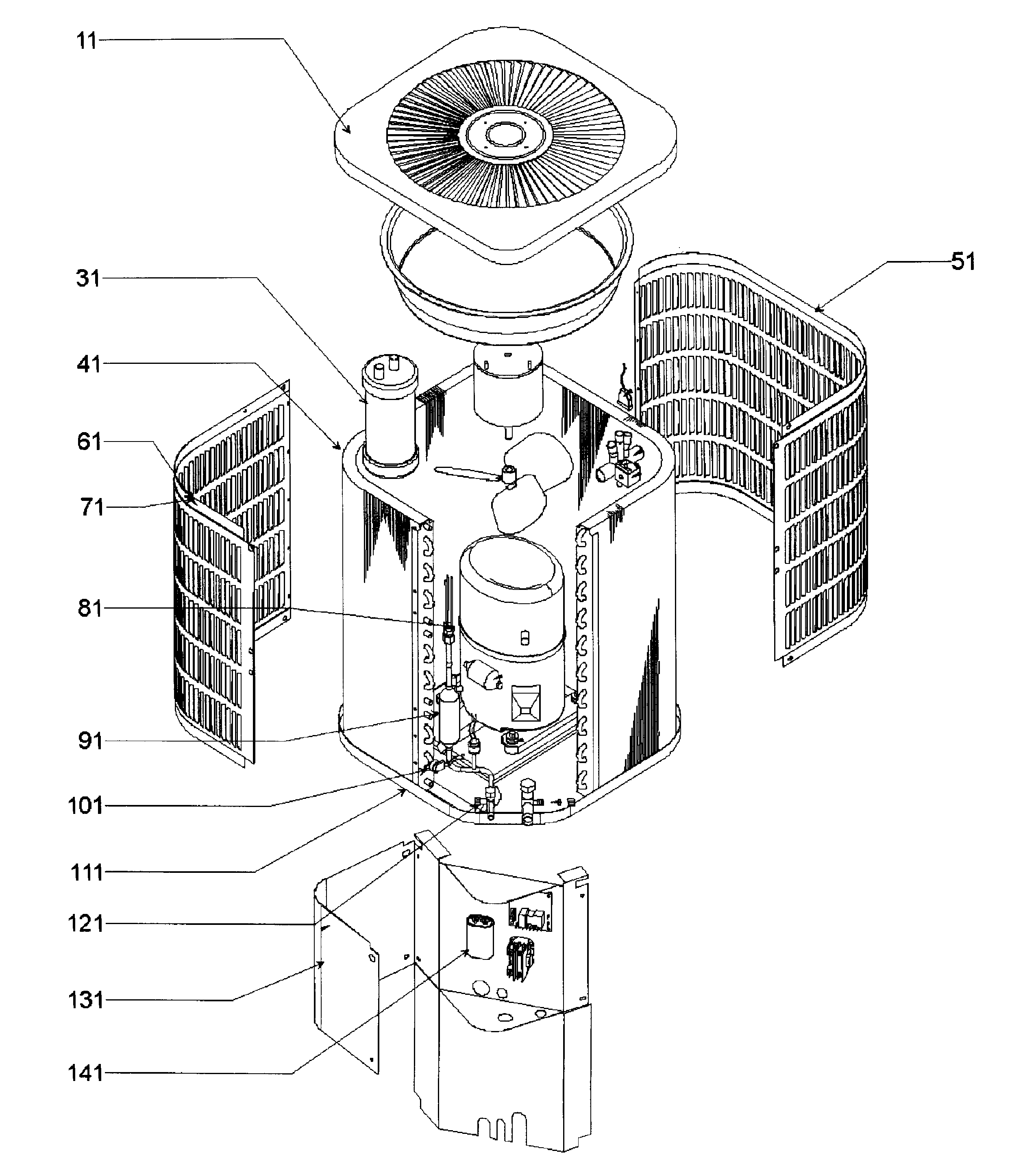

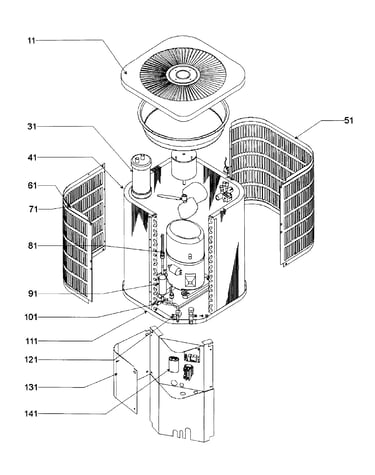

Main asy 1 diagram
Goodman bottom pan assy (2 pc louvered
Part #1787211P
$68.62
In Stock
#161

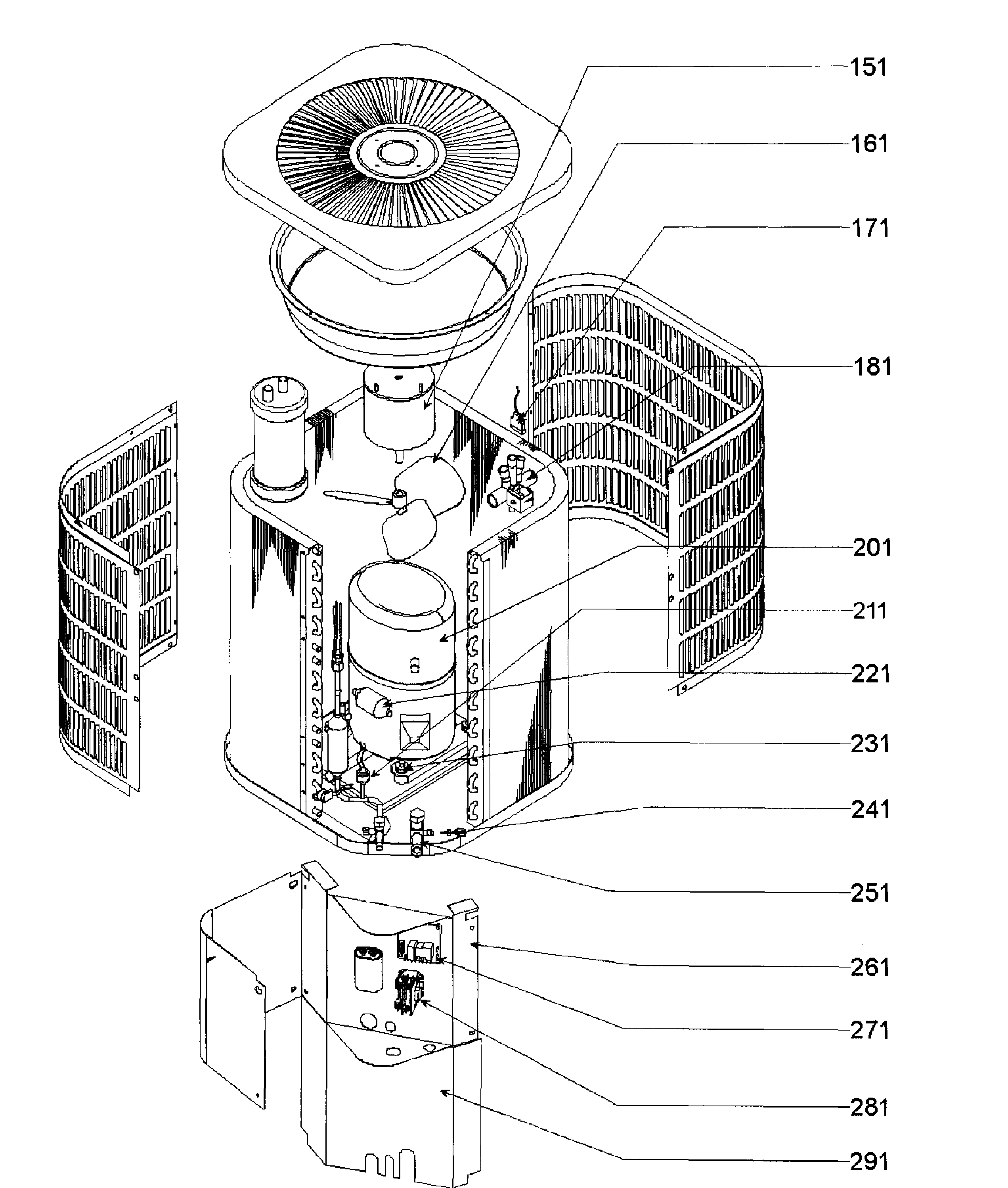

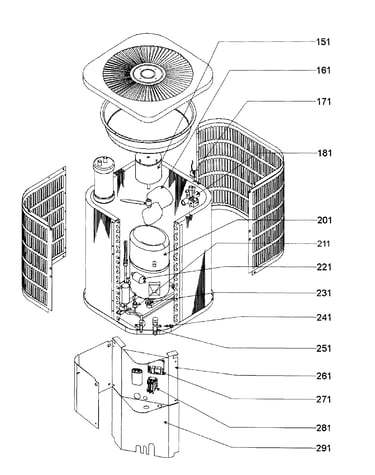

Main asy 2 diagram
Central air conditioner condenser fan blade
Part #B1086756S
$235.06
In Stock
#231
Main asy 2 diagram
Grommet
Part #B1339530
This item is not returnable
$2.40
In Stock
#221
Main asy 2 diagram
Muffler
Part #B1219300
$32.27
In Stock
#241
Main asy 2 diagram
Core,valve
Part #B1787000
$8.29
In Stock
#61
Main asy 1 diagram
Goodman louver panel return side
Part #1259558P
$51.07
In Stock
#151
Main asy 2 diagram
Central air conditioner condenser fan motor
Part #B13400251S
$254.24 |
5% OFF Phone Price : $266.24
In Stock
#141
Main asy 1 diagram
Overload
Part #CAP050300370RSS
Replaced by #CAP050300440RSP
?
Manufacturer substitution
This part replaces CAP050300370RSS. Substitute parts can look different from the original.
This item is not returnable
$34.08 |
15% OFF Phone Price : $40.08
In Stock
#181
Main asy 2 diagram
Valve
Part #B1227314S
Replaced by #0151R00067S
?
Manufacturer substitution
This part replaces B1227314S. Substitute parts can look different from the original.
$140.20 |
8% OFF Phone Price : $152.20
In Stock
#211
Main asy 2 diagram
Sw,low-pre
Part #B1360719
Replaced by #0130R00058
?
Manufacturer substitution
This part replaces B1360719. Substitute parts can look different from the original.
$30.73
In Stock
