Model # MER5555RCW1 Official Maytag 30" electric freestanding range
Here are the diagrams and repair parts for Official Maytag MER5555RCW1 30" electric freestanding range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

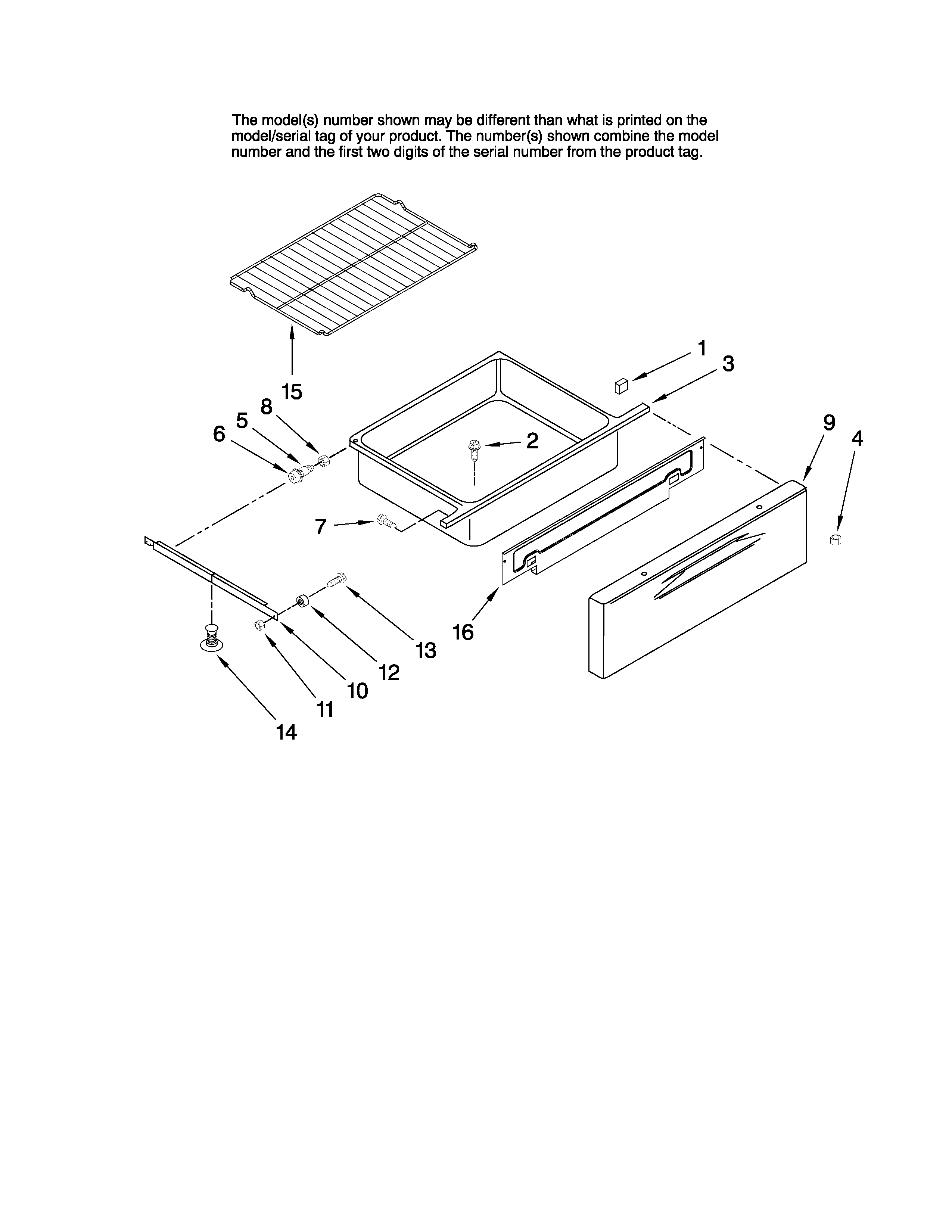

SELECT DIAGRAM
Browse Parts forMER5555RCW1 Ranges
- #NI
Optional parts (not included) diagram
PolishPart #3191048
Replaced by #W10355051
?Manufacturer substitutionThis part replaces 3191048. Substitute parts can look different from the original.This item is not returnableGet free shipping with Automatic Reorder
$10.88 |16% OFF Phone Price : $12.88In Stock - #26

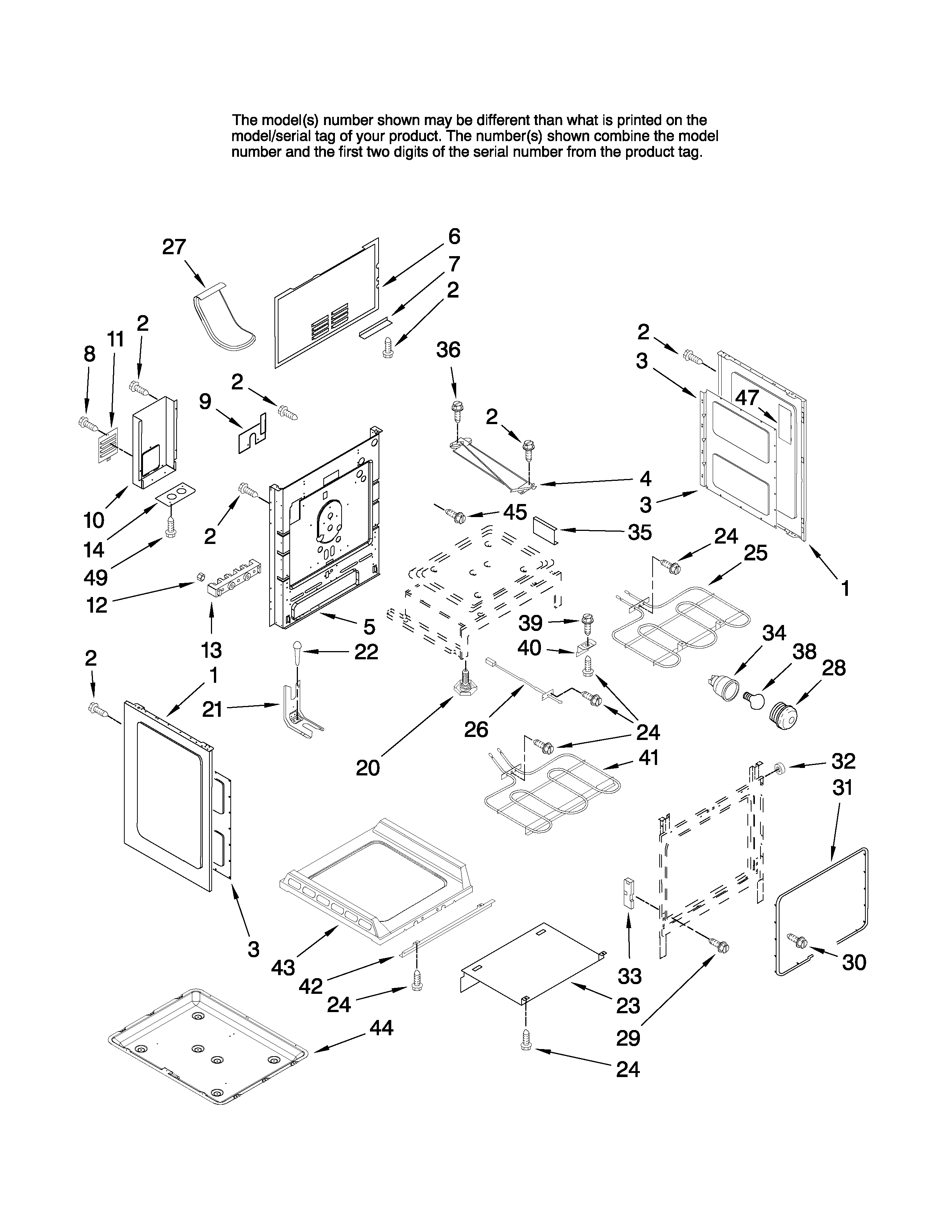

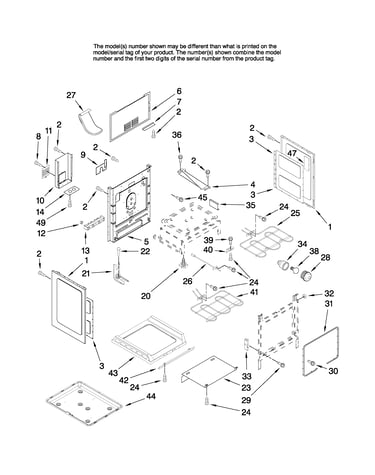

Chassis parts diagram
SensorPart #7430P042-60
Replaced by #12001656
?Manufacturer substitutionThis part replaces 7430P042-60. Substitute parts can look different from the original.$31.38 |16% OFF Phone Price : $37.38In Stock - #4A

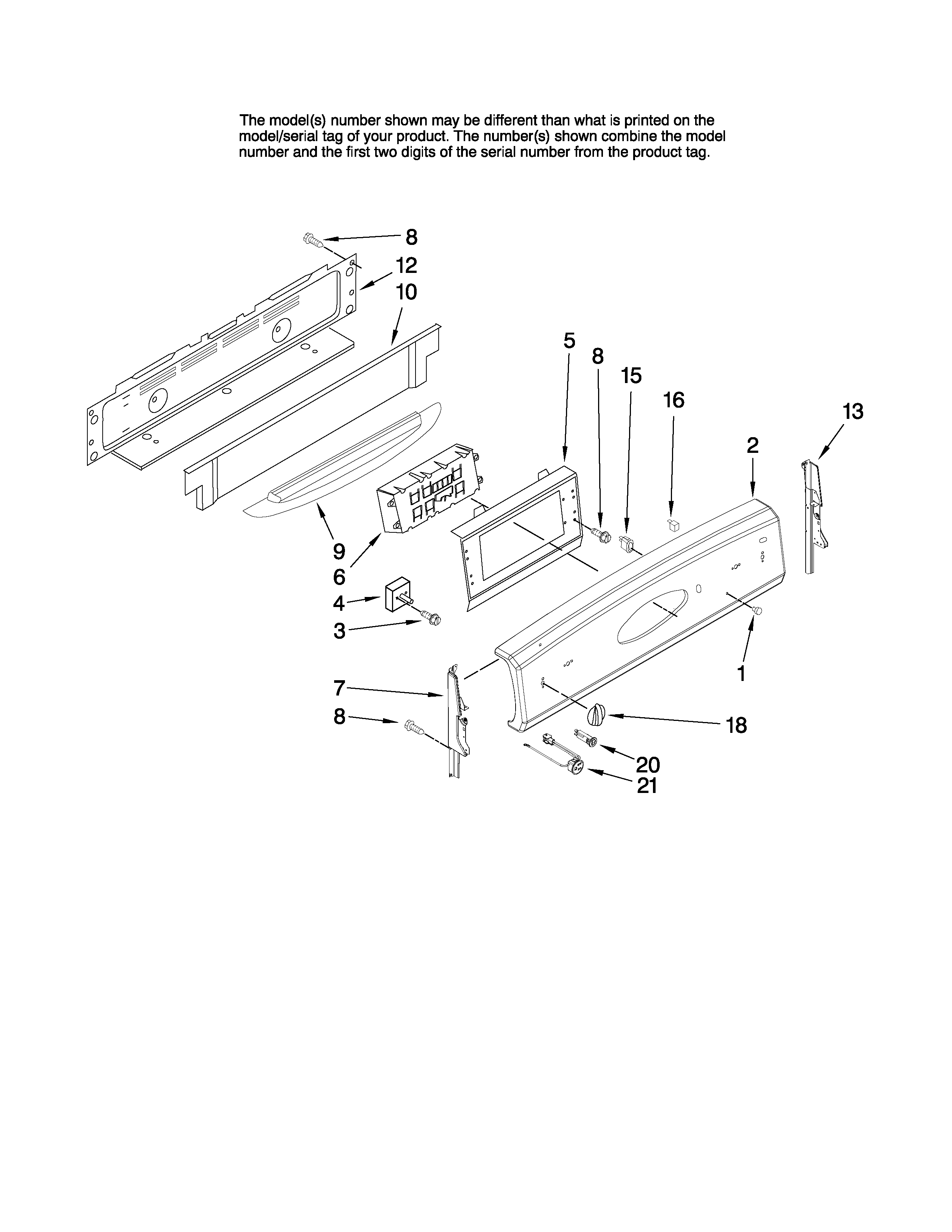

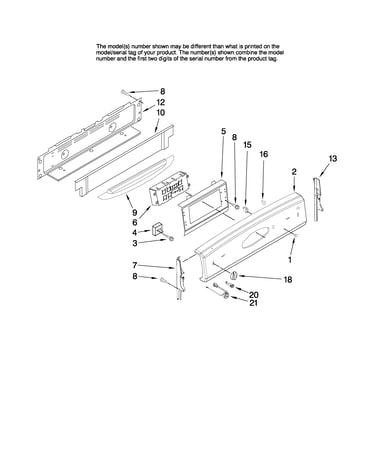

Control panel parts diagram
SwitchPart #7403P373-60
Replaced by #WP7403P238-60
?Manufacturer substitutionThis part replaces 7403P373-60. Substitute parts can look different from the original.$47.87 |11% OFF Phone Price : $53.87In Stock - #NI
Optional parts (not included) diagram
Spray wPart #350930
Replaced by #350930
?Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnable$15.69 |11% OFF Phone Price : $17.69In Stock - #NI
Optional parts (not included) diagram
Appliance touch-up paintPart #72017
Replaced by #72017
?Manufacturer substitutionThis part replaces 72017. Substitute parts can look different from the original.$8.29 |11% OFF Phone Price : $9.29In Stock - #10

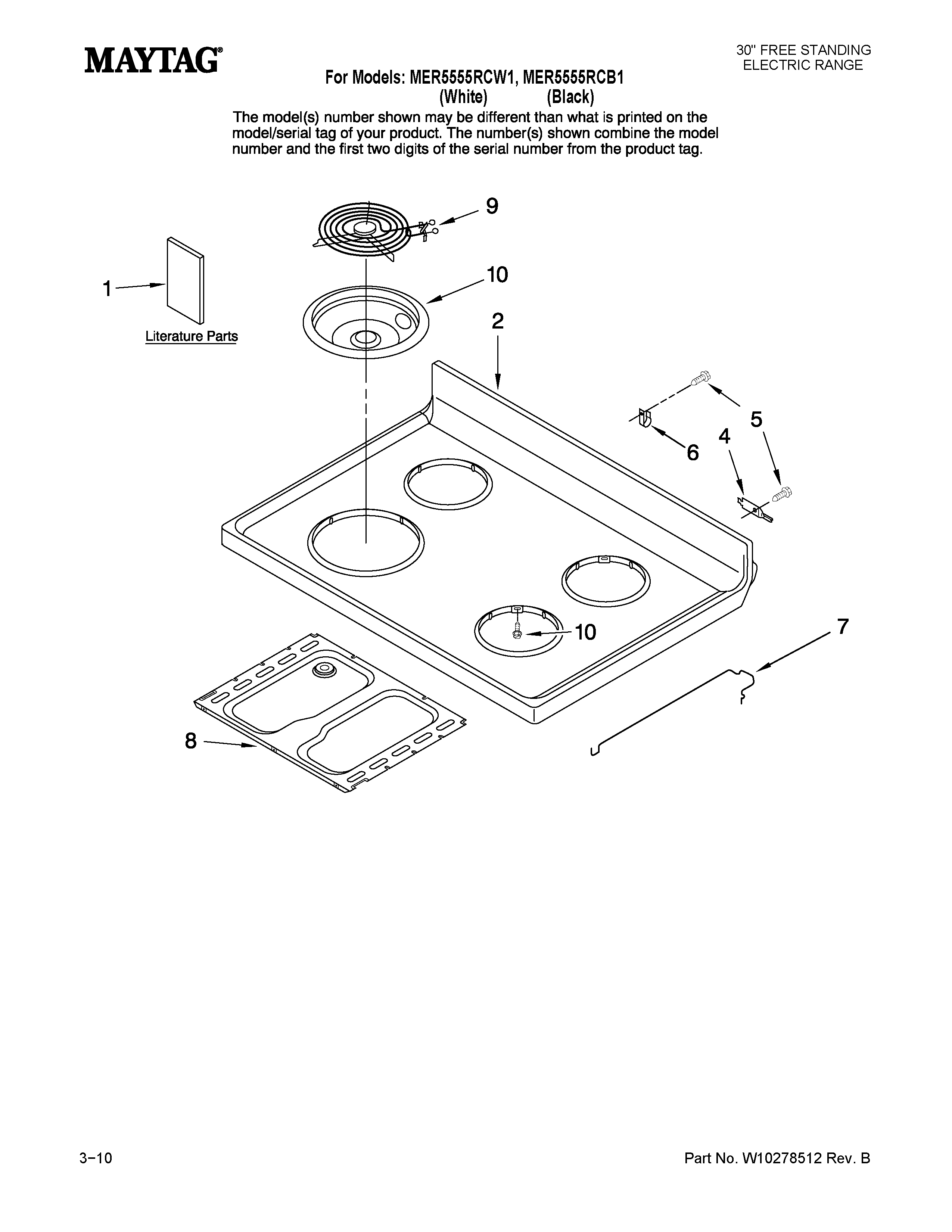

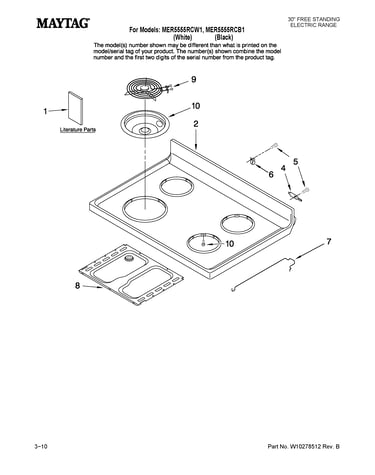

Cooktop parts diagram
Range drip panPart #W10196406
Replaced by #WPW10196406
?Manufacturer substitutionThis part replaces W10196406. Substitute parts can look different from the original.This item is not returnable$7.46 |12% OFF Phone Price : $8.46In Stock - #3
Control panel parts diagram
Range screwPart #3400882
Replaced by #WP3400882
?Manufacturer substitutionThis part replaces 3400882. Substitute parts can look different from the original.This item is not returnable$4.17 |19% OFF Phone Price : $5.17In Stock - #31
Chassis parts diagram
Range oven door gasketPart #W10162385
Replaced by #W11562931
?Manufacturer substitutionThis part replaces W10162385. Substitute parts can look different from the original.$111.21In Stock - #41
Chassis parts diagram
Bake elementPart #7406P451-60
Replaced by #WPW10276482
?Manufacturer substitutionThis part replaces 7406P451-60. Substitute parts can look different from the original.$113.24 |10% OFF Phone Price : $125.24In Stock - #6

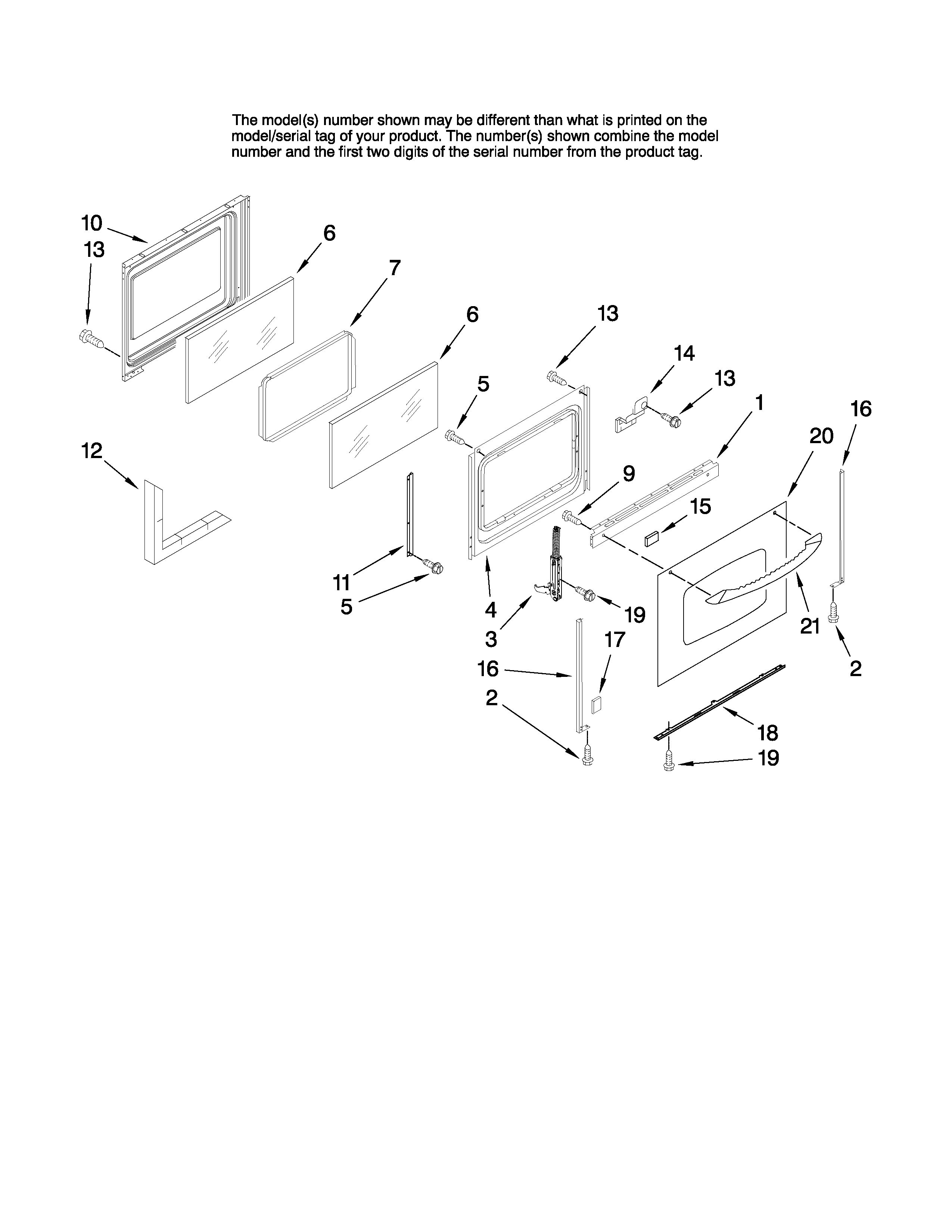

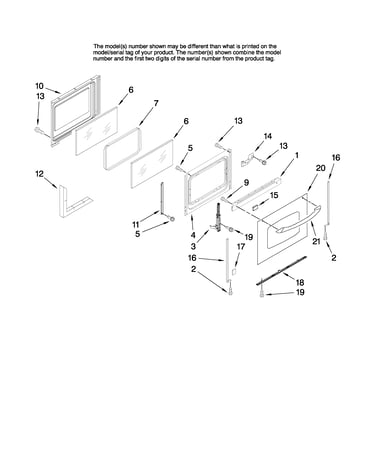

Door parts diagram
Door glassPart #7902P436-60
Replaced by #74003645
?Manufacturer substitutionThis part replaces 7902P436-60. Substitute parts can look different from the original.$102.92 |10% OFF Phone Price : $114.92In Stock
