Frigidaire
Countertop Microwave

Model # FMS084T1B1 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire FMS084T1B1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Button 5303305354
#2

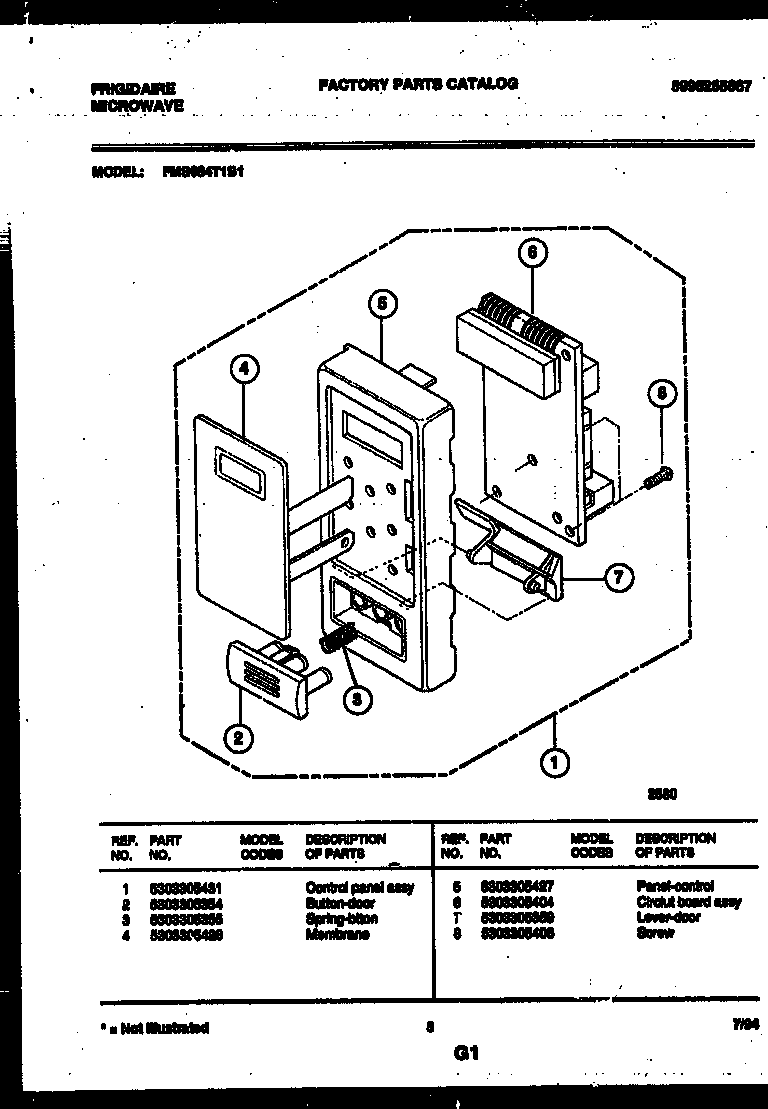

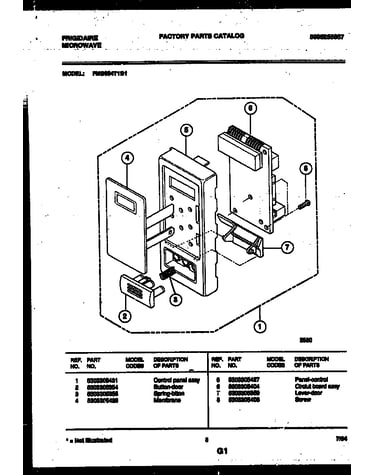

Control panel diagram

Button

Part #5303305354

This item is not returnable
In Stock
Control Panel 5303305427
#5

Control panel diagram

Control panel

Part #5303305427

In Stock
Cover 5303305398
#4

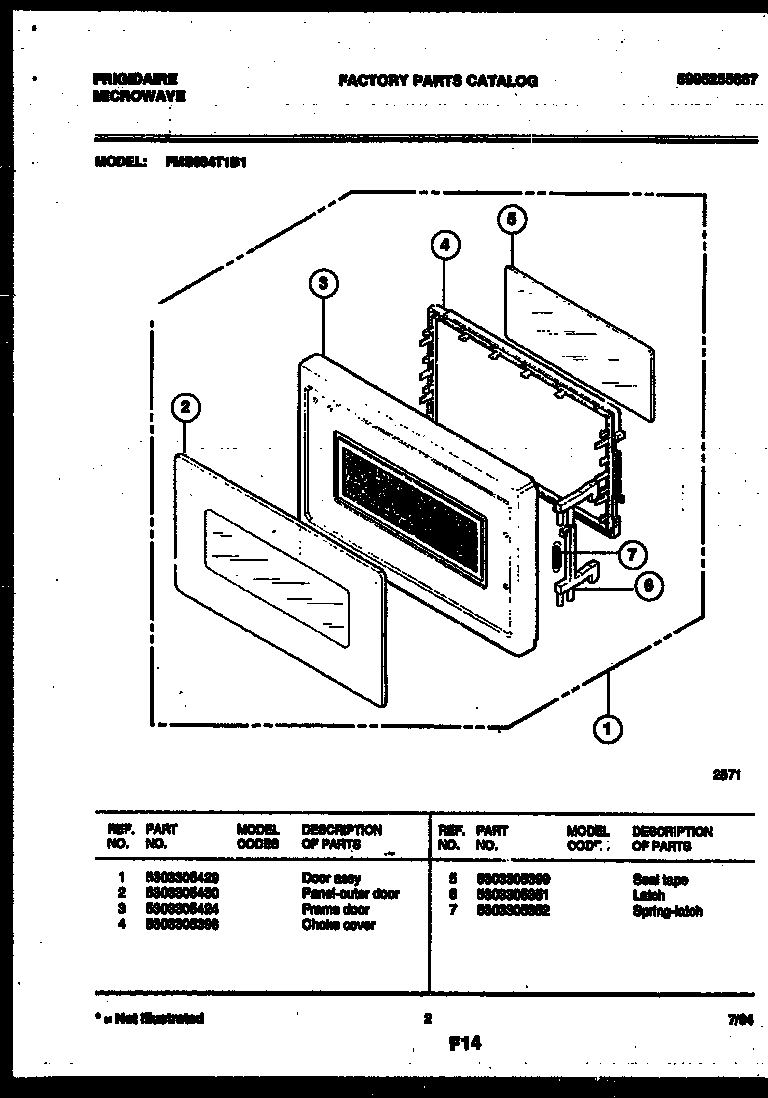

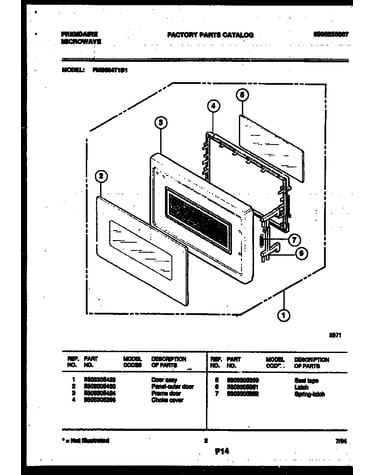

Door parts diagram

Cover

Part #5303305398

In Stock
Door Latch 5303305351
#6

Door parts diagram

Door latch

Part #5303305351

This item is not returnable
In Stock
Spring 5303305355
#3

Control panel diagram

Spring

Part #5303305355

This item is not returnable
In Stock
Spring 5303305352
#7

Door parts diagram

Spring

Part #5303305352

This item is not returnable
In Stock
Cabinet Foot 5303305368
#9

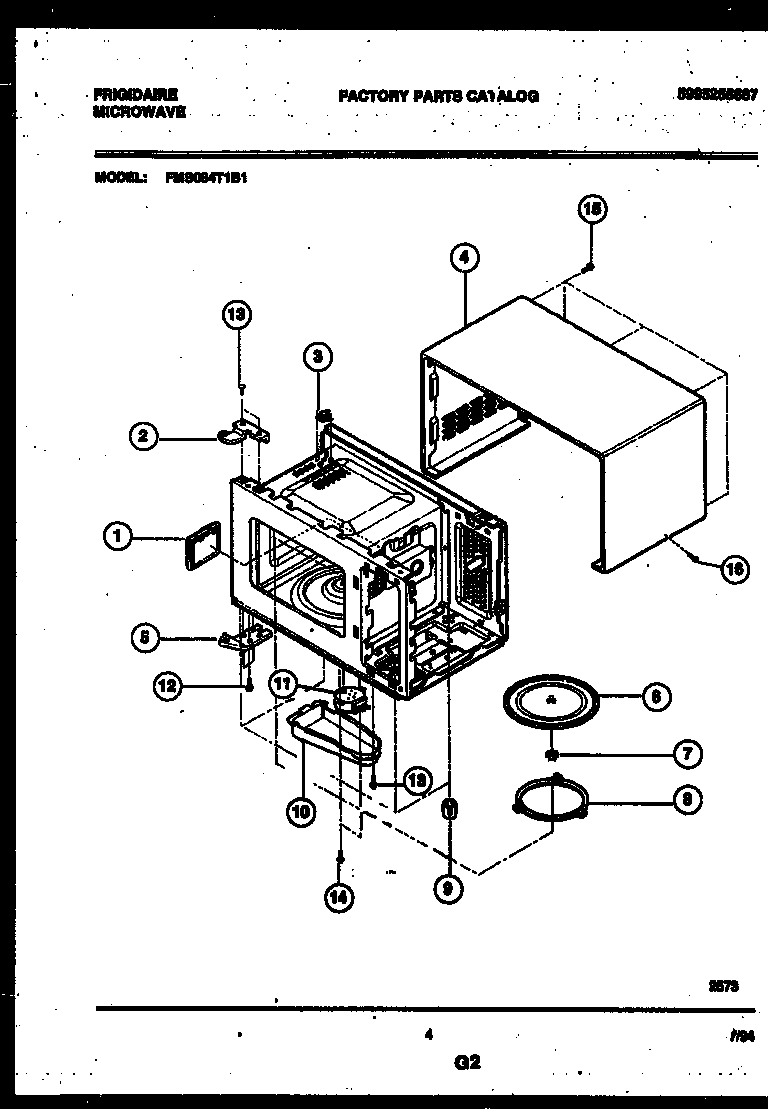

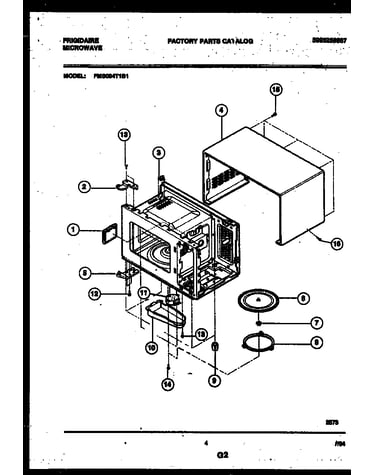

Wrapper and body parts diagram

Cabinet foot

Part #5303305368

In Stock
White-westinghouse Cap 5303269580
#19

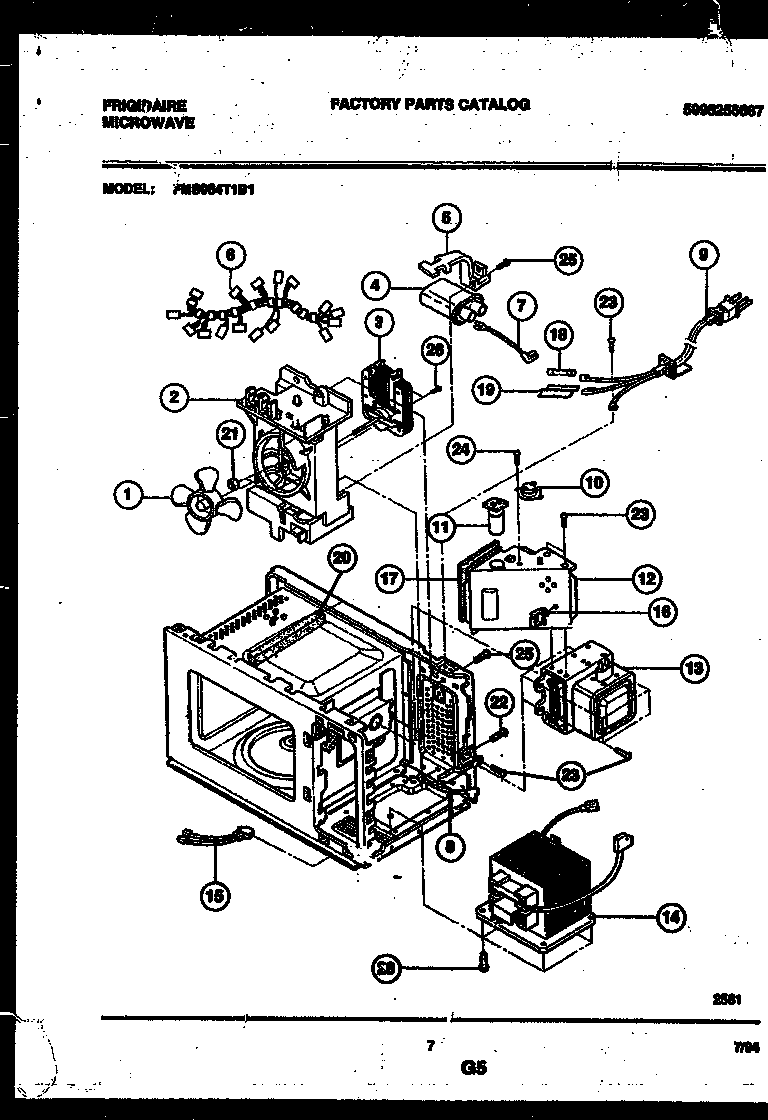

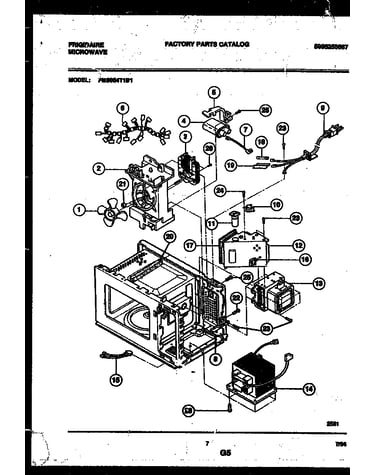

Power control diagram

White-westinghouse cap

Part #5303269580

This item is not returnable
In Stock
Cable 5303305383
#8

Power control diagram

Cable

Part #5303305383

In Stock
Latch 5303305375
#1

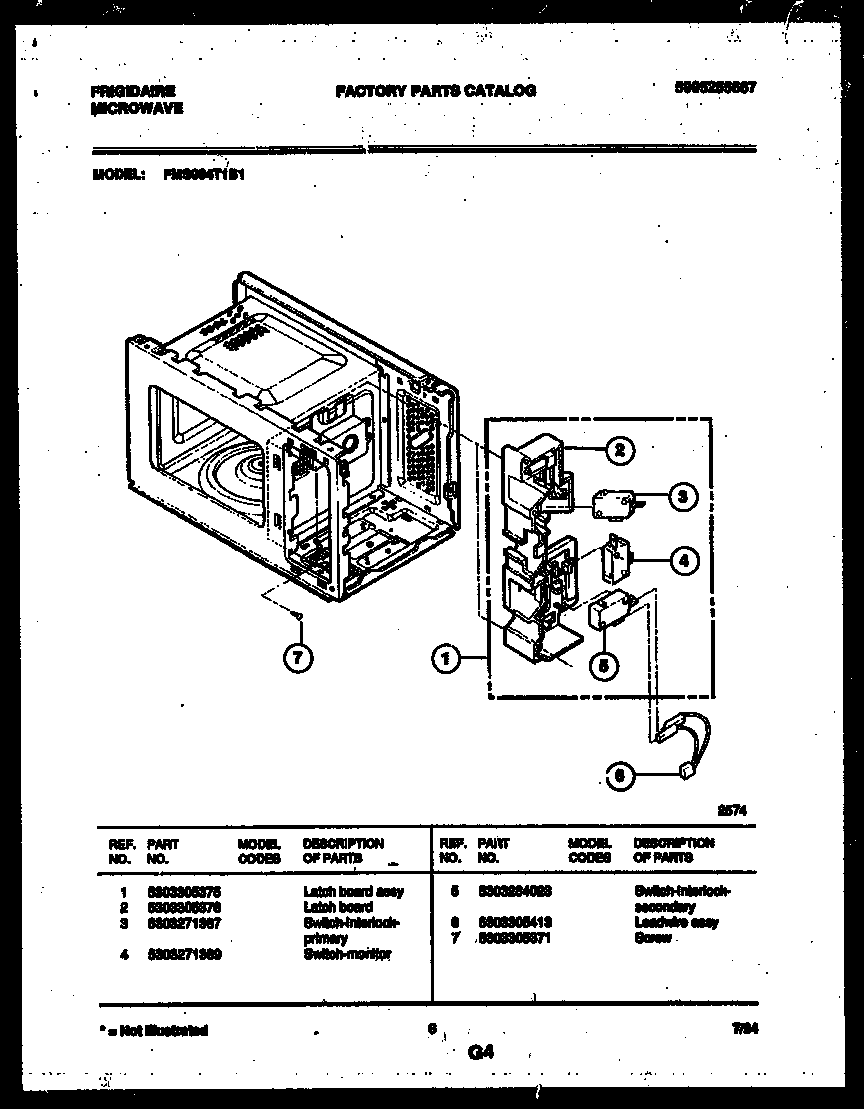

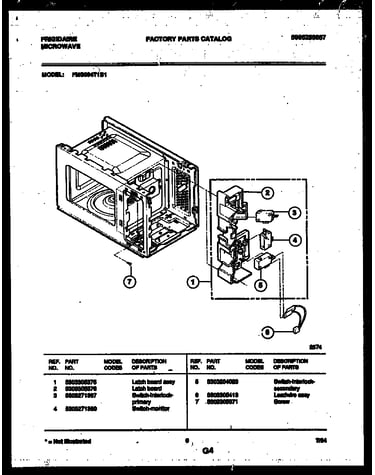

Latch board and leadwire assembly diagram

Latch

Part #5303305375

In Stock
