Model # GFDR275EH1MC Official GE electric dryer
Here are the diagrams and repair parts for Official GE GFDR275EH1MC electric dryer, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

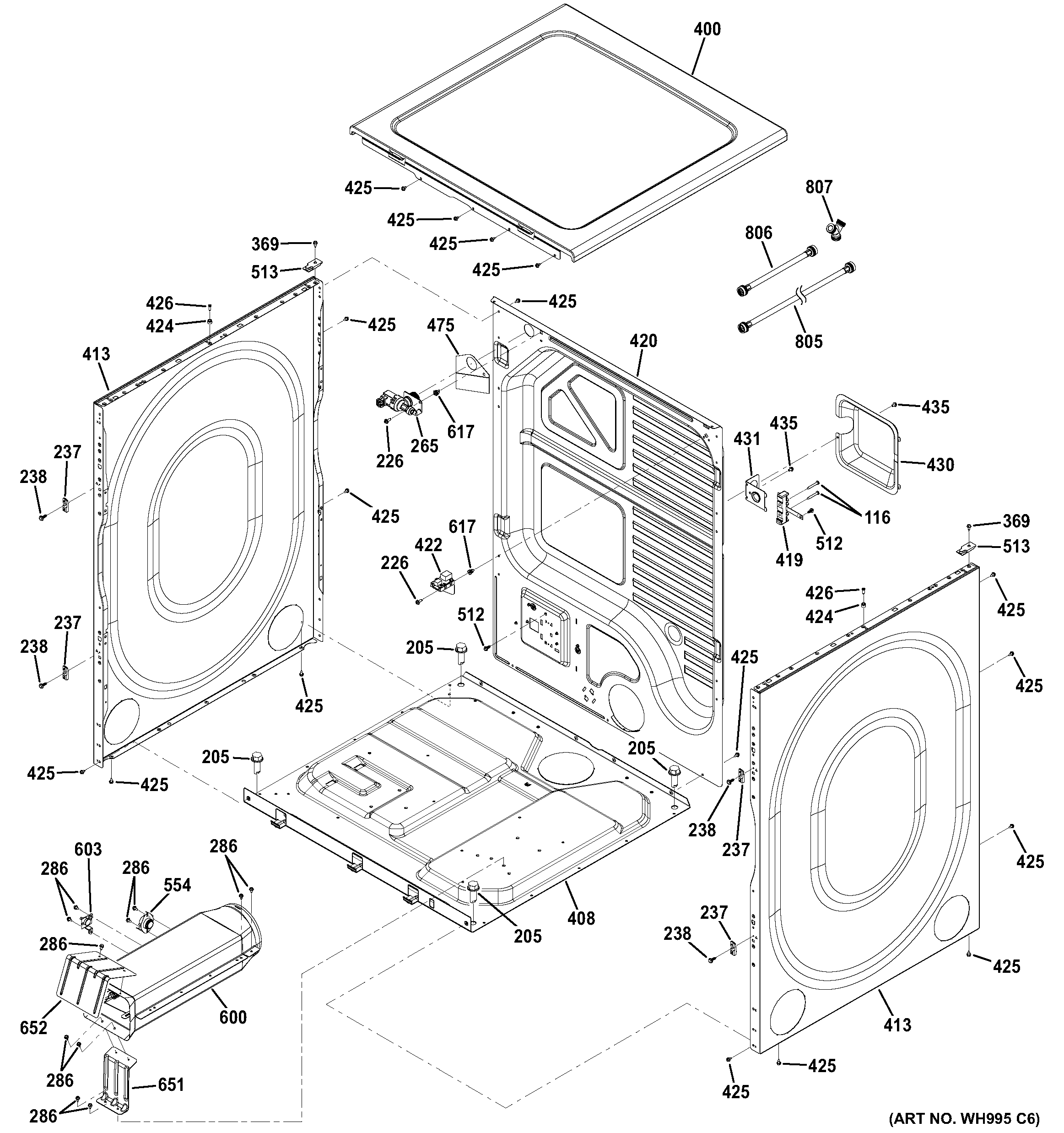

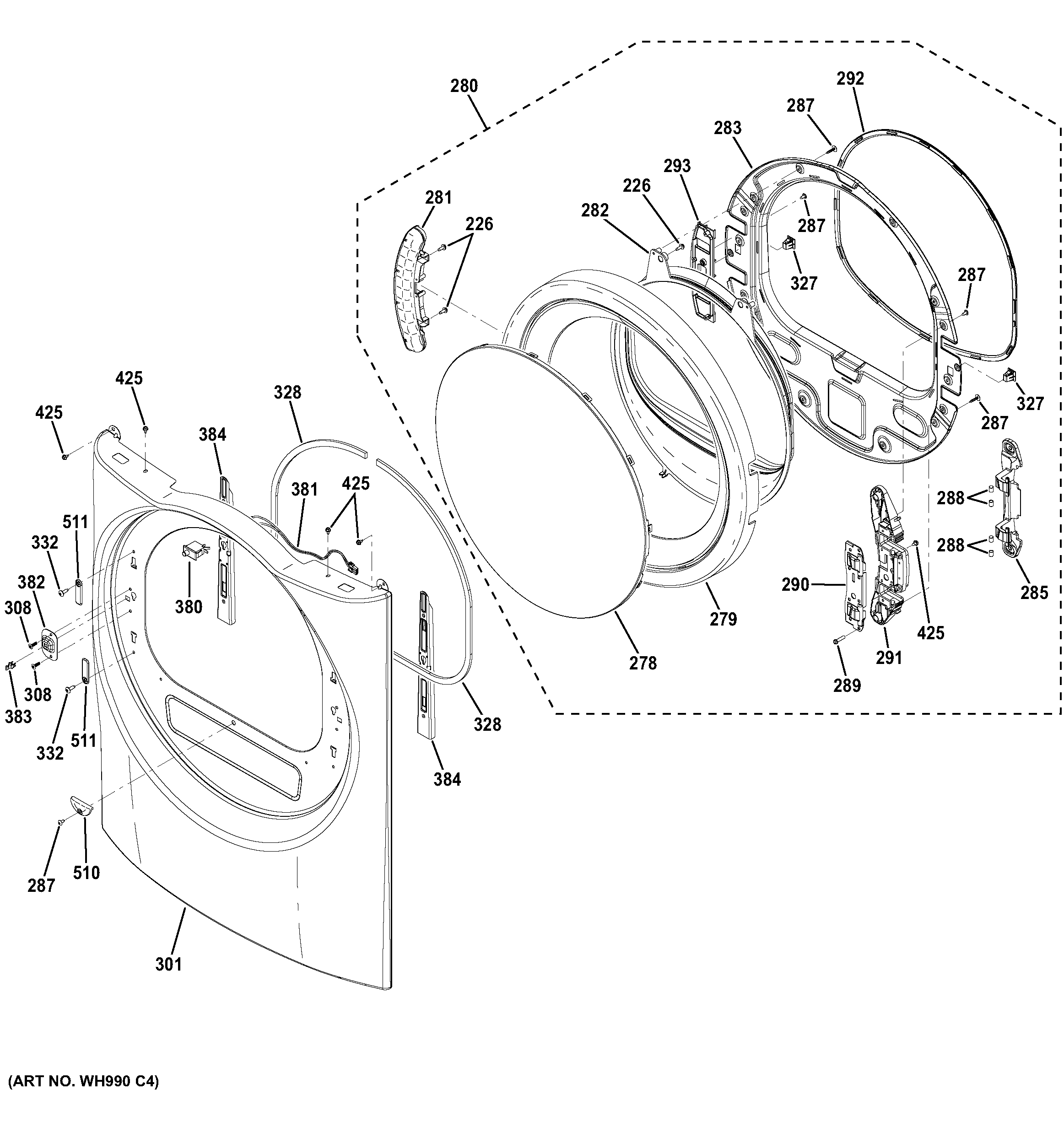

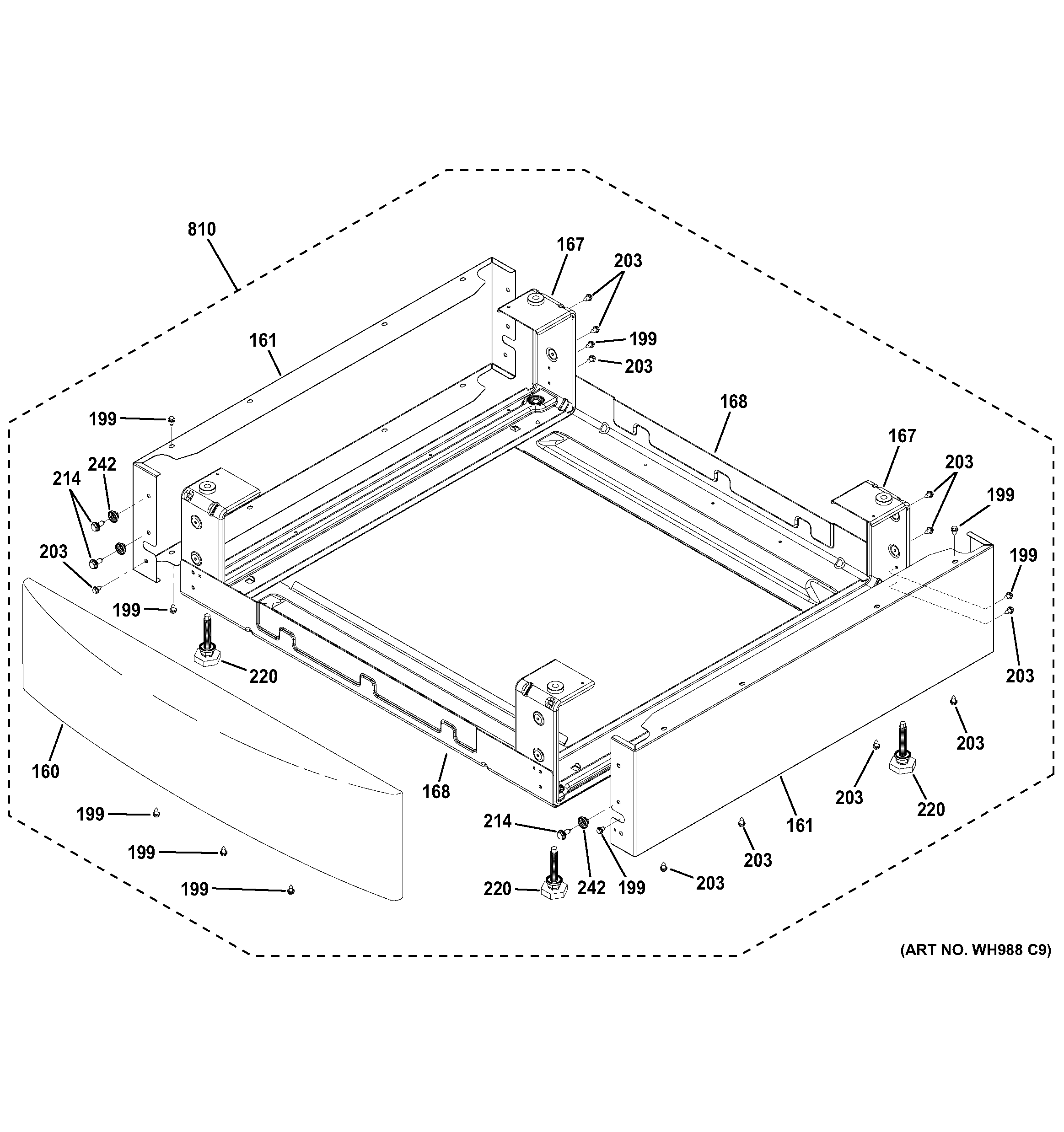

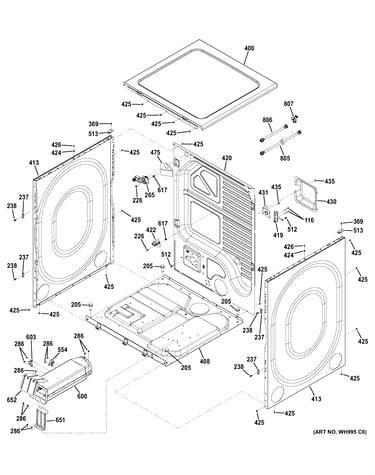

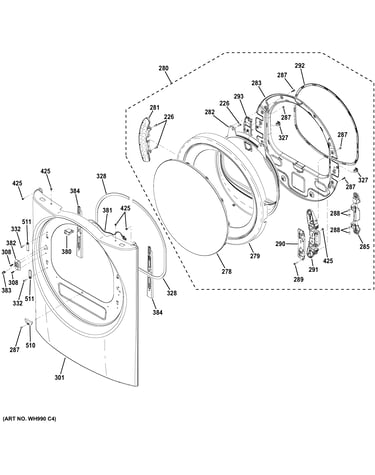

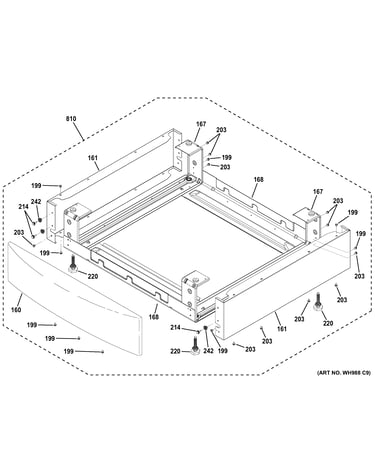

SELECT DIAGRAM
Browse Parts forGFDR275EH1MC Electric Dryer
- #275

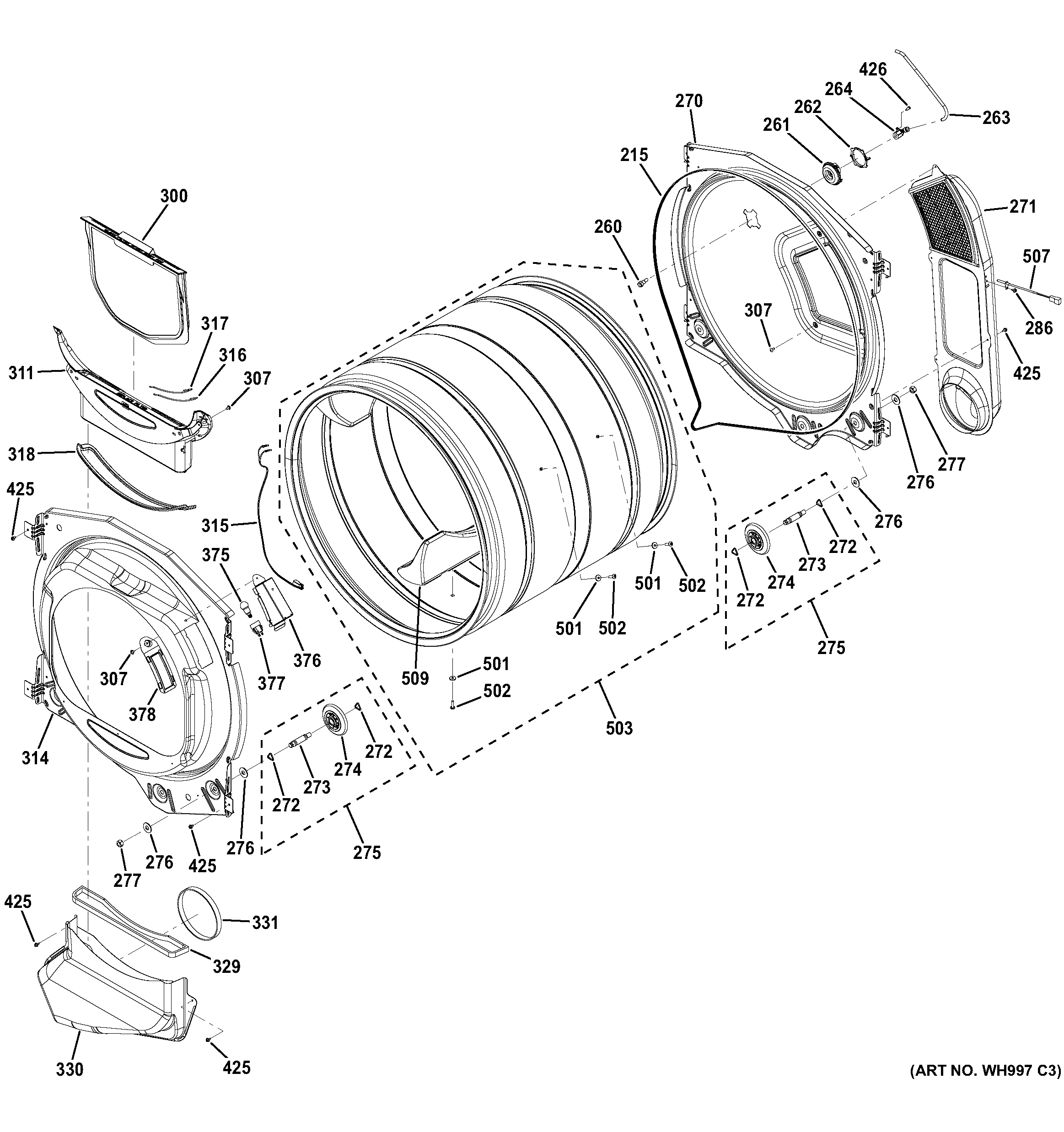

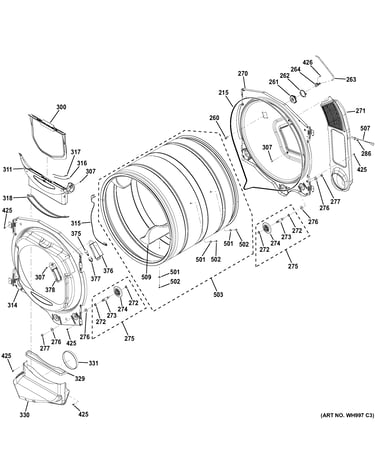

Drum diagram
Dryer drum support roller assemblyPart #WE03X10016
$32.84 |15% OFF Phone Price : $38.84In Stock - #273
Drum diagram
Roller axlePart #WE01X10385
Replaced by #WE03X10016
?Manufacturer substitutionThis part replaces WE01X10385. Substitute parts can look different from the original.$32.84 |15% OFF Phone Price : $38.84In Stock - #272
Drum diagram
Clip retainiPart #WE01X10386
Replaced by #WE03X10016
?Manufacturer substitutionThis part replaces WE01X10386. Substitute parts can look different from the original.$32.84 |15% OFF Phone Price : $38.84In Stock - #274
Drum diagram
Roller wheelPart #WE01X10384
Replaced by #WE03X10016
?Manufacturer substitutionThis part replaces WE01X10384. Substitute parts can look different from the original.$32.84 |15% OFF Phone Price : $38.84In Stock - #23

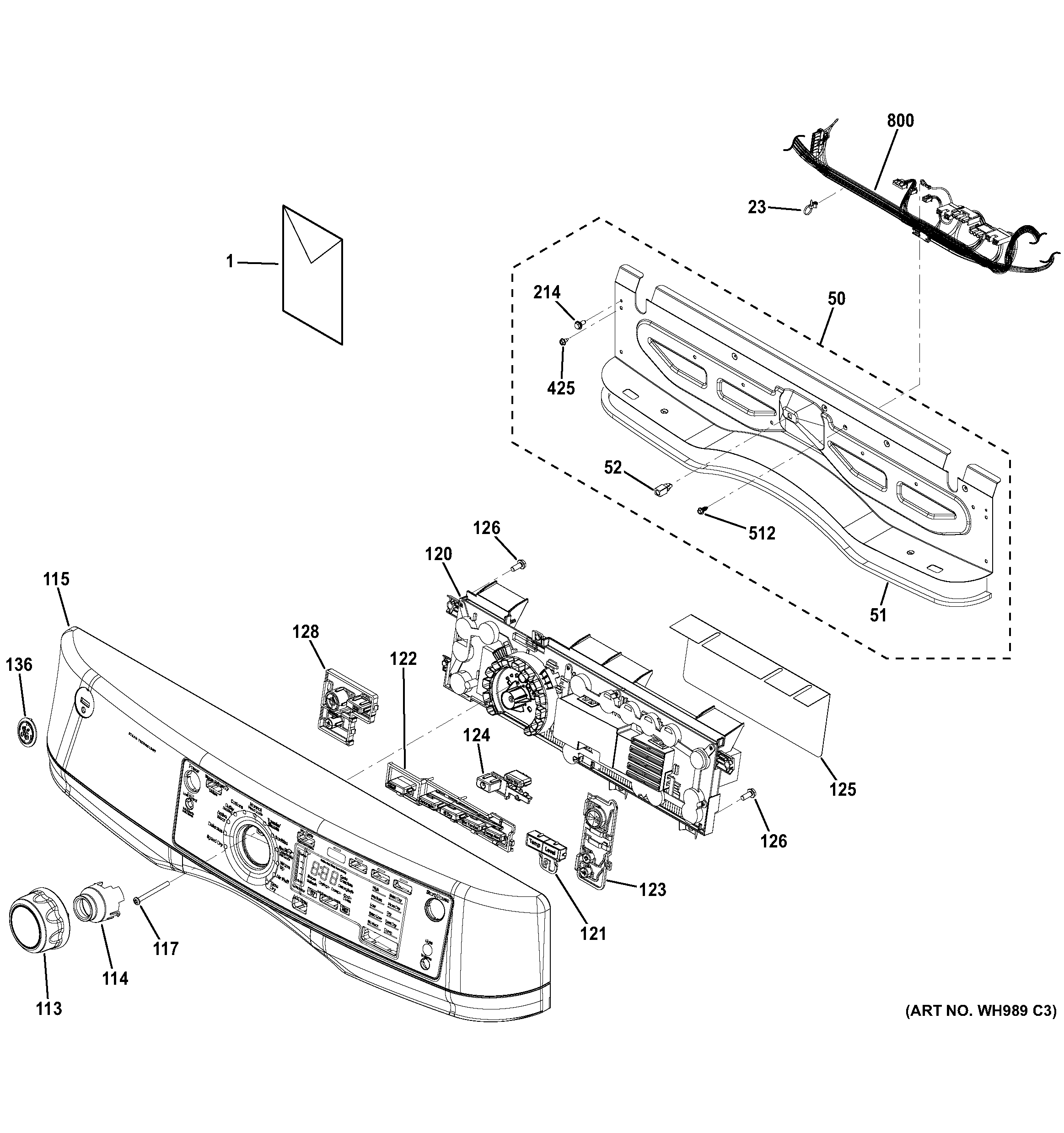

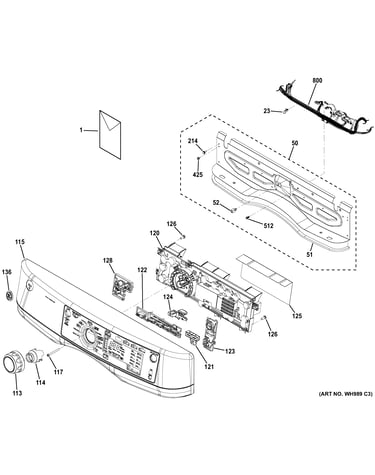

Control panel diagram
Wire tiePart #WH01X10704
$41.92In Stock - #311
Drum diagram
Dryer lint screen housingPart #WE18X10021
$94.97 |6% OFF Phone Price : $100.97In Stock - #507
Drum diagram
Thermistor ice controlPart #WE04X20252
$24.93 |19% OFF Phone Price : $30.93In Stock - #113
Control panel diagram
Dryer control knobPart #WH01X10748
$23.20 |21% OFF Phone Price : $29.20In Stock - #503
Drum diagram
Dryer drum assemblyPart #WE21X10026
This item is not returnable$432.14 |$12.00 OFF Phone Price : $444.14In Stock - #240

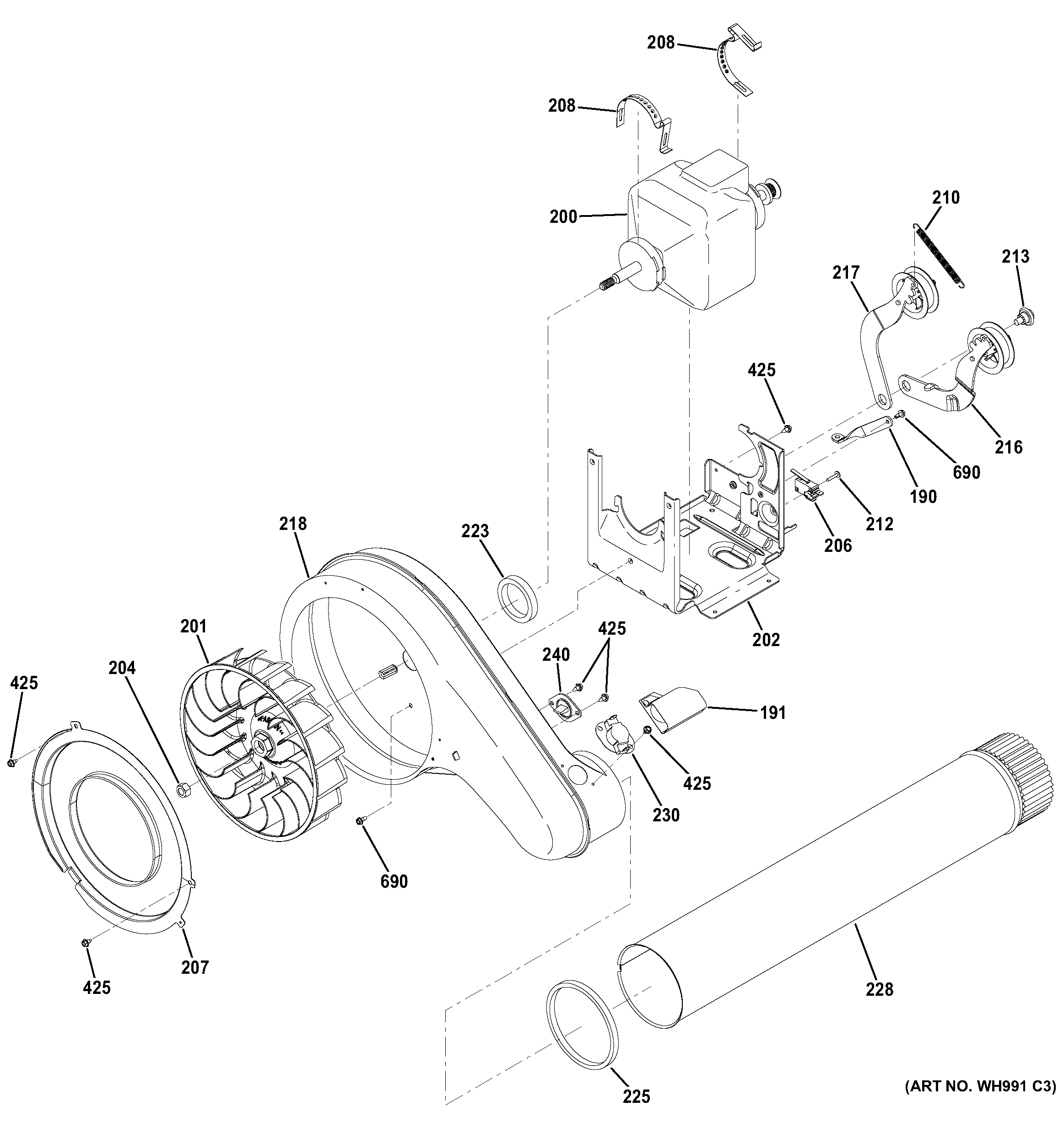

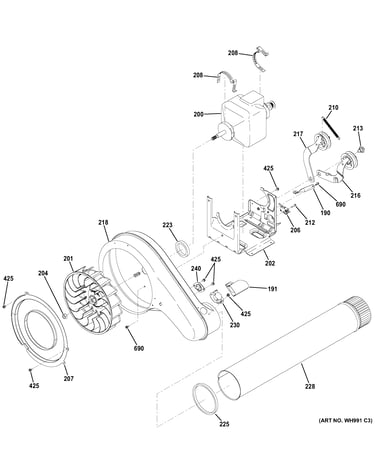

Blower & motor diagram
O thermistorPart #WE04X10179
Replaced by #WE04X22054
?Manufacturer substitutionThis part replaces WE04X10179. Substitute parts can look different from the original.This item is not returnable$14.70 |12% OFF Phone Price : $16.70In Stock
