Model # TBT18NABSRWW Official GE refrigerator - b series
Here are the diagrams and repair parts for Official GE TBT18NABSRWW refrigerator - b series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forTBT18NABSRWW Refrigerators
- #740

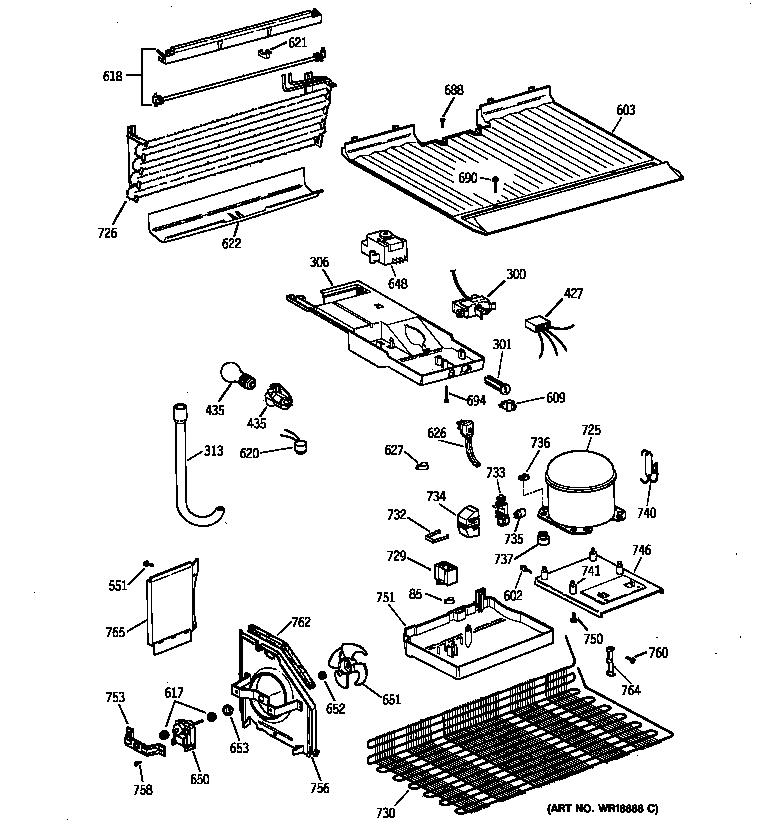

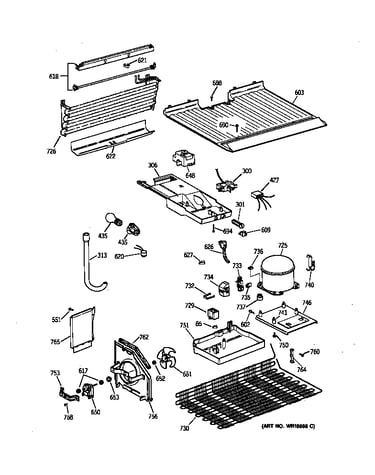

Unit parts diagram
Refrigerator filter dryerPart #WR86X96
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X96. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - #435A
Unit parts diagram
40a15/22Part #STD372402
Replaced by #40A15
?Manufacturer substitutionThis part replaces STD372402. Substitute parts can look different from the original.$13.61 |15% OFF Phone Price : $16.03In Stock - #281

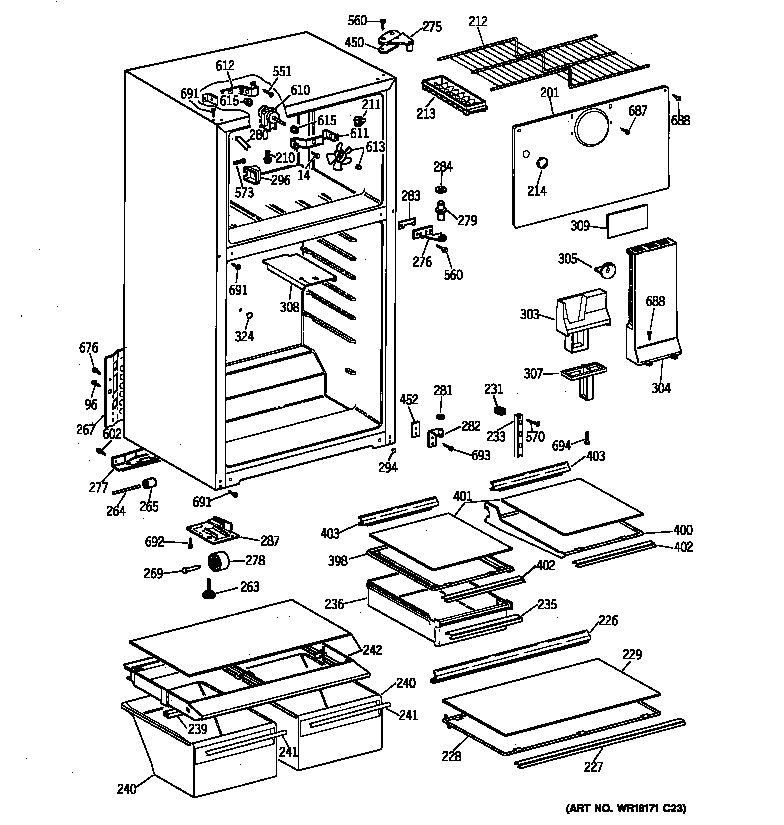

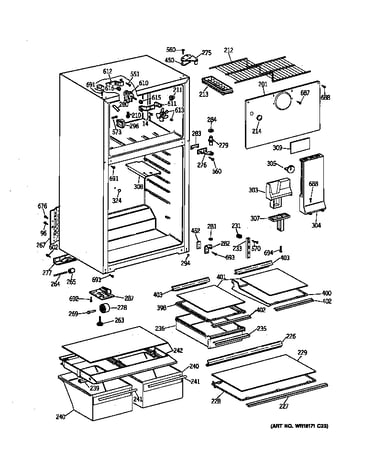

Cabinet diagram
Hi washerPart #WR1X10146
Replaced by #WR01X27364
?Manufacturer substitutionThis part replaces WR1X10146. Substitute parts can look different from the original.This item is not returnable$7.40 |12% OFF Phone Price : $8.40In Stock - #648
Unit parts diagram
Refrigerator defrost controlPart #WR9X503
Replaced by #WR9X502
?Manufacturer substitutionThis part replaces WR9X503. Substitute parts can look different from the original.$79.45 |7% OFF Phone Price : $85.45In Stock - #617
Unit parts diagram
GrommetPart #WR2X10098
Replaced by #WR02X10098
?Manufacturer substitutionThis part replaces WR2X10098. Substitute parts can look different from the original.This item is not returnable$8.83 |10% OFF Phone Price : $9.83In Stock - #23

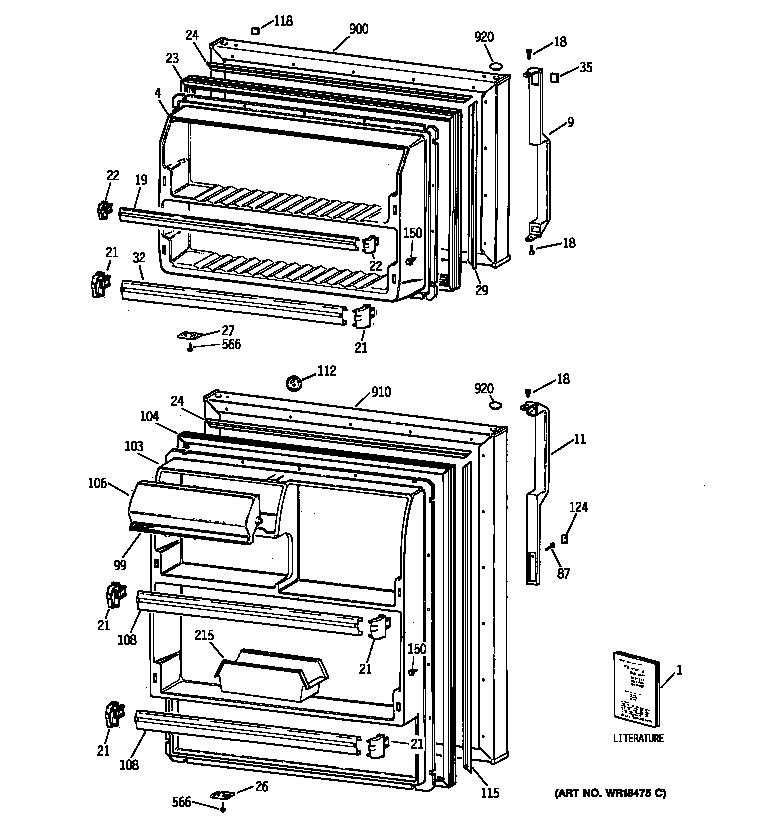

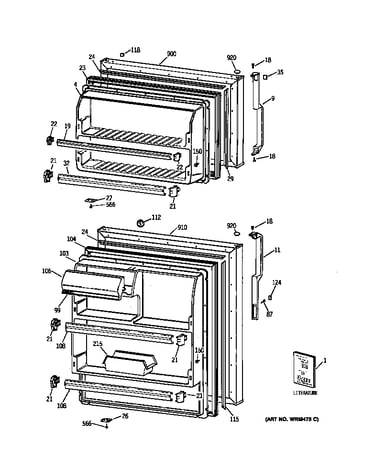

Doors diagram
Refrigerator freezer door gasket (white)Part #WR24X524
Replaced by #WR24X10228
?Manufacturer substitutionThis part replaces WR24X524. Substitute parts can look different from the original.$62.04 |6% OFF Phone Price : $66.23In Stock - #650
Unit parts diagram
Motor condPart #WR60X10028
Replaced by #WR60X10168
?Manufacturer substitutionThis part replaces WR60X10028. Substitute parts can look different from the original.$49.39 |11% OFF Phone Price : $55.39In Stock - #106
Doors diagram
Refrigerator dairy doorPart #WR22X503
Replaced by #WR22X10068
?Manufacturer substitutionThis part replaces WR22X503. Substitute parts can look different from the original.This item is not returnable$29.05 |17% OFF Phone Price : $35.05In Stock - #108
Doors diagram
Refrigerator door shelfPart #WR17X3985
Replaced by #WR17X3880
?Manufacturer substitutionThis part replaces WR17X3985. Substitute parts can look different from the original.$29.31 |17% OFF Phone Price : $35.31In Stock - #21
Doors diagram
Refrigerator freezer door shelf railPart #WR2X8345
This item is not returnable$30.82 |16% OFF Phone Price : $36.82In Stock
