Room Air Conditioner

Model # AHM12AWW1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AHM12AWW1 room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forAHM12AWW1 Room Air Conditioner

  • Room Air Conditioner Installation Kit WJ43X22154
    #35

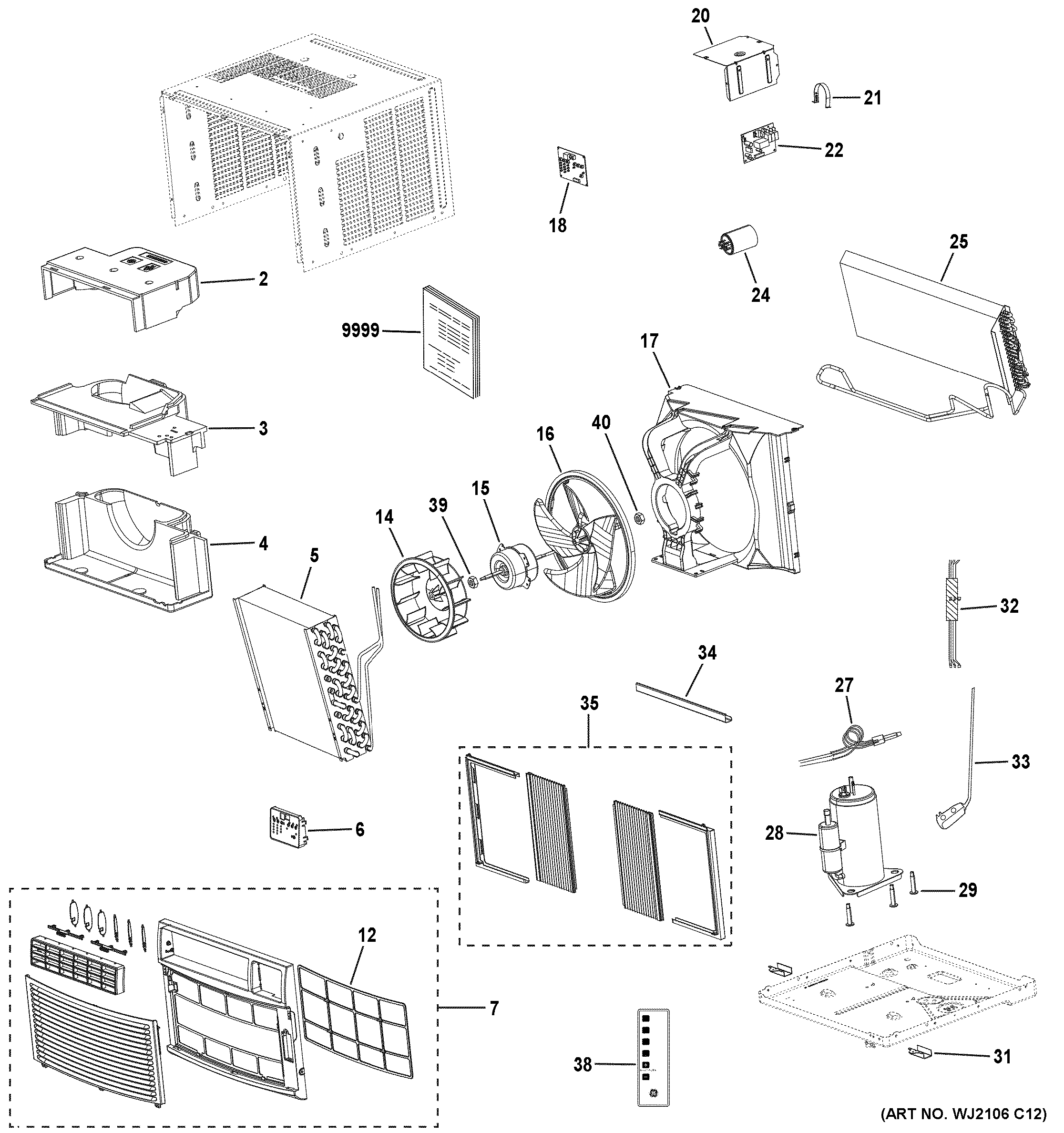

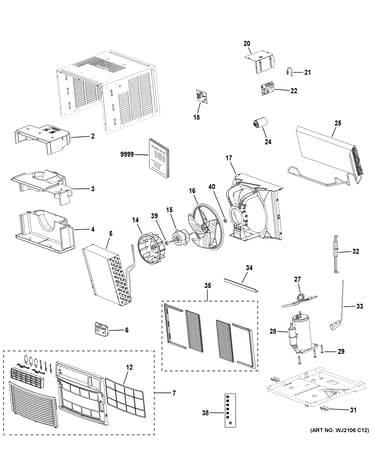

    Room air conditioner diagram

    Room air conditioner installation kit

    Part #WJ43X22154

    $34.45 |
    15% OFF Phone Price : $40.45
    In Stock
  • Front Panel Assemble WJ71X22149
    #7

    Room air conditioner diagram

    Front panel assemble

    Part #WJ71X22149

    $36.58
    In Stock
  • Outdoor Fan Nut WJ01X24629
    #40

    Room air conditioner diagram

    Outdoor fan nut

    Part #WJ01X24629

    $7.75 |
    11% OFF Phone Price : $8.75
    In Stock
  • Bolt WJ01X22158
    #29

    Room air conditioner diagram

    Bolt

    Part #WJ01X22158

    This item is not returnable
    $7.14 |
    12% OFF Phone Price : $8.14
    In Stock
  • Wire Harness WJ36X20102
    #32

    Room air conditioner diagram

    Wire harness

    Part #WJ36X20102

    $18.34
    In Stock
  • Control Panel WJ71X22144
    #6

    Room air conditioner diagram

    Control panel

    Part #WJ71X22144

    $11.06 |
    15% OFF Phone Price : $13.06
    In Stock
  • Capacitor Clamp WJ03X10093
    #21

    Room air conditioner diagram

    Capacitor clamp

    Part #WJ03X10093

    $13.03
    In Stock
  • Top Rail WJ65X22109
    #34

    Room air conditioner diagram

    Top rail

    Part #WJ65X22109

    $19.71
    In Stock
  • Main Board WJ26X22163
    #22

    Room air conditioner diagram

    Main board

    Part #WJ26X22163

    $44.12 |
    12% OFF Phone Price : $50.12
    In Stock
  • Indoor Fan Shroud, Middle WJ76X22152
    #3

    Room air conditioner diagram

    Indoor fan shroud, middle

    Part #WJ76X22152

    $29.56
    In Stock
