Maytag
Gas Range

Model # GM3111GXAW Official Maytag gas freestanding range

Here are the diagrams and repair parts for Official Maytag GM3111GXAW gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

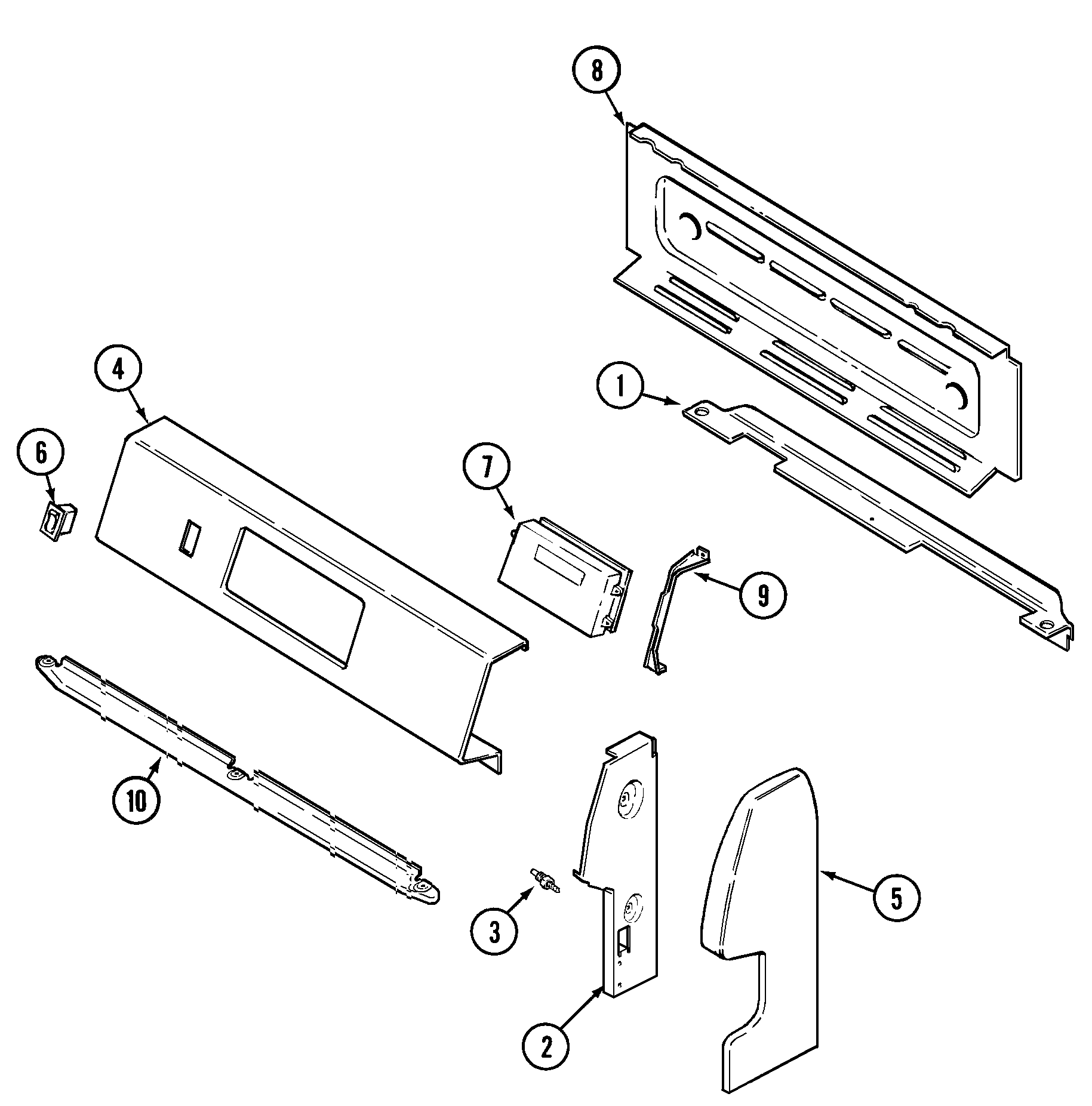

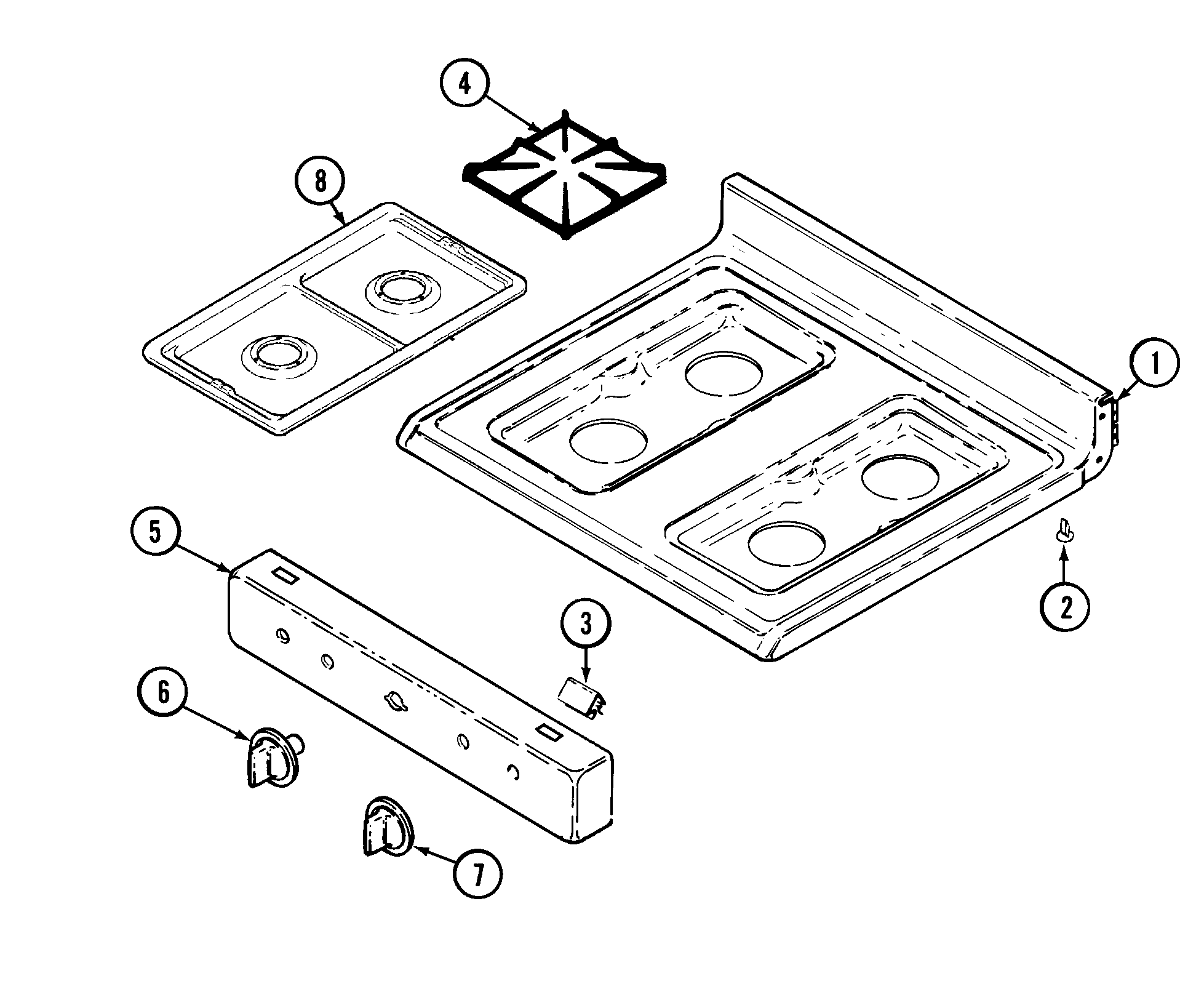

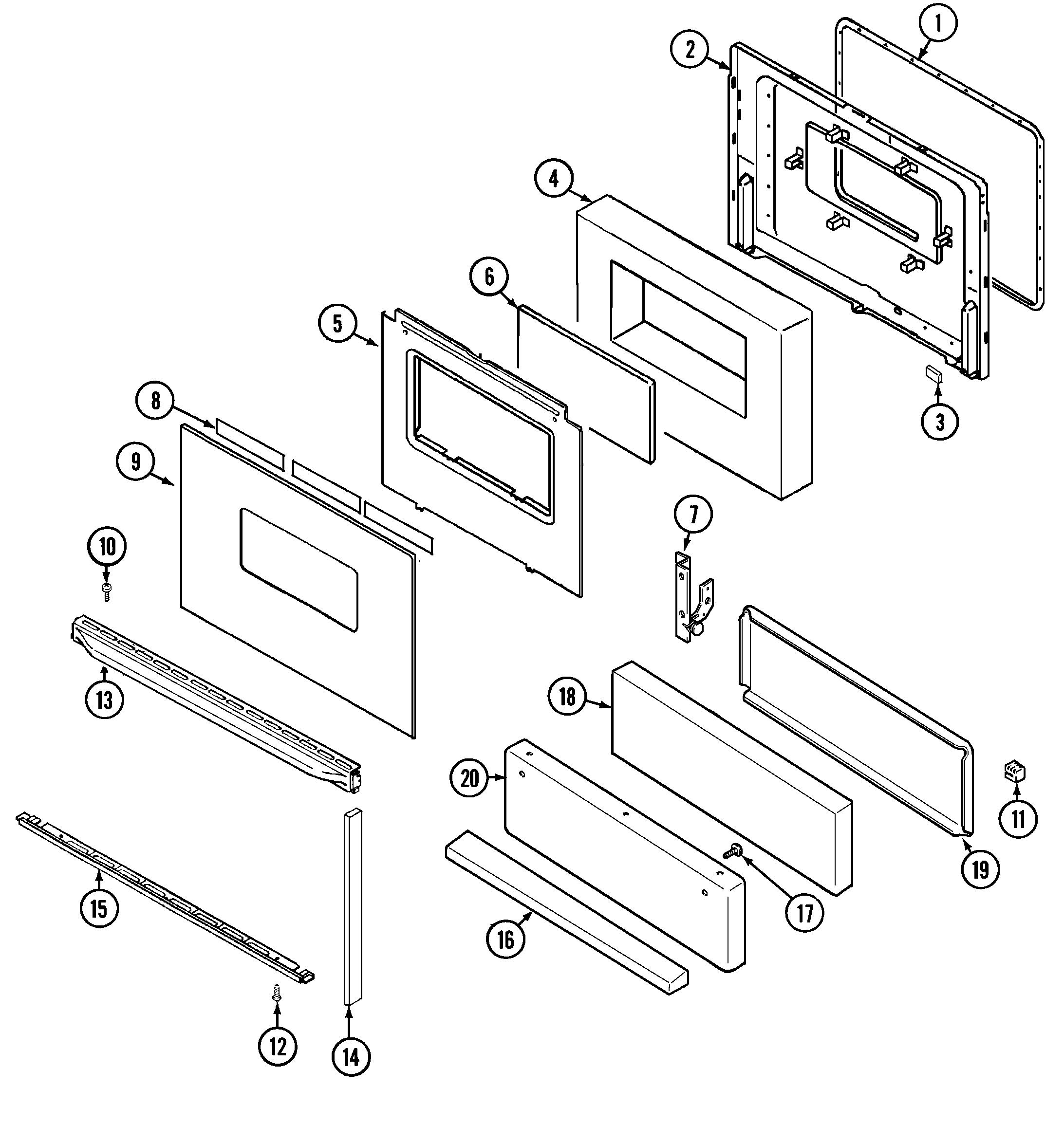

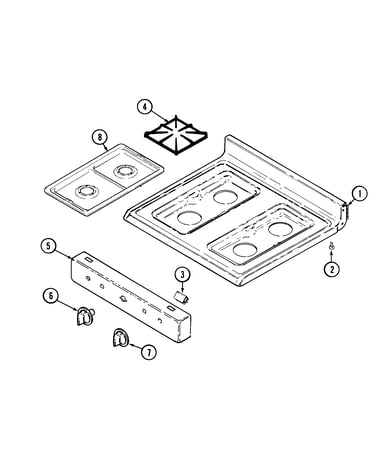

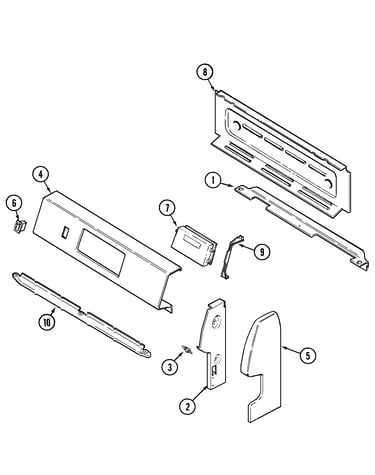

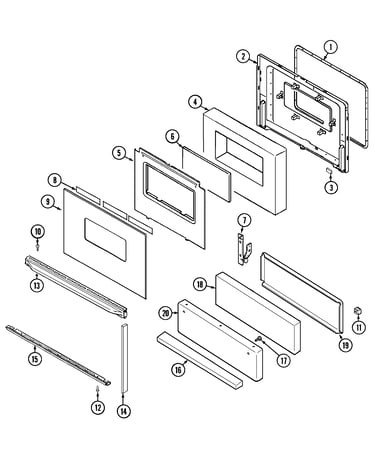

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Igniter 7432P075-60
#14

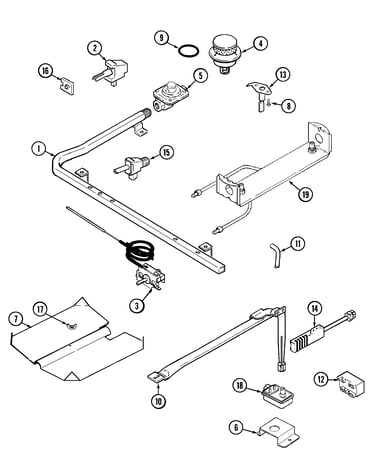

Gas controls diagram

Igniter

Part #7432P075-60

Replaced by #74007498

?
Manufacturer substitution
This part replaces 7432P075-60. Substitute parts can look different from the original.
BEST SELLER
$62.76 |
9% OFF Phone Price : $68.76
In Stock
Range Surface Burner Igniter (replaces 7432p100-60) 74004053
#13

Gas controls diagram

Range surface burner igniter (replaces 7432p100-60)

Part #74004053

BEST SELLER
$26.63 |
18% OFF Phone Price : $32.63
In Stock
Sealed Burner (black) 74003963
#4

Gas controls diagram

Sealed burner (black)

Part #74003963

Replaced by #WP3412D024-09

?
Manufacturer substitution
This part replaces 74003963. Substitute parts can look different from the original.
$58.10 |
9% OFF Phone Price : $64.10
In Stock
Screw 7101P338-60
Screw

Part #7101P338-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P313-60
#6

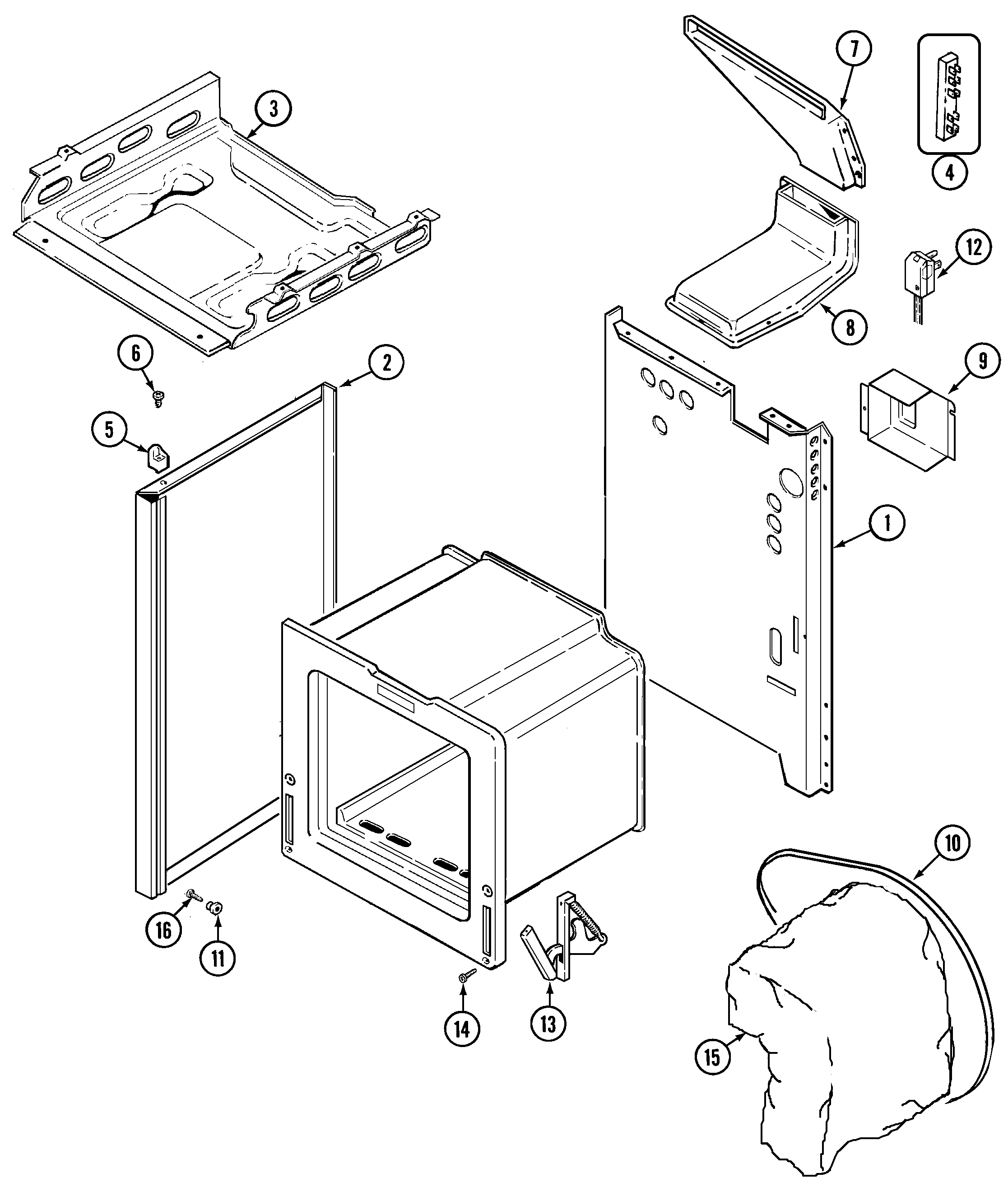

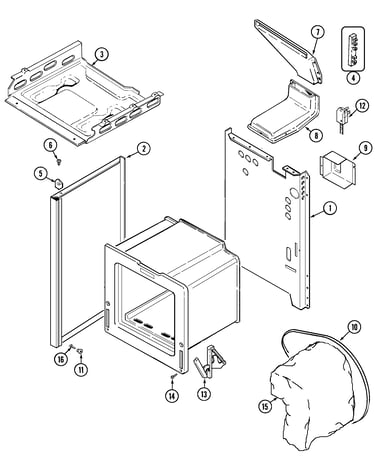

Body diagram

Screw

Part #7101P313-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P313-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P282-60
Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Oven Rack 74001757
#7

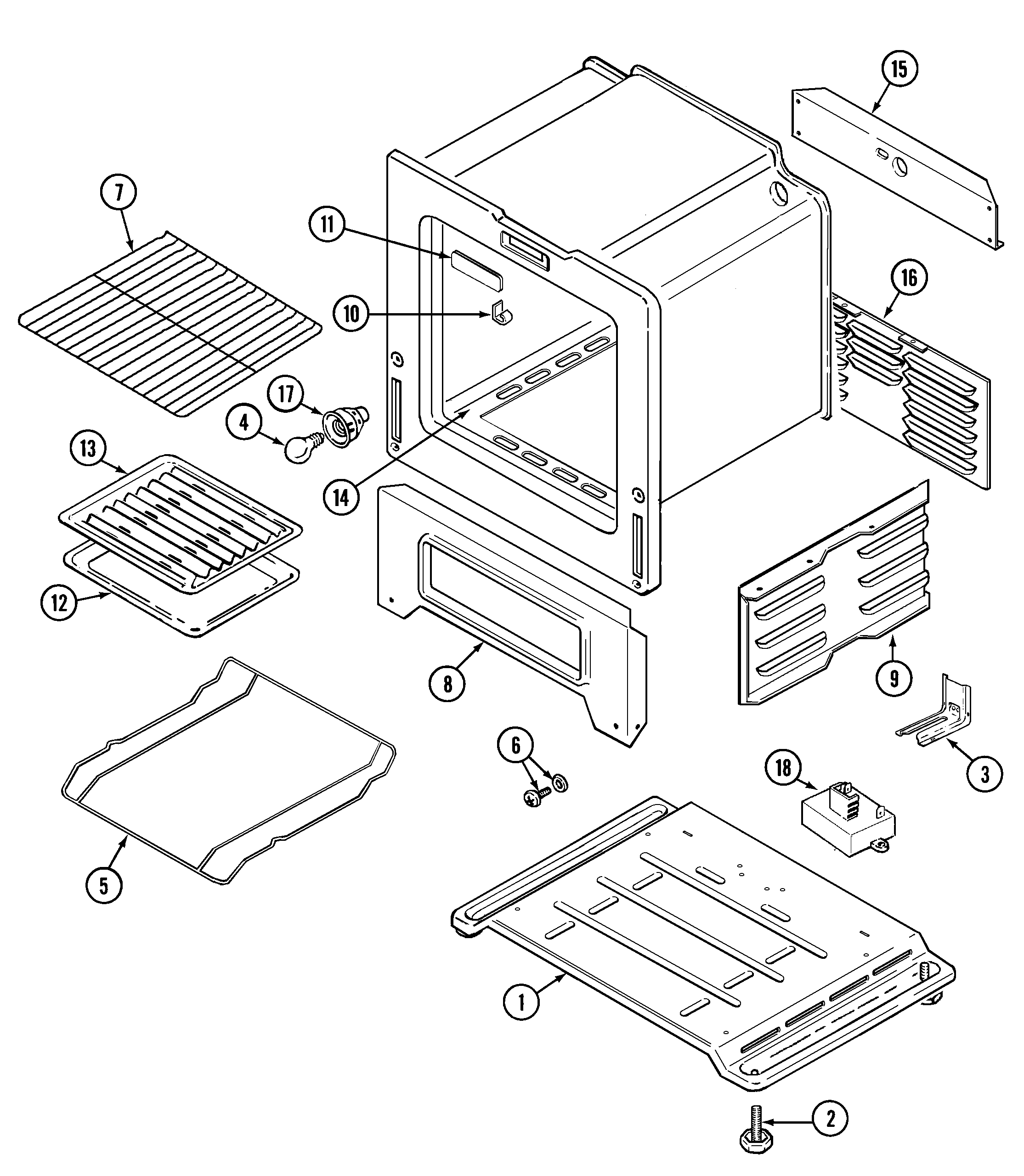

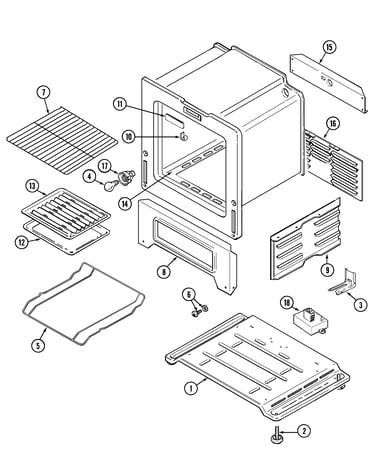

Oven/base diagram

Oven rack

Part #74001757

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 74001757. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
Igniter Switch 74002533
#16

Gas controls diagram

Igniter switch

Part #74002533

Replaced by #WP74007095

?
Manufacturer substitution
This part replaces 74002533. Substitute parts can look different from the original.
$54.22 |
10% OFF Phone Price : $60.22
In Stock
Screw 74003976
#8A

Body diagram

Screw

Part #74003976

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 74003976. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
