Magic Chef
Washer

Model # MCSTCW21W2 Official Magic Chef washer

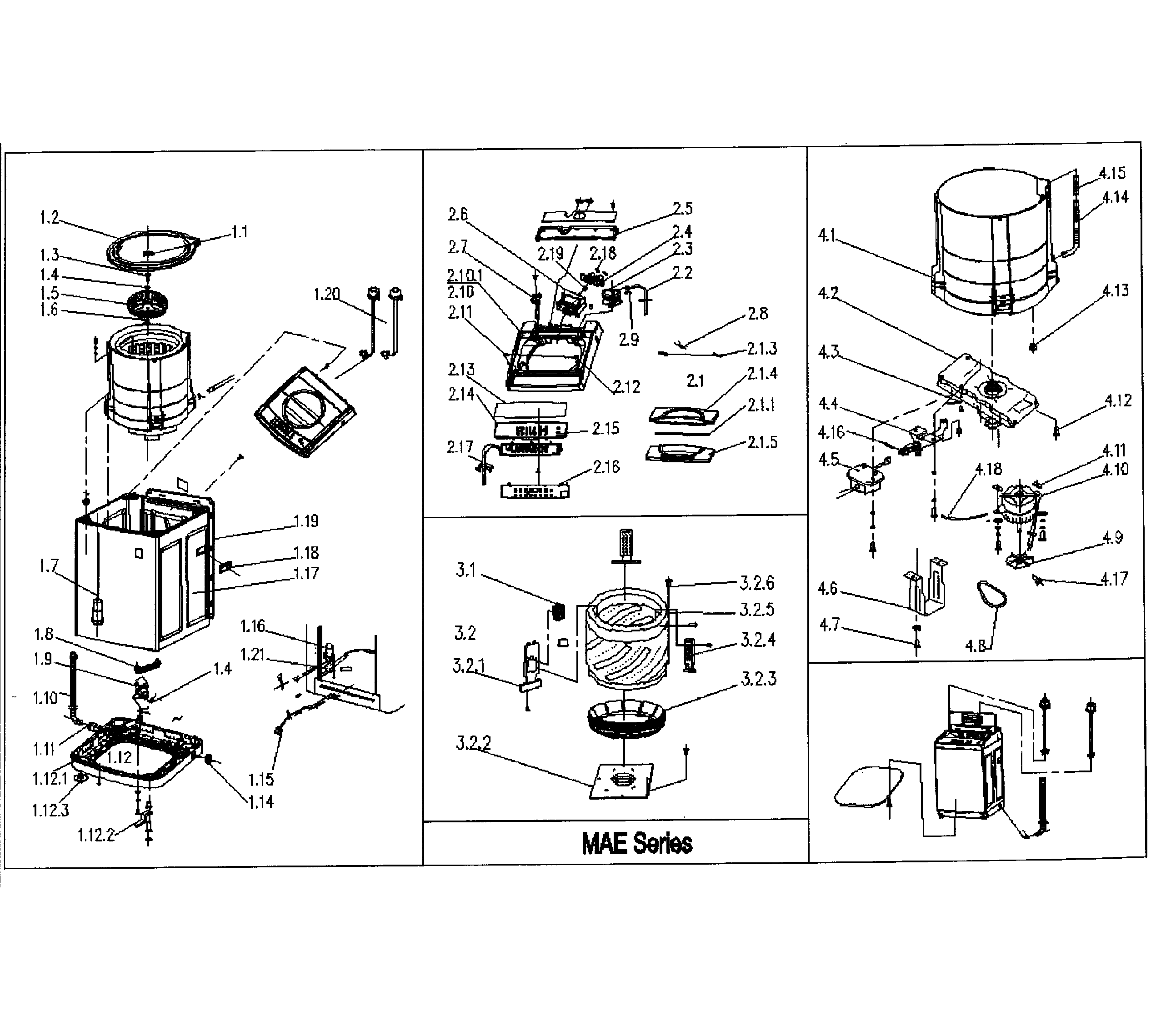

Here are the diagrams and repair parts for Official Magic Chef MCSTCW21W2 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Twist Spring 302920670003
#2.8

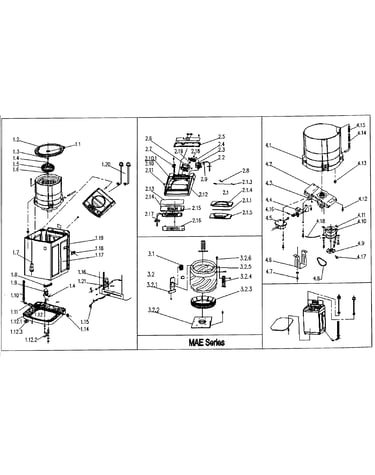

Washer diagram

Twist spring

Part #302920670003

The manufacturer no longer makes this part, and there's no substitute part

Magic Chef Motor 302420770048
#4.10

Washer diagram

Magic chef motor

Part #302420770048

The manufacturer no longer makes this part, and there's no substitute part

Midea Tub Cover 301115400464
#1.2

Washer diagram

Midea tub cover

Part #301115400464

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 302401000033
#1.15

Washer diagram

Power cord

Part #302401000033

The manufacturer no longer makes this part, and there's no substitute part

Level Sensor 302411600008
#2.3

Washer diagram

Level sensor

Part #302411600008

The manufacturer no longer makes this part, and there's no substitute part

Drain Valve Kit 301611100021
#4.4

Washer diagram

Drain valve kit

Part #301611100021

The manufacturer no longer makes this part, and there's no substitute part

Magic Chef Inlet Seal 301114800603
#2.19

Washer diagram

Magic chef inlet seal

Part #301114800603

The manufacturer no longer makes this part, and there's no substitute part

Midea Washer Control Panel 301120670395
#2.14

Washer diagram

Midea washer control panel

Part #301120670395

The manufacturer no longer makes this part, and there's no substitute part

Midea Washer Cover 301120770301
#2.1

Washer diagram

Midea washer cover

Part #301120770301

The manufacturer no longer makes this part, and there's no substitute part

Mtr Retrct 302420770049
#4.5

Washer diagram

Mtr retrct

Part #302420770049

The manufacturer no longer makes this part, and there's no substitute part
